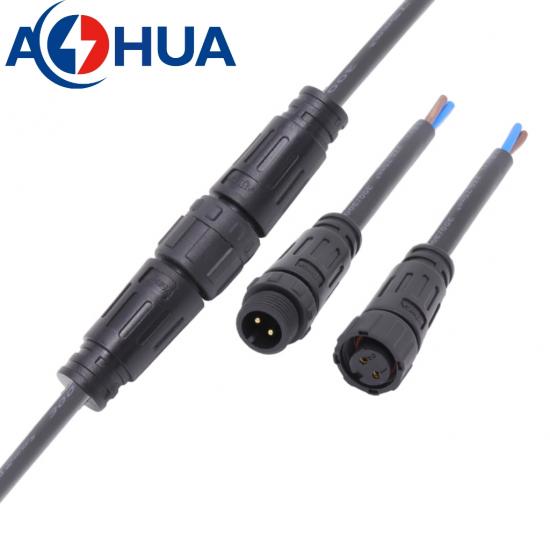

M12 3 Pin Female to Male IP67 Molded Waterproof Cable Connector For Lighting

M12 3 Pin Over mold Connector

Item NO.:
M12
Lead Time:
a week
Product Orgin:
China
Shipping Port:
shenzhen,china
Payment:
TT,PAYPAL
Color:
black;white

Inquiry now

products Details

Name: Dorris

Email: dorris@aohuadz.com

Wechat: 18132983769

WhatsApp: +86 18132983769

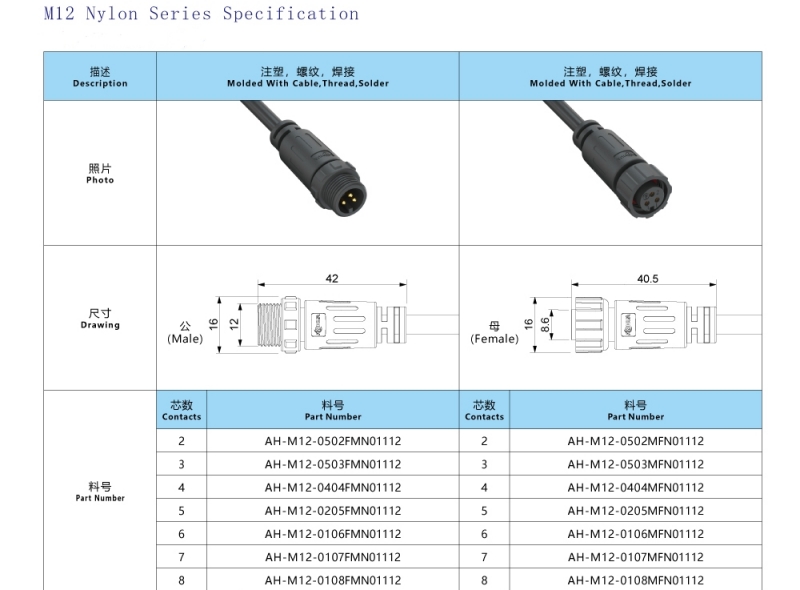

Pins	Part Number	Voltage Rating	Current Rating	Wire Gauge
2	AH-M12-0502FMN/MFN01112	300V	5A	≤1.0mm²
3	AH-M12-0503FMN/MFN01112	300V	5A	≤0.75mm²
4	AH-M12-0404FMN/MFN01112	110V	4A	≤0.5mm²
5	AH-M12-0205FMN/MFN01112	2A60V	2A	≤0.3mm²
6	AH-M12-0106FMN/MFN01112	60V	1A	≤0.2mm²
7	AH-M12-0107FMN/MFN01112	60V	1A	≤0.2mm²
8	AH-M12-0108FMN/MFN01112	60V	1A	≤0.2mm²

Contacts	3
Mechanical Life	3000 mating cycles
Operating Rating	-40ºC-+105ºC
Waterproof Level	IP67/IP68

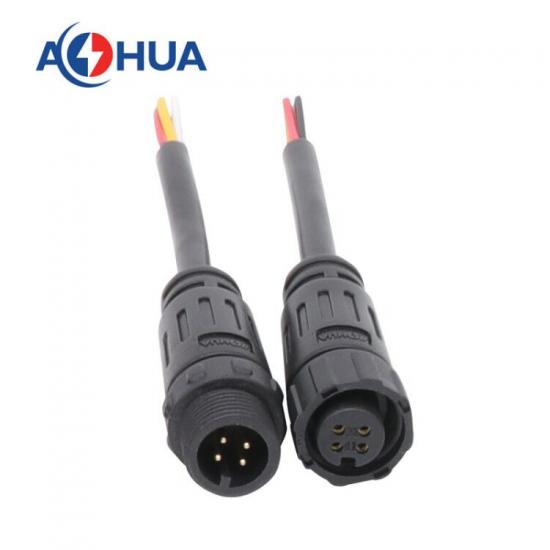

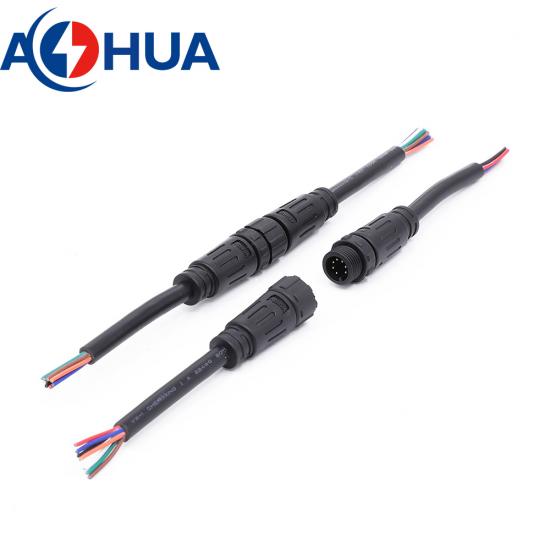

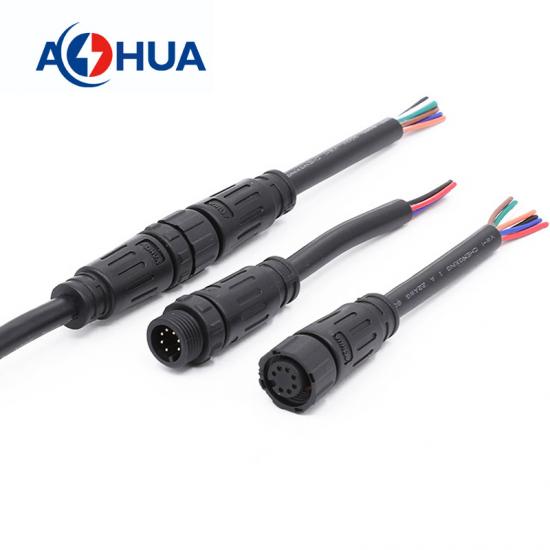

RELATED PRODUCTS

OUR ADVANTAGES

Certification:	CE IP67 ROHS certification
Packing:	4 per pack(Comes with 2 sets of different sized grommets to accommodate different size wires.)
Cable Range:	3.5-7.5mm(If you use a cable which is too thin,then the seal won't even cover IP67!!)
Waterproof rating:	IP67/IP68 adcanced waterproof connector
Rated voltage:	≤300V
Rated current:	≤5A
Working Temperature:	-40°C~+150°C
Materal:	plastic(nylon),seal ring(silicon)
Color:	Black

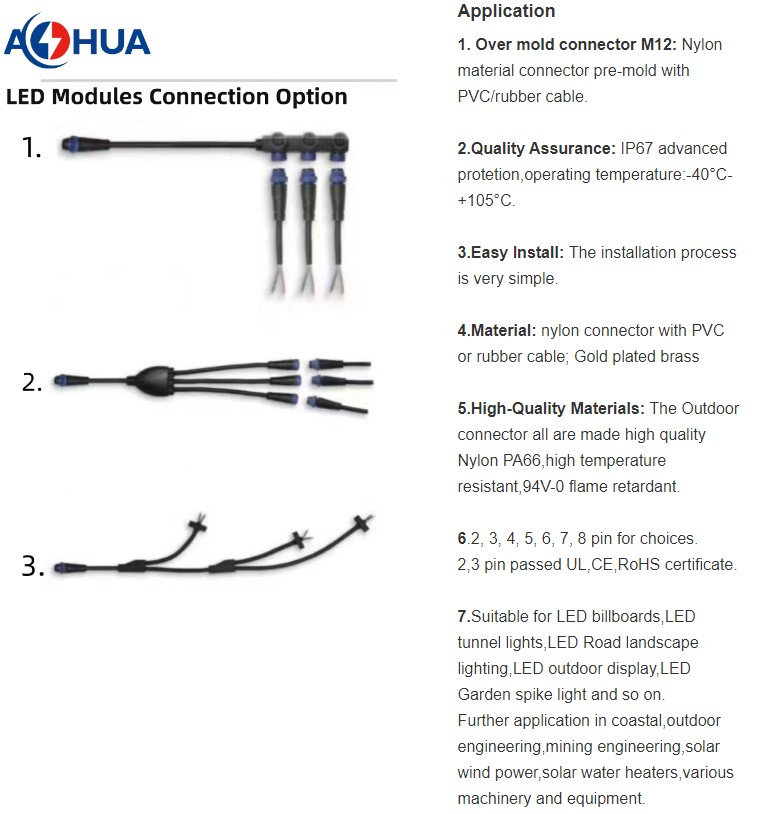

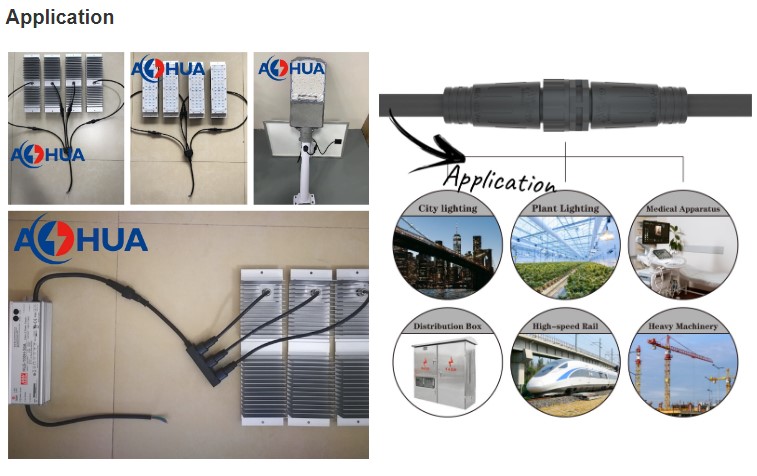

Scope of application:	connectors are suitable for quick connection of garden and outdoor dispalys,floof heating,beacons,cruise ships,LED billboards,LED tunnel lights,LED street lights,external wiring,ect.

Before get the quotation, please tell us the connection of waterproof connector.

(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 5A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.0mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...

Then AOHUA team will answer you and choose the correct waterproof connector for you within 24h.
