M16 10A Male Female 2PIN Solded Type Electrical Cable Connector

Sealed protective structure：Featuring an IP67/IP68-rated waterproof design, the product achieves complete protection against dust and water immersion through the threaded locking mechanism of the plug and socket, as well as internal silicone seals. It is suitable for use in environments such as outdoor rain, brief underwater operations and damp workshops.

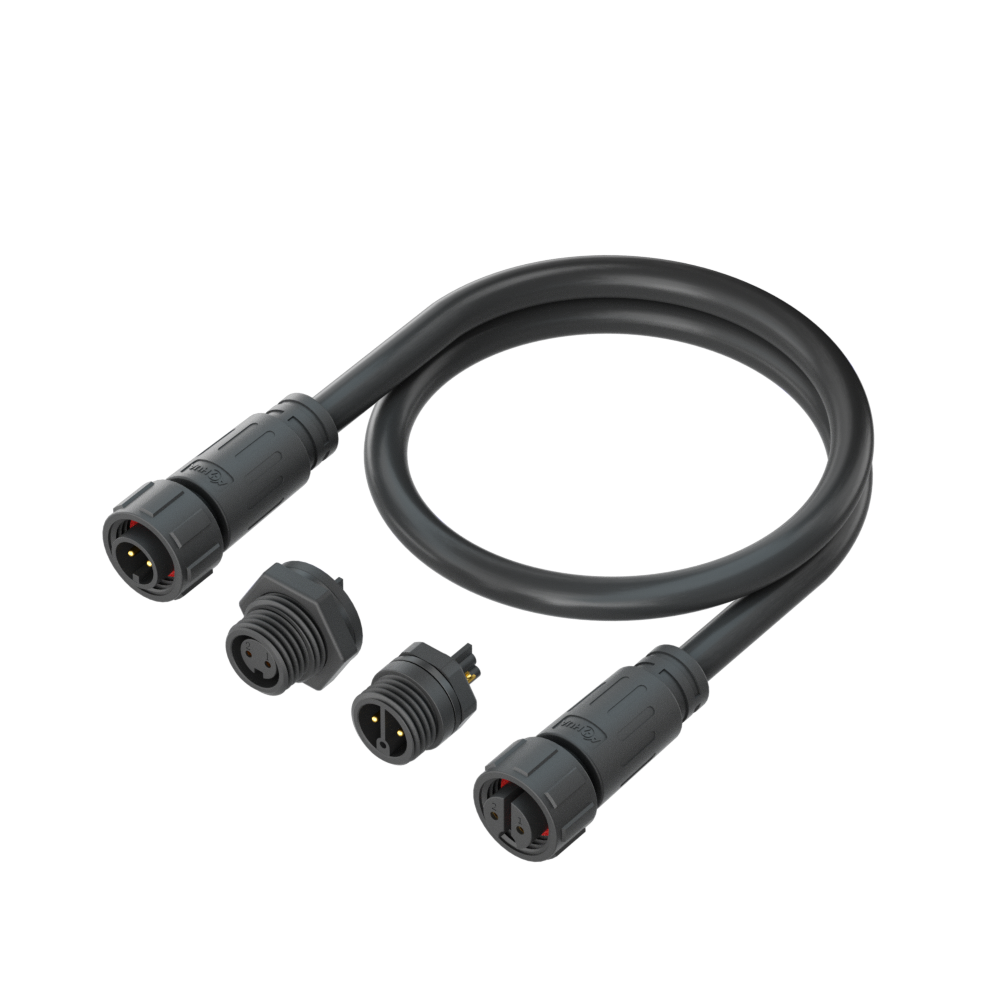

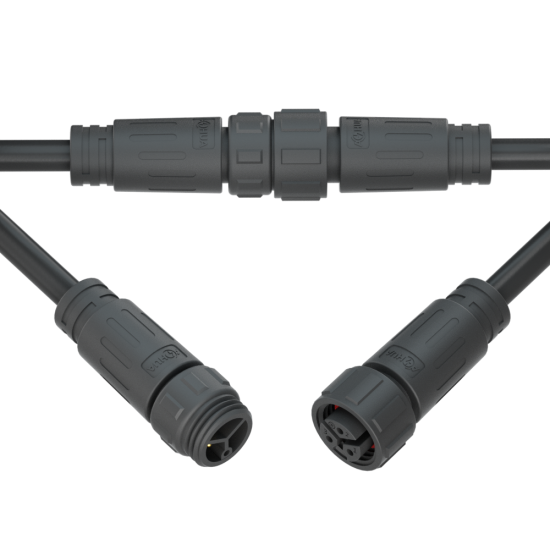

Modular design: Common multi-core specifications include 2-core, 3-core and 4-core versions; the image shows the 2-core model, which can accommodate different current and voltage requirements. The plugs and sockets feature a male-female mating design, allowing for quick connection and disconnection, with wiring that can be completed without the need for specialist tools.

• Durable materials: The housings are typically made from PA66 nylon or engineering plastics, offering impact resistance, resistance to ageing, and tolerance to high and low temperatures (–40°C to 85°C), as well as corrosion resistance, making them suitable for demanding environments such as outdoor and industrial applications; the internal pins are mostly gold-plated copper, ensuring low resistance and high conductivity whilst preventing oxidation and loose connections.
  Markings and anti-misinsertion design: Some models feature pin number markings (such as ‘1’ and ‘2’ shown in the figure) and anti-misinsertion mechanisms to prevent incorrect polarity insertion, thereby improving wiring efficiency and reliability.
•
