M16 10A Waterproof Connector for Outdoor Pressure Washer Power Supply

If you are looking for a Power Waterproof Cable, There are some type connector may be suit for you:

Current Rating: 15A

Voltage Rating: 300V

Wire Gauge: ≤1.5mm²

In our M20 series connector we have 3 type connector

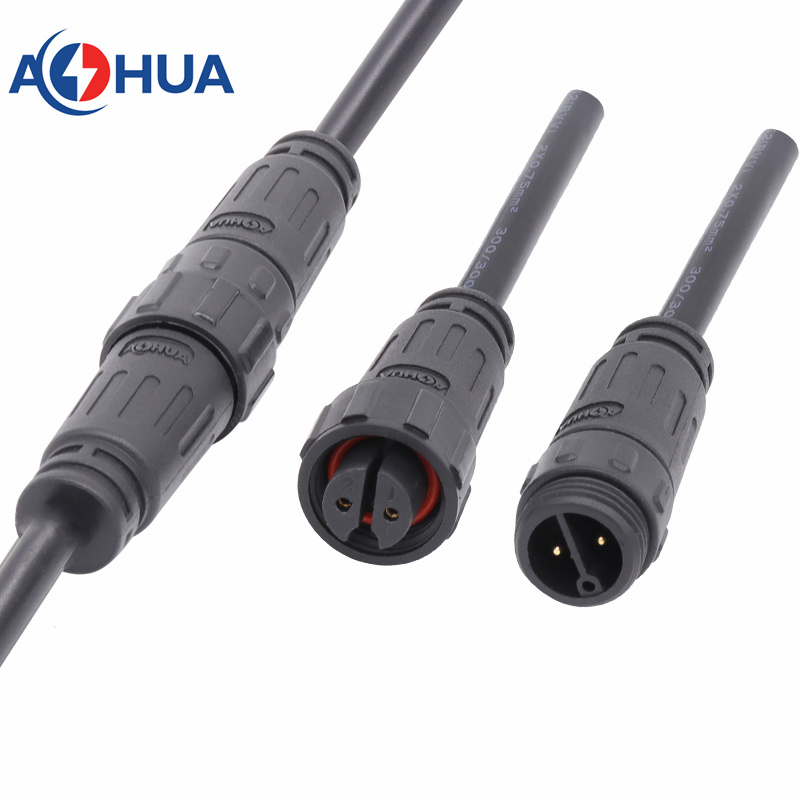

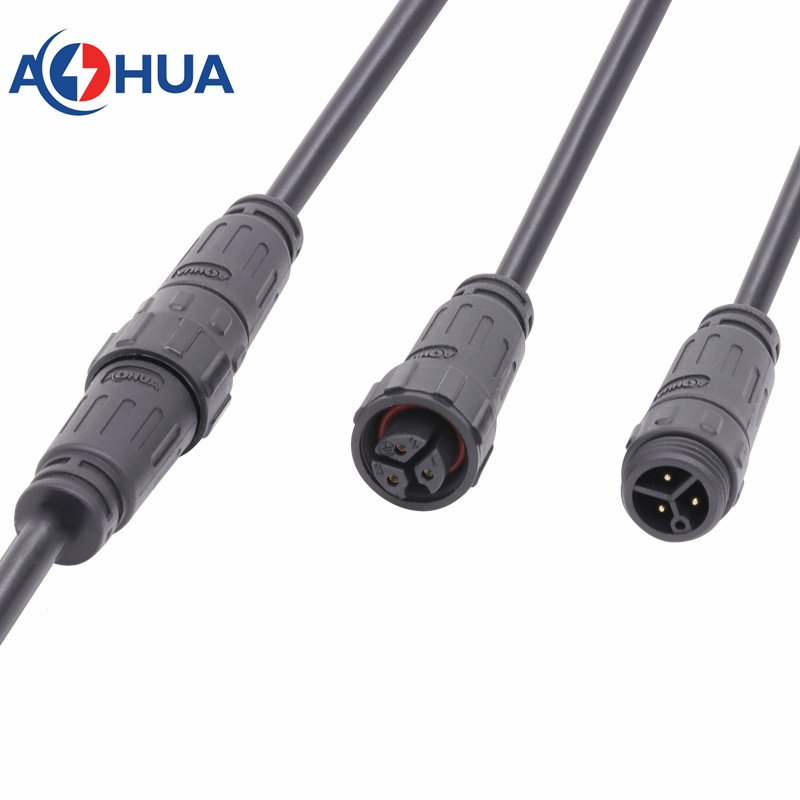

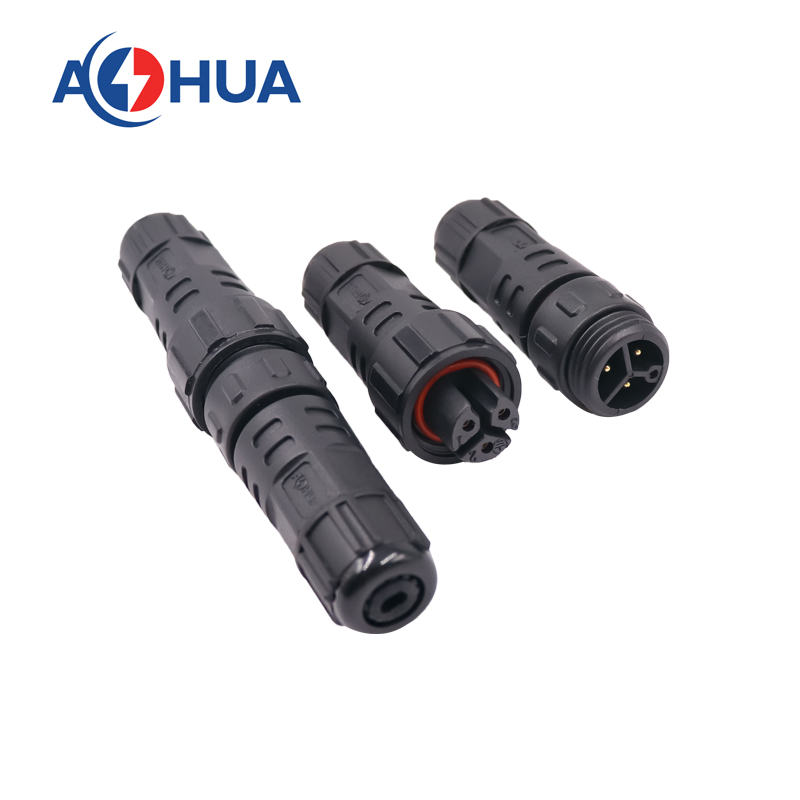

1.Plug to Plug Type

AH-M16-1002FMZ/MFZ01112        AH-M16-1003FMZ/MFZ01112

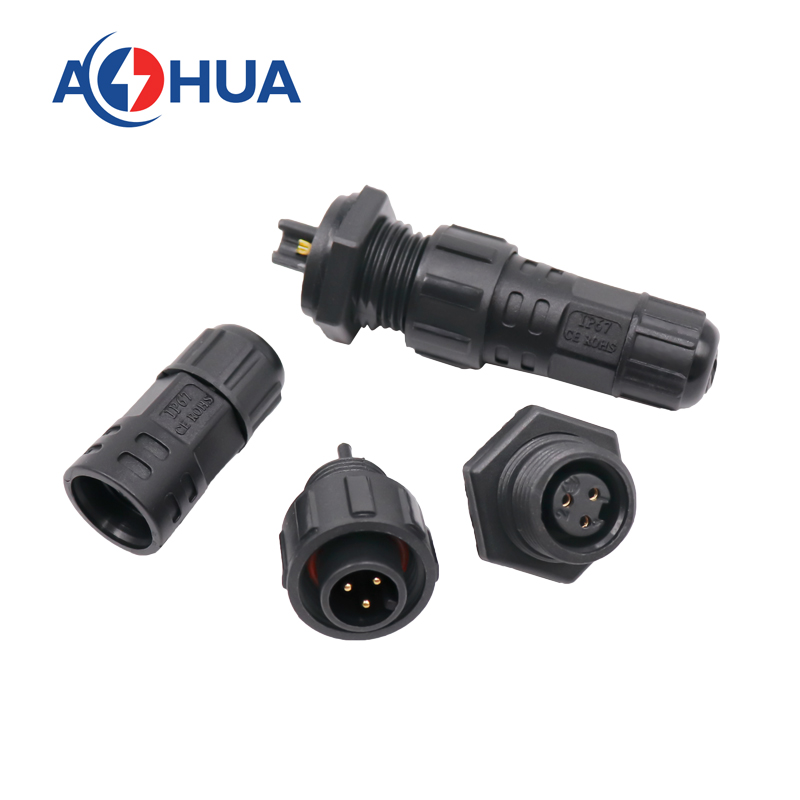

2.Plug to Panel Mount Connector

Frisr of all, in this type connector is divided into two type connector, one is front type another is rear type.

The distinction between the two lies in the hexagonal component of the screw securing the panel: when the component is at the front, it is the front panel; when the component is at the rear, it is the rear panel.

Front Type:                                  RearType:

The specific choice depends on the actual usage scenario.

 The front panel is more suitable for environments with limited space, while the rear panel is better suited for scenarios requiring enhanced security features.

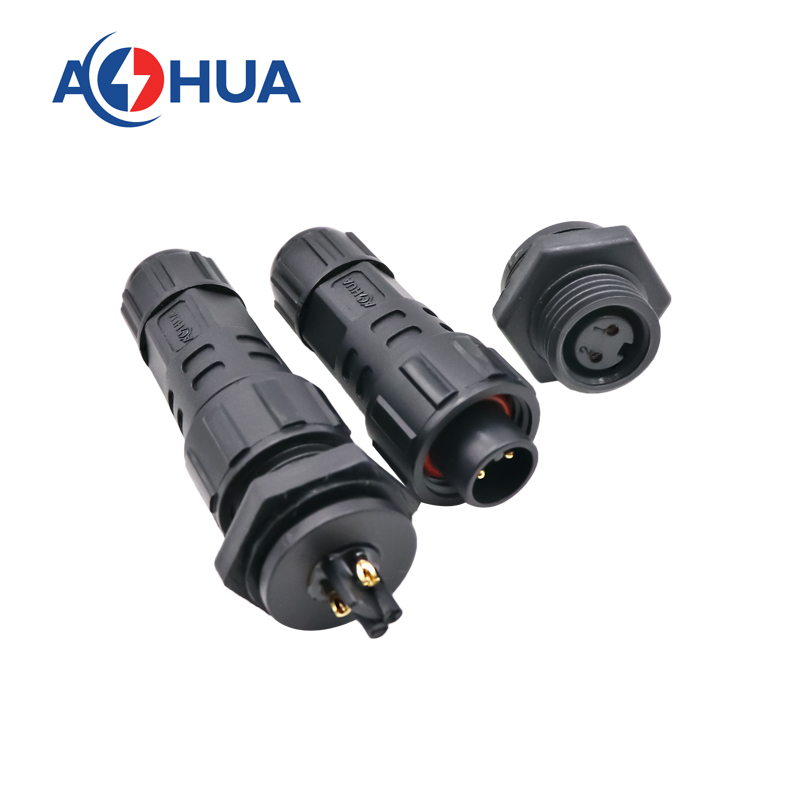

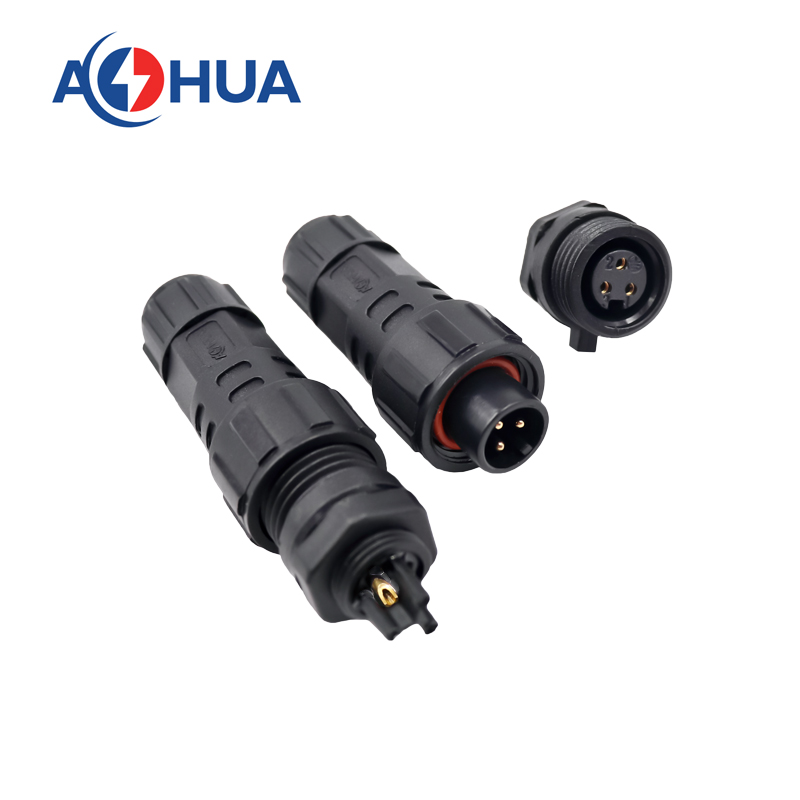

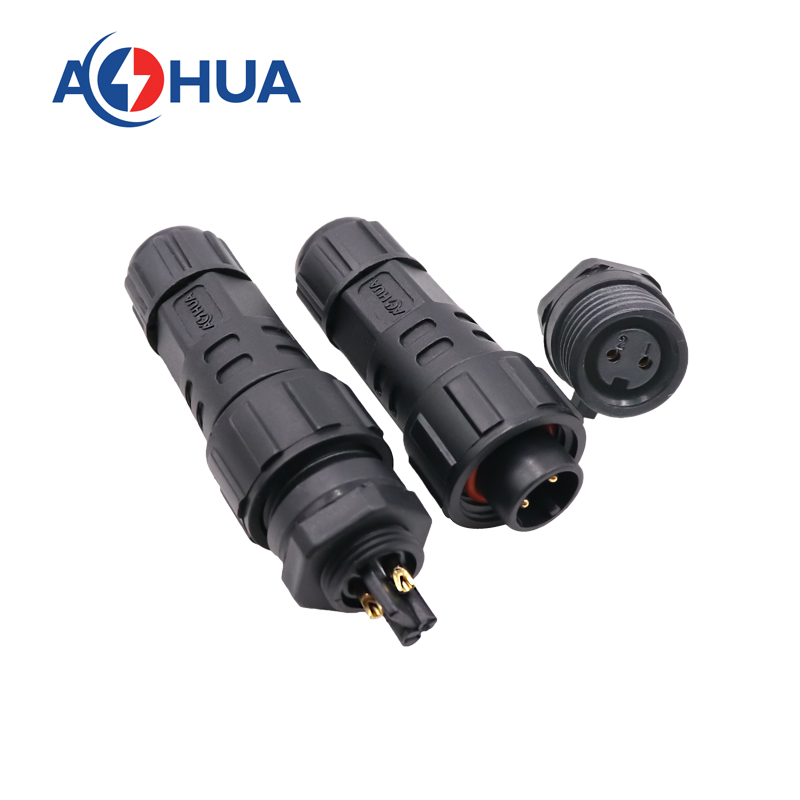

2-1. Male Panel Mount Connector to Female Plug

Front Type:

AH-M16-1002FMF/MFZ01112               AH-M16-1003FMF/MFZ01112

Rear Type:

AH-M16-1002FMR/MFZ01112               AH-M16-1003FMR/MFZ01112

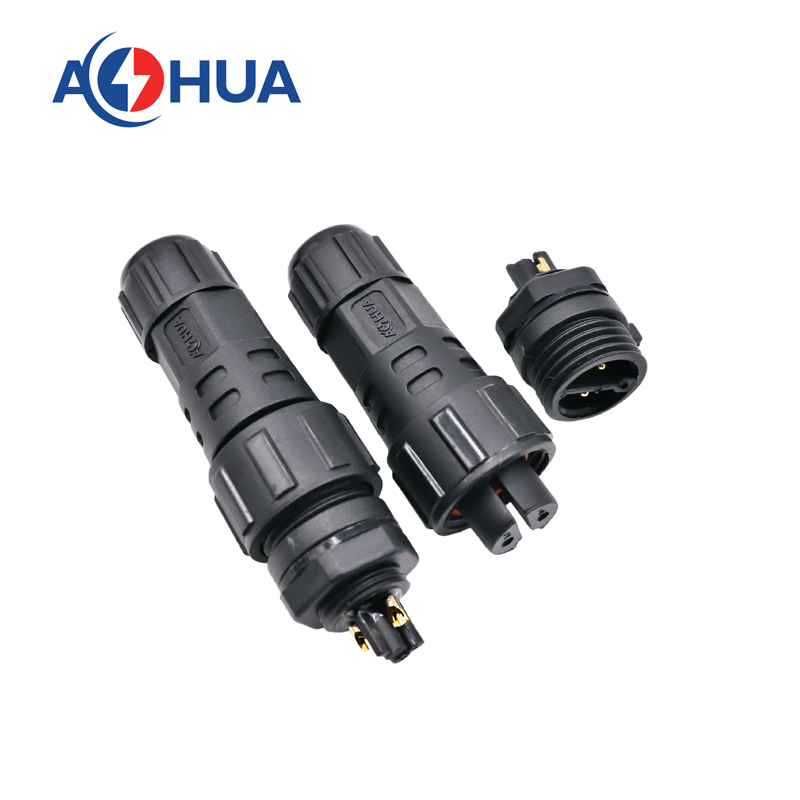

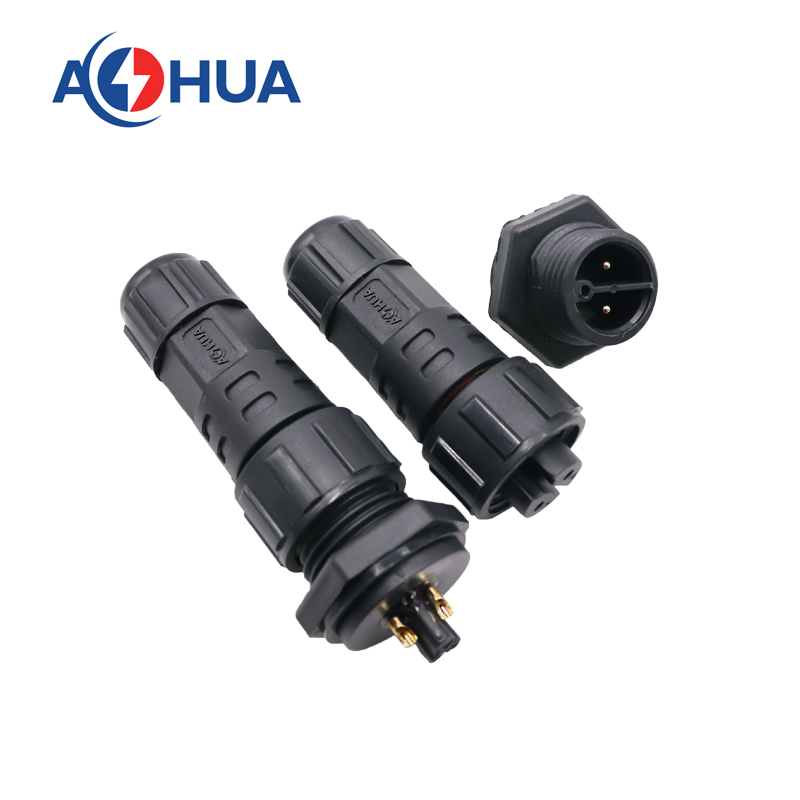

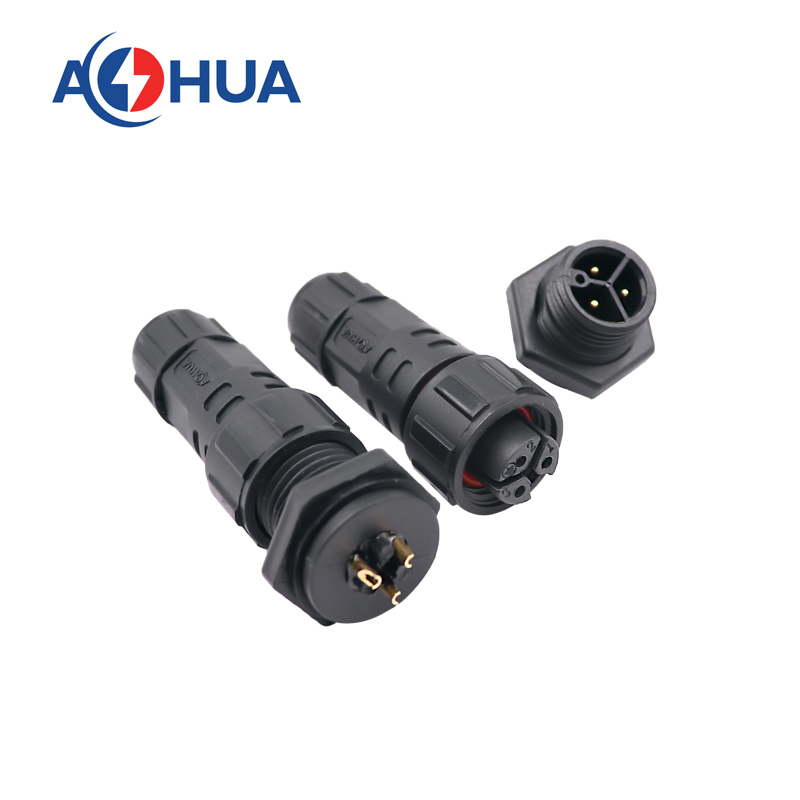

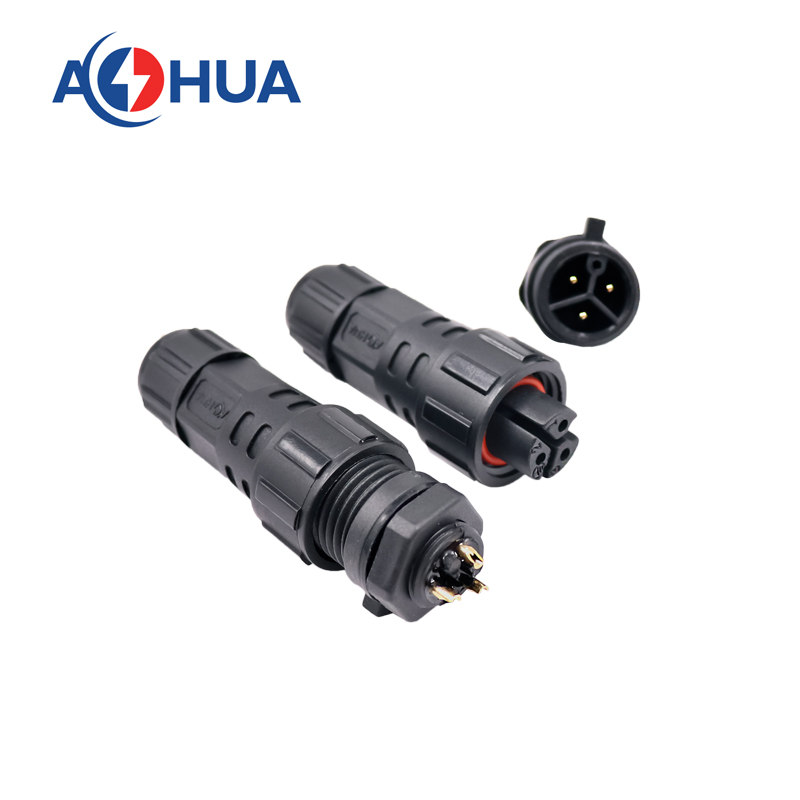

2-2. Female Panel Mount Connector to Male Plug

Rear Type:

AH-M16-1002FFF/MMZ01112               AH-M16-1003FFF/MMZ01112

Front Type:

AH-M16-1002FFR/MMZ01112            AH-M16-1003FFR/MMZ01112

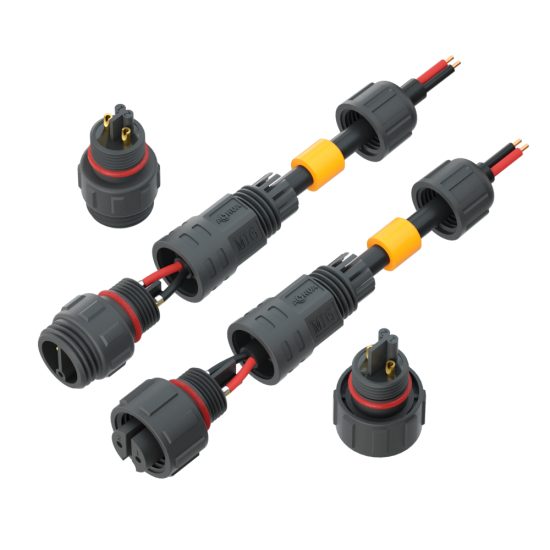

3. Solding with Wire Type

AH-M16-1002MMN/FFN01112       AH-M16-1003MMN/FFN01112

And there are also other PIN for you choose, like 4PIN/5PIN/6PIN..., check the wire gauge and the current and make a design, then we will help you to choose a solution according to the design.Thanks!
