Technical Specifications Table
Specification
Details
Brand / Series
AHUA M16 H Series
Product Type
T-Type Waterproof Cable Connector / Splitter
Available Configs
2 Way, 3 Way, 4 Way
Number of Pins (Contacts)
2 Pin
Rated Voltage
300V
Rated Current
10A
Wire Gauge
≤ 1.5mm²
Cable Outer Diameter (OD)
6mm - 10mm
Waterproof Rating
IP67 / IP68
Operating Temperature
-20℃ ~ +105℃
Housing Material
PA66 (Nylon)
Assembly Components

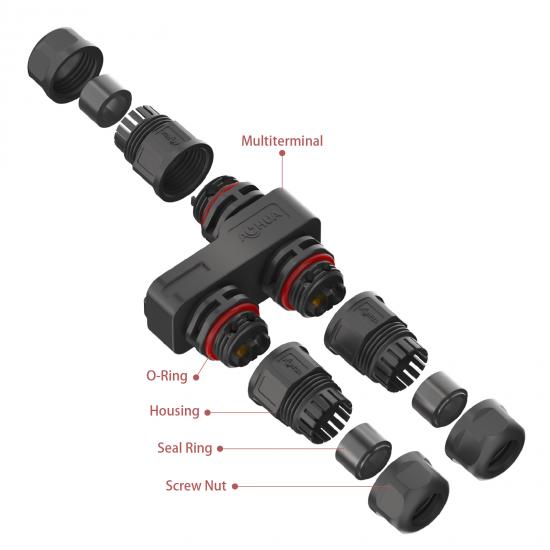

Multiterminal, O-Ring, Housing, Seal Ring, Screw Nut
Dimensions (Referencing the provided drawings)
2 Way (T-Type): Width: 53.0mm | Height: 81.5mm | Thickness: 22.0mm
3 Way (T-Type): Width: 80.0mm | Height: 81.5mm | Thickness: 22.0mm
4 Way (T-Type): Width: 112.0mm | Height: 81.5mm | Thickness: 22.0mm
|
Specification |
Details |
|---|---|
|
Brand / Series |
AHUA M16 H Series |
|
Product Type |
T-Type Waterproof Cable Connector / Splitter |
|
Available Configs |
2 Way, 3 Way, 4 Way |
|
Number of Pins (Contacts) |
2 Pin |
|
Rated Voltage |
300V |
|
Rated Current |
10A |
|
Wire Gauge |
≤ 1.5mm² |
|
Cable Outer Diameter (OD) |
6mm - 10mm |
|
Waterproof Rating |
IP67 / IP68 |
|
Operating Temperature |
-20℃ ~ +105℃ |
|
Housing Material |
PA66 (Nylon) |
|
Assembly Components |
Multiterminal, O-Ring, Housing, Seal Ring, Screw Nut |
Product Overview / Key Selling Points (Bullet Points)
Versatile T-Type Design: Available in 2-way, 3-way, and 4-way configurations to meet various parallel wiring needs. Features a standard 2-pin terminal for stable power transmission.
High-Level Waterproofing: Built with high-quality materials and sealing rings (O-Ring & Seal Ring), achieving an IP67/IP68 waterproof and dustproof rating. Perfect for harsh outdoor environments.
Robust Electrical Performance: Rated at 300V and 10A, suitable for a wide range of low-to-medium voltage applications. Compatible with wire gauges up to ≤1.5mm².
Wide Cable Compatibility: Fits cable outer diameters (OD) between 6mm and 10mm. The screw nut design ensures a tight, secure, and easy grip without damaging the wires.
Durable & Temperature Resistant: Made from high-grade PA66 housing material. Operating temperature ranges from -20℃ to +105℃, ensuring longevity and safety.
Easy Tool-Free Installation: The assembly consists of a Housing, Multiterminal, O-Ring, Seal Ring, and Screw Nut, allowing for quick and easy field installation.
Detailed Product Description (Paragraph)
This is the AHUA brand M16 outdoor waterproof terminal block, an industrial-grade wire splitter connector. Key specifications are as follows:
2.Material and Design: The main body is constructed from black nylon (PA66). Each interface features a red sealing ring and a nut. When tightened, this seals the wires to prevent ingress of water and dust.
3.Application Scenarios: Commonly used in scenarios requiring outdoor wiring, such as LED street lighting, outdoor surveillance systems, and photovoltaic equipment. It simplifies wiring and ensures circuit safety.
-
-
-
AH-M16-1002ZX2P122 AH-M16-1002ZX2P122 AH-M16-1002ZX2P122
-
2Pin
-
Voltage Rating:300V
Current Rating: 10A
Wire Gauge: 0.2mm² 0.3mm² 0.5mm² 0.75mm² 1.0mm² 1.5mm²
-
