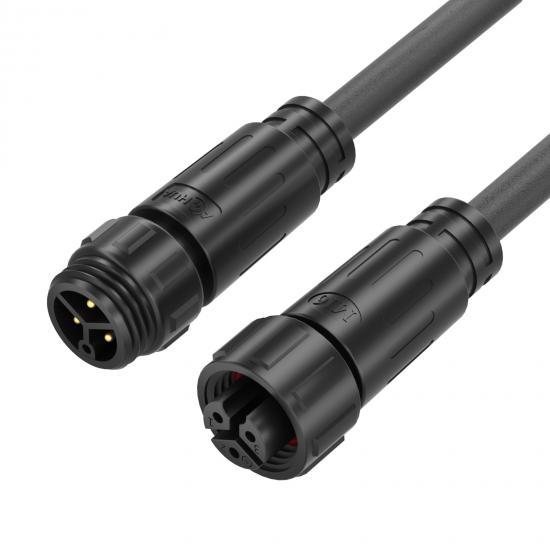

M16 Nylon 3 Pin Waterproof Electrical Connector IP67 Rated 1.0mm² Wire Harness for Industrial Equipment

• IP67 Waterproof Rating
• 2-Pin / 3-Pin Options
• M16 Nylon Construction
• ROHS & REACH Certified
• Locking Threaded Design

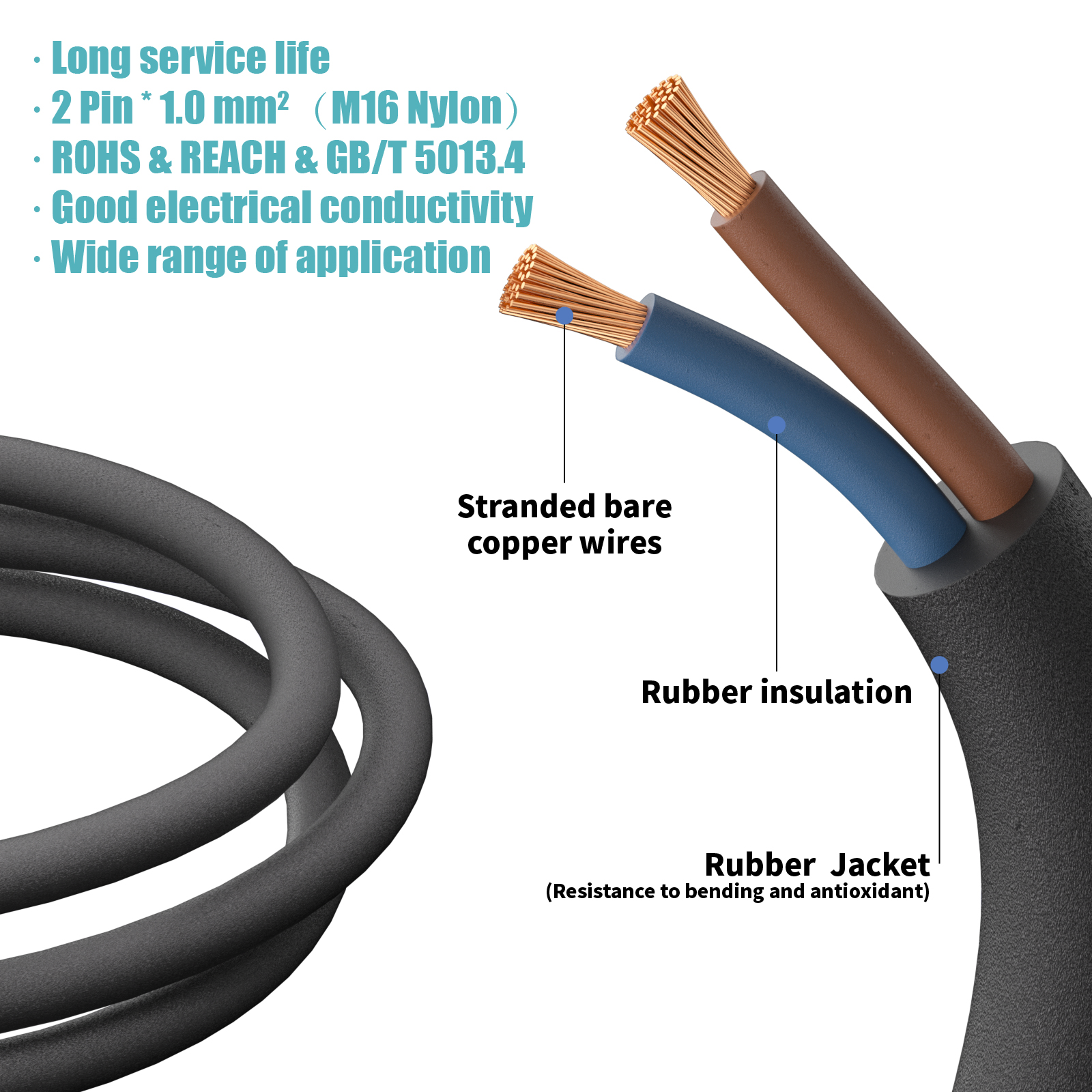

(Anatomy Breakdown)

Layer 1: Rubber Jacket (Antioxidant & Bending Resistant)

Layer 2: Rubber Insulation (Electrical Safety)

Layer 3: Stranded Bare Copper Wires (High Conductivity)

Connector Body: Nylon Plastic Housing

Sealing: High-Quality Waterproof Ring/O-Ring

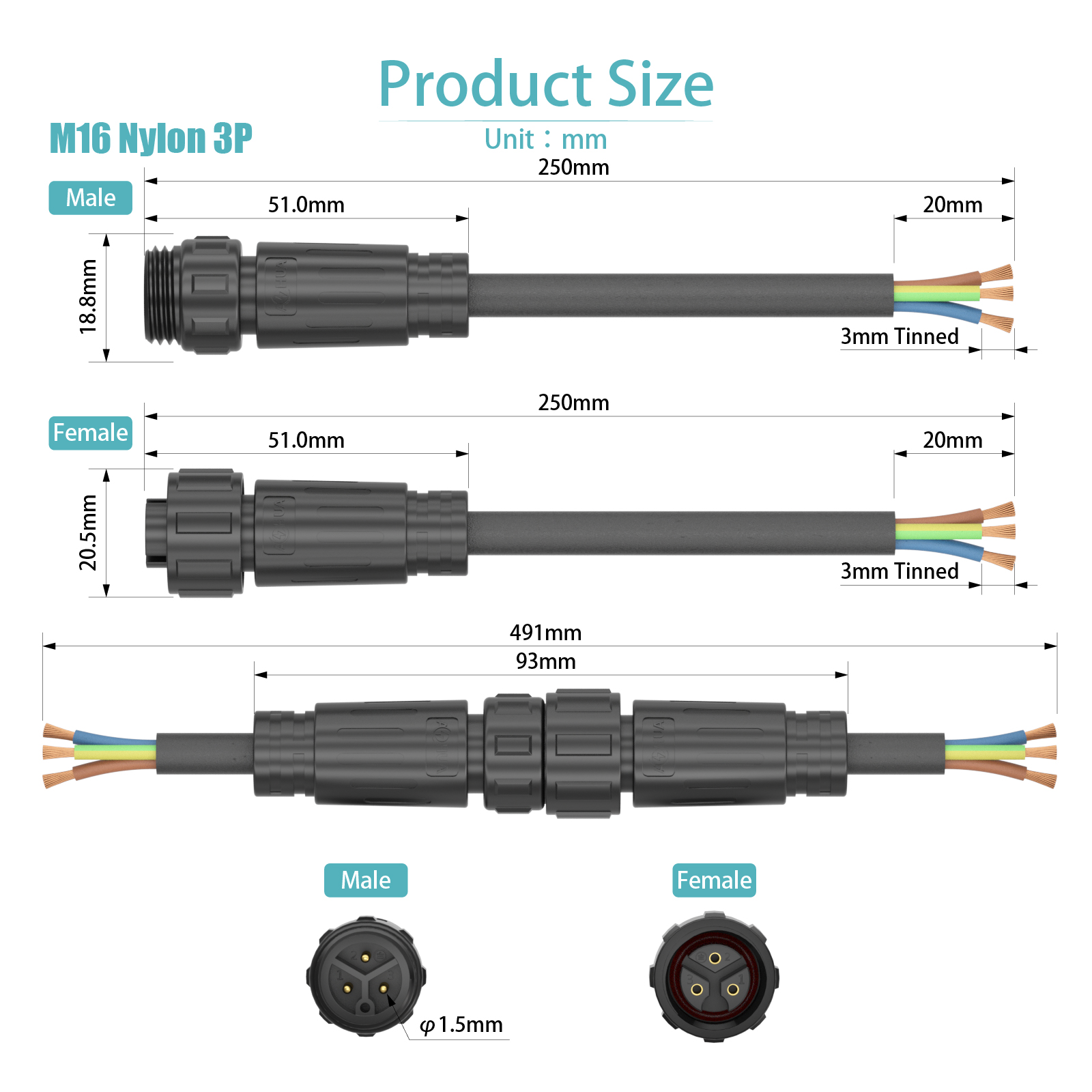

 (Size & Installation)

1.Strip wire ends (3mm tinned recommended)

2.Insert into connector housing
3.Secure with locking nut/screw

4.Test connection tightness

 (Application Scenarios)

• Landscape Lighting: Garden path lights, fountain lights
• Commercial LED: Outdoor signage, building facade lighting
• Solar Systems: Solar panel array connections
• Industrial: Equipment wiring in humid environments
• Automotive: Marine and RV electrical systems

 (Trust Elements)

• Certification Badges: Display ROHS, REACH, IP67 badges

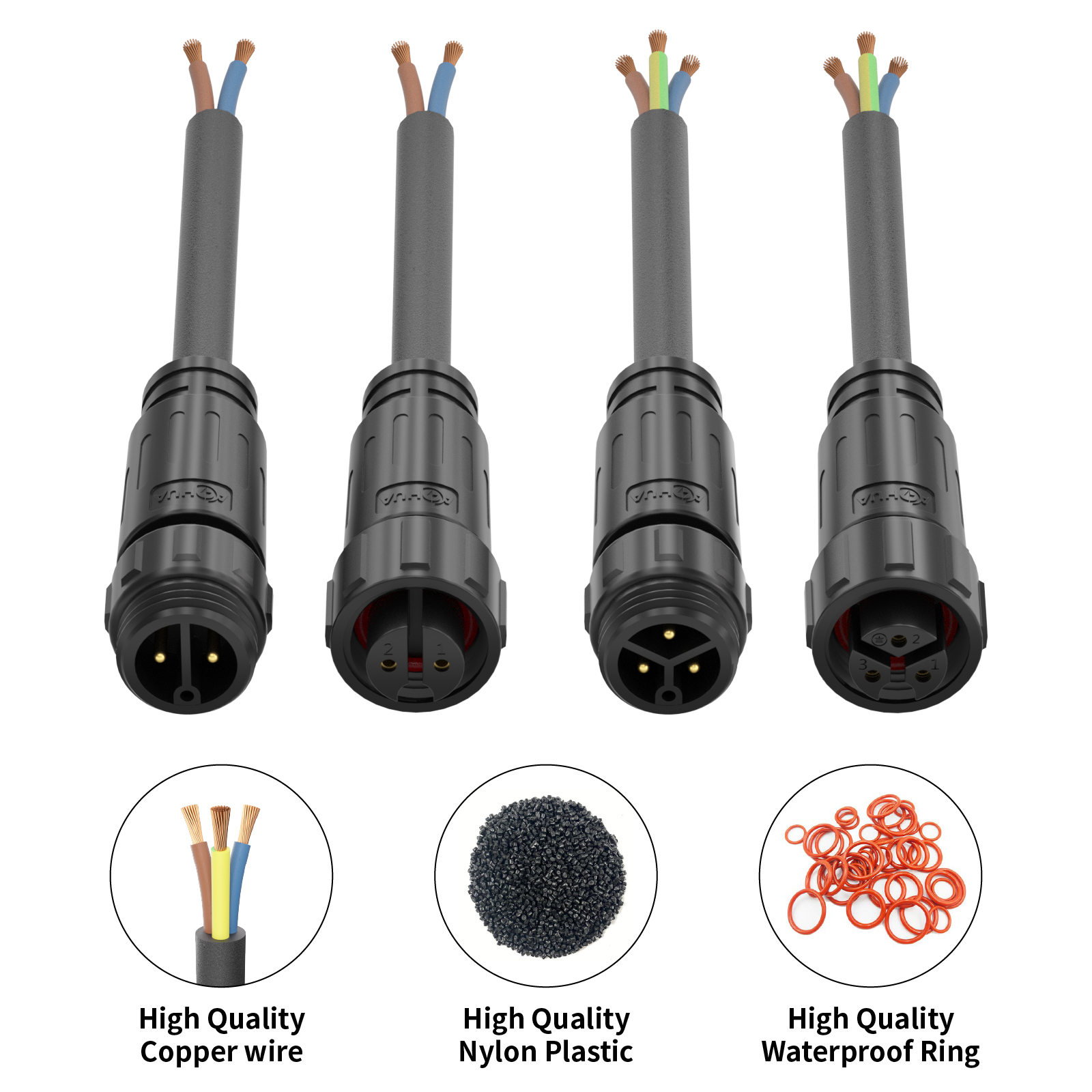

• Material Quality: Highlight "High Quality Copper Wire" and "Nylon Plastic" as shown in the detail images

• Durability Promise: "Long service life" feature from your images

(Package & Support)

• Package Contents: Clear indication of what's included (e.g., 1x Male, 1x Female, or bulk pack details)

• Warranty: Offer 1-2 year limited warranty

• Customer Support: Easy contact options for technical questions

(Anticipated FAQs)

• Q: Is this connector suitable for underwater use?

  A: Yes, it has IP67 waterproof rating, can be submerged in water temporarily but not recommended for permanent underwater installation.

• Q: What is the maximum current rating?

  A: Suitable for standard LED lighting and low-current applications (specify amperage if known).

• Q: Can I cut the wires to different lengths?

  A: Yes, the cables can be cut to size, but ensure proper stripping and connection to maintain waterproof rating.

• Q: Are 2-pin and 3-pin connectors compatible?

  A: No, they are separate models designed for different wiring needs.

And there are also other PIN for you choose, like 4PIN/5PIN/6PIN..., check the wire gauge and the current and make a design, then we will help you to choose a solution according to the design.Thanks!
