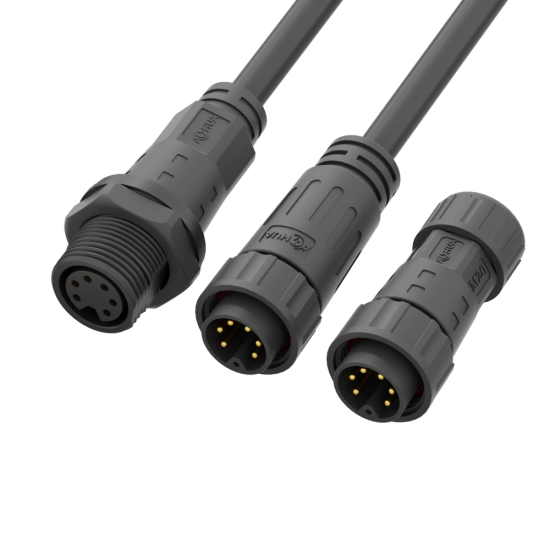

M20 5A Male Female Panel Connector with Cable IP68 Waterproof

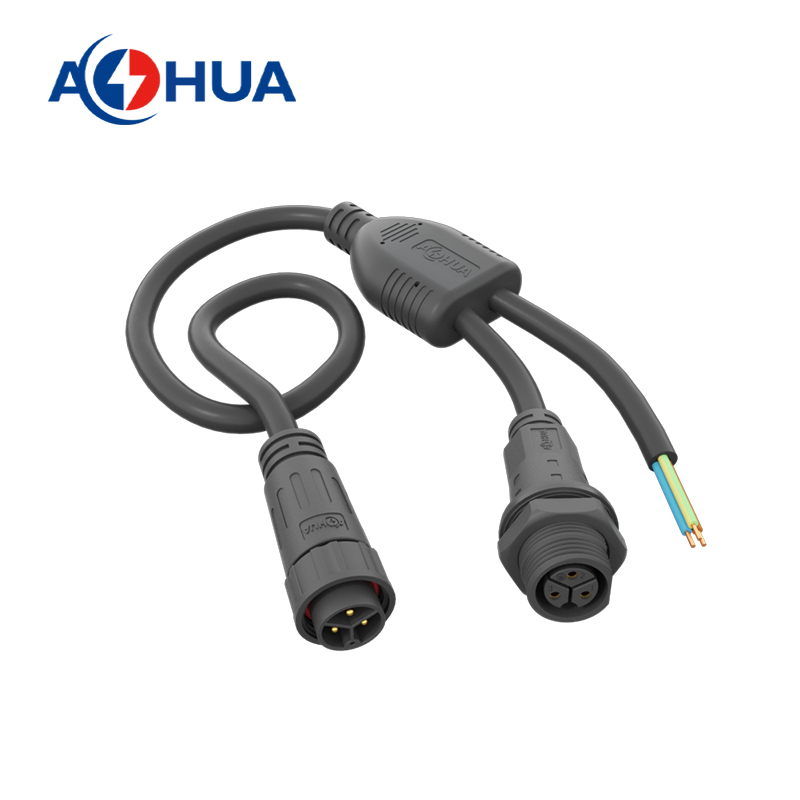

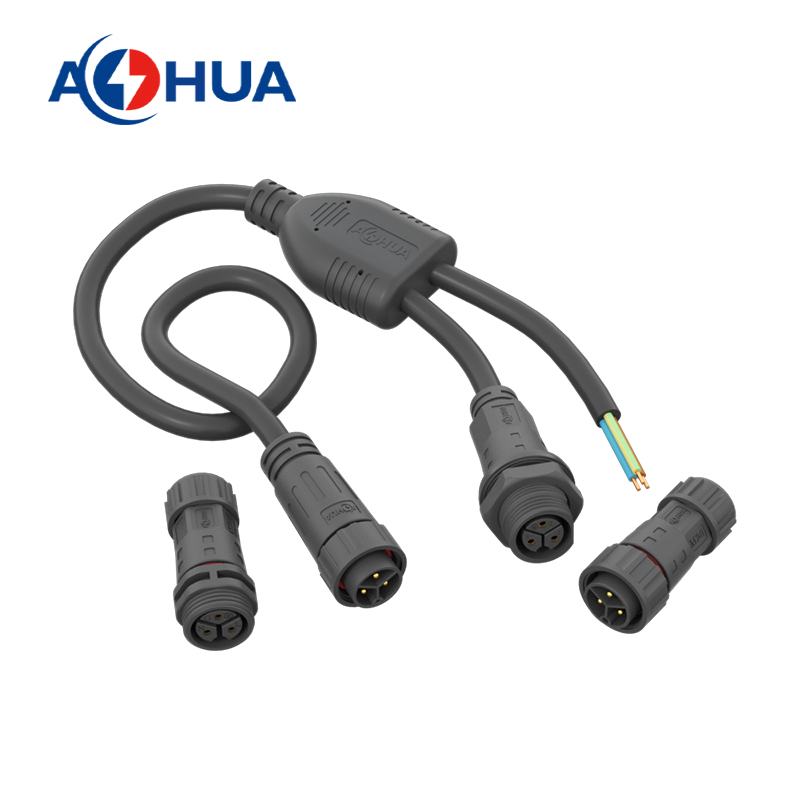

AOHUA 1 TO 2 Y Connector (M20 Series)

Do you ever find yourself struggling with messy wiring when using multiple cables at the same time?

Do you want to minimize the space occupied by cables while laying them out?

Have you ever wanted to buy cables that connect to multiple devices without having to purchase extra cables?

This Y-type two-way waterproof splitter connector, manufactured using an integrated injection molding process. It branches one main line into two branch lines and features male and female plug designs. Suitable for centralized power supply and signal transmission scenarios involving multiple outdoor devices, it is widely used in LED lighting, photovoltaic systems, industrial control, and other fields.

For this customized Y Connector the Product Specifications:

Items                                      Specifications

Connector:                               M20

PIN:                                        3PIN  (Each channel supports 3-wire transmission

IP Level:                                  IP67  (Resistant to rain and short periods of immersion)

Rated voltage / current:               300V/10A (Single-phase current)

Material:                                       Shell: Nylon-PA66;

                                                     Conductor: Copper-plated gold;

                                                     Cable: Rubber

Operating Temperature :                      -40℃ ~ +105℃（Resistant to high and low temperatures）

Mating cycles:                                        ≥3000

Cable Gauge:                                           Main Cable Gauge: 3*1.0mm²

                                                                           Branch Cable Gauge: 3*0.75mm²

Cable Length:                                        Main Cable:1500mm  (Supports any length)

                                                               Branch Cable Length: 800mm (Supports any length)

Product Advantages:

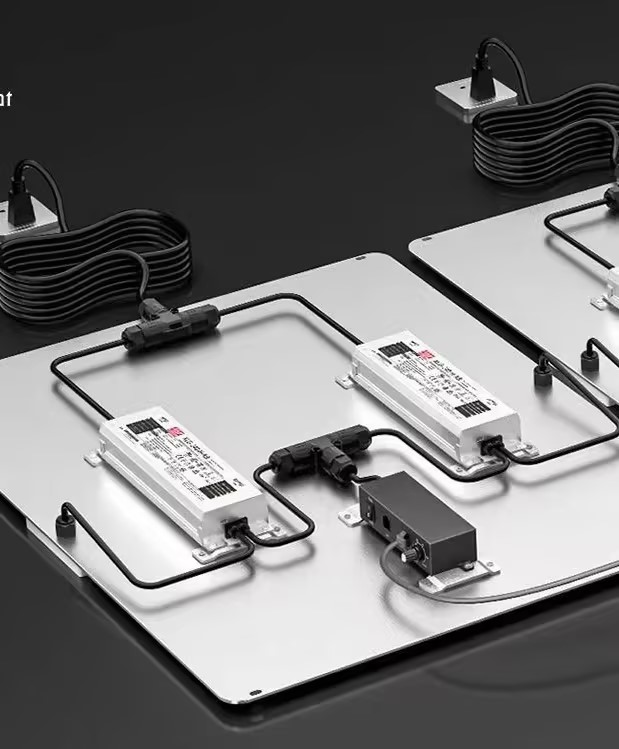

• One-to-two efficient splitter with single main line branching into 2 independent connectors, reducing wiring complexity and accommodating multiple devices in parallel scenarios (e.g., LED light strings, sensor arrays).
• IP67 deep waterproof threaded screw-tight seal structure + silicone O-ring ensures stable operation in outdoor rain and humid environments, preventing short-circuit risks.
• Durable Materials:PA66 nylon housing offers impact resistance and corrosion resistance; PVC cables resist ageing, preventing cracking during prolonged outdoor use.
• Solder-Free Installation:Plug-and-play male/female connectors paired with crimp terminals eliminate the need for specialised tools during on-site installation, saving time and labour costs.
