Description & Specs
Items
Pins
Part Number
Voltage Rating
Current Rating
Wire Gauge
Cable OD
M12
3
AH-M12-0503FMF/MFZ01112
300V
5A
≤1.0mm²
2.6mm-7.5mm
M16
3
AH-M16-1003FMF/MFZ01112
300V
10A
≤1.0mm²
2.6mm-7.5mm
M20
3
AH-M20-1503FMF/MFZ01112
300V
15A
≤1.5mm²
5.5mm-10mm
M25
3
AH-M25-2503FMF/MFZ01122
300V
25A
≤2.5mm²
6mm-12mm
M29
3
AH-M29-3503FMF/MFZ01122
300V
35A
≤4.0mm²
6.5mm-15mm
Contact Numbers
3
Voltage Rating
300V
Current Rating
15A
Wire Gauge
≤1.5mm²
Cable OD
5.5mm-10mm
Mechanical Life
3000 mating cycles
Operating Rating
-40ºC-+105ºC
Waterproof Level
IP67/IP68

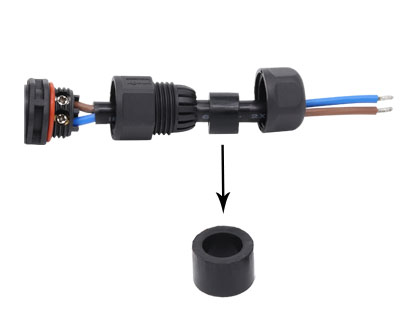

Seal Ring
13*9*6.5/7.5/8.5/9.5/10mm
Cable OD | Seal Ring |
2.6mm-7.5mm | 9*9*3.6/4.1/5.5/6.5/7.5mm |
5.5mm-10mm | 13*9*6.5/7.5/8.5/9.5/10mm |
6mm-12mm | 15.6*13*7/9/10/11/12/13mm |
6.5mm-15mm |
20.6*13*7.5/8.5/10/12/13/15mm |
Before get the quotation, please tell us the connection of waterproof connector.
(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...

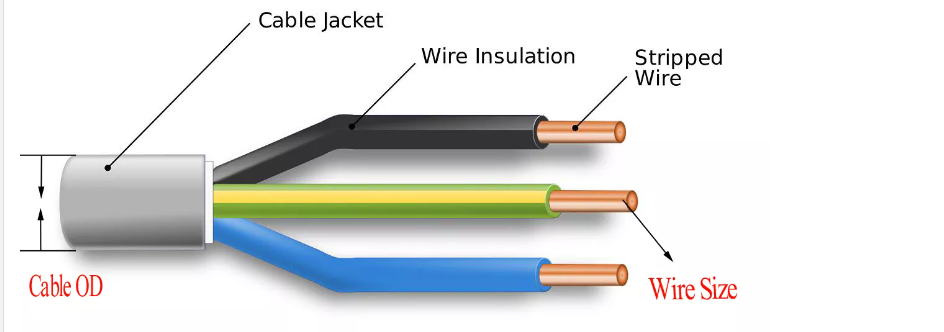

(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...
Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.

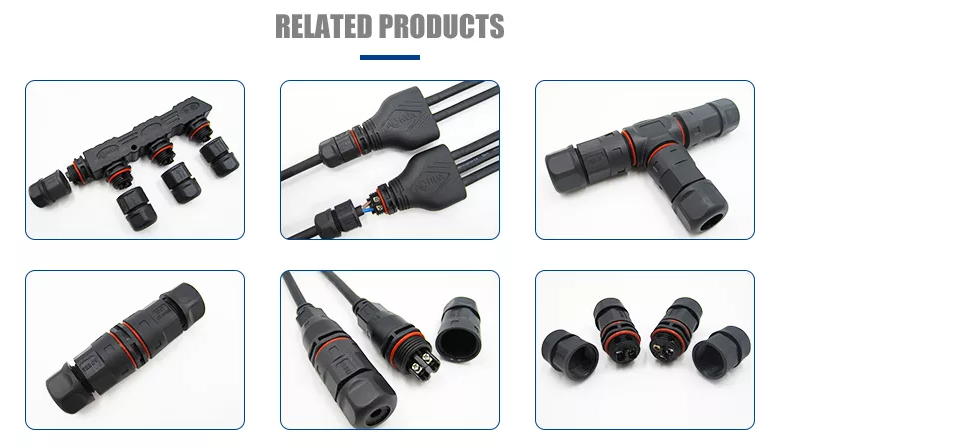

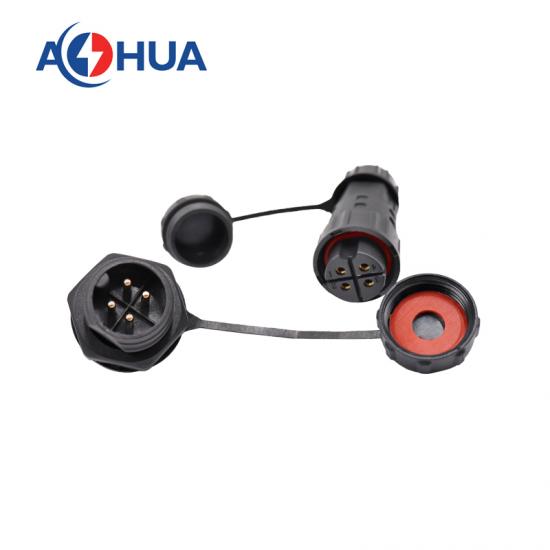

Related Products

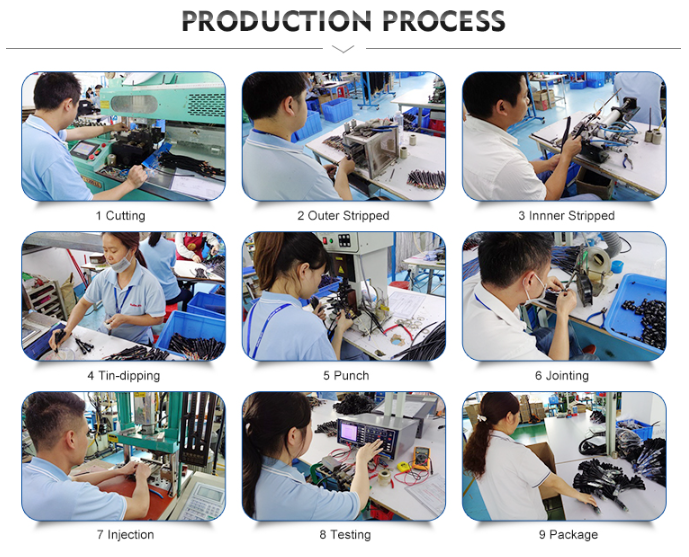

Our Advantages
Advantages:

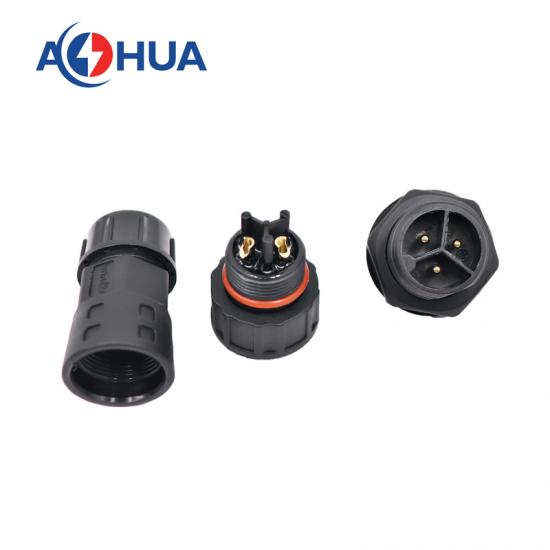

1.Nylon PA66,wire to front male mount,solder & screw fixing type.
2. Male to female, assemble easily;2, 3, 4, 5,6,7,8 pin for choices,2,3 pin passed UL,CE,RoHS,TUV certificate.
3. Easy Install: The installation process is very simple.

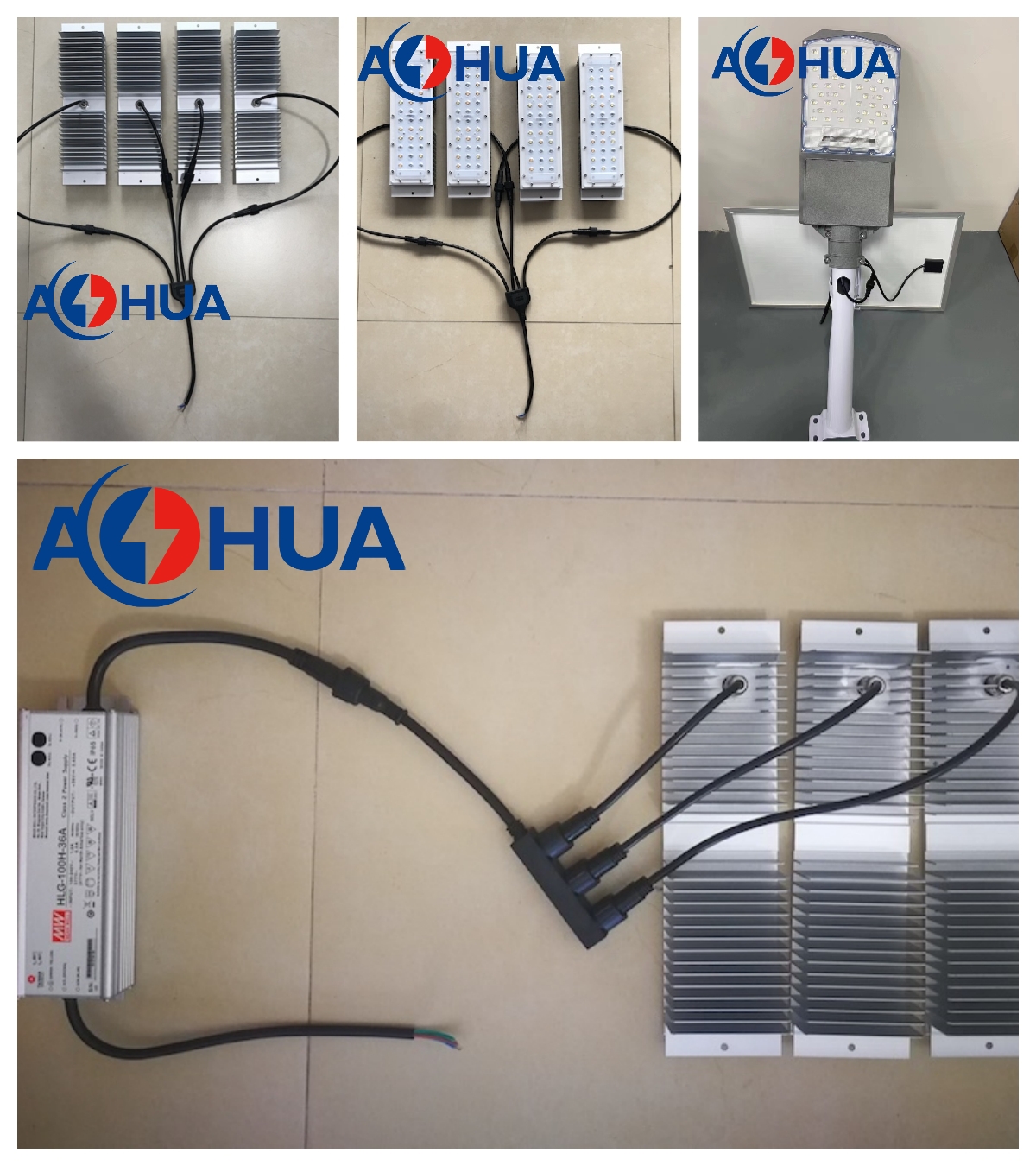

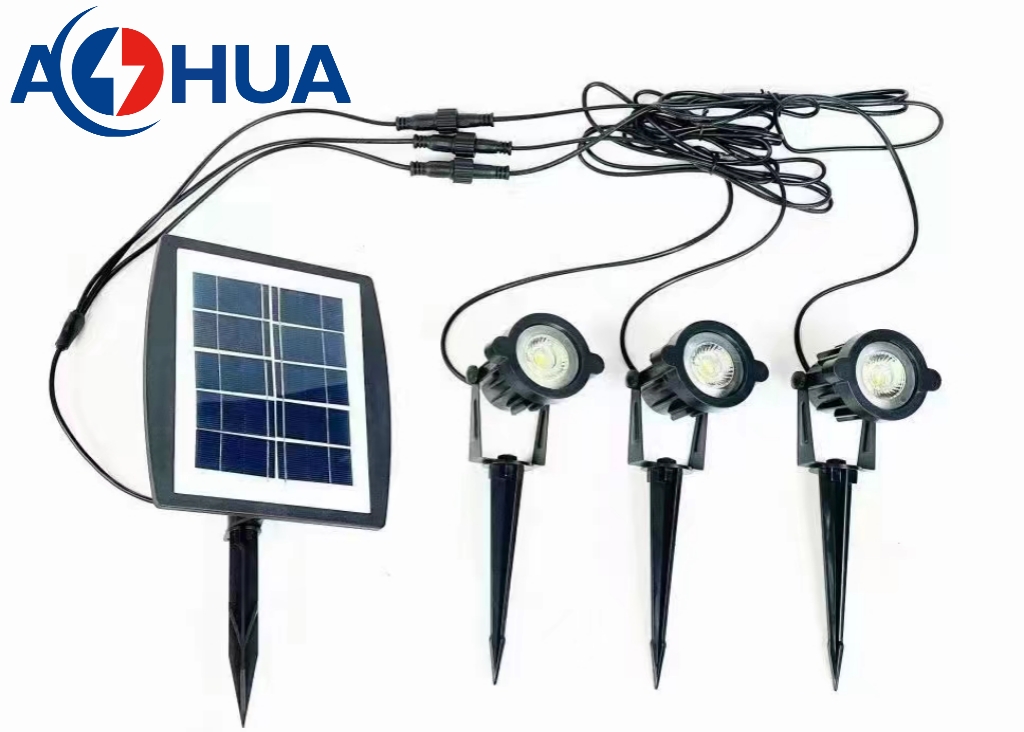

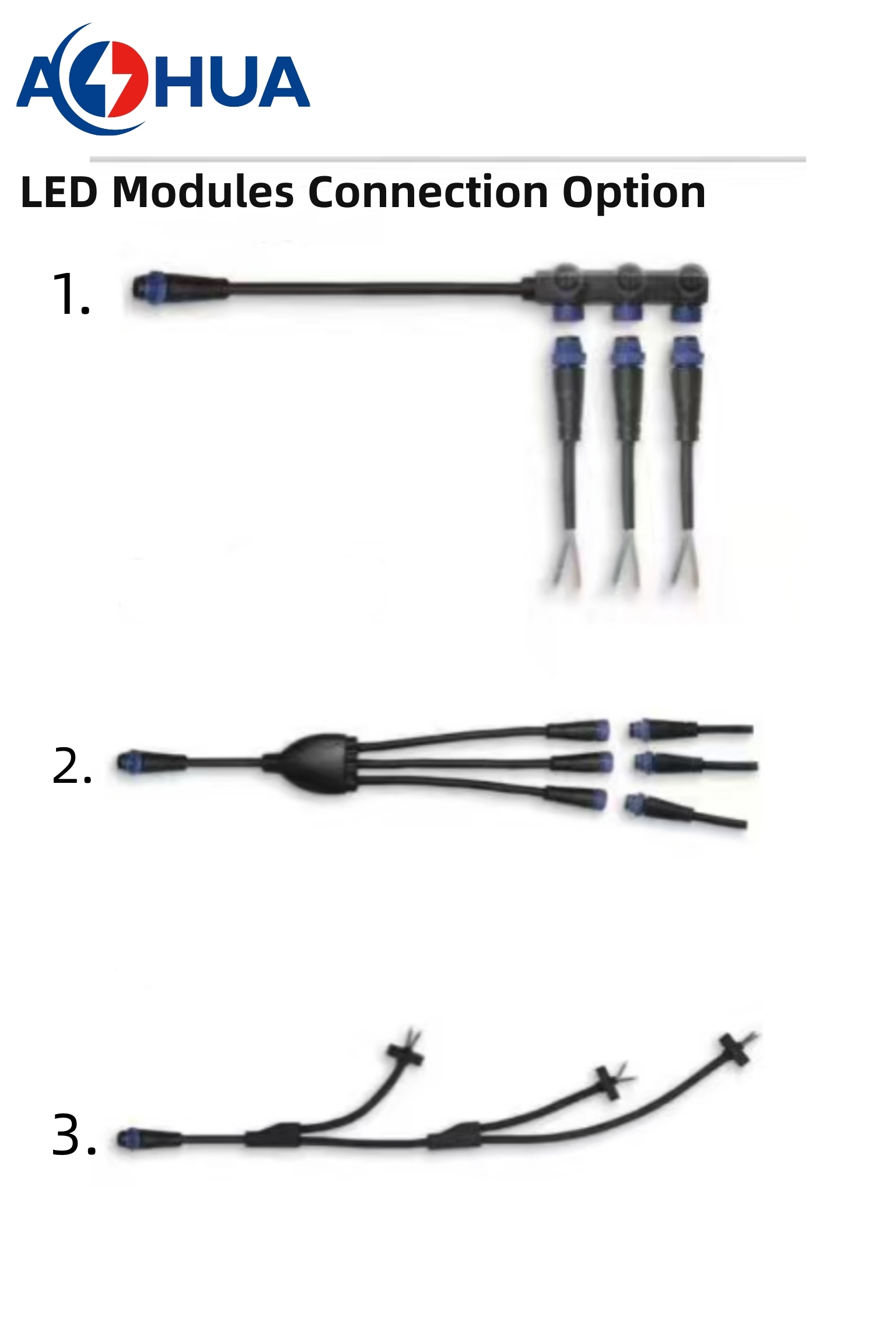

4.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
