M20 Type Screw/Solder connect Wire Connector 10A 5A Power Electrical Connector

The M20 series component of the one-to-two waterproof connector from AHUA

An outdoor/industrial-grade electrical cable splitter, whose primary function is to divide a single power supply into two outputs, whilst offering waterproof and dustproof capabilities.

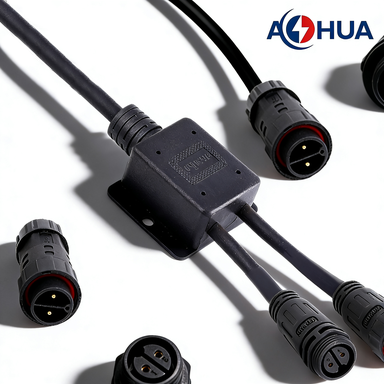

Main structure: Centred is a "one-to-two" splitter box (featuring mounting holes for secure installation), with one end for power input and two output terminals. Cables and connectors are constructed from black plastic and rubber materials;

Accessory components: Includes male connectors, female connectors, terminal blocks, and other fittings. Internal metal pins are visible within the connectors (illustrated as 2 PIN/3 PIN specifications), enabling rapid plug-and-play wiring connections;

Core Features: These connectors typically achieve IP65/IP67 waterproof ratings, suitable for outdoor, humid, and dusty environments. Commonly used for wiring distribution in LED street lighting, landscape illumination, and photovoltaic equipment applications.

The datasheet of the M20 Connector:

Items:

M20-2PIN:   Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm² 0.75mm² 1.0mm² 1.5mm²

M20-3PIN:   Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm² 0.75mm² 1.0mm² 1.5mm²

M20-4PIN:   Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm² 0.75mm² 1.0mm²

M20-5PIN:   Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm²

M20-6PIN:   Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm²

M20-7PIN:   Suitable Wire Guage: 0.2mm² 0.3mm²

M20-8PIN:   Suitable Wire Guage: 0.2mm² 0.3mm²

M20-9PIN:   Suitable Wire Guage: 0.2mm² 0.3mm²

M20-2+3PIN:  2PIN Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm² 0.75mm² 1.0mm²

                     3PIN Suitable Wire Gauge: 0.2mm² 0.3mm²

M20-2+4PIN:  2PIN Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm² 0.75mm² 1.0mm²

                     4PIN Suitable Wire Gauge: 0.2mm² 0.3mm²
