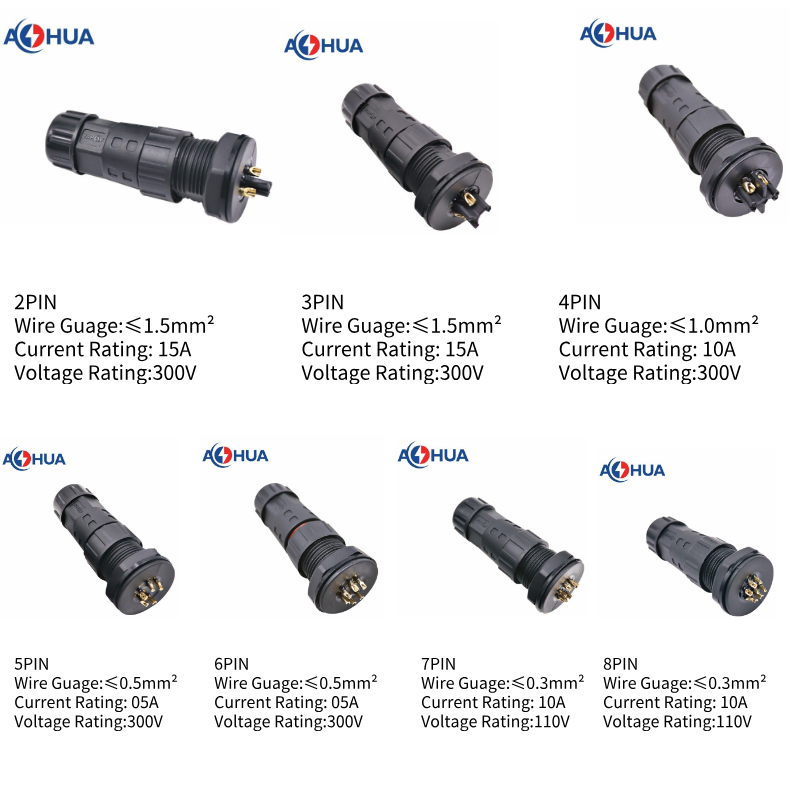

| Model No | Current Rating | Suit for the Wire Gauge | Voltage Rating |
| M20-2Pin | 15A |
14AWG/16AWG/18AWG/20AWG/22AWG/24AWG 1.5mm²/1.0mm²/0.75mm²/0.5mm²/0.3mm²/0.2mm² |
300V |
| M20-3Pin | 15A |
14AWG/16AWG/18AWG/20AWG/22AWG/24AWG 1.5mm²/1.0mm²/0.75mm²/0.5mm²/0.3mm²/0.2mm² |
300V |
| M20-4Pin | 10A |
16AWG/18AWG/20AWG/22AWG/24AWG 1.0mm²/0.75mm²/0.5mm²/0.3mm²/0.2mm² |
300V |
| M20-5Pin | 05A |
20AWG/22AWG/24AWG 0.5mm²/0.3mm²/0.2mm² |
300V |
| M20-6Pin | 05A |
20AWG/22AWG/24AWG 0.5mm²/0.3mm²/0.2mm² |
300V |
| M20-7Pin | 05A |
22AWG/24AWG 0.3mm²/0.2mm² |
110V |
| M20-8Pin | 05A |
22AWG/24AWG 0.3mm²/0.2mm² |
110V |
| M20-2+3Pin |
15A 05A |
16AWG/18AWG/20AWG/22AWG/24AWG 1.0mm²/0.75mm²/0.5mm²/0.3mm²/0.2mm² + 22AWG/24AWG 0.3mm²/0.2mm² |
110V |
| M20-2+4Pin |
15A 05A |
16AWG/18AWG/20AWG/22AWG/24AWG 1.0mm²/0.75mm²/0.5mm²/0.3mm²/0.2mm² + 22AWG/24AWG 0.3mm²/0.2mm² |
11 0V |
This is customized type splitter connector, the molds for this type of shunt can accept one wire in and multiple wires out. If you want to customized like this type connector, pleae tell us:
1.1.the wire size such as 4Pin*22AWG...
2.2.the wire length, such as 1000mm...
that we can help you to choose a asuitable mold and select suitable wire to use.
