Screw-Type Cable Joint M25 Connector 500V 25A Power Plug Wire to Wire Type 2Pin Male Female Socket IP68 for Wiring System

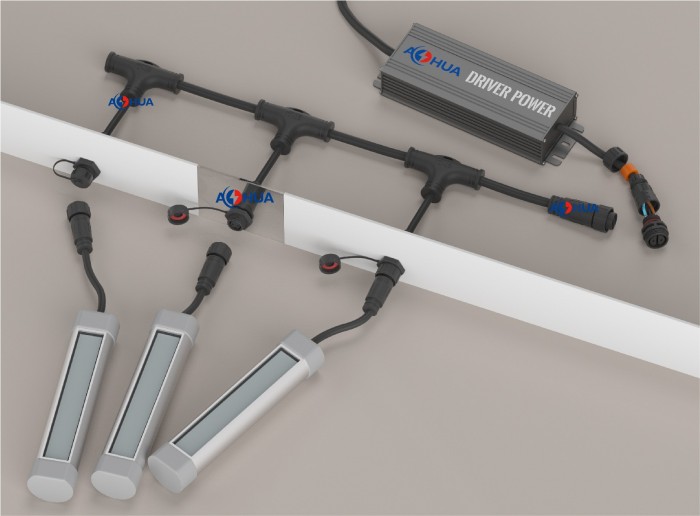

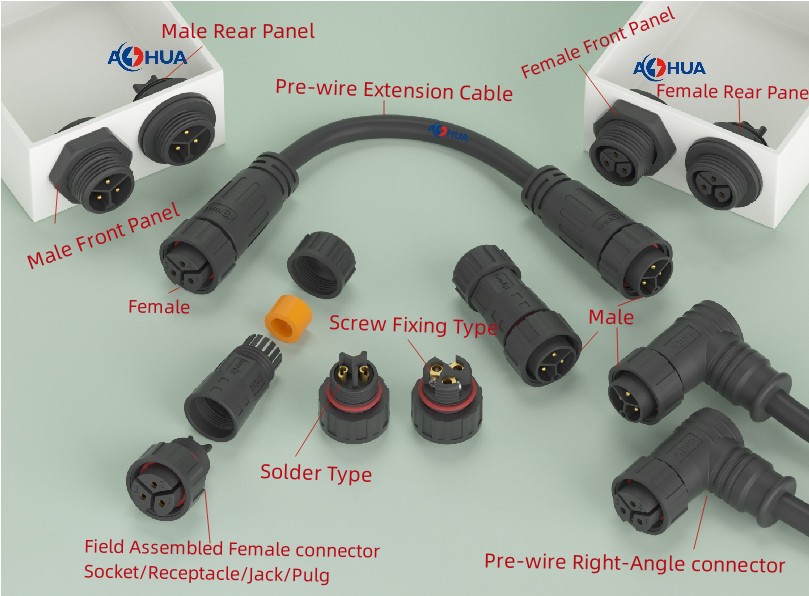

M25 assembly waterproof connector can be combined with L/T/Y/F Type connectors to provide a solution for LED lamp modules.
Widely used in LED plant growth lamp, streetlight, garden light, stage light, LED outdoor display, junction box, outdoor engineering,
mining engineering, solar-wind power, solar water heaters and various machinery and so on..

If you need help,pls contact our team:

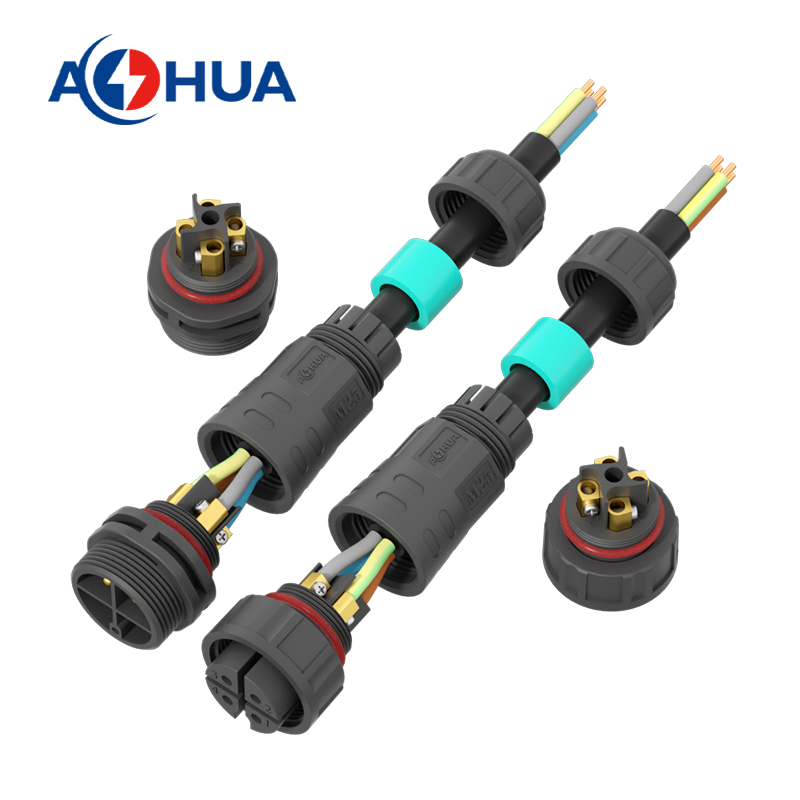

1.Screw wiring type assembly waterproof plug M25.
Connector coming without cable.  Operating tool:A well screwdriver.

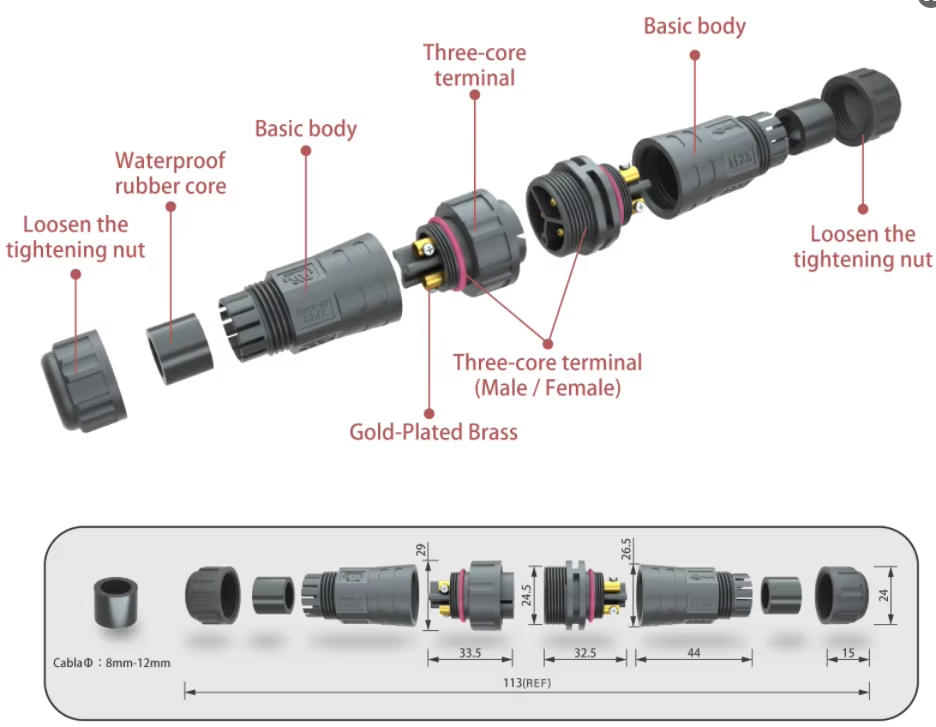

M25 is composed of Male core,Female core,O-ring ,Housing, Seal Ring and Screw Nut.

How to order a suitable connector?

Before order, please specify the details of your cable as follow:
1. How much Voltage/Current do you need this connector to carry on?
 Such as: 300V 25A...

2.What's the Wire size do you need this connector to connect?
Such as: 2*2.5mm²...

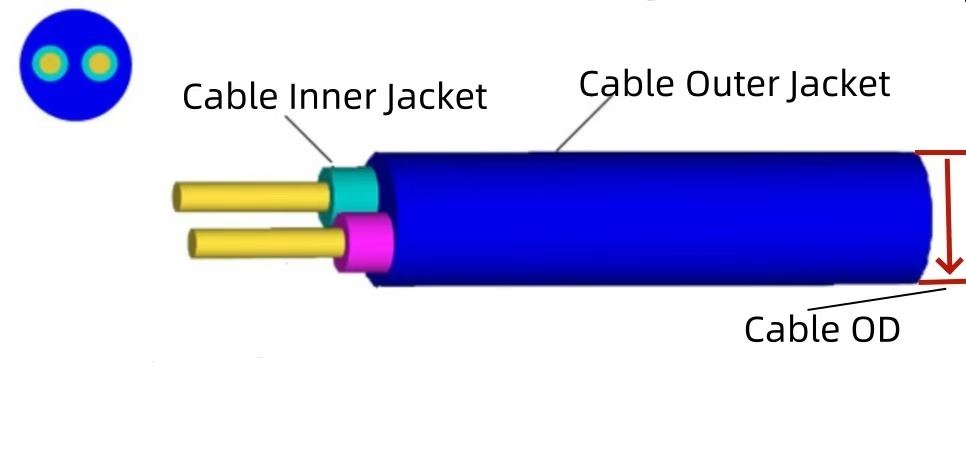

3. What is the Cable outer diameter(OD)?
 Such as: 10mm,then we can select a suitable seal ring for connector.
A suitable size of the seal ring can help the connector achieve better waterproof effect,
according to the cable outer diameter to choose seal ring size.

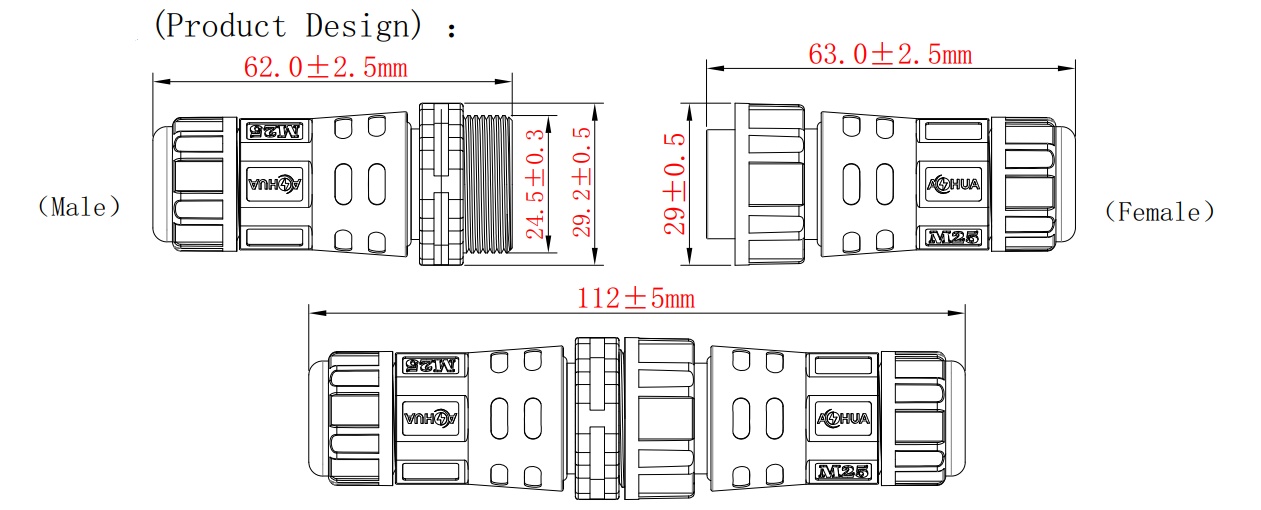

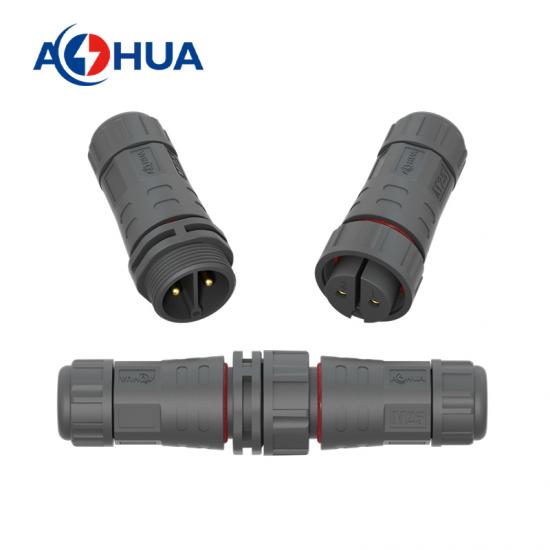

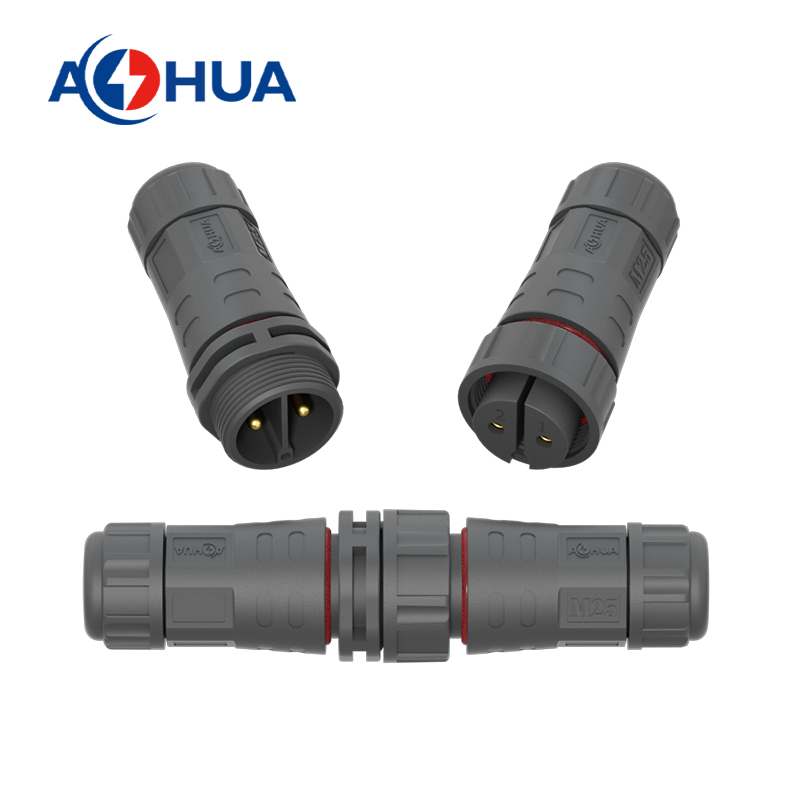

2PIN Wire to wire Male Female connector.

Male Part Number: AH-M25-2502FMZ02122
Female Part Number: AH-M25-2502MFZ02122

Plastic Material: Nylon PA66.
Contact Material: Gold-plated Brass,Nickel-Plated Brass.

Waterproof Rating:IP68.
Voltage/Current: 500V 25A.
Operating Temperature:-40°C~+105°C.
Mechanical Life: 3000 mating cycles.

Connection Cable OD: 6~12mm.
Cable Gauge: 0.75mm2，1.0mm2,1.5mm2,2.5mm2;14AWG,16AWG,
18AWG.

3PIN Wire to wire Male Female connector.

Male Part Number: AH-M25-2503FMZ02122
Female Part Number: AH-M25-2503MFZ02122
Plastic Material: Nylon PA66.
Contact Material: Gold-plated Brass,Nickel-Plated Brass.
Waterproof Rating:IP68.
Voltage/Current: 500V 25A.
Operating Temperature:-40°C~+105°C.
Mechanical Life: 3000 mating cycles.
Connection Cable OD: 6~12mm.
Cable Gauge: 0.75mm2，1.0mm2,1.5mm2,2.5mm2;14AWG,16AWG,
18AWG.











4PIN Wire to wire Male Female connector.

Male Part Number: AH-M25-1504FMZ02122
Female Part Number: AH-M25-1504MFZ02122
Plastic Material: Nylon PA66.
Contact Material: Gold-plated Brass,Nickel-Plated Brass.
Waterproof Rating:IP68.
Voltage/Current: 300V 25A.
Operating Temperature:-40°C~+105°C.
Mechanical Life: 3000 mating cycles.
Connection Cable OD: 6~12mm.
Cable Gauge: 0.75mm2，1.0mm2,1.5mm2,2.5mm2;14AWG,16AWG,
18AWG.
