Screw-Type M12 Connector Wire to Wire Assembly Male Female Waterproof Plug 300V 5A Power Connector 2Pin for Lighting Wiring

M12 assembly waterproof connector can be combined with L/T/Y/F Type connectors to provide a solution for LED lamp modules.
Widely used in LED plant growth lamp, streetlight, garden light, stage light, LED outdoor display, junction box, outdoor engineering,
mining engineering, solar-wind power, solar water heaters and various machinery and so on..

If you need help,pls contact our team:

1.Screw wiring type assembly waterproof plug M12.
Connector coming without cable.  Operating tool:A well screwdriver.
M25 is composed of Male core,Female core,O-ring ,Housing, Seal Ring and Screw Nut.

How to order a suitable connector?

Before order, please specify the details of your cable as follow:
1. How much Voltage/Current do you need this connector to carry on?
 Such as: 300V 3A...

2.What's the Wire size do you need this connector to connect?
Such as: 2*1.0mm²...

3. What is the Cable outer diameter(OD)?
 Such as: 6.8mm,then we can select a suitable seal ring for connector.

A suitable size of the seal ring can help the connector achieve better waterproof effect,
according to the cable outer diameter to choose seal ring size.

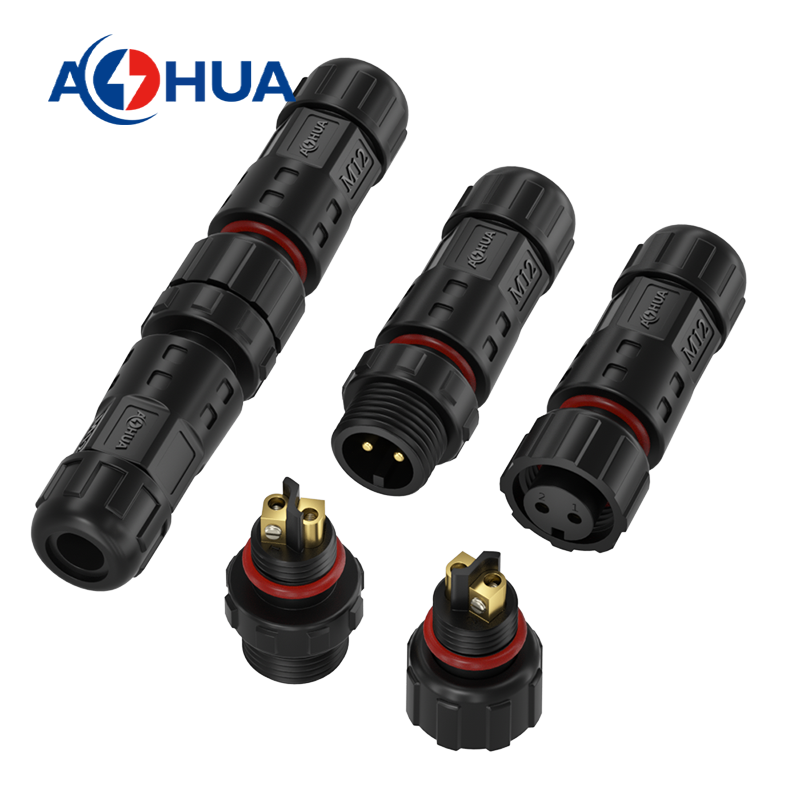

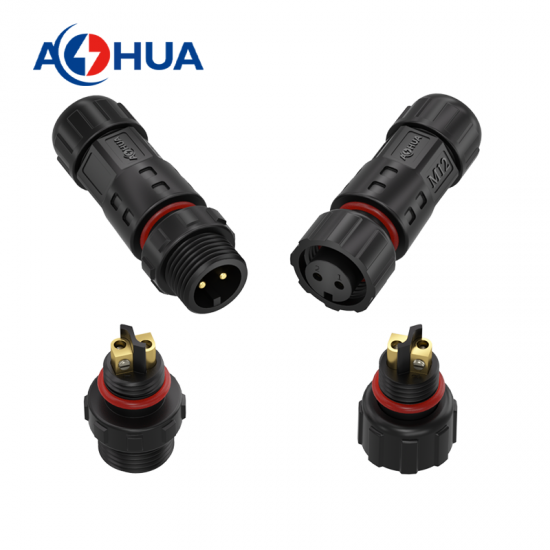

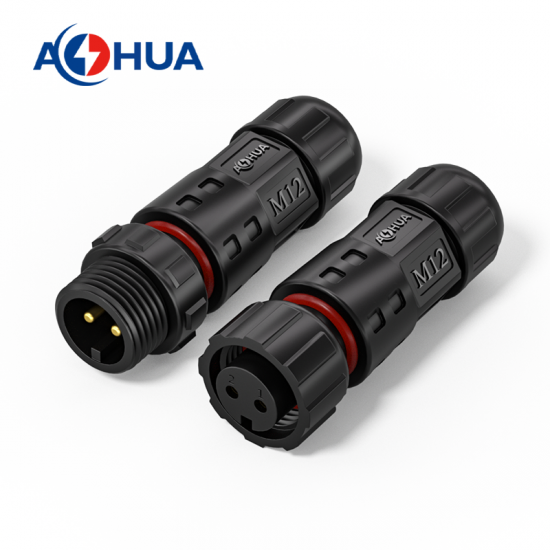

2PIN Wire to wire Male Female connector.

Male Part Number: AH-M12-0502FMZ02122
Female Part Number: AH-M12-0502MFZ02122
1.Plastic Material: Nylon PA66.
2.Contact Material: Gold-plated Brass,Nickel-Plated Brass.
3.Voltage/Current: 300V 5A.
4.Connection Cable OD: 2.6~7.5mm
5.Cable Gauge: 0.2mm2,0.3mm2,0.5mm2,0.75mm2,24AWG,22AWG,20AWG,
18AWG.
6.Mechanical Life: 3000 mating cycles.
7.Operating Temperature:-40°C~+105°C.
8.Certificate: CE/ROHS/ISO9001...
9.Major Market for Sales: All Over the World...

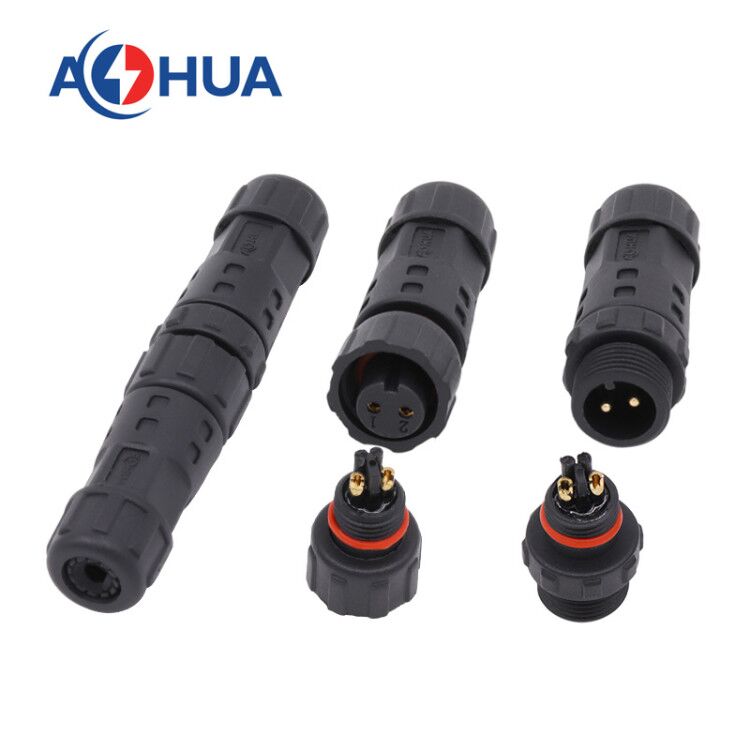

2PIN Wire to wire Male Female connector.   Solder-type Wiring.

Male Part Number: AH-M12-0502FMZ01112
Female Part Number: AH-M12-0502MFZ01112
1.Plastic Material: Nylon PA66.
2.Contact Material: Gold-plated Brass,Nickel-Plated Brass.
3.Voltage/Current: 300V 5A.
4.Connection Cable OD: 2.6~7.5mm
5.Cable Gauge: 0.2mm2,0.3mm2,0.5mm2,0.75mm2,24AWG,22AWG,20AWG,
18AWG.
6.Mechanical Life: 3000 mating cycles.
7.Operating Temperature:-40°C~+105°C.
8.Certificate: UL/SAA/TUV/CE/ROHS/ISO9001...
9.Major Market for Sales: All Over the World...

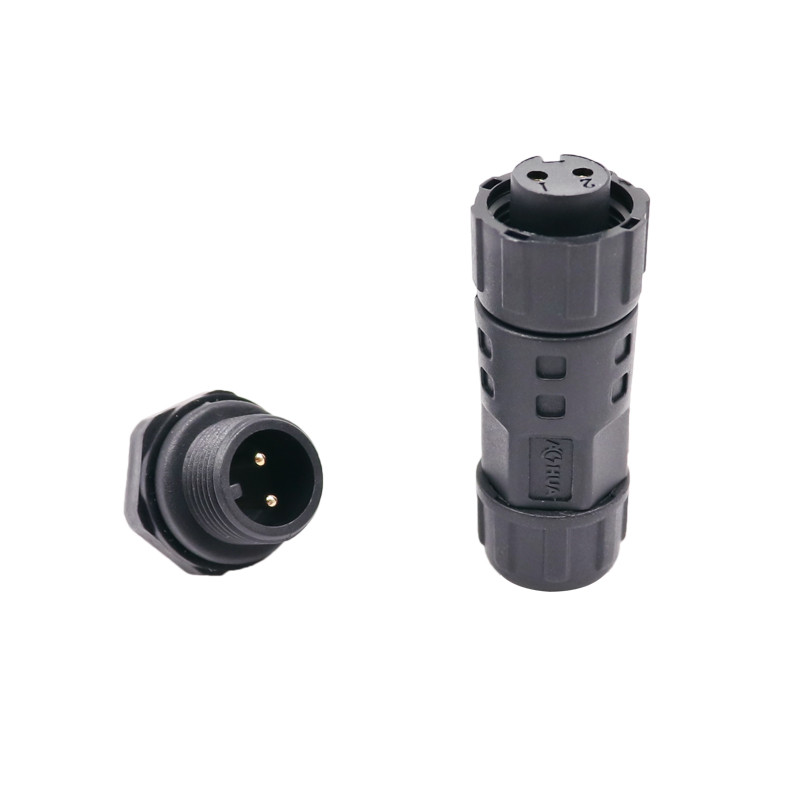

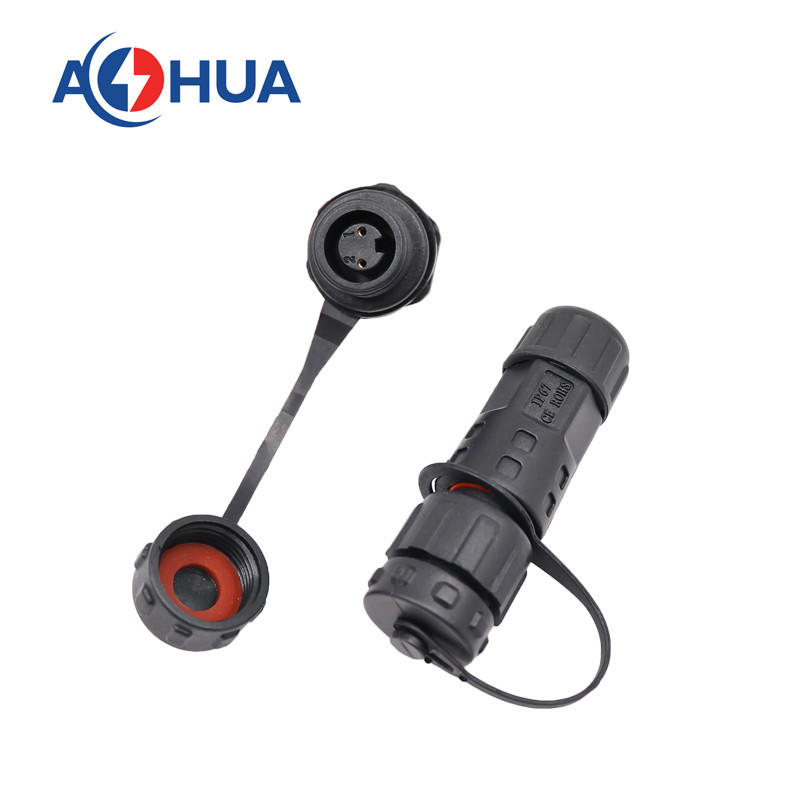

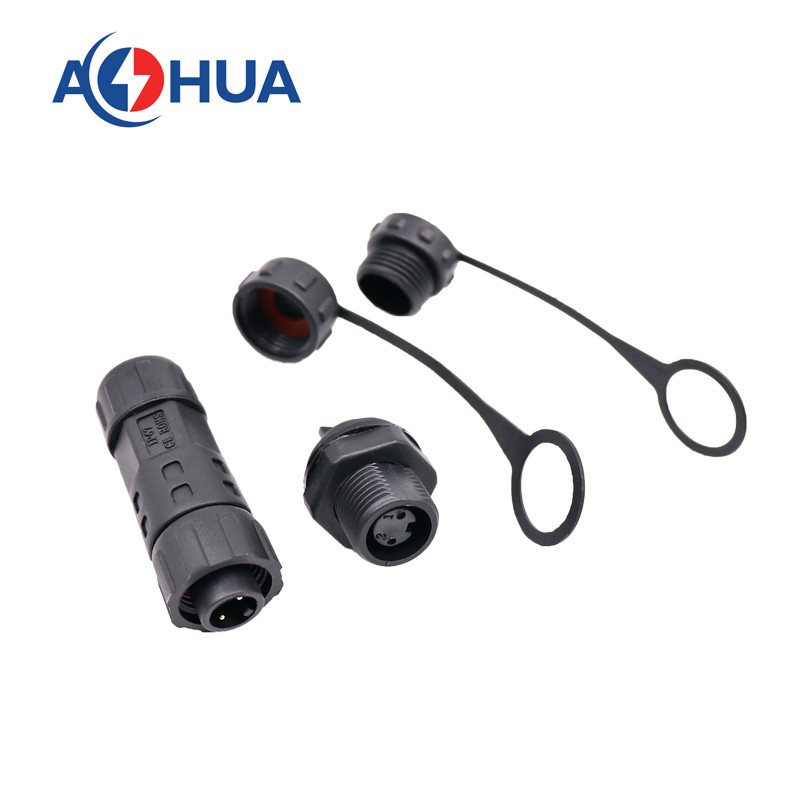

2PIN Wire to Front Female Panel +Male connector(Plug).   Solder-type Wiring.

2PIN Wire to Rear Female Panel +Male connector(Plug).   Solder-type Wiring.

Rear Female Panel Mount Socket Part Number: AH-M12-0502FFF01112
Male Plug Part Number: AH-M12-0502MMZ01112
1.Plastic Material: Nylon PA66.

2.Contact Material: Gold-plated Brass,Nickel-Plated Brass.
3.Voltage/Current: 110V 5A.
4.Connection Cable OD: 2.6~7.5mm
5.Cable Gauge: 0.2mm2,0.3mm2,0.5mm2,24AWG,22AWG,20AWG.
6.Mechanical Life: 3000 mating cycles.
7.Operating Temperature:-40°C~+105°C.
8.Certificate: UL/SAA/TUV/CE/ROHS/ISO9001...
9.Major Market for Sales: All Over the World...

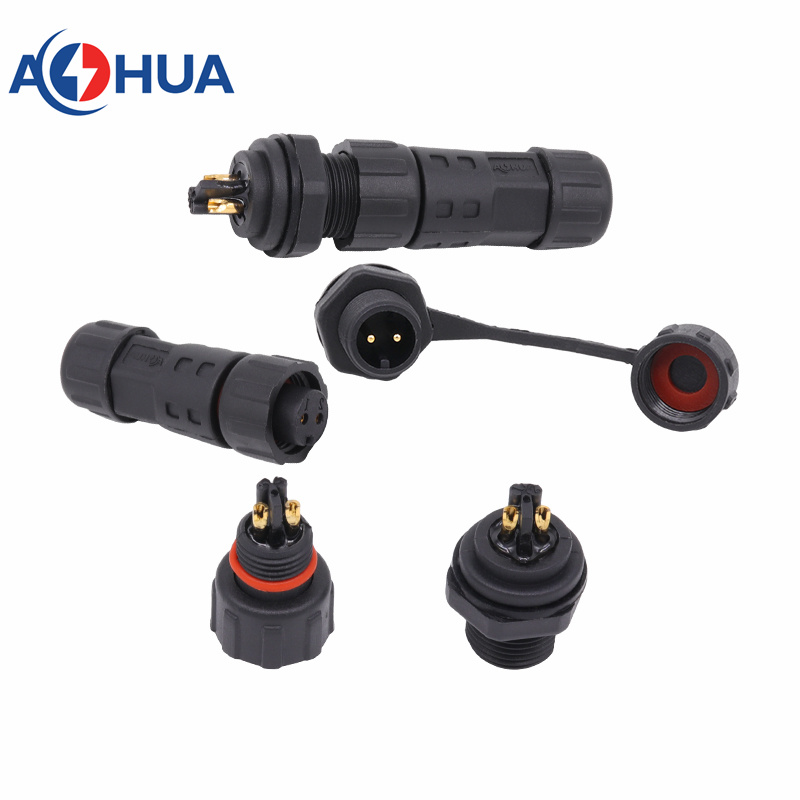

2PIN Wire to Front Male Panel +Female connector.

Solder-type Wiring.

Front Male Panel Mount Part Number: AH-M12-0502MFF01112
Female Socket Part Number: AH-M12-0502FMZ01112

1.Plastic Material: Nylon PA66.
2.Contact Material: Gold-plated Brass,Nickel-Plated Brass.
3.Voltage/Current: 110V 5A.
4.Connection Cable OD: 2.6~7.5mm
5.Cable Gauge: 0.2mm2,0.3mm2,0.5mm2,0.75mm2,24AWG,22AWG,20AWG,
18AWG.
6.Mechanical Life: 3000 mating cycles.
7.Operating Temperature:-40°C~+105°C.
8.Certificate: UL/SAA/TUV/CE/ROHS/ISO9001...
9.Major Market for Sales: All Over the World... 2PIN Wire to Rear Male Panel Mount +Female connector.

Solder-type Wiring.

Front Male Panel Mount Part Number: AH-M12-0502MFR01112
Female Socket Part Number: AH-M12-0502FMZ01112

1.Plastic Material: Nylon PA66.
2.Contact Material: Gold-plated Brass,Nickel-Plated Brass.
3.Voltage/Current: 110V 5A.
4.Connection Cable OD: 2.6~7.5mm
5.Cable Gauge: 0.2mm2,0.3mm2,0.5mm2,0.75mm2,24AWG,22AWG,20AWG,
18AWG.
6.Mechanical Life: 3000 mating cycles.
7.Operating Temperature:-40°C~+105°C.
8.Certificate: UL/SAA/TUV/CE/ROHS/ISO9001...
9.Major Market for Sales: All Over the World...

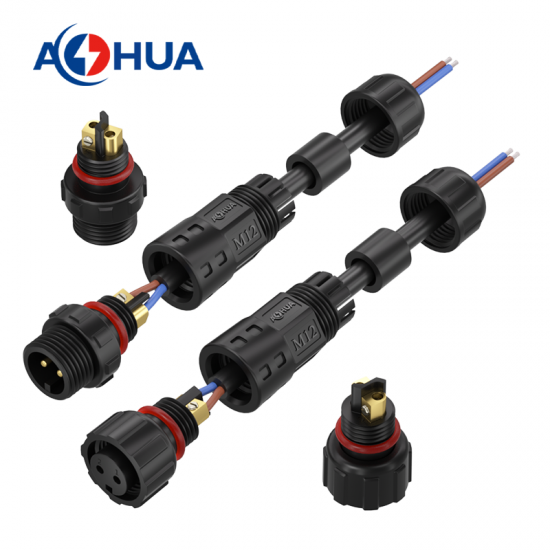

There are Wire to Panel and pre-wired type connector to meet your needs.
