Shop AHUA M20 15A IP68 Rated Nylon Connectors for LED lighting and industrial sensors.

Product Overview

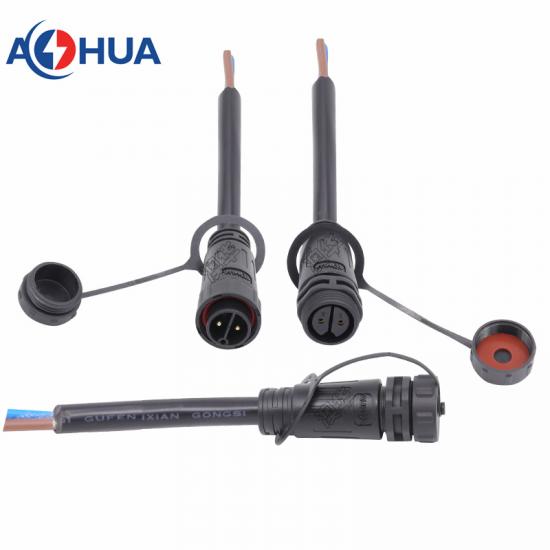

      The AHUA M20 Series Nylon Waterproof Connector is engineered for harsh outdoor and industrial environments. Featuring a robust nylon PA66 housing and gold-plated copper pins, this connector offers superior protection with an IP67/IP68 rating. It supports up to 3000 mating cycles and operates reliably in temperatures ranging from -40°C to +105°C. Available in standard 2 to 10-pin configurations as well as hybrid (2+3, 2+4) layouts, it is the ideal solution for LED landscape lighting, solar systems, and automation equipment.

Key Features & Benefits

• High Protection: Certified IP67/IP68 waterproof and dustproof; suitable for underwater applications.

• Durable Construction: High-strength nylon material resists impact, UV radiation, and chemical corrosion.

• Secure Connection: Threaded locking mechanism ensures a tight seal against vibration and tension.

• Certified Safety: UL, CE, and CQC certified options available (marked with ▲).

• Versatile Wiring: Accommodates cable diameters from 6mm to 12mm and wire gauges from 0.2mm² to 1.5mm².

• Pre-wired Convenience: Factory pre-molded wiring saves installation time and reduces labor costs.

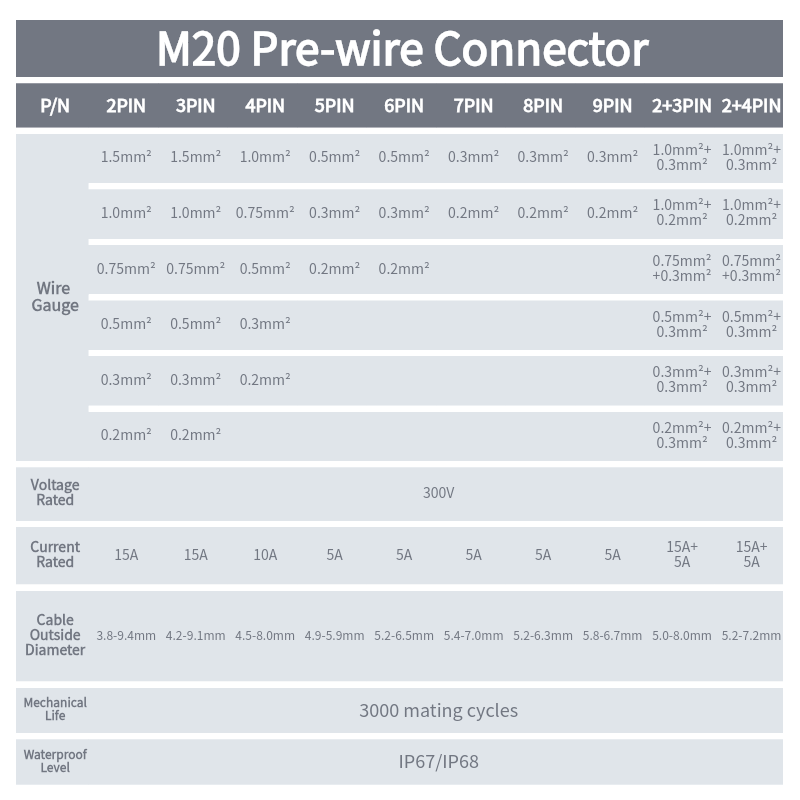

Part Number Reference (Examples)

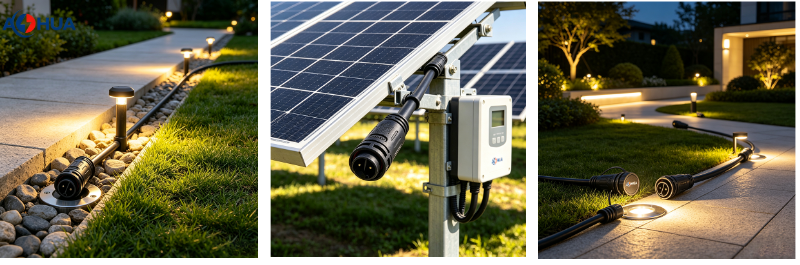

Applications

• LED Lighting: Landscape lights, garden spikes, wall washers, street lights, stage lighting.

• Industrial Automation: Sensors, actuators, PLC connections, robotic arms.

• Renewable Energy: Solar panel connections, solar charge controllers.

• Infrastructure: Surveillance cameras (CCTV), traffic signals, electronic billboards.

• Agriculture: Irrigation systems, smart farming sensors.

1. Ultimate water and dust resistance, suitable for harsh outdoor environments

2. Industrial-grade structural design, resistant to vibration and pulling

• One-piece housing：Made from PA66 engineering plastic, it is impact-resistant and weather-resistant, and can withstand frequent insertion and removal as well as mechanical impact
• Anti-loosening thread：Trapezoidal thread design ensures self-locking and prevents loosening after connection, thereby avoiding joint loosening caused by equipment vibration
• Stress-relief structure：The cable sheath at the rear is moulded as a single unit with the housing, distributing cable tension, protecting internal solder joints and pins, and preventing cable breakage;

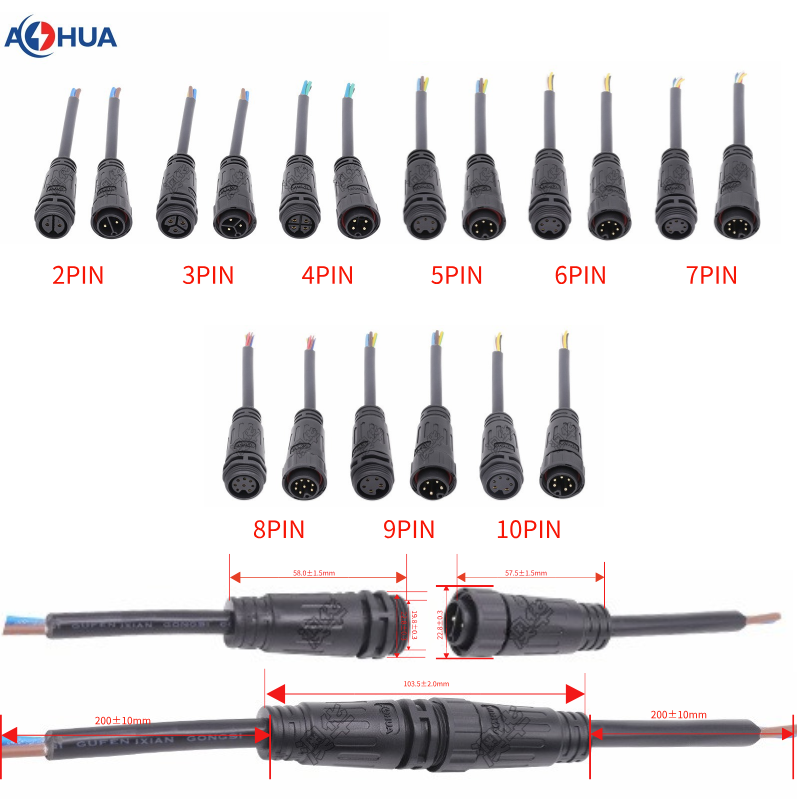

  Precise dimensions: 57.5 mm for the male connector, 58.0 mm for the female connector; total length when mated is 105.5 mm; the compact design saves space during equipment installation

•


3. Ensure stable electrical performance and guarantee signal and power transmission

• gold-plated contacts：Gold-plated brass pin sockets, featuring low contact resistance and oxidation resistance, ensuring stable, loss-free signal and power transmission
• Electrical isolation：Physical isolation between pins prevents signal crosstalk and short circuits, and supports the transmission of analogue signals, digital signals and low-current power
• Flame-retardant properties：The casing complies with the UL94-V0 flame-retardant rating, self-extinguishing when exposed to fire, thereby enhancing the safety of the equipment
•


4. Easy to install and maintain, reducing operational costs

• Blind-fit guidance：The male and female connectors feature built-in alignment grooves, allowing them to be tightened quickly without the need for manual alignment; installation can be carried out by a single person.
• Solderless design（Optional）：Crimping and soldering connection methods, suitable for both rapid on-site installation and batch assembly
• hot-swappable：With a mating cycle of ≥1,000, it offers stable performance and facilitates equipment maintenance and replacement
