T Shape 3 Way 2PIN Power Plus 3PIN Signal Male Female Connector for Power Drive Connections

T Shape Power and Signal Cable Connector

If you want to design a connector that can incorporate both power connections and signal connections, then you might consider this connector.

In this connector, it is made of 2PCS 2+3PIN connector and 1PCS 2PIN connector.

2+3PIN connector: this we can think that there is 2 Power Cable + 3 Signal Cable, in Power cable we can choose 18AWG/16AWG/14AWG..., and in Signal cable we can choose 20AWG/22AWG/24AWG..., in this connector, power lines and signal lines can be effectively combined.

2PIN connector: it is used for Power connection, the current from driver, if there is running a power cable from the drive power supply, ang you do not want to solder the connecor on it or you may not want to expend extra effort on soldering cables and connectors, this screw finxing type connector can help you connect the cable quickly, Just screw fixing the connector on it, then all the work will be finished.

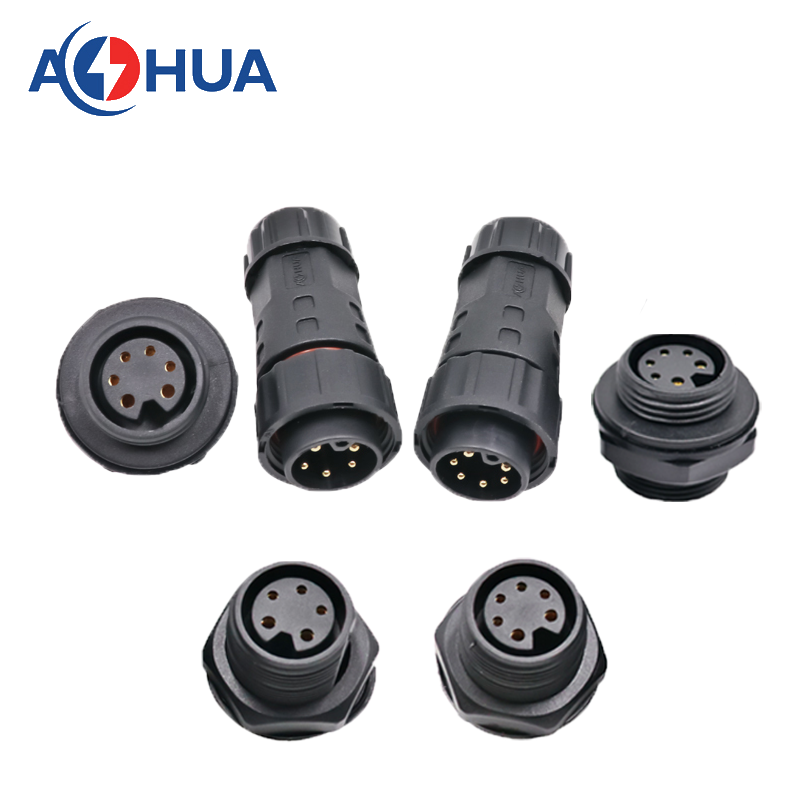

As for 2+3PIN & 2+4PIN connector, we have a series design for you.

Also, if you have 2 Power Cable & 3 Sinal Cable, you just want a connector to better integrate the power cable and signal cable,

or you don't want to separate the power cable and signal cable. We suggest you to use this type Assembly connector.

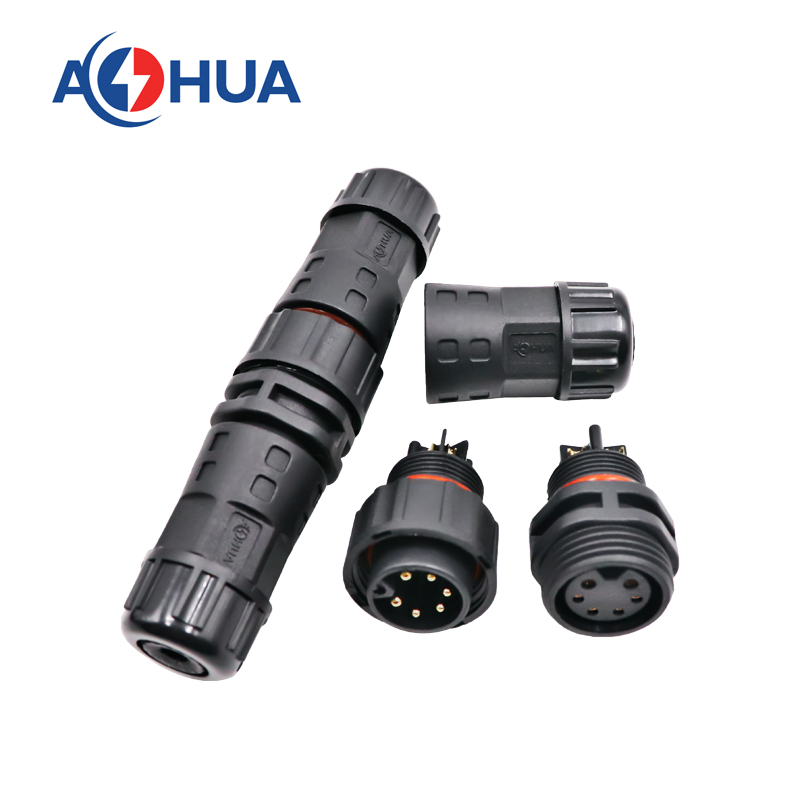

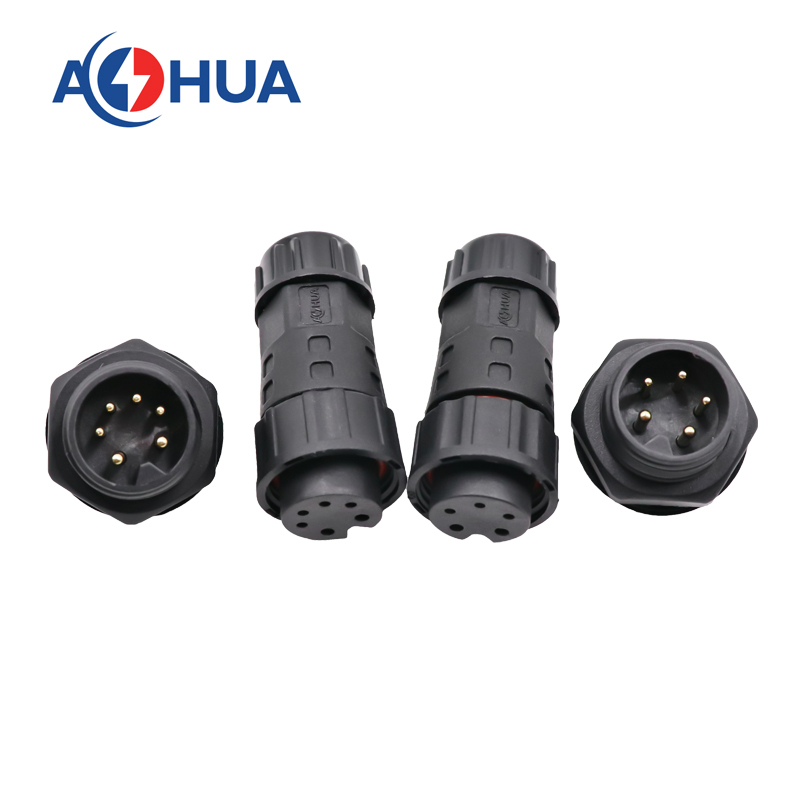

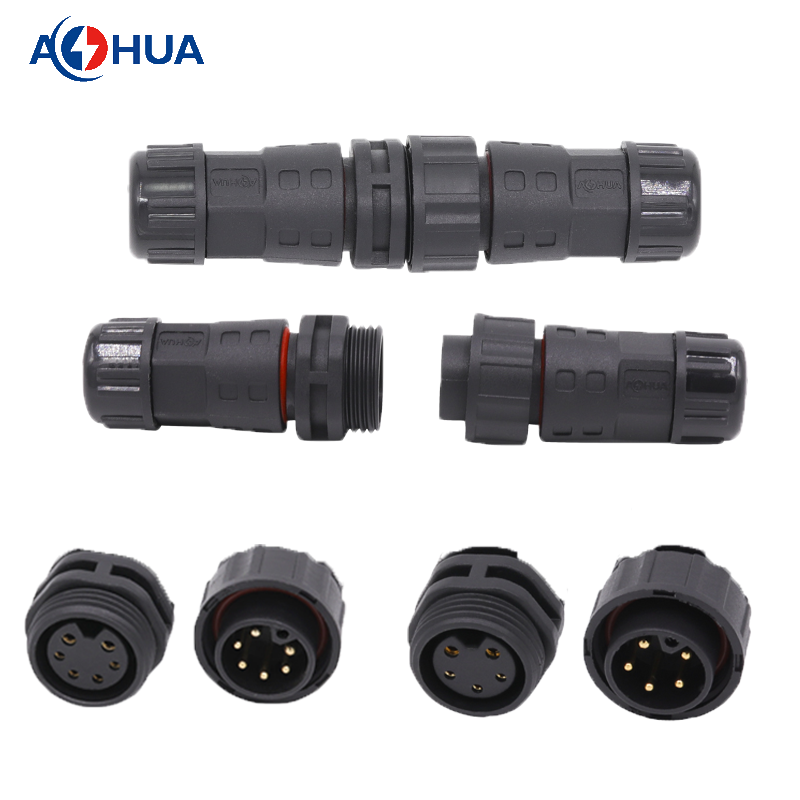

① Male Plug to Female Plug                  ②Male Socket(Panel Mount) to Female Plug      ③Male Plug to Female Socket(Panel Mout)

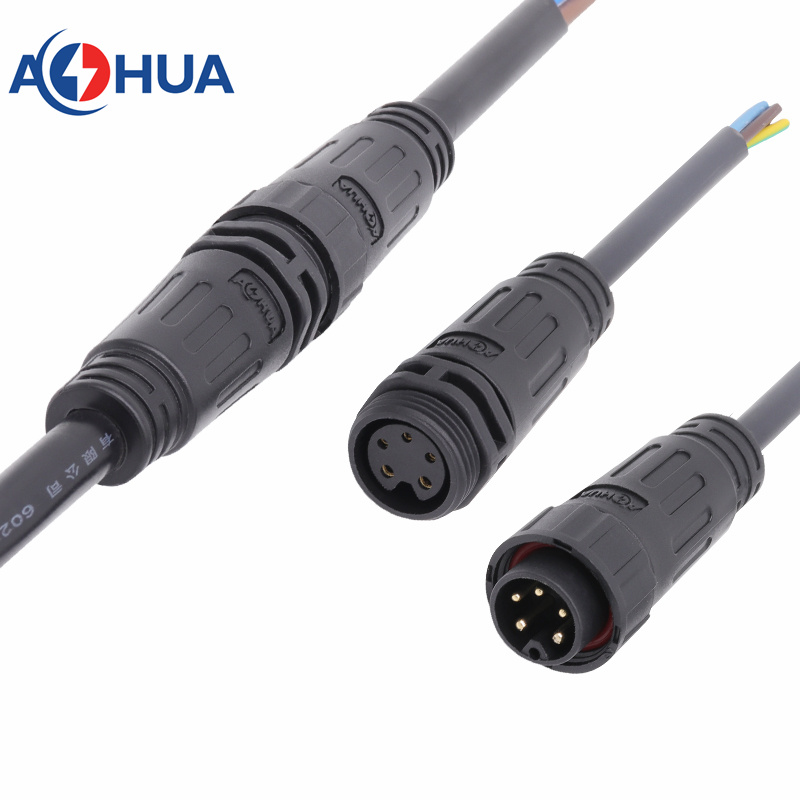

If you are still in the design of the cable and connectors, a 2+3PIN Cable and q 2+4PIN Cable can help you have a good design of the power cable and the signal cable, this is very helpful for saving space on power cables and signal cables.

Just tell us what the wire gauge you want to use(2PIN *1.0mm² + 3PIN*0.5mm²/2PIN *1.0mm² + 4PIN*0.5mm²...) then we can give you a solution about the conbination of Power & Signal.
