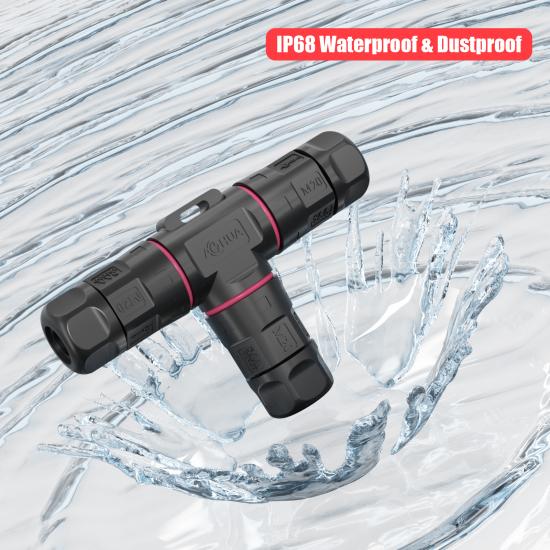

UL/CE/SAA Cert M20 Assembly Connector T Shaped IP68 Waterproof Plug 500V 20A Power Plug 2Pin Cable Connector for Outdoor Led Wiring Applications

M20 assembly waterproof connector can be combined with L/T/Y/F Type connectors to provide a solution for LED lamp modules.
Widely used in LED plant growth lamp, streetlight, garden light, stage light, LED outdoor display, junction box, outdoor engineering,
mining engineering, solar-wind power, solar water heaters and various machinery and so on..

If you need help,pls contact our team:

1.Screw wiring type assembly waterproof plug M20.
Connector coming without cable.  Operating tool:A well screwdriver.

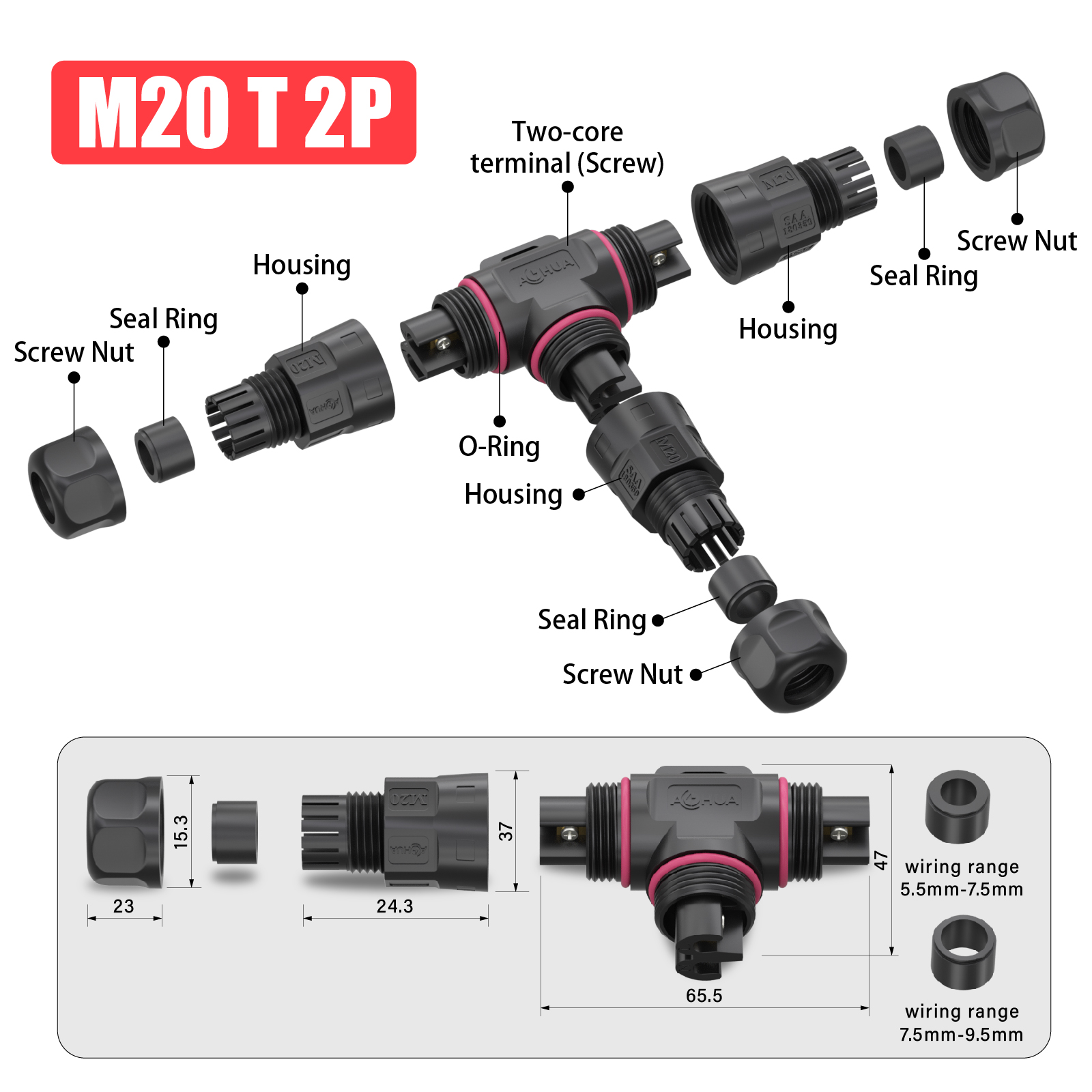

M20 is composed of Male core,Female core,O-ring ,Housing, Seal Ring and Screw Nut.

How to order a suitable connector?

Before order, please specify the details of your cable as follow:
1. How much Voltage/Current do you need this connector to carry on?
 Such as: 300V 15A...

2.What's the Wire size do you need this connector to connect?
Such as: 2*1.5mm²...

3. What is the Cable outer diameter(OD)?
 Such as: 9.3mm,then we can select a suitable seal ring for connector.

A suitable size of the seal ring can help the connector achieve better waterproof effect,
according to the cable outer diameter to choose seal ring size.

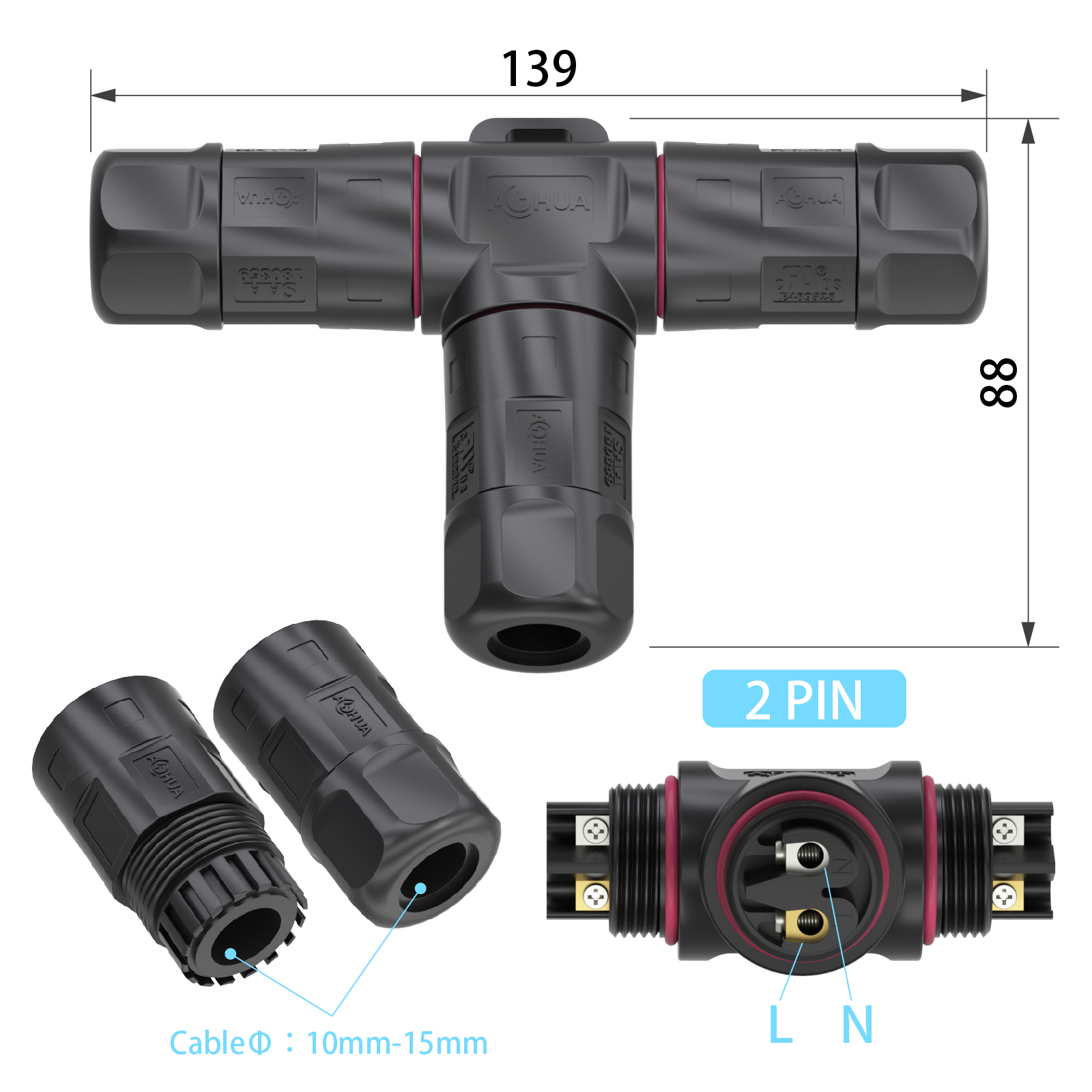

2PIN Wire to wire T Splitter Connector.

Part Number:
AH-M20-2002T01122
1.Plastic Material: Nylon PA66.
2.Contact Material: Gold-plated Brass,Nickel-Plated Brass.
3.Voltage/Current: 500V 20A.
4.Mechanical Life: 3000 mating cycles.
5.Waterproof Level:IP68
6.Connection Cable OD: 5.5~9.5mm.
7.Cable Gauge: 0.75mm2,1.0mm2,1.5mm2;
18AWG.16AWG,
8.Certificate: CE/ROHS/ISO9001/UL/SAA...
9.Major Market for Sales: All Over the World...

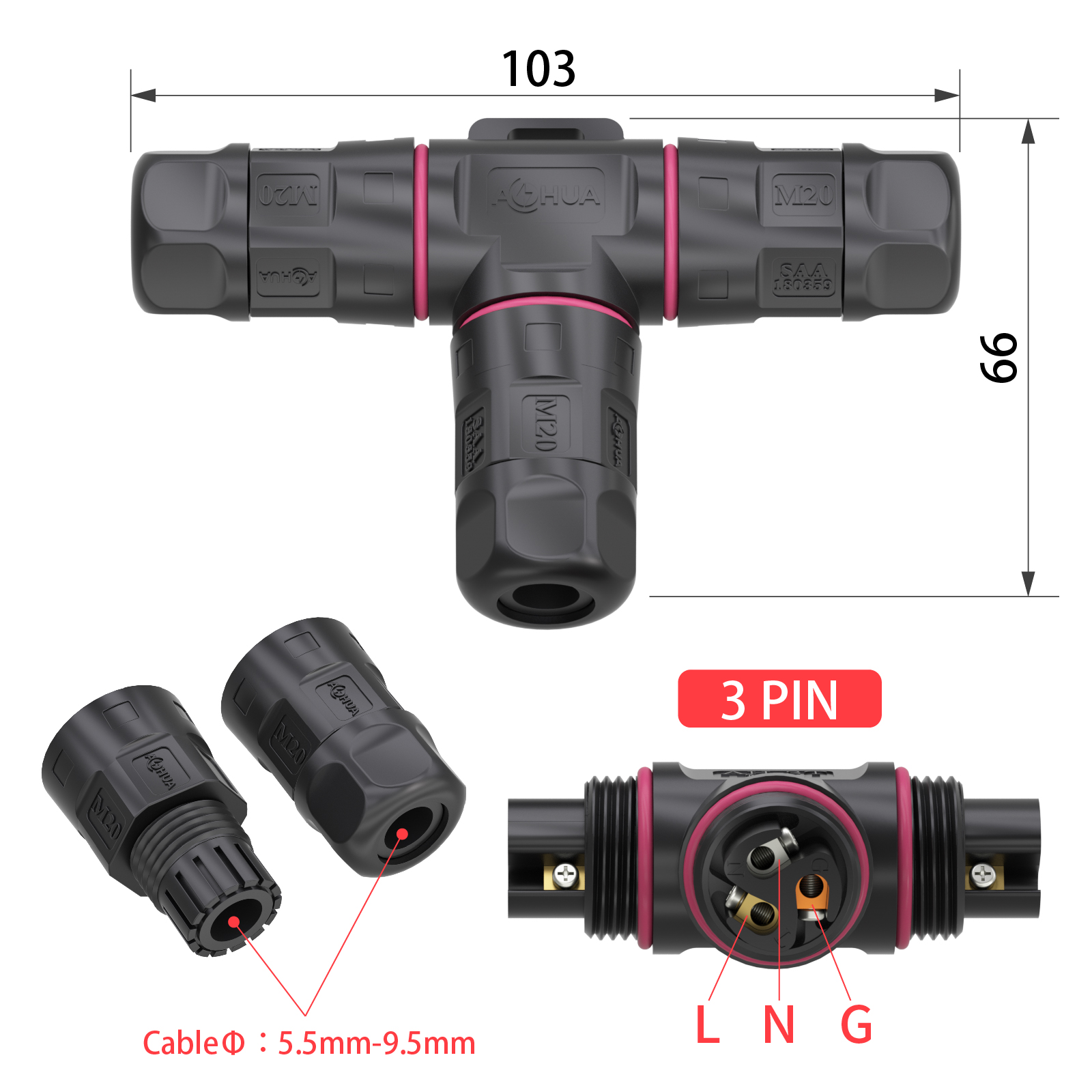

3PIN Wire to wire T Splitter Connector.

Part Number:
AH-M20-2003T01122
1.Plastic Material: Nylon PA66.
2.Contact Material: Gold-plated Brass,Nickel-Plated Brass.
3.Voltage/Current: 500V 20A.
4.Mechanical Life: 3000 mating cycles.
5.Waterproof Level:IP68
6.Connection Cable OD: 5.5~9.5mm.
7.Cable Gauge: 0.75mm2,1.0mm2,1.5mm2;
18AWG.16AWG,
8.Certificate: CE/ROHS/ISO9001/UL/SAA...
9.Major Market for Sales: All Over the World...





Installation Instruction:

There are Push lock type T and X Shaped Splitter  to meet your needs.
