UL/CE/SAA Cert Straight Type 3 Ways M16 Connector Screw Type Terminal 3PIN Power Cable Waterproof Connector IP68 For Supply Power Systems

M16 assembly waterproof connector can be combined with L/T/Y/F Type connectors to provide a solution for LED lamp modules.
Widely used in LED plant growth lamp, streetlight, garden light, stage light, LED outdoor display, junction box, outdoor engineering,
mining engineering, solar-wind power, solar water heaters and various machinery and so on..

If you need help,pls contact our team:

1.Screw wiring type assembly waterproof plug M16.
Connector coming without cable.  Operating tool:A well screwdriver.
It is composed of Male core,Female core,O-ring ,Housing, Seal Ring and Screw Nut.

How to order a suitable connector?

Before order, please specify the details of your cable as follow:
1. How much Voltage/Current do you need this connector to carry on?
 Such as: 300V 10A...

2.What's the Wire size do you need this connector to connect?
Such as: 2*1.5mm²...

3. What is the Cable outer diameter(OD)?
 Such as: 7.5mm,then we can select a suitable seal ring for connector.


A suitable size of the seal ring can help the connector achieve better waterproof effect,
according to the cable outer diameter to choose seal ring size.

This connector is coming without cable.

2PIN Wire to wire Straight Connector.

Part Number:
AH-M16-2002Z01122
1.Plastic Material: Nylon PA66.
2.Contact Material: Gold-plated Brass,Nickel-Plated Brass.
3.Voltage/Current: 500V 20A.

4.Waterproof Level:IP68
5.Connection Cable OD: 5.5~10mm.
6.Cable Gauge: 1.5mm2,1.0mm2,0.75mm2,0.5mm2;
16AWG,18AWG,20AWG.
7.Certificate: CE/ROHS/ISO9001/UL/SAA...
8.Major Market for Sales: All Over the World...

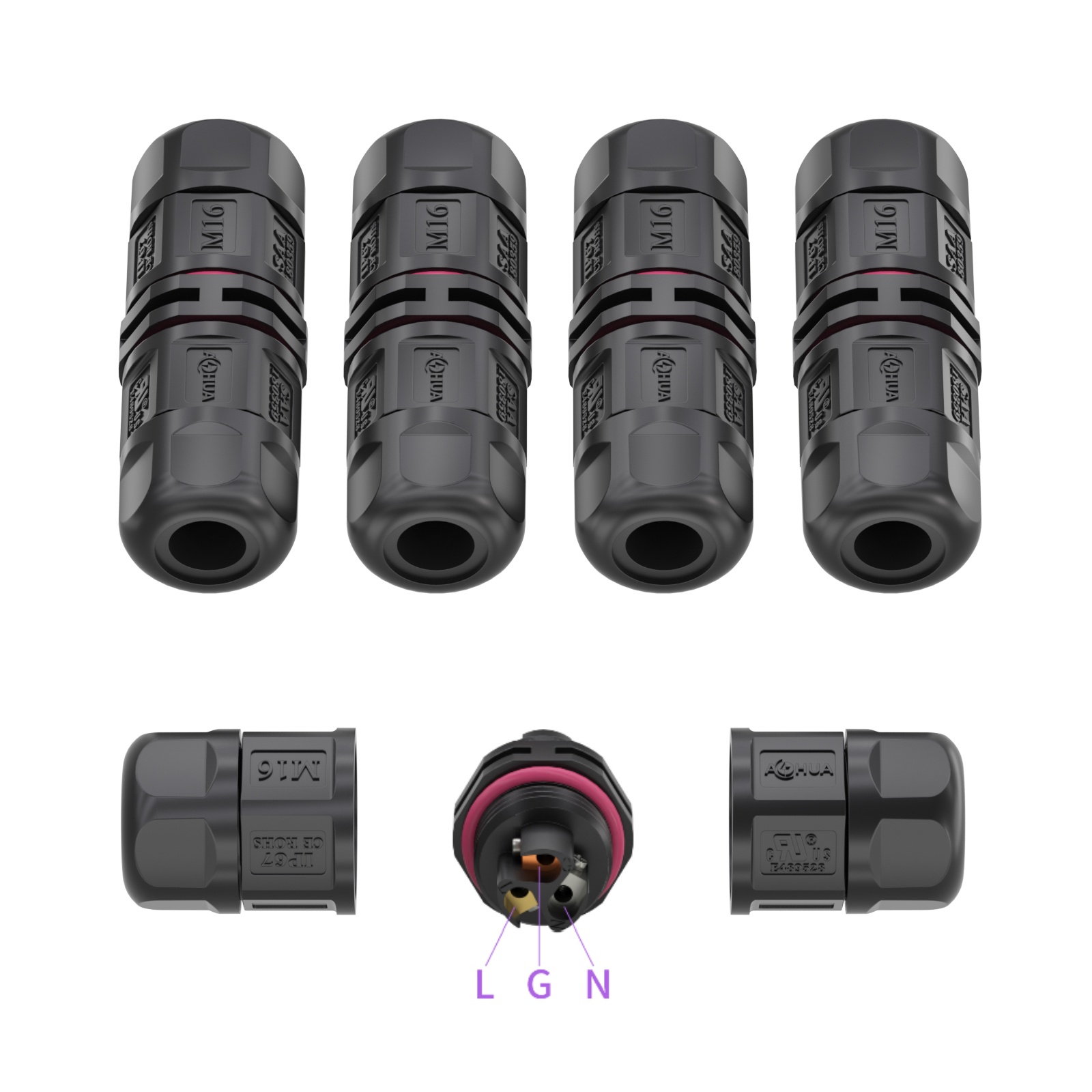

3PIN Wire to wire Straight Type L Connector.

Part Number:
AH-M16-2003Z01122
1.Plastic Material: Nylon PA66.
2.Contact Material: Gold-plated Brass,Nickel-Plated Brass.
3.Voltage/Current: 500V 20A.

4.Waterproof Level:IP68
5.Connection Cable OD: 5.5~10mm.
6.Cable Gauge: 1.5mm2,1.0mm2,0.75mm2,0.5mm2;
16AWG,18AWG,20AWG.
7.Certificate: CE/ROHS/ISO9001/UL/SAA...
8.Major Market for Sales: All Over the World...




Installation Instruction:

There are L/T and X Shaped Splitter  to meet your needs.
