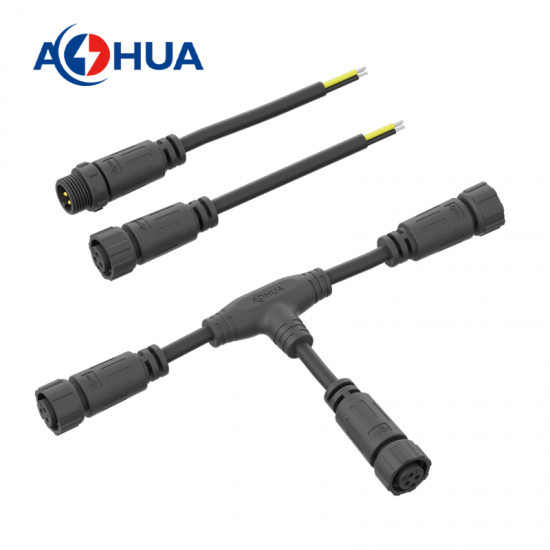

Waterproof T-Connector Cable | AHUA IP65 Electrical Joiner for 2/3 Core Wires

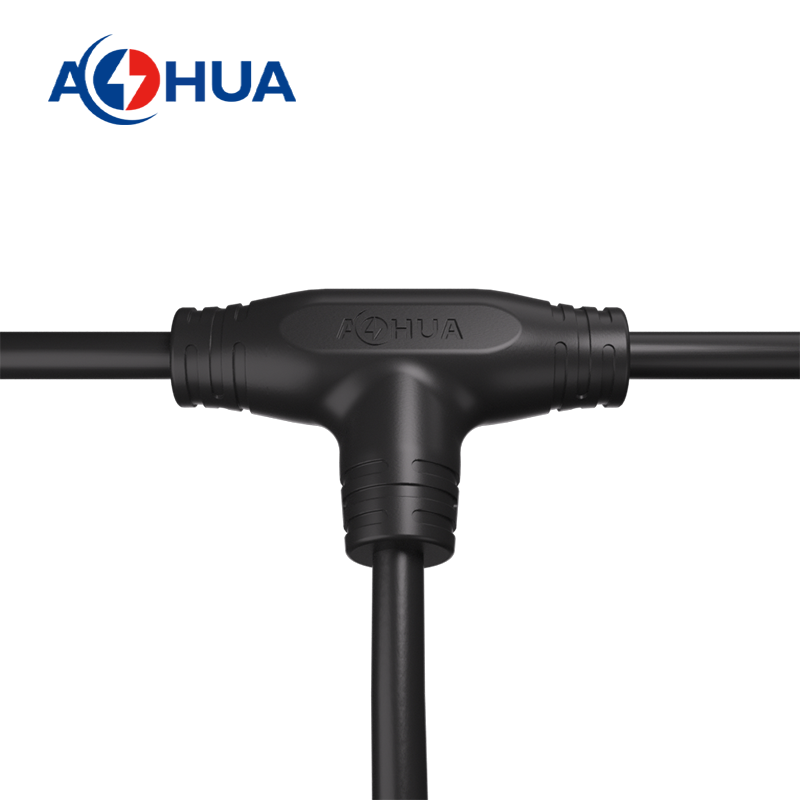

This is the Over Molded Type T Conenctor "T-shaped overmolding” refers to a process that requires three wires to be combined to complete the assembly.

Therefore, this imposes certain requirements on the conductor specifications and the outer diameter of the cable.

For the wire gauge we recommand use is 2pin or 3pin number cable, and the wir gauge from 0.2mm² to 0.5mm ².

For this type connector, it is desiged to match with 5A current Max, and the branch cable is same as this.

1.This is the datasheet for reference:

2. Application Scenarios

Suitable for outdoor monitoring systems, LED lighting projects, industrial automation equipment, and other scenarios where waterproof, dust - proof, and stable signal/power transmission are required. It can effectively protect the connection points from moisture, dust, and mechanical damage, ensuring long - term reliable operation.

3. Why Choose AHUA T - 15?

• Professional Manufacturing: AHUA has rich experience in connector production, ensuring product quality.

• High - performance Waterproof: IP65 (PVC) / IP67/IP68 (Nylon) rating, adapting to different harsh environments.

• Flexible Cable Matching: Supports main/branch cables with different gauges (≤1.0mm²) and outer diameters (max 5.8mm), meeting diverse wiring needs.

• Wide Temperature Range: Adapts to temperatures from - 40℃ to +105℃ (nylon) or - 20℃ to +80℃ (PVC), suitable for various climate conditions.
