This range of AHUA waterproof connector assemblies is specifically engineered for electrical circuit connections in demanding outdoor and humid environments. Whether wiring exposed LED lighting installations, connecting outdoor security equipment during rainy seasons, or interfacing electromechanical circuits in high-humidity settings such as swimming pools and aquaculture facilities, its IP-rated protection effectively shields against water and dust ingress. This ensures stable circuit continuity while meeting diverse wiring requirements for outdoor electrical equipment.
Core components include:

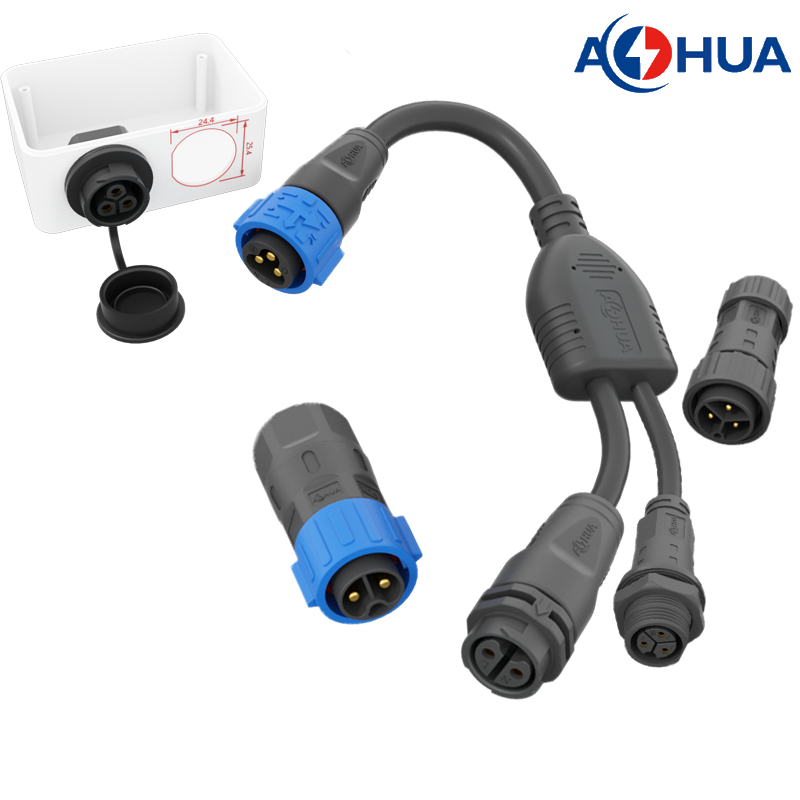

Waterproof junction box-Panel Mount Connector (white box in top left corner): This is the final connection position for the panel connector; featuring mounting holes to secure connectors and protect wiring connections; Featuring precisely positioned mounting holes, it securely fastens the accompanying connectors, preventing wiring loosening due to external pulling forces. This establishes a robust protective foundation for wiring junctions in outdoor damp environments.
The central body: Features a waterproof connector with a 1-in-3-out interface design, enabling a single input cable to be branched into three independent outputs. This accommodates the parallel power supply requirements of multiple devices. The connector incorporates a blue twist-lock sealing mechanism which, when fully tightened, effectively prevents water and dust ingress. It achieves an IP67 protection rating, ensuring circuit stability remains unaffected even during brief immersion. This makes it suitable for outdoor multi-device cabling scenarios.

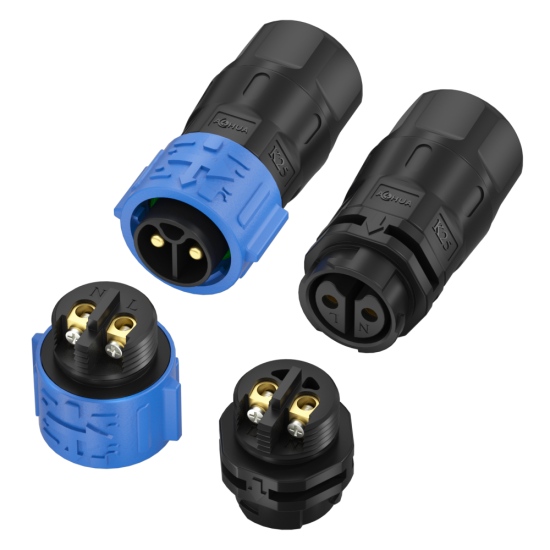

Male and female plugs for multiple connection methods.

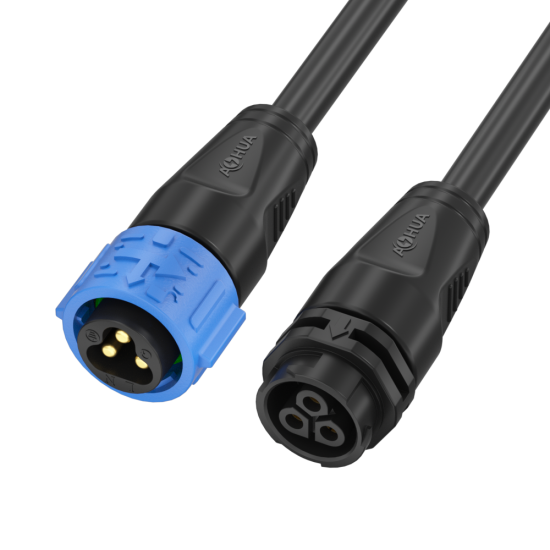

Male and female connectors with snap-fit connection:After aligning and inserting into the interface, tighten the locking mechanism to form a secure seal.

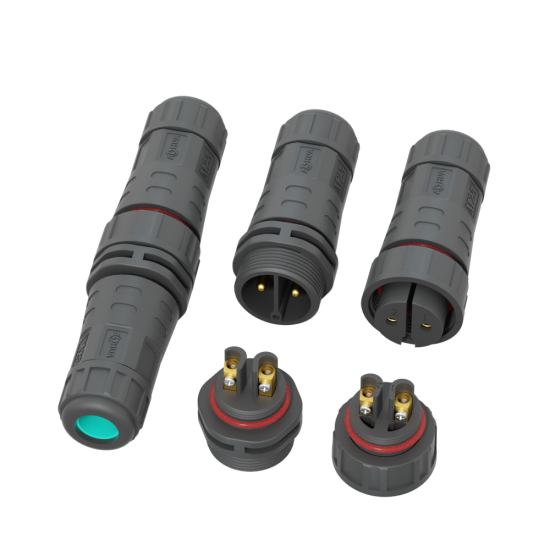

Screw tightening:The enhanced secure connection effectively prevents rainwater and dust from entering the circuitry, ensuring stable connectivity in damp outdoor environments.
The datasheet of the connector:
| Connector Gauge Datasheet | |||
|
K15 2PIN/3PIN/4PIN |
24AWG/0.2mm² |
K15 5PIN/6PIN/7PIN/8PIN |
24AWG/0.2mm² |
|
22AWG/0.3mm² |
22AWG/0.3mm² |
||
|
20AWG/0.5mm² |
20AWG/0.5mm² |
||
|
18AWG/0.75mm² |
K20 5PIN/6PIN/7PIN/8PIN |
24AWG/0.2mm² |
|
|
16AWG/1.0mm² |
22AWG/0.3mm² |
||
|
K20 2PIN/3PIN/4PIN |
24AWG/0.2mm² |
20AWG/0.5mm² |
|
|
22AWG/0.3mm² |
18AWG/0.75mm² |
||
|
20AWG/0.5mm² |
K20 5PIN/6PIN/7PIN |
24AWG/0.2mm² |
|
|
18AWG/0.75mm² |
22AWG/0.3mm² |
||
|
16AWG/1.0mm² |
20AWG/0.5mm² |
||
|
14AWG/1.5mm² |
18AWG/0.75mm² |
||
|
12AWG/2.5mm² |
16AWG/1.0mm² |
||
|
K25 2PIN/3PIN/4PIN |
24AWG/0.2mm² |
K20 8PIN/10PIN |
24AWG/0.2mm² |
|
22AWG/0.3mm² |
22AWG/0.3mm² |
||
|
20AWG/0.5mm² |
20AWG/0.5mm² |
||
|
18AWG/0.75mm² |
// | // | |
|
16AWG/1.0mm² |
// | // | |
|
14AWG/1.5mm² |
// | // | |
|
12AWG/2.5mm² |
// | // | |
|
10AWG/4.0mm² |
// | // | |
