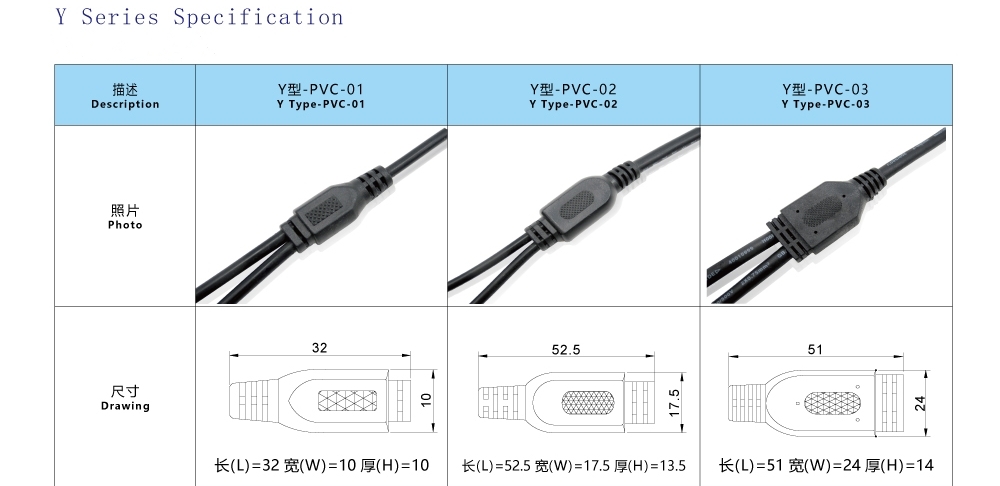

Description & Specs

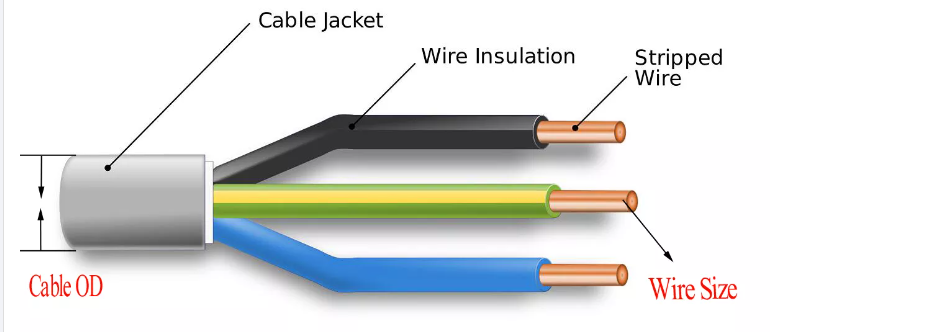

Items | Pins | Part Number | Wire Gauge | Cable OD |
Y-PVC-01 | 2 | AH-YP01-020X |
Main Cable Gauge:≤0.5mm² Branch Cable Gauge:≤0.3mm² |
Main Cable OD:Max 4.0mm Branch Cable OD:Max 3.0mm |
Y-PVC-01 | 3 | AH-YP01-030X | ||
Y-PVC-01 | 4 | AH-YP01-040X | ||
Y-PVC-02 | 2 | AH-YP02-020X |
Main Cable Gauge:≤1.0mm² Branch Cable Gauge:≤0.5mm² |
Main Cable OD:Max 6.8mm Branch Cable OD:Max 5.0mm |
Y-PVC-02 | 3 | AH-YP02-030X | ||
Y-PVC-02 | 4 | AH-YP02-040X | ||
Y-PVC-03 | 2 | AH-YP03-020X |
Main Cable Gauge:≤1.5mm² Branch Cable Gauge:≤1.0mm² |
Main Cable OD:Max 8.3mm Branch Cable OD:Max 6.8mm |
Y-PVC-03 | 3 | AH-YP03-030X | ||
Y-PVC-03 | 4 | AH-YP03-040X |
Operating Rating | -20ºC-+80ºC |
Waterproof Level | IP65 |
Tips for choices:
Before quotation, please let me know the cable lengths:

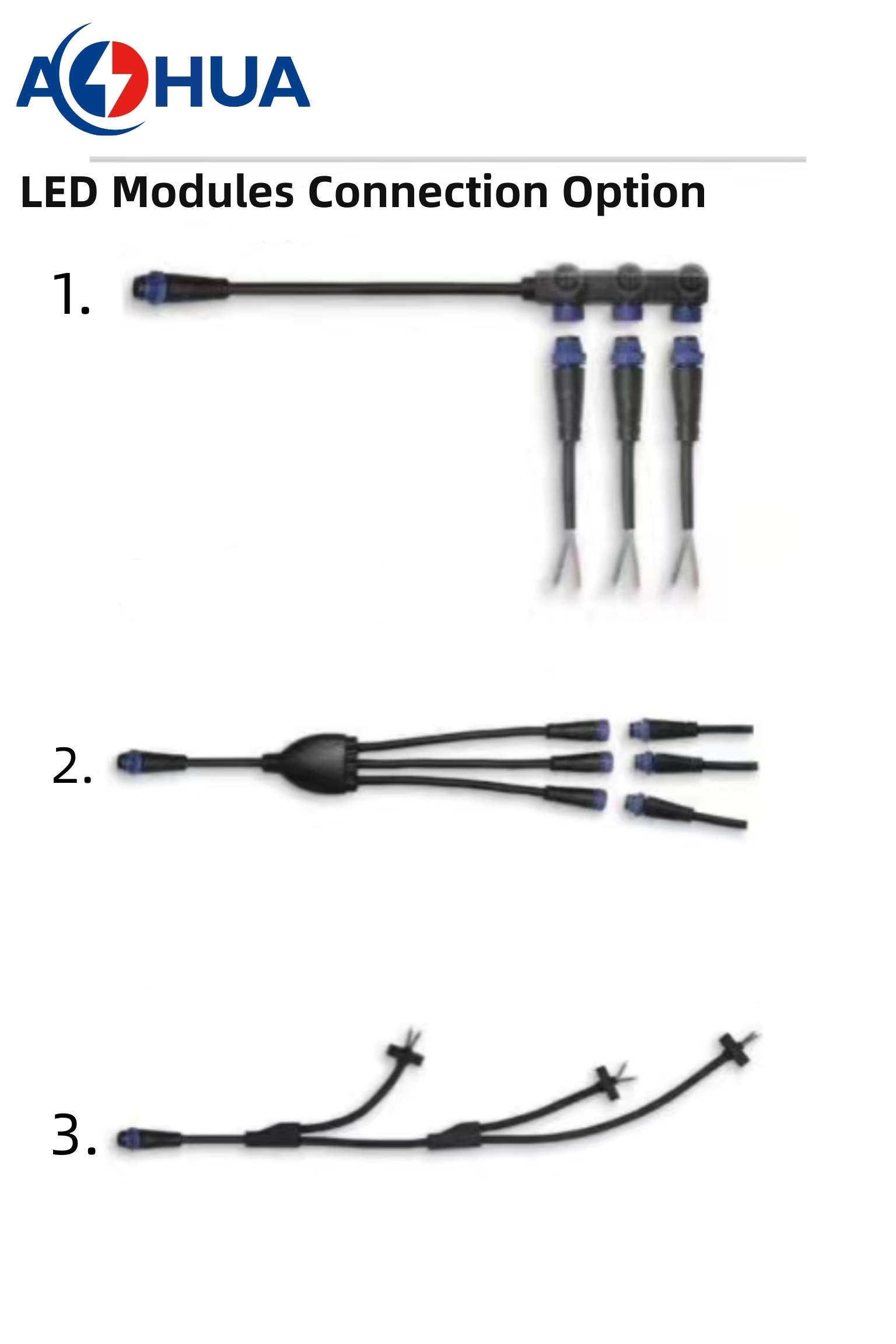

1. 1 to 2 Y connector / or 1to 3/ 1to 4...
2. main cable 2*1.5mm2 black rubber cable 200mm with male connector/ female connector 200mm
branch cable 2*0.75mm2 black rubber cable 200/300/400mm with female connector /male connector 200mm
3. Then I will gvie advise which Y and connector you used and make drawing for you.
Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.

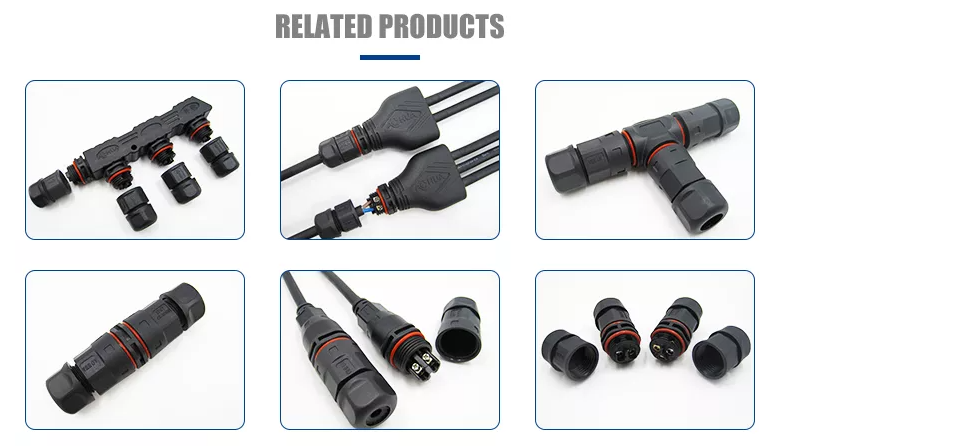

Related Products
Our Advantages
Advantages:
1.Connector:Y Series Waterproof connector type,1 to 2, 1 to 3, 1 to 4, 1 to 5,parallel type & series type.
2. Quality Assurance: IP65 advanced protetion,operating temperature:-20°C-+80°C.
3.Easy Install: The installation process is very simple.
4.Cable:PVC or rubber.
5.Color:Black&White.
6.High-Quality Materials: The Outdoor connector all are made high quality Nylon PA66,high temperature resistant,94V-0 flame retardant.

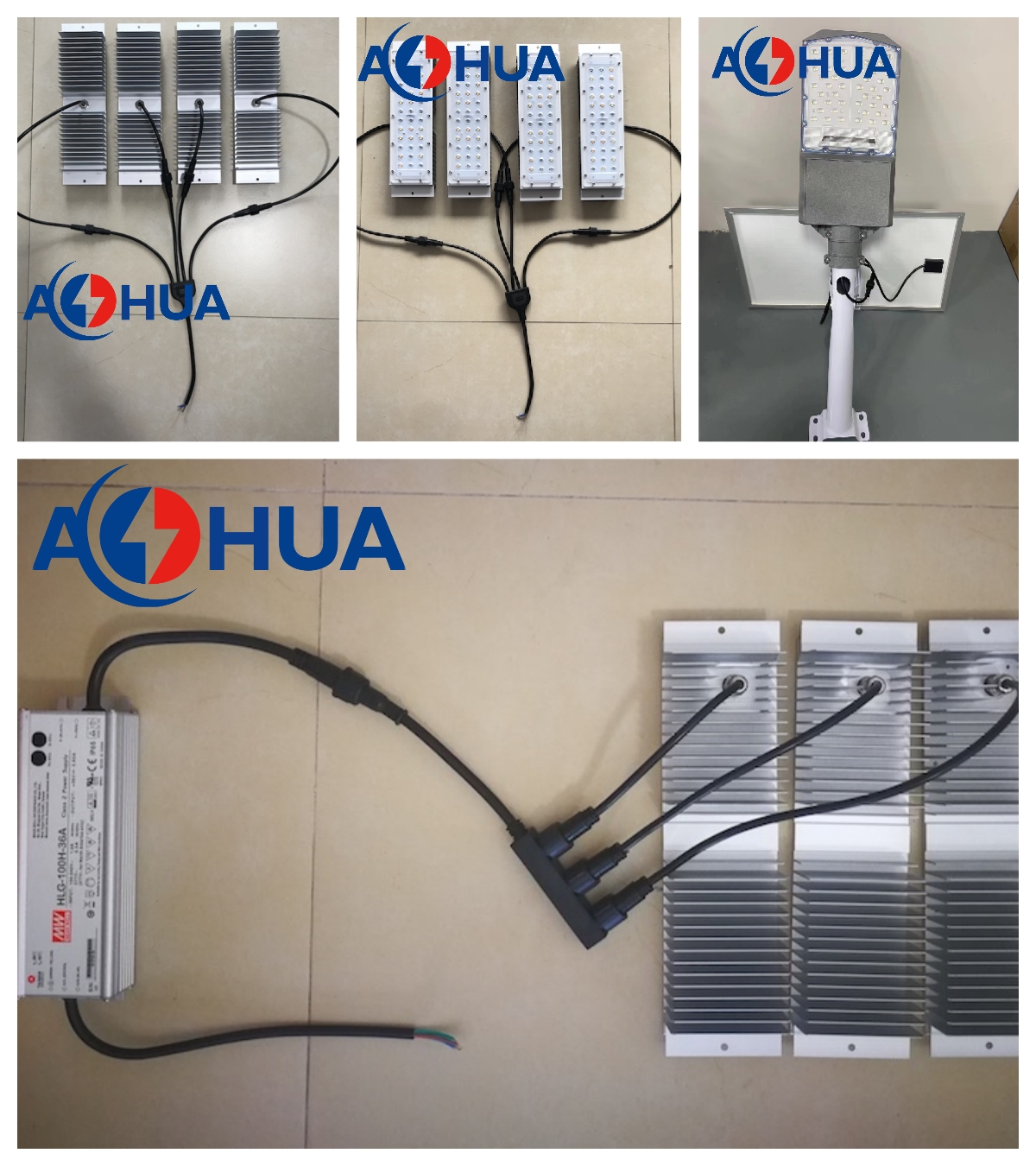

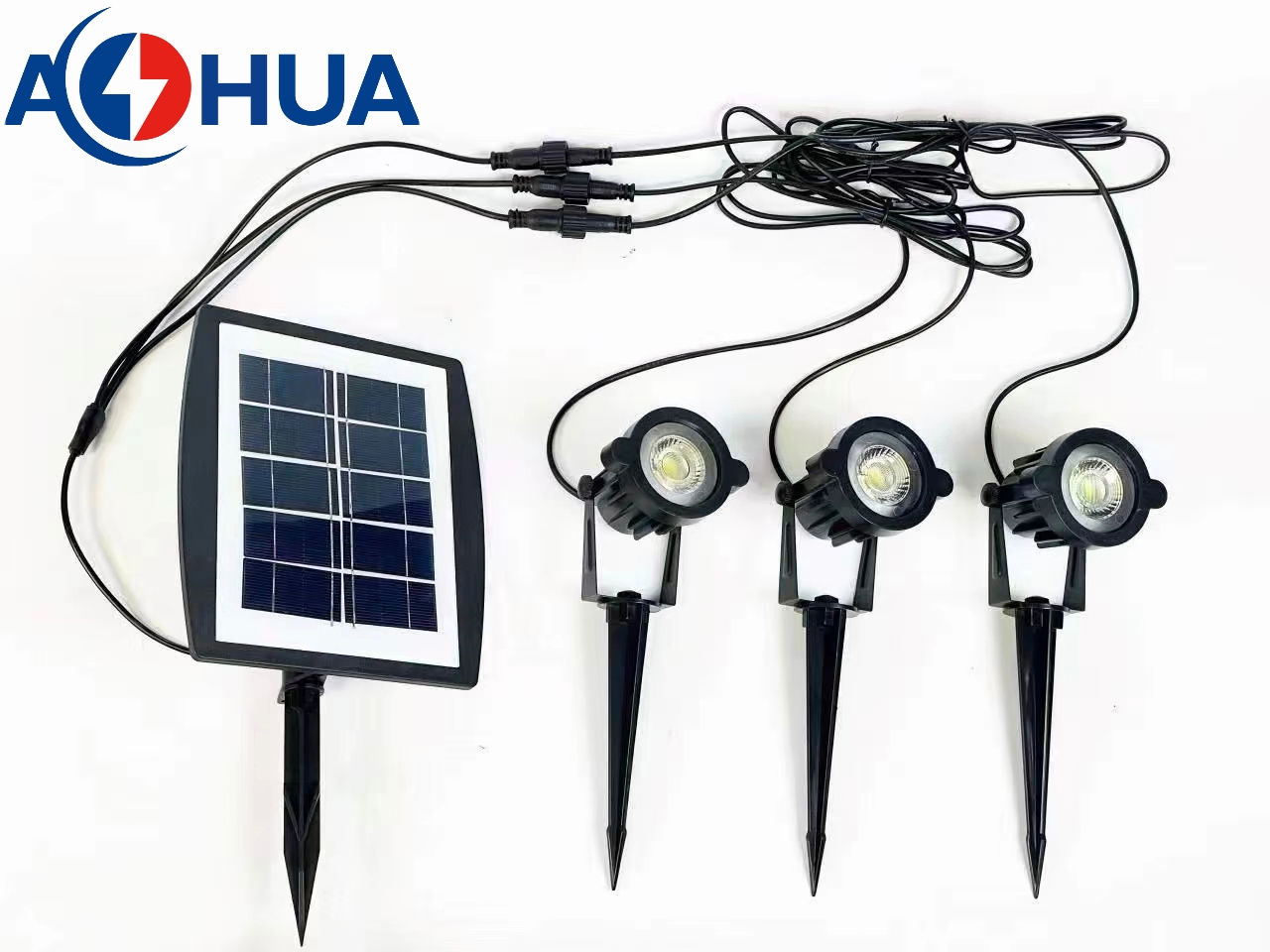

7. Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
Assembly Connector
|
Wire to wire /Wire to panel waterproof connector,L/T screw type connector
|
Over-mold Connector
|
Nylon/PVC /Metal /Aviation waterproof connector,DC connector
|
T Connector
|
Over-mold T waterproof connector
|

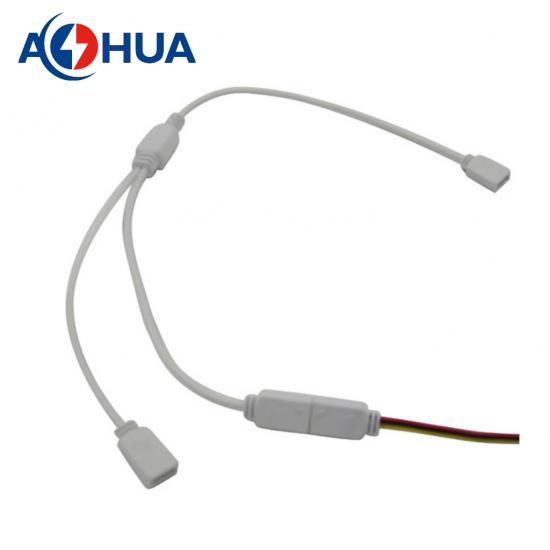

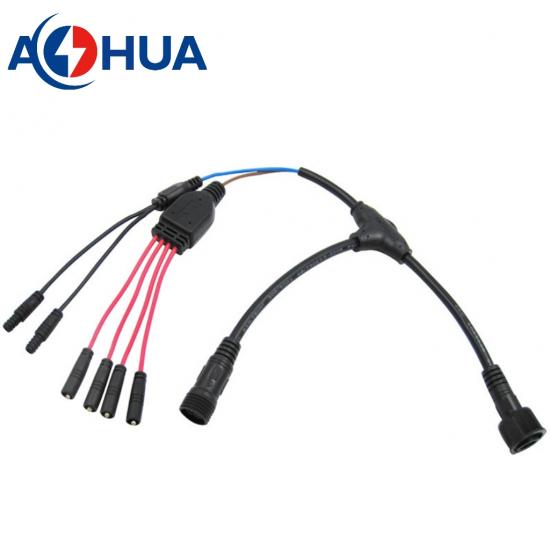

Y Connector
|
Over-mold Y waterproof connector
|
Distributor Connector
|
M15/M18 Series(1to2/3/4/5/6) LED waterproof connector
|
Packaging & Shipping
Quantity(sets) | 1 - 1000 | 1001 - 2000 | >2000 |
Lead time (days) | 4 | 7 | To be negotiated |
Shipment |
Express(DHL,Fedex,TNT,Ups);Ocean freight Land freight;Air freight |
