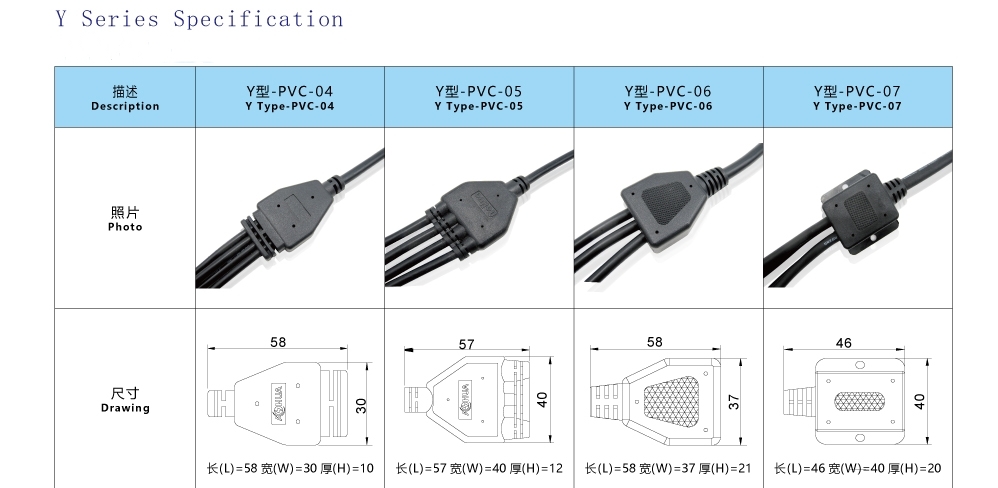

Description & Specs
Items | Pins | Part Number | Wire Gauge | Cable OD |
Y-PVC-04 | 2 | AH-YP04-020X |
Main Cable Gauge:≤0.5mm² Branch Cable Gauge:≤0.3mm² |
Main Cable OD:5.0mm Branch Cable OD:4.5mm |
Y-PVC-04 | 3 | AH-YP04-030X | ||
Y-PVC-04 | 4 | AH-YP04-040X | ||
Y-PVC-05 | 2 | AH-YP05-020X |
Main Cable Gauge:≤1.0mm² Branch Cable Gauge:≤0.5mm² |
Main Cable OD:8.4mm Branch Cable OD:5.0mm |
Y-PVC-05 | 3 | AH-YP05-030X | ||
Y-PVC-05 | 4 | AH-YP05-040X | ||
Y-PVC-06 | 2 | AH-YP06-020X |
Main Cable Gauge:≤2.5mm² Branch Cable Gauge:≤1.5mm² |
Main Cable OD:9.5mm Branch Cable OD:8.3mm |
Y-PVC-06 | 3 | AH-YP06-030X | ||
Y-PVC-06 | 4 | AH-YP06-040X | ||
Y-PVC-07 | 2 | AH-YP07-020X |
Main Cable Gauge:≤2.5mm² Branch Cable Gauge:≤1.5mm² |
Main Cable OD:9.5mm Branch Cable OD:8.3mm |
Y-PVC-07 | 3 | AH-YP07-030X | ||
Y-PVC-07 | 4 | AH-YP07-040X |
Operating Rating | -20ºC-+80ºC |
Waterproof Level | IP65 |
Tips for choices:
Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.

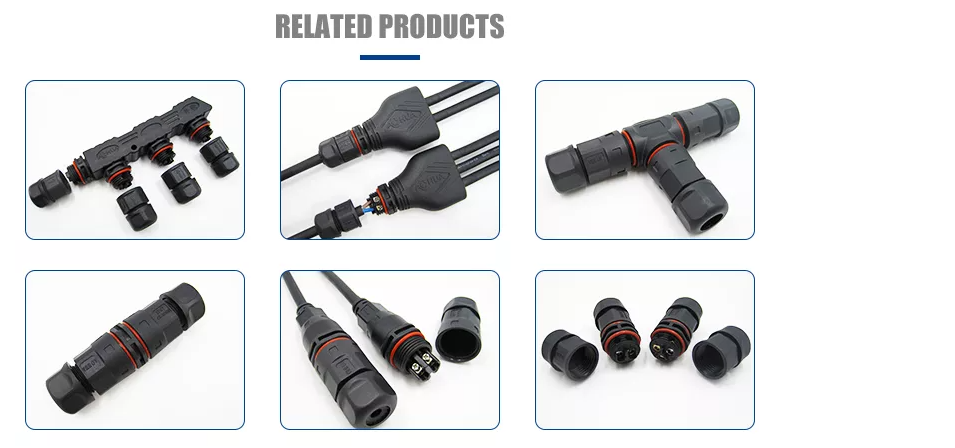

Related Products
Our Advantages
Advantages:

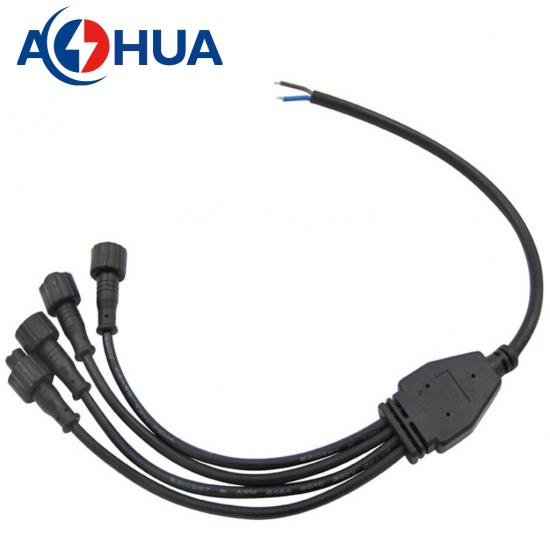

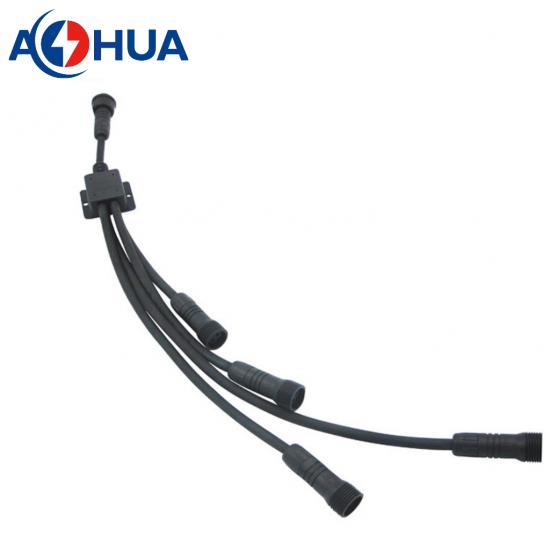

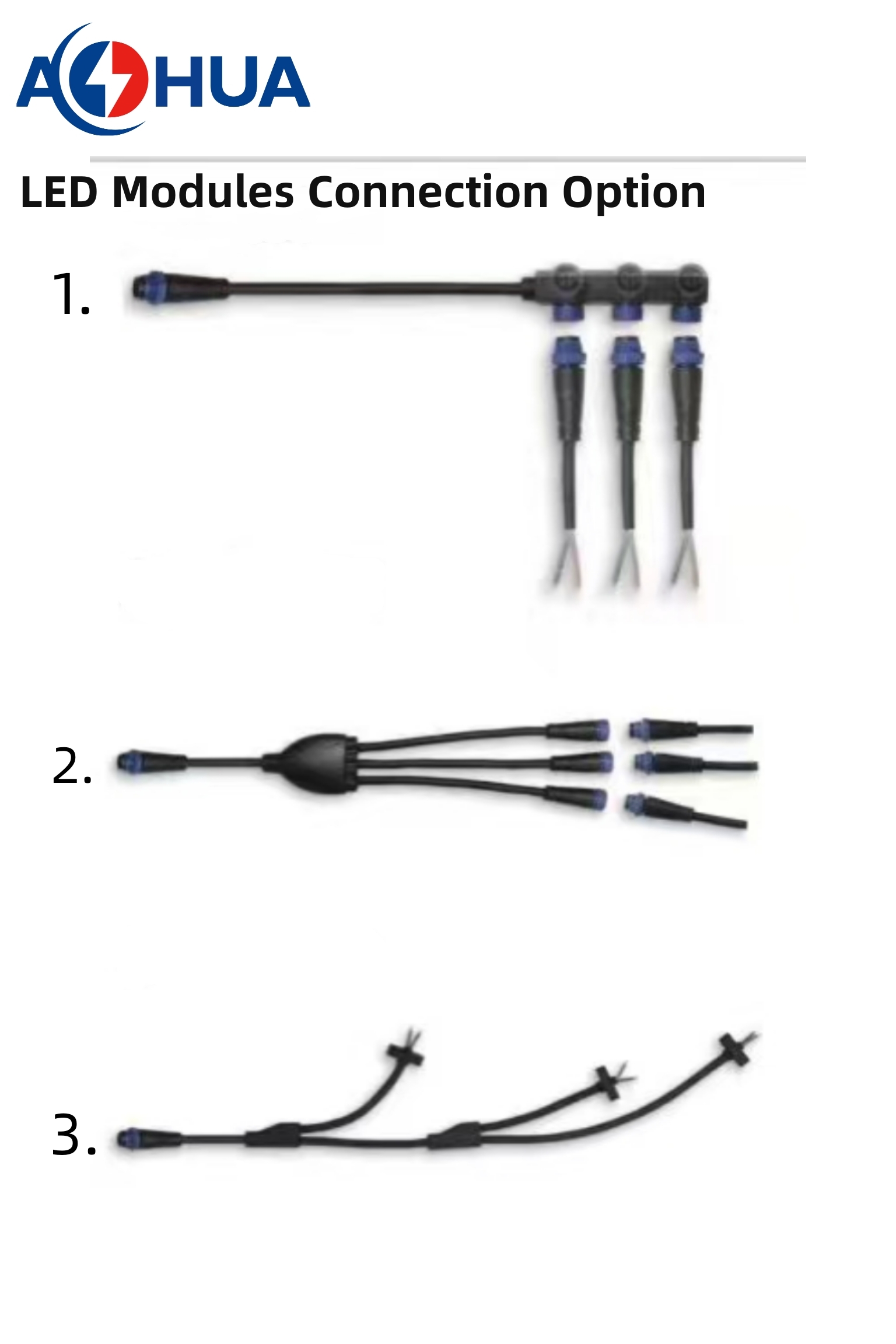

1.Connector:Y Type series waterproof connector,1 to 2, 1 to 3, 1 to 4, 1 to 5,parallel type & series type.
2. Quality Assurance: IP65 advanced protetion,operating temperature:-20°C-+80°C.
3.Easy Install: The installation process is very simple.
4.Cable:PVC or rubber.
5.Color:Black&White.
6.High-Quality Materials: The Outdoor connector all are made high quality Nylon PA66,high temperature resistant,94V-0 flame retardant.

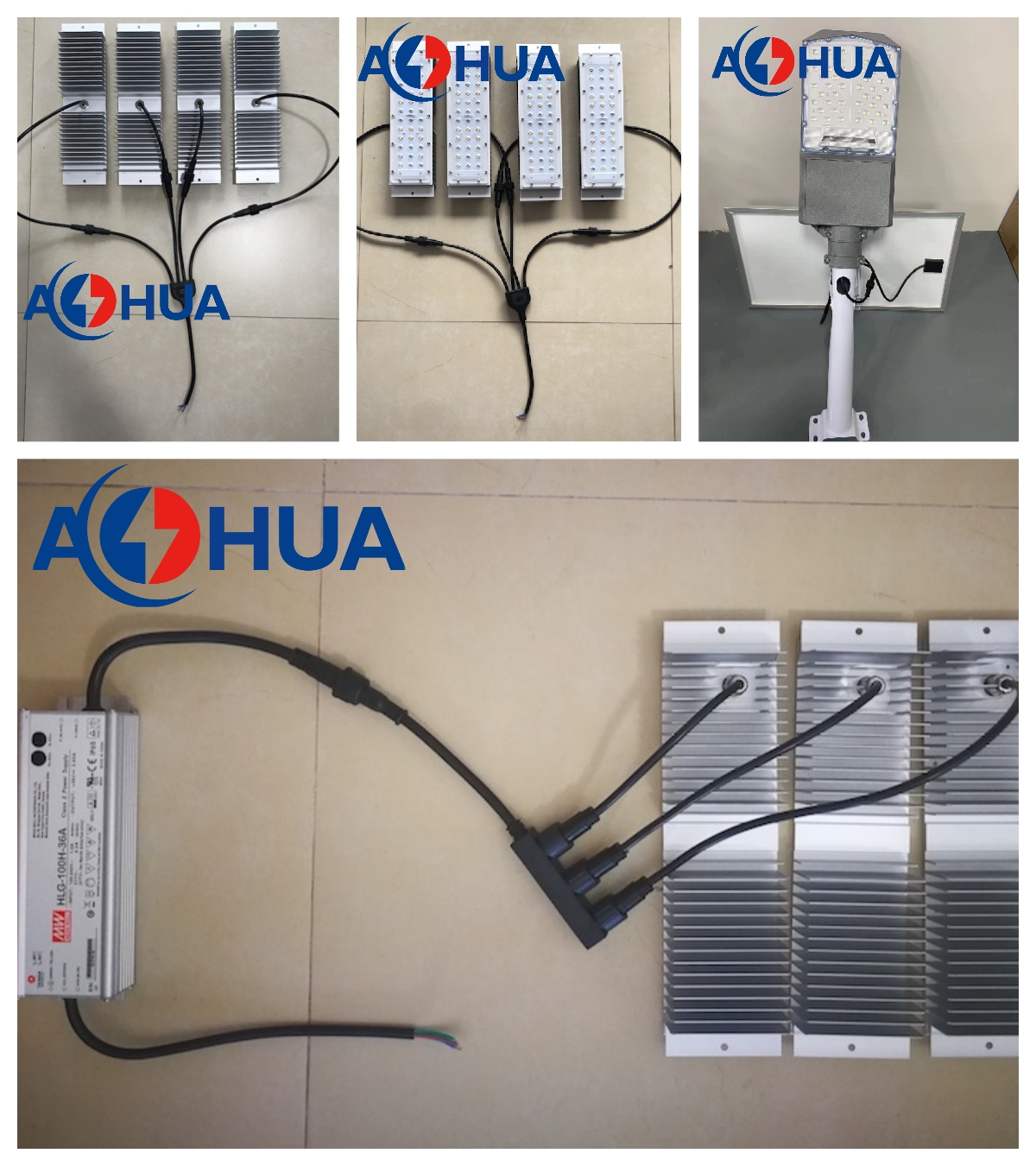

7. Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.

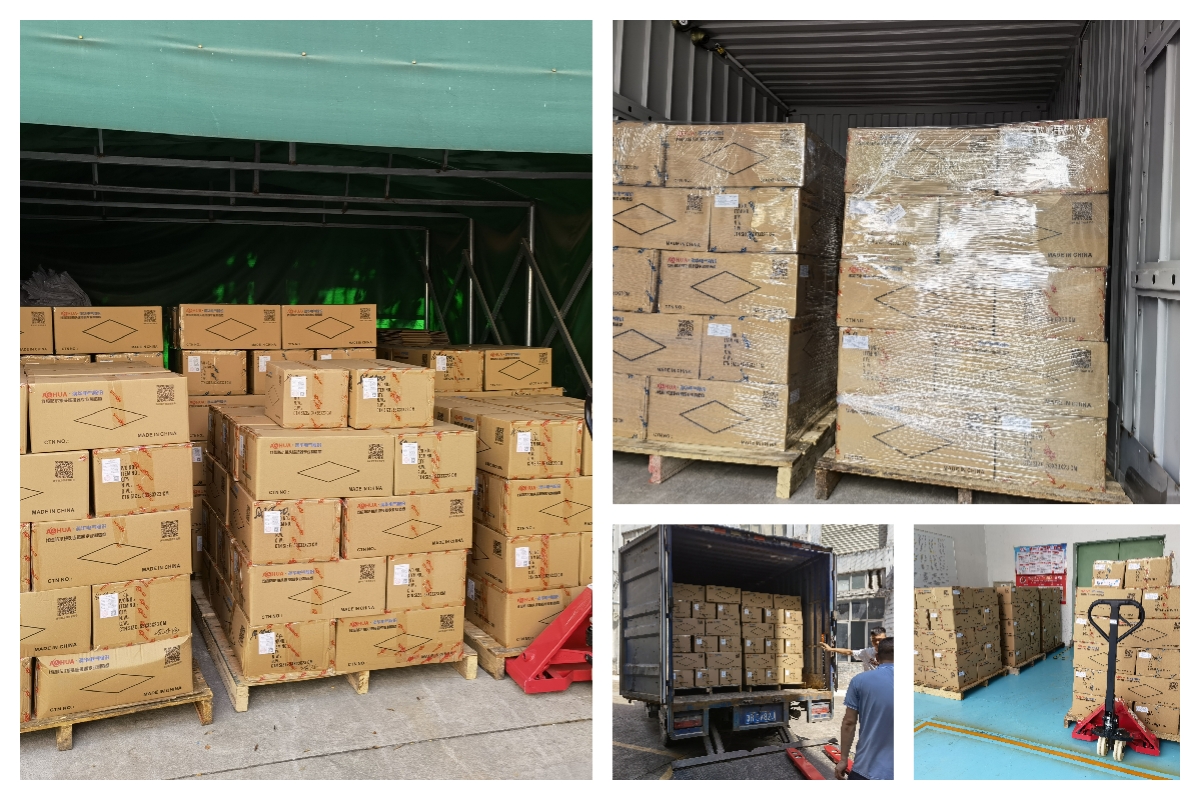

Packaging & Shipping
Quantity(sets) | 1-500 | 501-1200 | >1200 |
Lead time (days) | 4 | 8 | To be negotiated |
Shipment |
Express(DHL,Fedex,TNT,Ups);Ocean freight Land freight;Air freight |
