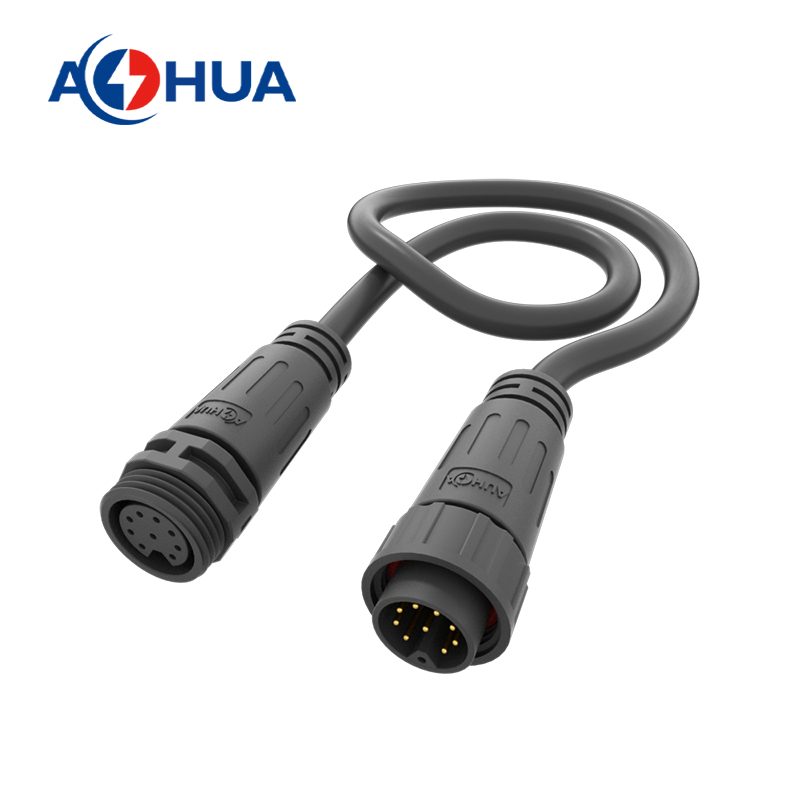

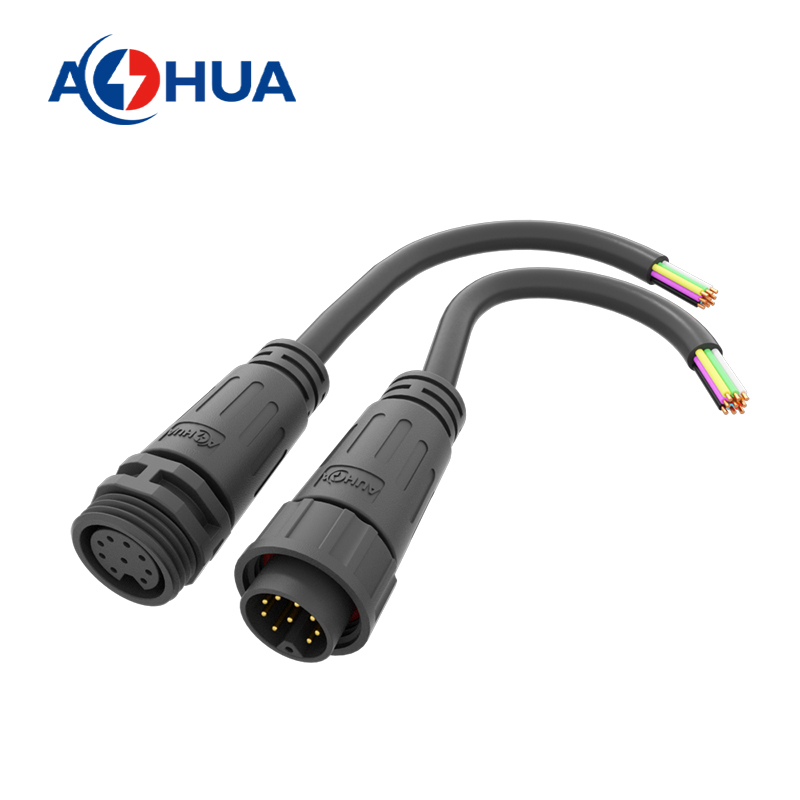

M20 Power Cable Connector
| Parameter item | Values / Specifications |
|---|---|
| Total joint length | 105.5mm |
| Length of the female connector | 58.0mm |
| Length of the male connector | 57.5mm |
| Case diameter | 23mm |
| Water resistance rating | IP67/IP68(Optional) |
| Number of cores | 2~9 PIN (Customisable) |
| Material | Housing: PA66 High-strength Engineering Plastic；Needle Holder：Gold-plated Brass；Seal：Silicone / Fluorocarbon rubber |
| Rated voltage | 0~250V AC/DC |
| Rated current | 1~15A / PIN（Adjust according to the number of cores） |
| Operating temperature | -40℃~+105℃ |
| Cable compatibility | 14~22AWG，Outside Diameter: φ6~φ12mm |
1. Ultimate water and dust resistance, suitable for harsh outdoor environments
Featuring a threaded locking mechanism and a multi-seal design, the male and female connectors form a complete waterproof barrier when mated, providing protection against rain, oil, dust and chemical corrosion, and meeting IP67/IP68 protection ratings:
Reliable operation at a depth of 1 metre for 30 minutes (IP67) or in deeper water (IP68)
Sealing performance remains unaffected by prolonged exposure to direct sunlight or freeze-thaw cycles in low-temperature environments;
Suitable for harsh operating conditions in outdoor security, renewable energy, construction machinery, LED lighting and other applications
Reliable operation at a depth of 1 metre for 30 minutes (IP67) or in deeper water (IP68)
Sealing performance remains unaffected by prolonged exposure to direct sunlight or freeze-thaw cycles in low-temperature environments;
Suitable for harsh operating conditions in outdoor security, renewable energy, construction machinery, LED lighting and other applications
2. Industrial-grade structural design, resistant to vibration and pulling
- One-piece housing：Made from PA66 engineering plastic, it is impact-resistant and weather-resistant, and can withstand frequent insertion and removal as well as mechanical impact
- Anti-loosening thread：Trapezoidal thread design ensures self-locking and prevents loosening after connection, thereby avoiding joint loosening caused by equipment vibration
-
Stress-relief structure：The cable sheath at the rear is moulded as a single unit with the housing, distributing cable tension, protecting internal solder joints and pins, and preventing cable breakage;

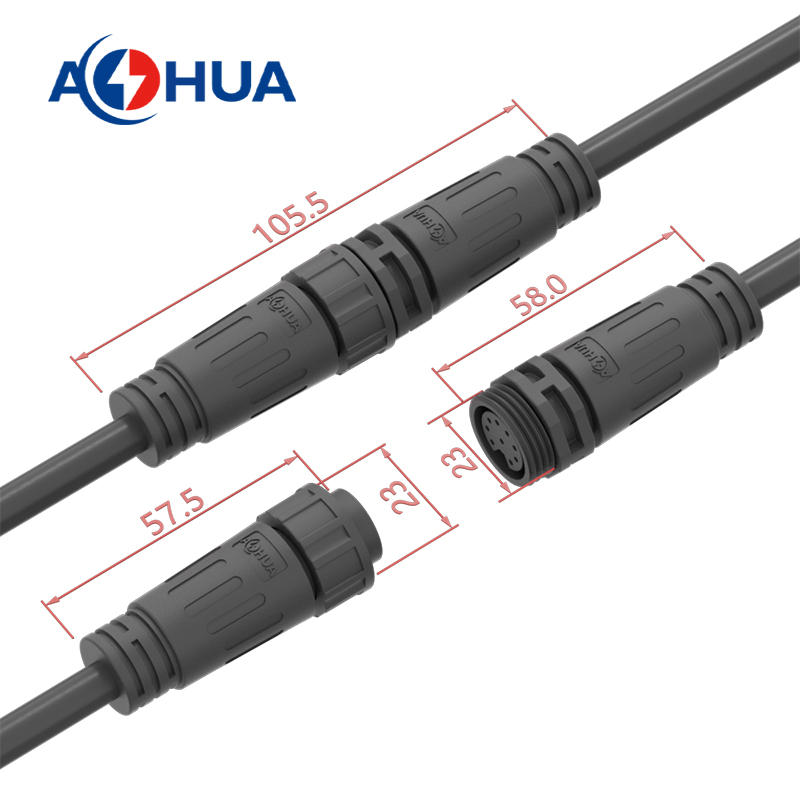

Precise dimensions: 57.5 mm for the male connector, 58.0 mm for the female connector; total length when mated is 105.5 mm; the compact design saves space during equipment installation
-
3. Ensure stable electrical performance and guarantee signal and power transmission
- gold-plated contacts：Gold-plated brass pin sockets, featuring low contact resistance and oxidation resistance, ensuring stable, loss-free signal and power transmission
- Electrical isolation：Physical isolation between pins prevents signal crosstalk and short circuits, and supports the transmission of analogue signals, digital signals and low-current power
- Flame-retardant properties：The casing complies with the UL94-V0 flame-retardant rating, self-extinguishing when exposed to fire, thereby enhancing the safety of the equipment
-
4. Easy to install and maintain, reducing operational costs
- Blind-fit guidance：The male and female connectors feature built-in alignment grooves, allowing them to be tightened quickly without the need for manual alignment; installation can be carried out by a single person.
- Solderless design（Optional）：Crimping and soldering connection methods, suitable for both rapid on-site installation and batch assembly
- hot-swappable：With a mating cycle of ≥1,000, it offers stable performance and facilitates equipment maintenance and replacement
