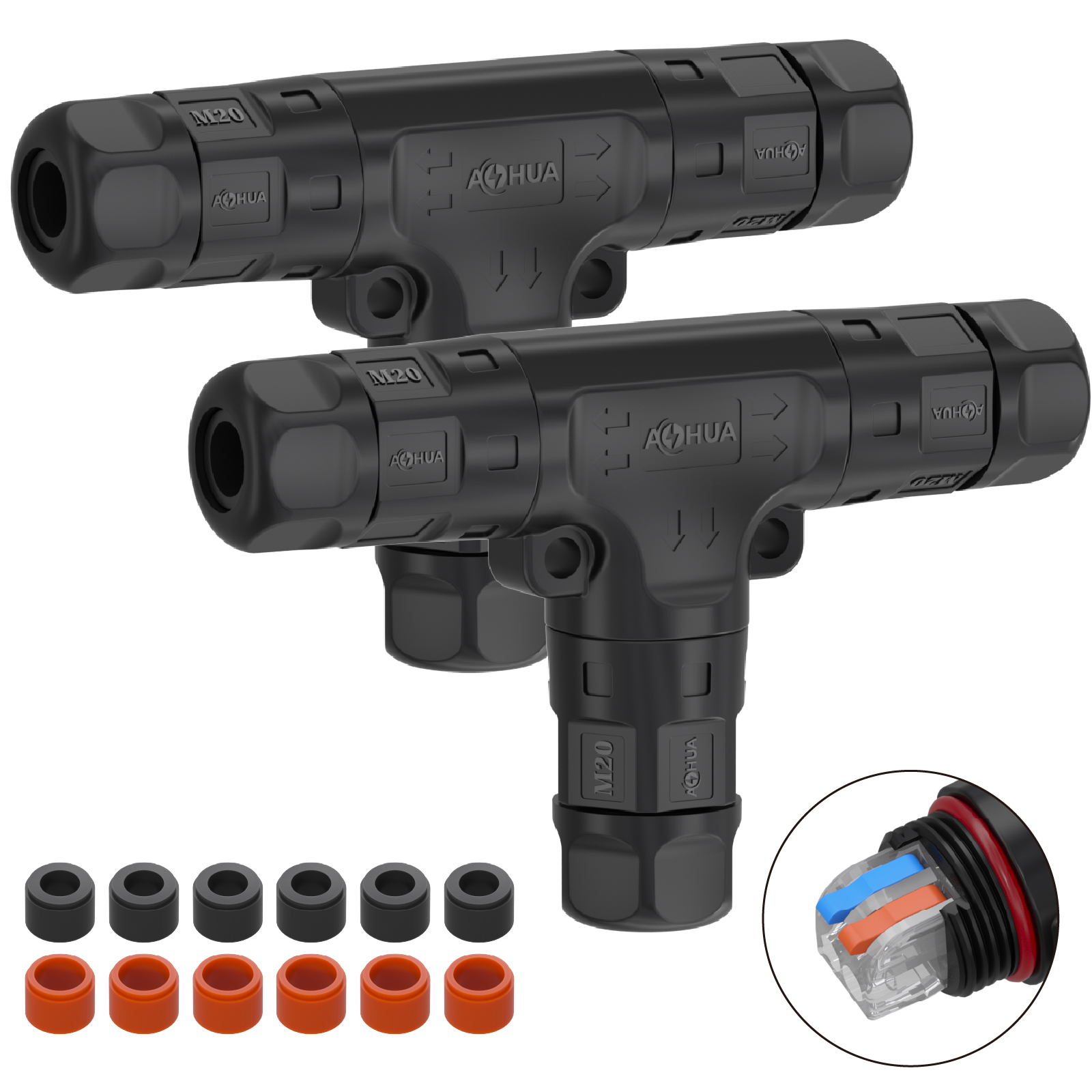

Hello everyone for looking for the datasheet about this M20 T Connector,

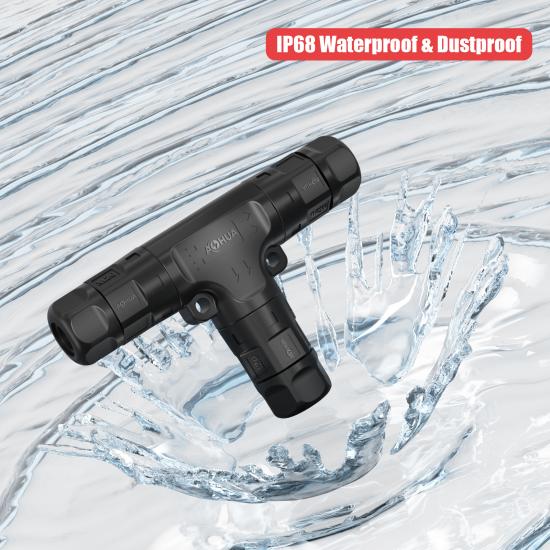

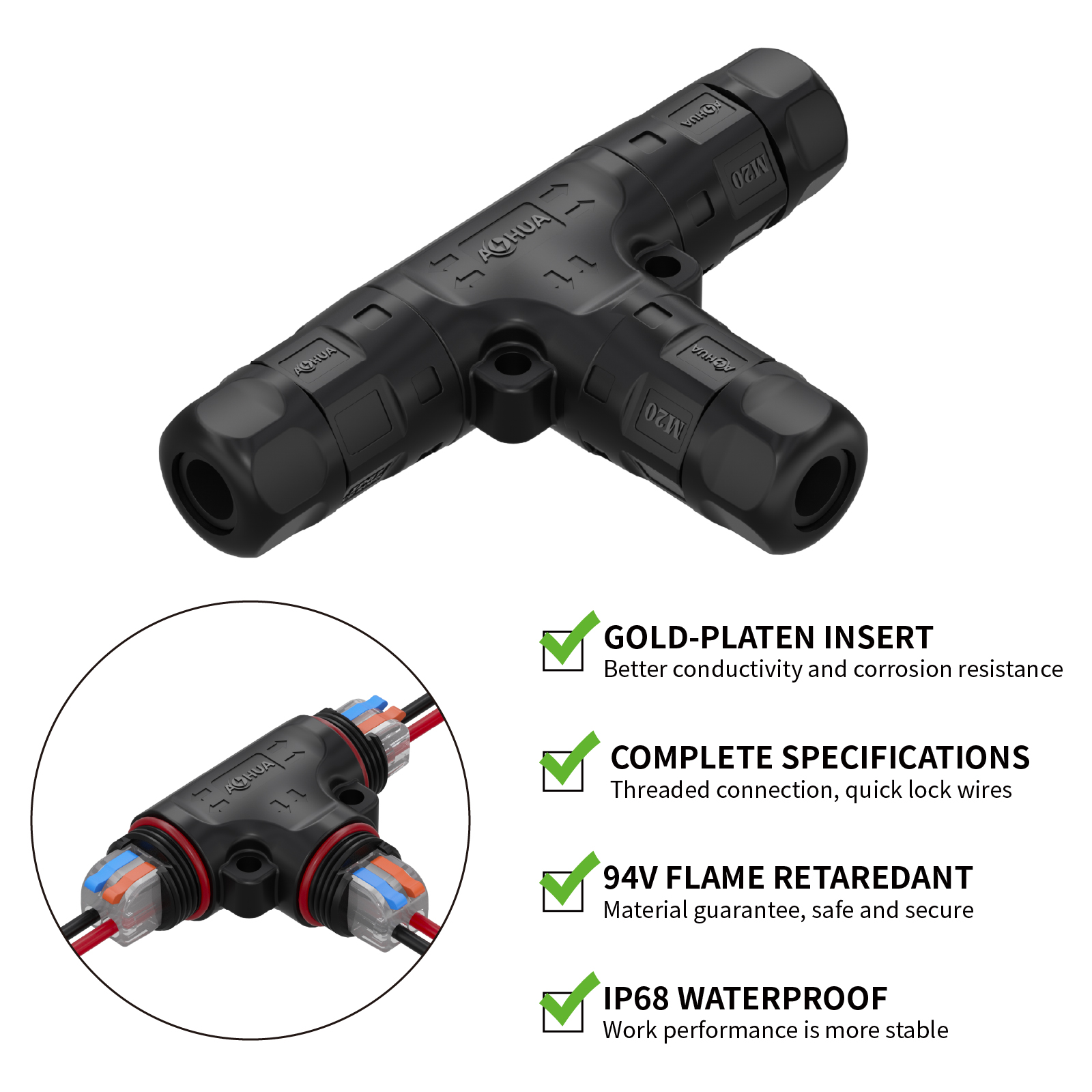

This is a ctrimp terminal T shape waterproof connector, it has 2PIN & 3PIN option for you to choose, whcin one would be choosed it is detemined the wire gauge, like 2PIN wire will choose 2PIN connector...
This connector can support the current MAX to 25A, when you design a connector solution pls pay attention to this current, that using this connector is saft.

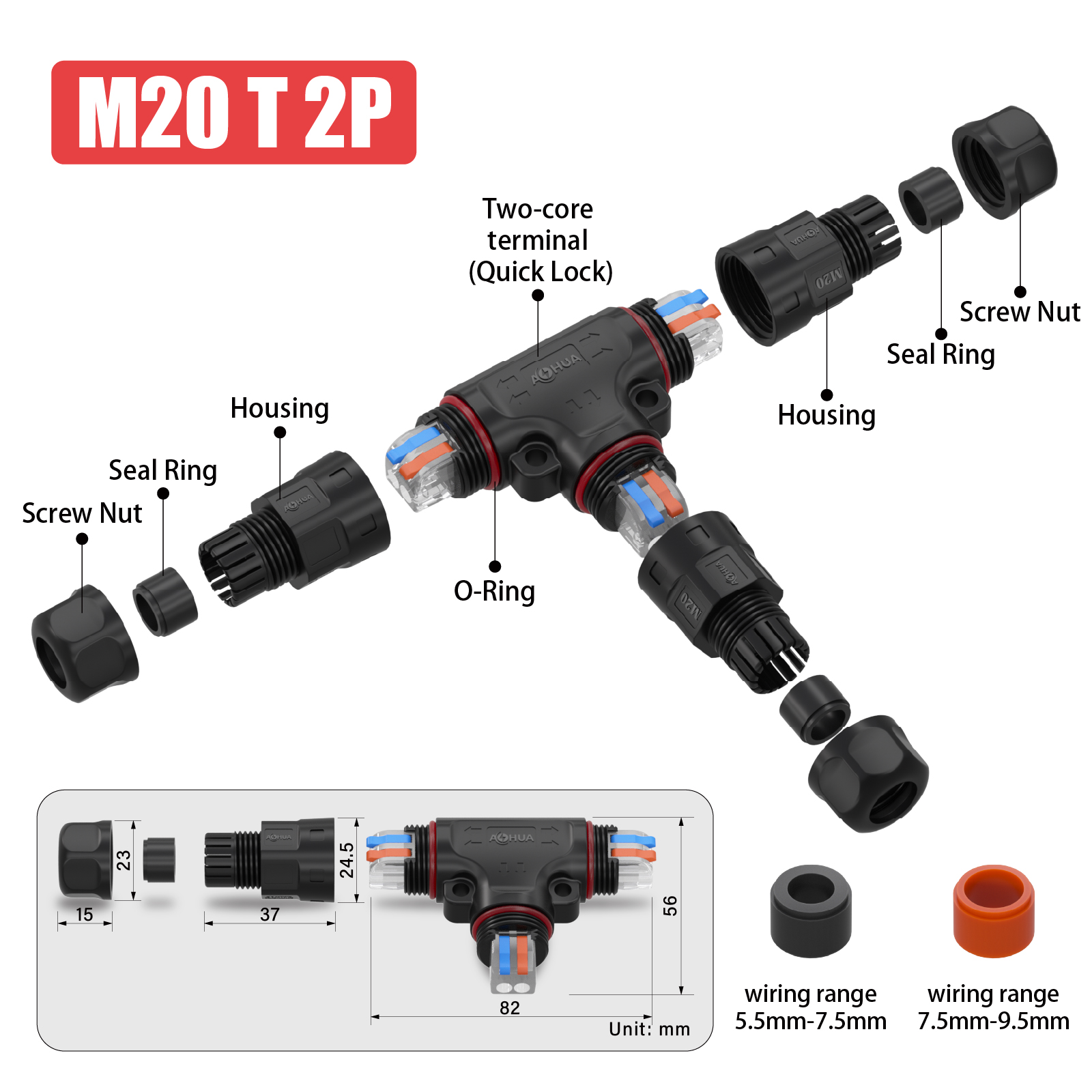

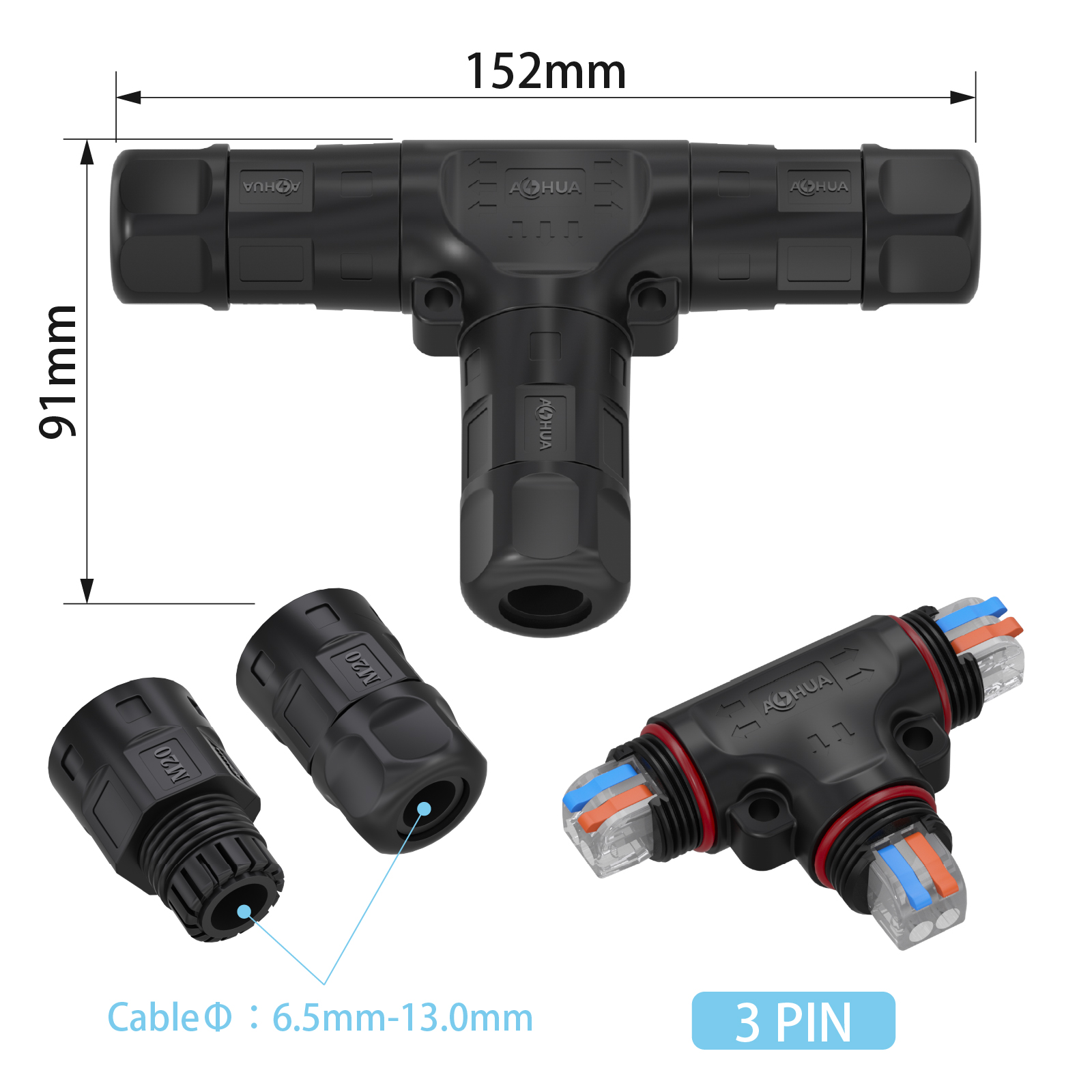

And in this connector, it can stand the biggest wire gauge is 10mm, the suitable cable outside diameter is between 5.5mm and 10mm, if you are not sure the outside diameter of the wire, pls measure it carefully then we will help you to choose a suitable gauge connector according to your wire outside diameter.
