PIN Number: 2PIN
Waterproof: IP65
Operating Temperature: -20℃--+80℃
Connector Type: Male Plug:
DCφ 5.5*2.1 DCφ5.5*2.5

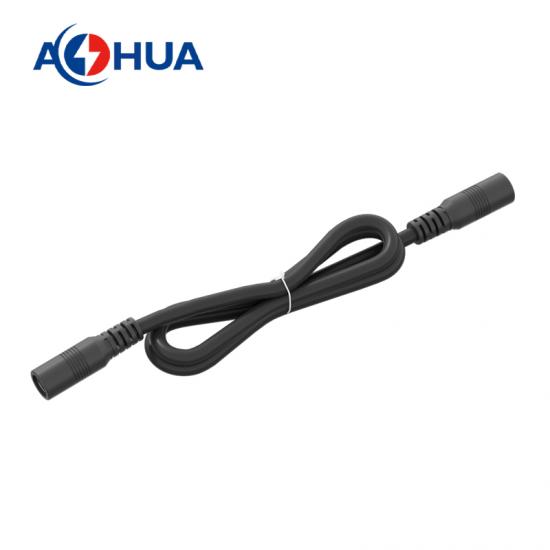

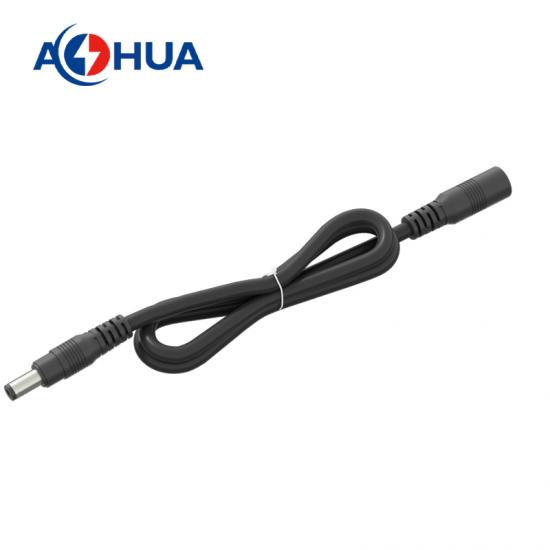

This is a waterproof DC connector designed specifically for outdoor use, representing an enhanced protection variant within the DC connector range. It is engineered for humid and exposed environments.
Product Structure and Functionality
-
Component composition
Male connector: Featuring metal pins (the connector with silver terminals at the bottom of the diagram), used for output wiring;
Female connector: Featuring corresponding sockets (the connector at the top of the diagram), used for input wiring;
Protective accessories: Nut + red waterproof seal ring. When tightened, this achieves a seal meeting IP65/IP67 waterproof ratings.
2. Core features
- Waterproofing: Seals out moisture such as rainwater and dew via rubber gasket + threaded locking mechanism, preventing short circuits;
- Convenience: No soldering required; connections are established by simply plugging in or screwing tight after wiring;
- Compatibility: Supports common DC voltages (e.g., 12V/24V), suitable for outdoor LED lights, solar equipment, surveillance cameras, etc.
Applicable scenarios
Primarily intended for scenarios requiring waterproof power supply connections:
Outdoor lighting: wiring for garden lights, street lamps, and solar-powered lawn lights;
Outdoor equipment: power interfaces for surveillance cameras, charging points, and aquarium equipment;
Engineering cabling: connection of temporary outdoor electrical equipment circuits.
