ACHUA LD16 IP68 Waterproof Connector 2 Pin 20A Wire-to-Wire Aviation Plug Socket, Field Installable Screw Terminal Circular Connector for 6.0–8.5mm Cable (≤4.0mm²)

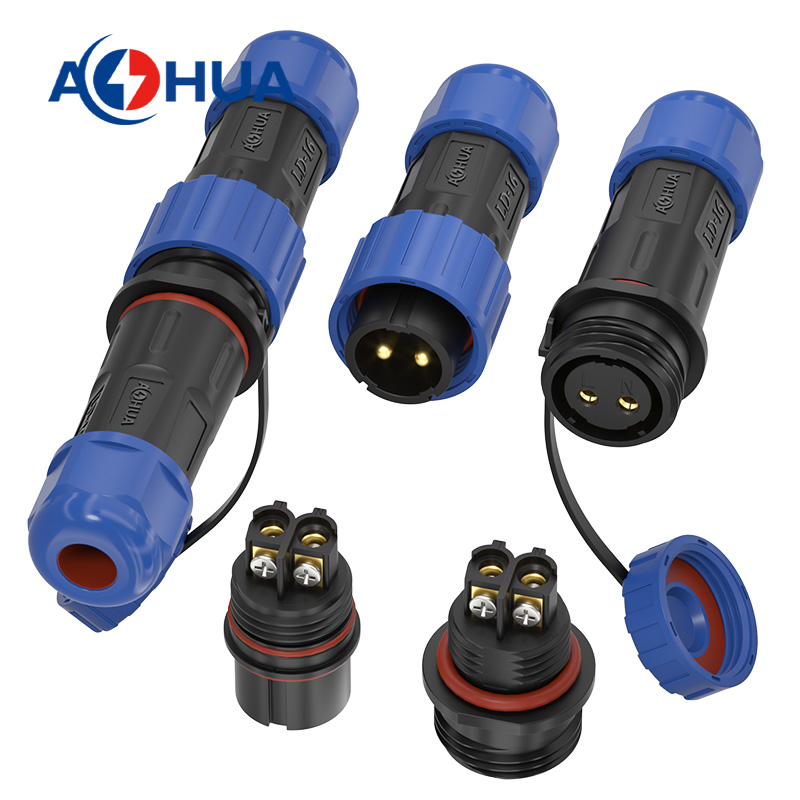

The ACHUA LD16 is a robust 2-core (2-pin) waterproof circular connector rated at 20A, designed for secure wire-to-wire (inline) connections. Featuring a male plug and female socket with threaded locking and a protective dust cap, it delivers stable current transmission in outdoor, industrial, and wet-location applications. The connector uses a screw-terminal (pressure crimp/clamp) wiring method for fast, tool-friendly field assembly—no soldering required.

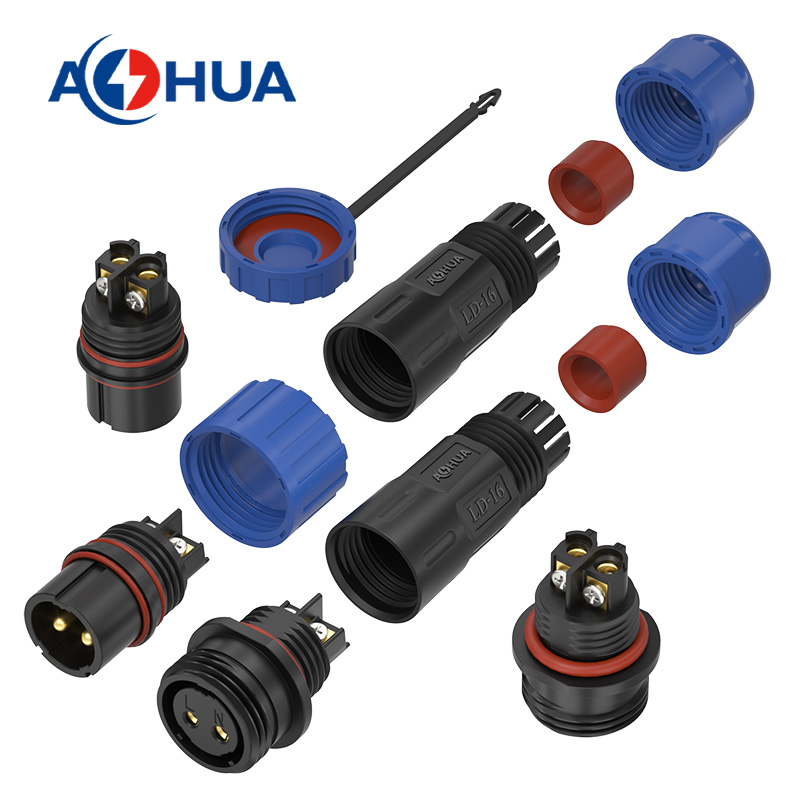

1. Slide the blue nut and red rubber gland onto the cable.
2. Strip cable insulation and insert conductors into the terminal block.
3. Secure wires via screw terminals (supports up to 4.0 mm² / AWG 11).
4. Tighten the blue locking nut to compress the rubber gland for waterproof strain relief.
5. Mate male and female ends with threaded coupling; use the attached dust cap when disconnected.

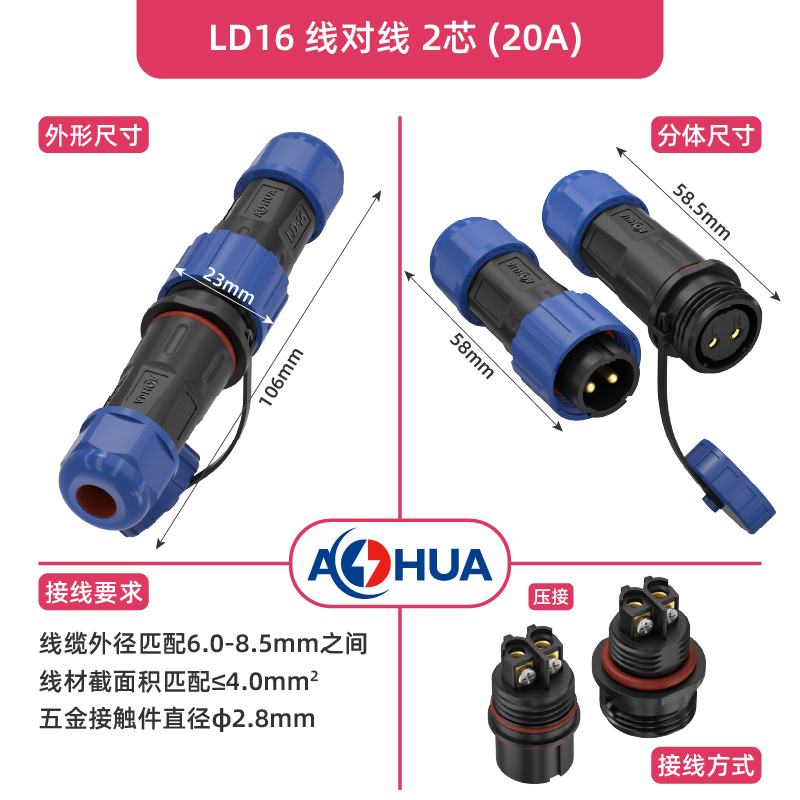

Cable requirement: Outer diameter 6.0–8.5 mm.

• IP68 Rated: Dust-tight and waterproof for underground, outdoor, or wash-down areas.
• Secure Locking: Threaded coupling prevents accidental disconnection from vibration or pulling.
• Corrosion Resistant: Gold-plated contacts (φ2.8 mm) ensure low resistance and long service life.
• Plug Protective Cap: Included tethered cap keeps the female socket sealed when not mated.
• Industrial Materials: High-strength nylon housing with red silicone sealing rings.

• LED street lighting & outdoor landscape lighting
• Solar photovoltaic (PV) junctions & energy storage systems
• Electric bicycles, scooters, and EV charging extensions
• Aquaculture, irrigation, and fountain equipment
• Industrial automation, machinery, and control cabinets
• Marine, outdoor advertising, and any harsh-environment power wiring
