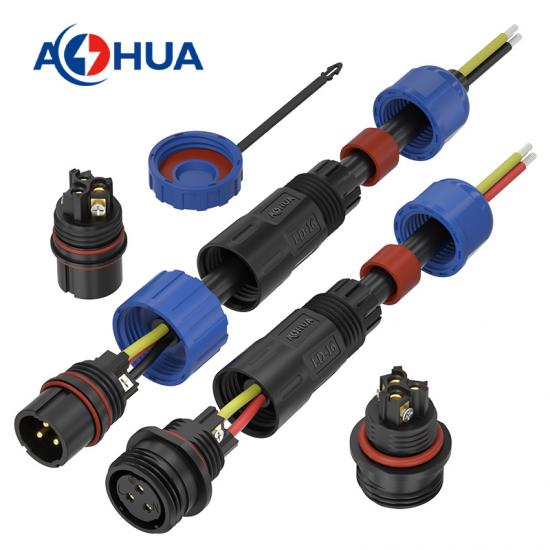

The ACHUA LD16 is a robust 2-core (2-pin) waterproof circular connector rated at 20A, designed for secure wire-to-wire (inline) connections. Featuring a male plug and female socket with threaded locking and a protective dust cap, it delivers stable current transmission in outdoor, industrial, and wet-location applications. The connector uses a screw-terminal (pressure crimp/clamp) wiring method for fast, tool-friendly field assembly—no soldering required.
|
Item |
Specification |
|---|---|
|
Model |
LD16 (Line-to-Line / Inline) |
|
Pins / Cores |
2 Pin (2 Core) |
|
Rated Current |
20A |
|
Contact Diameter |
φ2.8 mm (Gold-plated / Brass contact) |
|
Compatible Cable OD |
6.0 – 8.5 mm |
|
Wire Gauge (Cross-section) |
≤ 4.0 mm² |
|
Wiring Method |
Screw Terminal / Pressure Clamp (Field installable) |
|
Assembled Length (Pair) |
≈ 106 mm |
|
Plug Body Length |
≈ 58 mm |
|
Socket Body Length |
≈ 58.5 mm |
|
Connector Diameter |
≈ 23 mm |
|
Protection Degree |
IP68 (with proper cable gland assembly & dust cap) |
|
Housing |
Nylon (Blue cap / Black body) + Silicone/O-ring seals |
- Slide the blue nut and red rubber gland onto the cable.
- Strip cable insulation and insert conductors into the terminal block.
- Secure wires via screw terminals (supports up to 4.0 mm² / AWG 11).
- Tighten the blue locking nut to compress the rubber gland for waterproof strain relief.
- Mate male and female ends with threaded coupling; use the attached dust cap when disconnected.
Cable requirement: Outer diameter 6.0–8.5 mm.
- IP68 Rated: Dust-tight and waterproof for underground, outdoor, or wash-down areas.
- Secure Locking: Threaded coupling prevents accidental disconnection from vibration or pulling.
- Corrosion Resistant: Gold-plated contacts (φ2.8 mm) ensure low resistance and long service life.
- Plug Protective Cap: Included tethered cap keeps the female socket sealed when not mated.
- Industrial Materials: High-strength nylon housing with red silicone sealing rings.
- LED street lighting & outdoor landscape lighting
- Solar photovoltaic (PV) junctions & energy storage systems
- Electric bicycles, scooters, and EV charging extensions
- Aquaculture, irrigation, and fountain equipment
- Industrial automation, machinery, and control cabinets
- Marine, outdoor advertising, and any harsh-environment power wiring
