LED outdoor lighting waterproof connector
Y Splitter Waterproof Plug
Home /

Y Splitter Waterproof Plug

/AOHUA customized cable solution YP06 M14 1 to 6 2 pin male female plastic electrical wire led light Y connector

AOHUA customized cable solution YP06 M14 1 to 6 2 pin male female plastic electrical wire led light Y connector

customized cable solution connector / M14 plastic electrical wire connector
  • Item NO.:

    Y Type
  • Lead Time:

    A week
  • Product Orgin:

    China
  • Shipping Port:

    Shenzhen, China
  • Payment:

    TT,PAYPAL
  • Color:

    Black/White
  • Product Material:

    PA66
Inquiry now
products Details

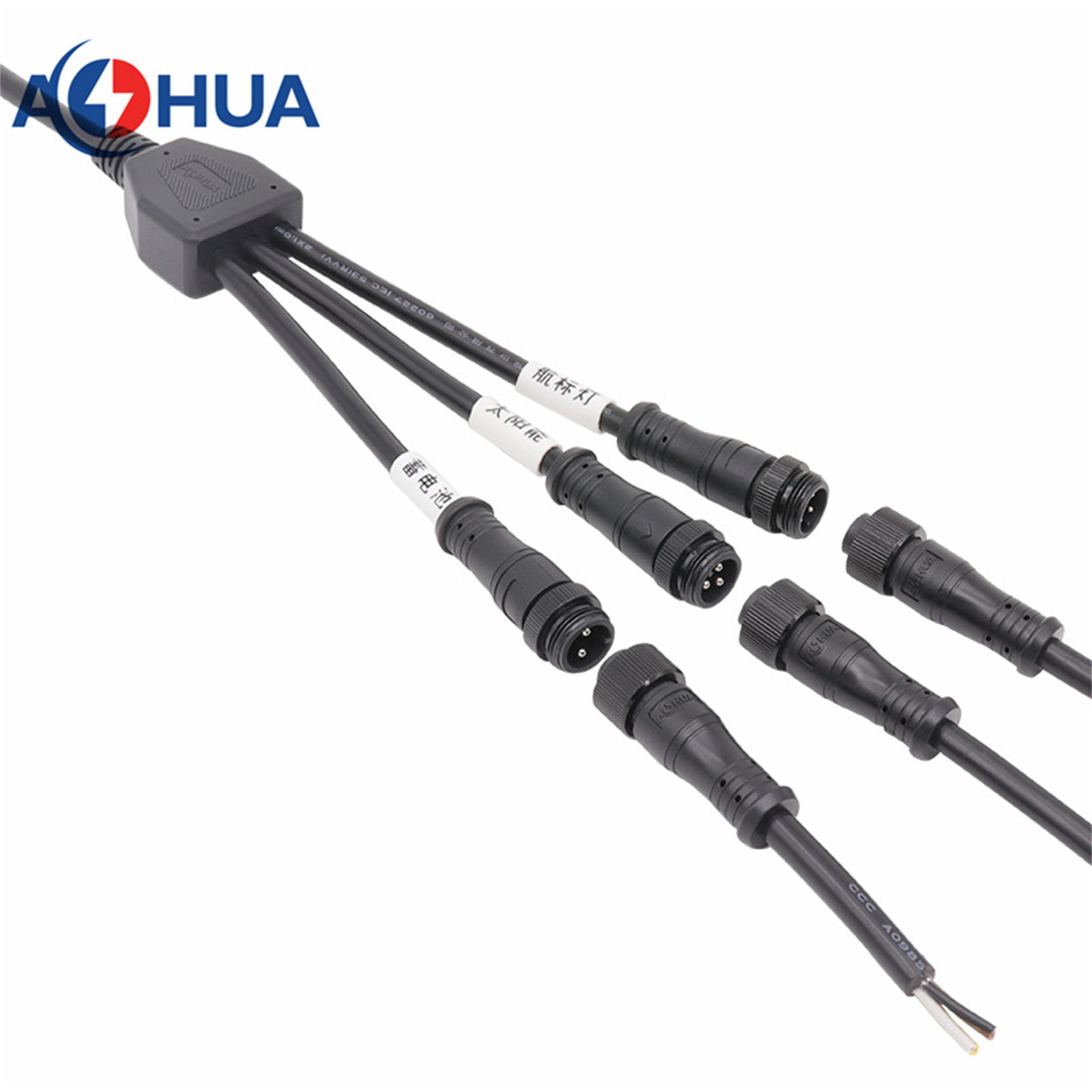

AOHUA Y type waterproof connector

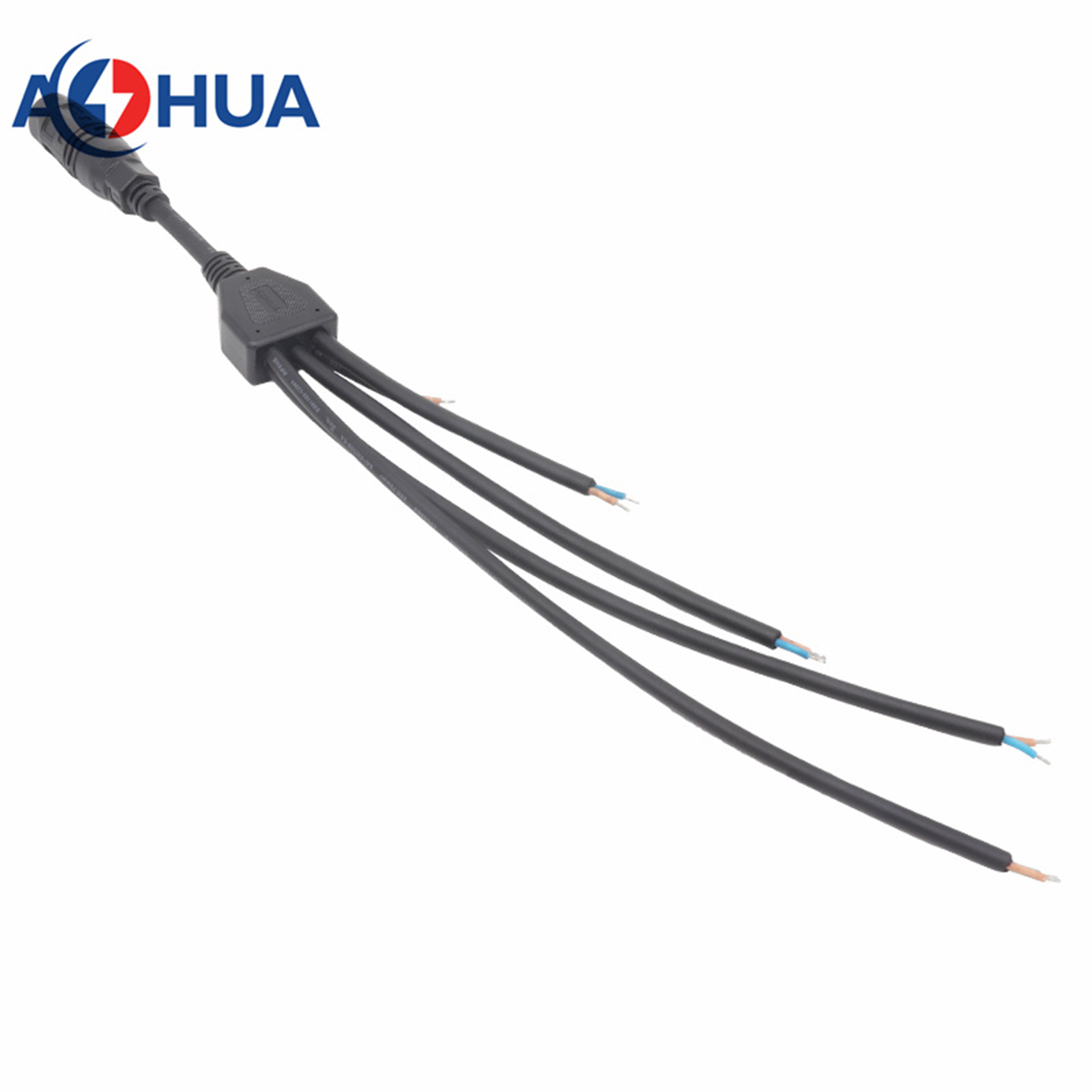

Y type splitter is a kind of multiple cables splitter, which is one cable input and multiple branch cables output. As usual, this splitter will be designed 1 input 2 3 4 5 6 outputs, the main cable with connectors and branch cable with connectors or the main cable and branch cables are without connectors but with bare cables.
The splitter size is length 58mm*wide 37mm*high 21mm, The main cable wire size is Less than or equal to 2.5mm², branch cable wire size is less than or equal to 1.5mm²; the main cable OD is not exceed 10mm, the branch cable is not exceed 8.3mm. This splitter is suitable for 2pin 3pin and 4pin.

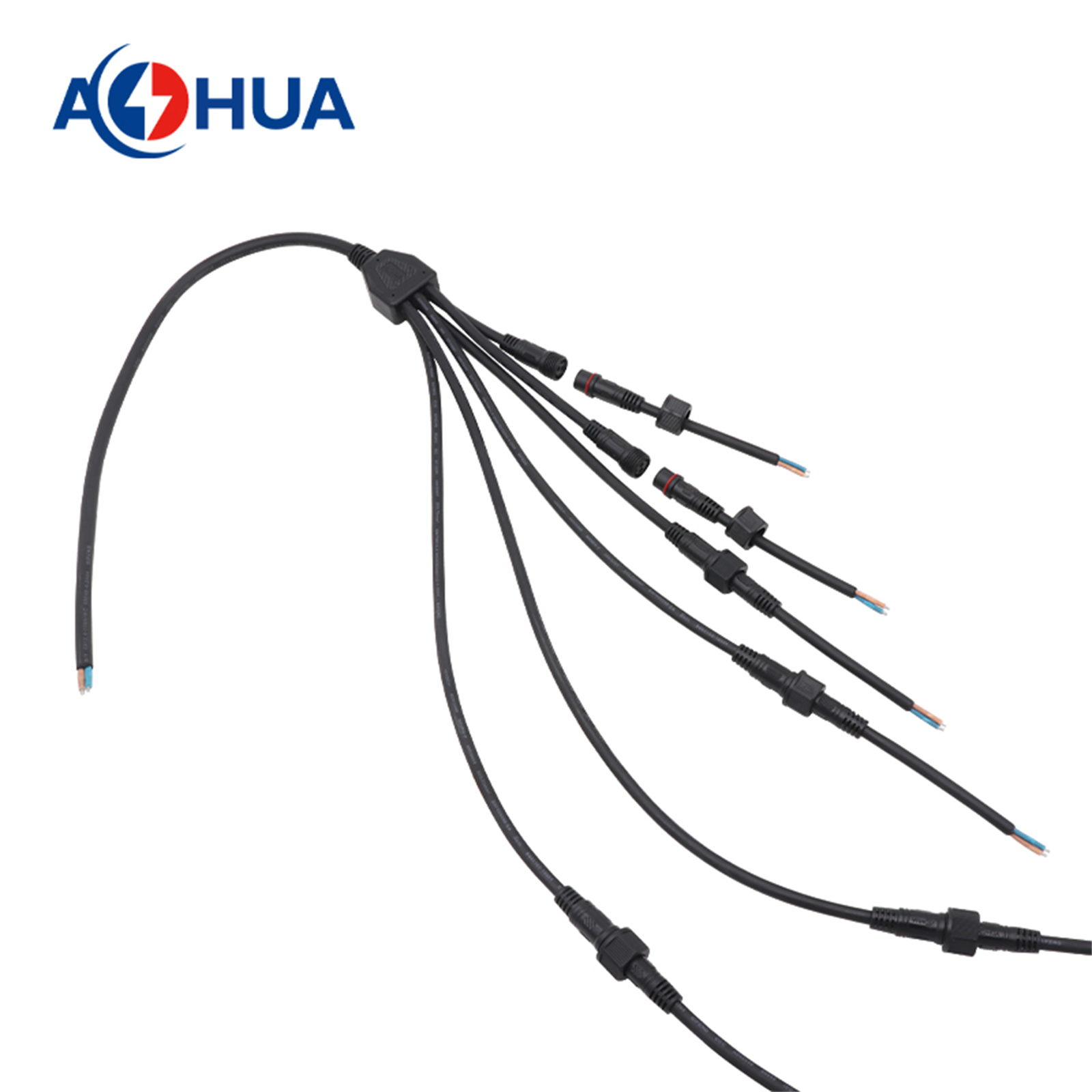

In this example, the main cable designed without connector and branch cable designed with female connectors, the main cable and branch cable wire sizes are 2*0.75mm².

Y06 Specification

2pin AH-YP06-020X
3pin AH-YP06-030X
4pin AH-YP06-040X
Main Cable Gauge ≤2.5mm²
Branch Cable Gauge ≤1.5mm²
Main Cable OD Max 9.5mm
Branch Cable OD Max 8.3mm
Operating Rating -20℃~+80℃
Waterproof Level IP65




Tips  before quotation.


Please tell us the cable details:

1. Current rating, eg: 4A.

2. Pins, eg: 2pin, 3pin.

3. Wire size, eg, main cable 2*20AWG, branch cable 2*22AWG.

4. Cable outer diameter(OD), eg: 6.8mm.

5. Length of each cable, eg: 300mm.


Application



AOHUA Waterproof Connector Factorypicture of waterproof connector work shopwaterproof connector produce stepwelcome to AOHUA waterproof connector factoryFAQ Of Waterproof connector

More details, please send inquiry to us, we will try our best to help you!!!
