AOHUA Y type waterproof connector

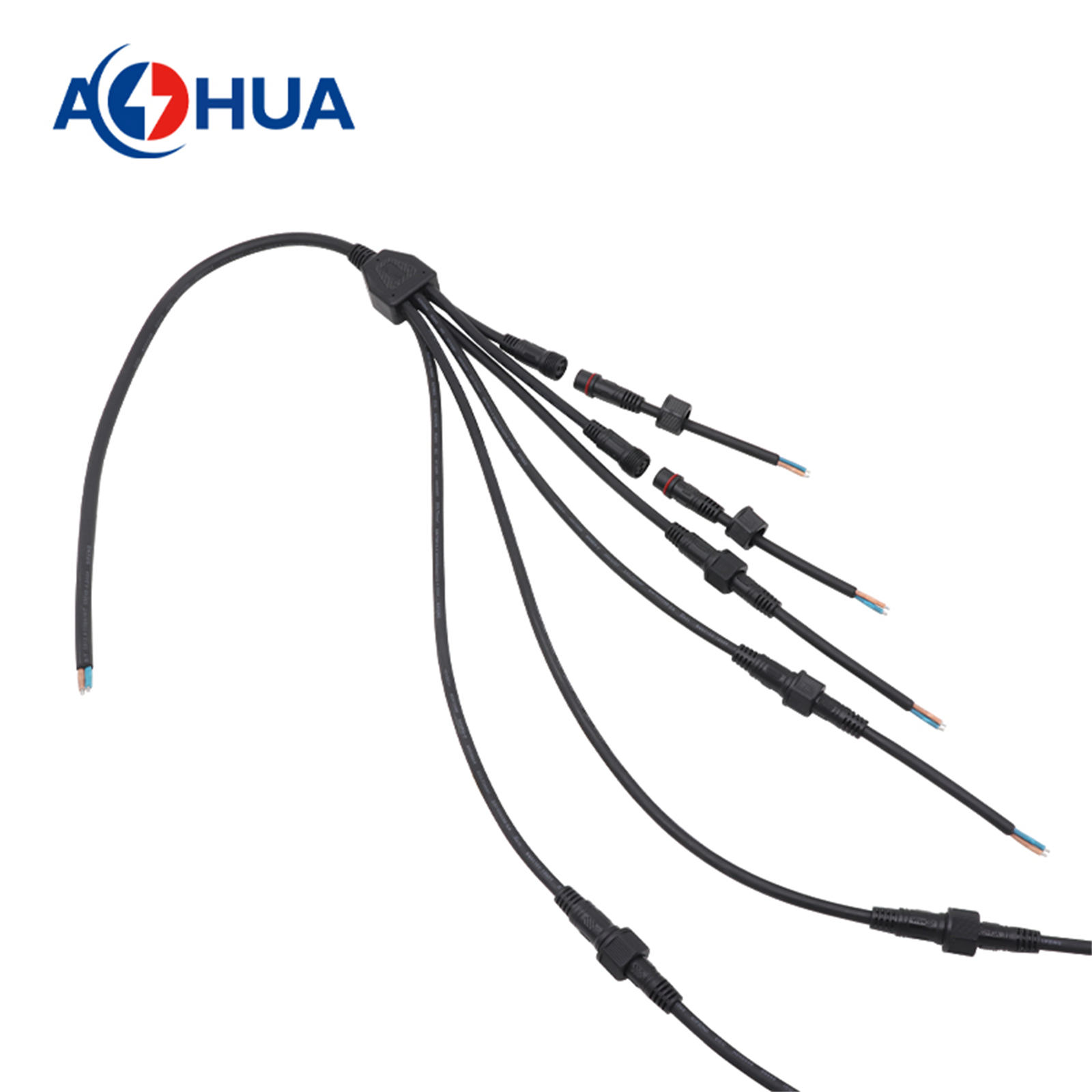

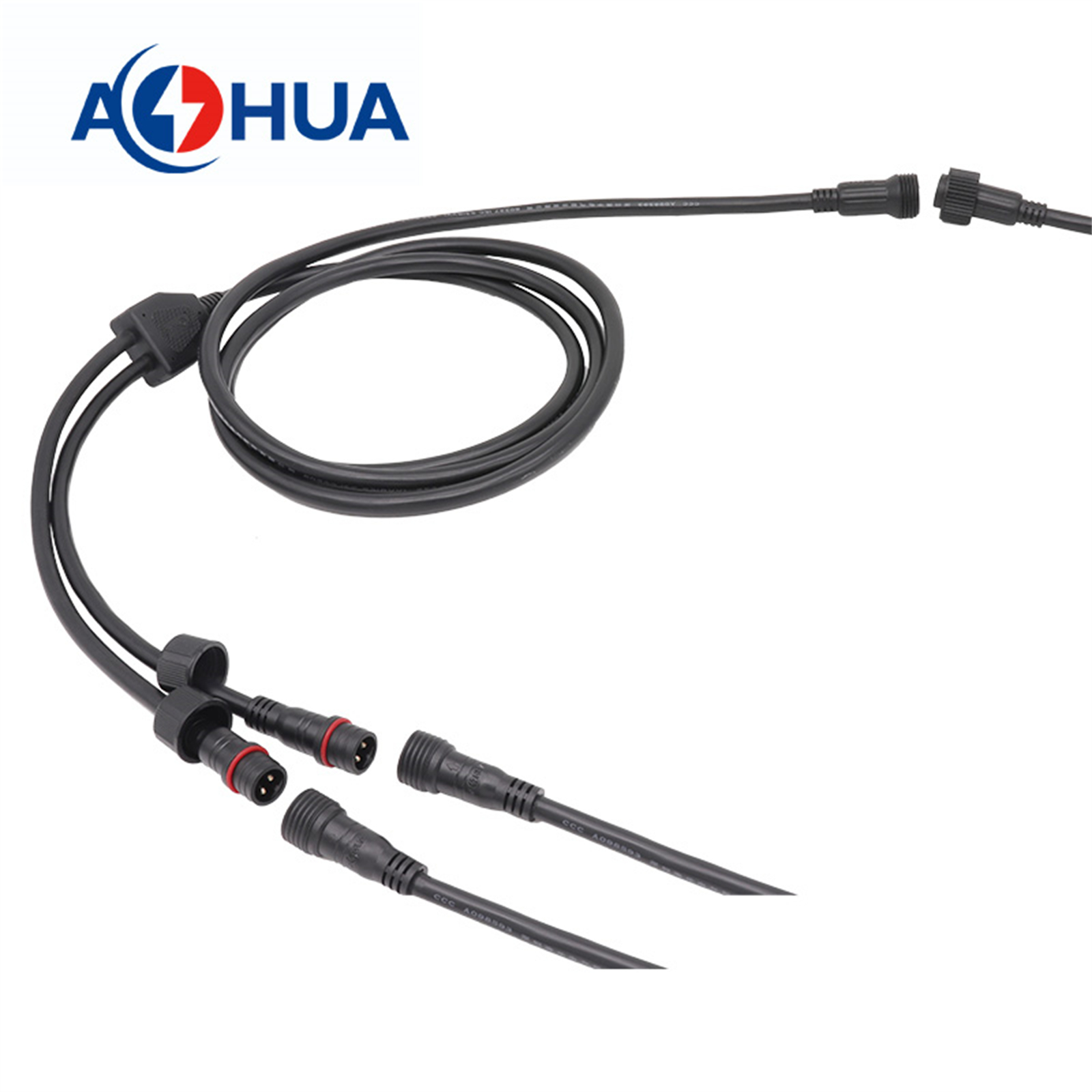

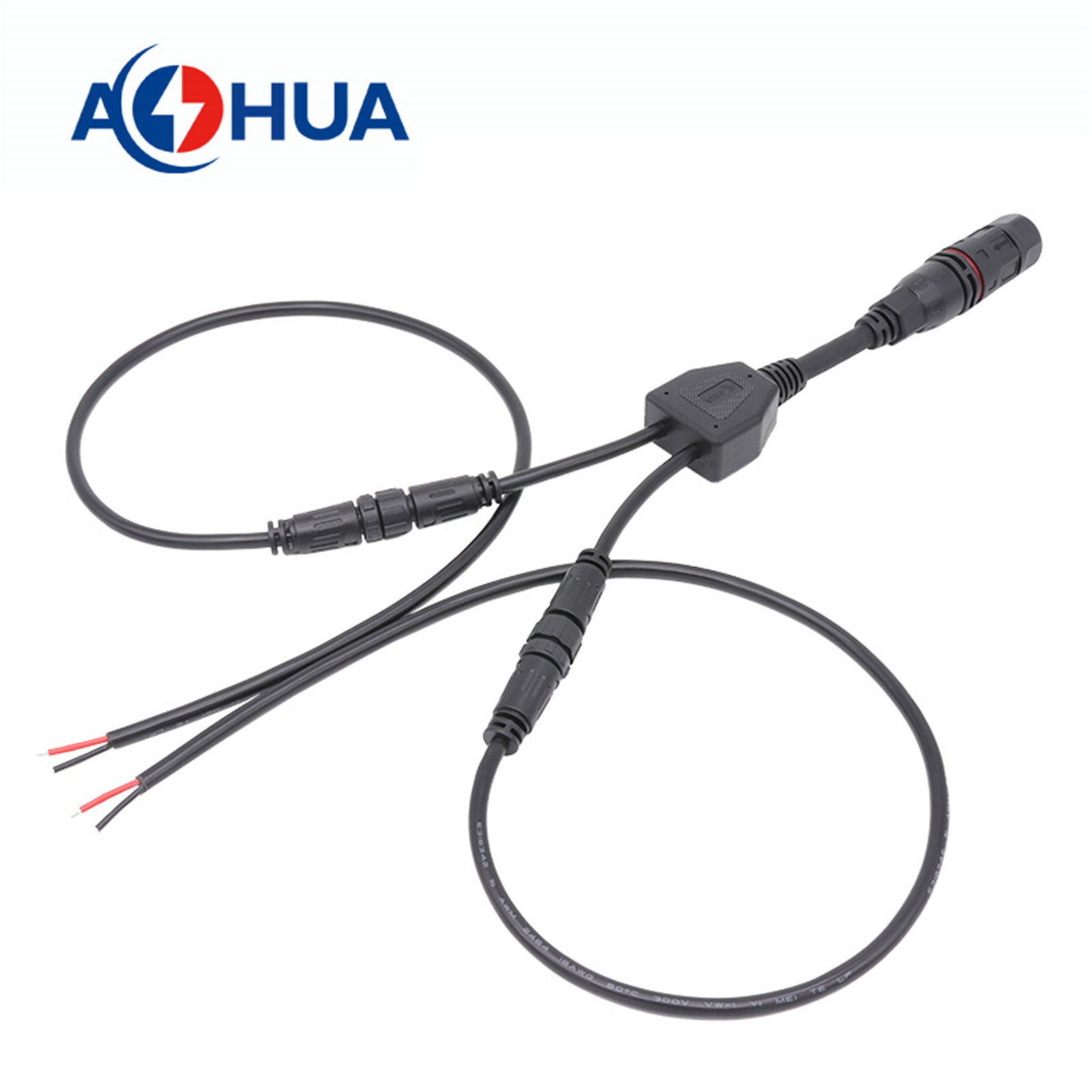

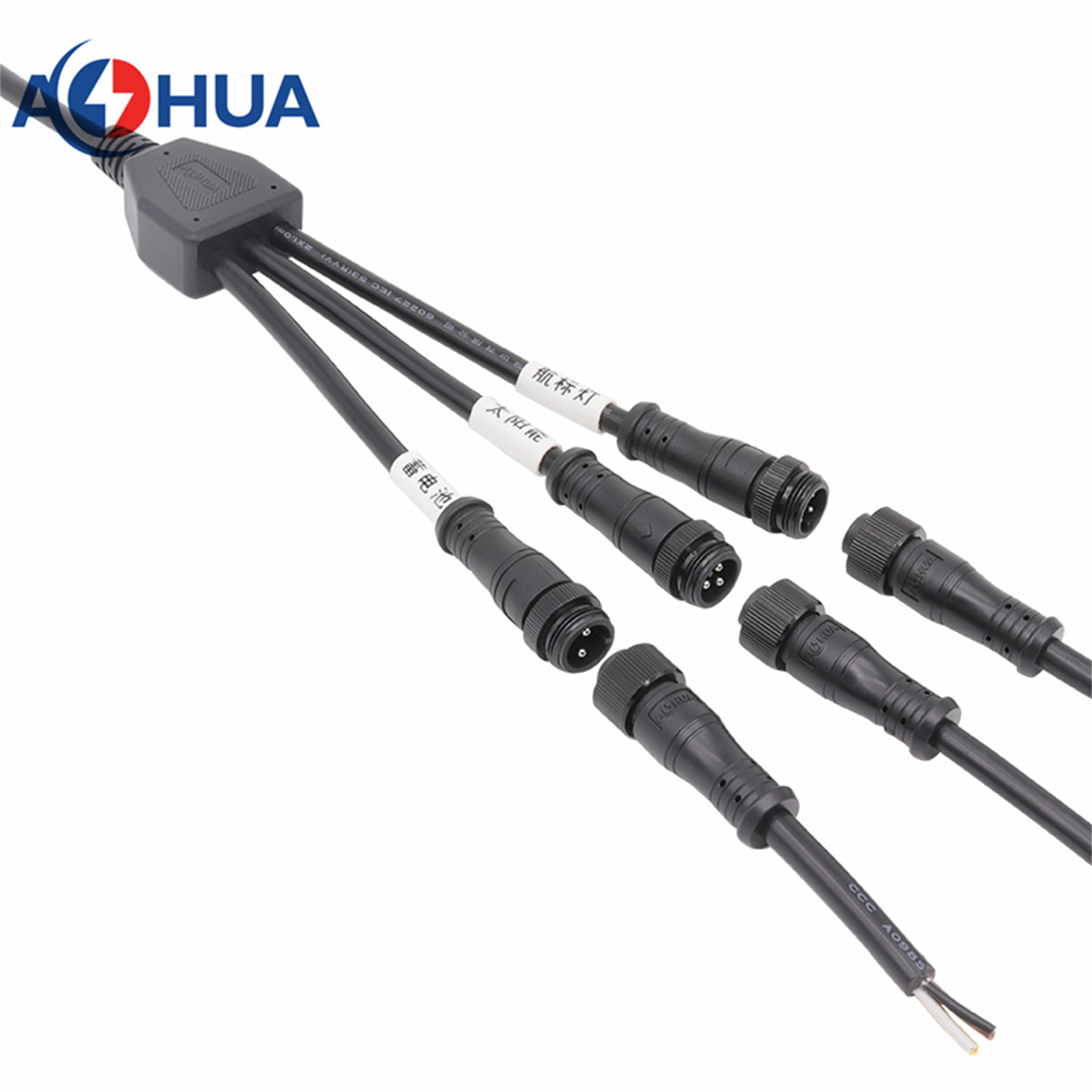

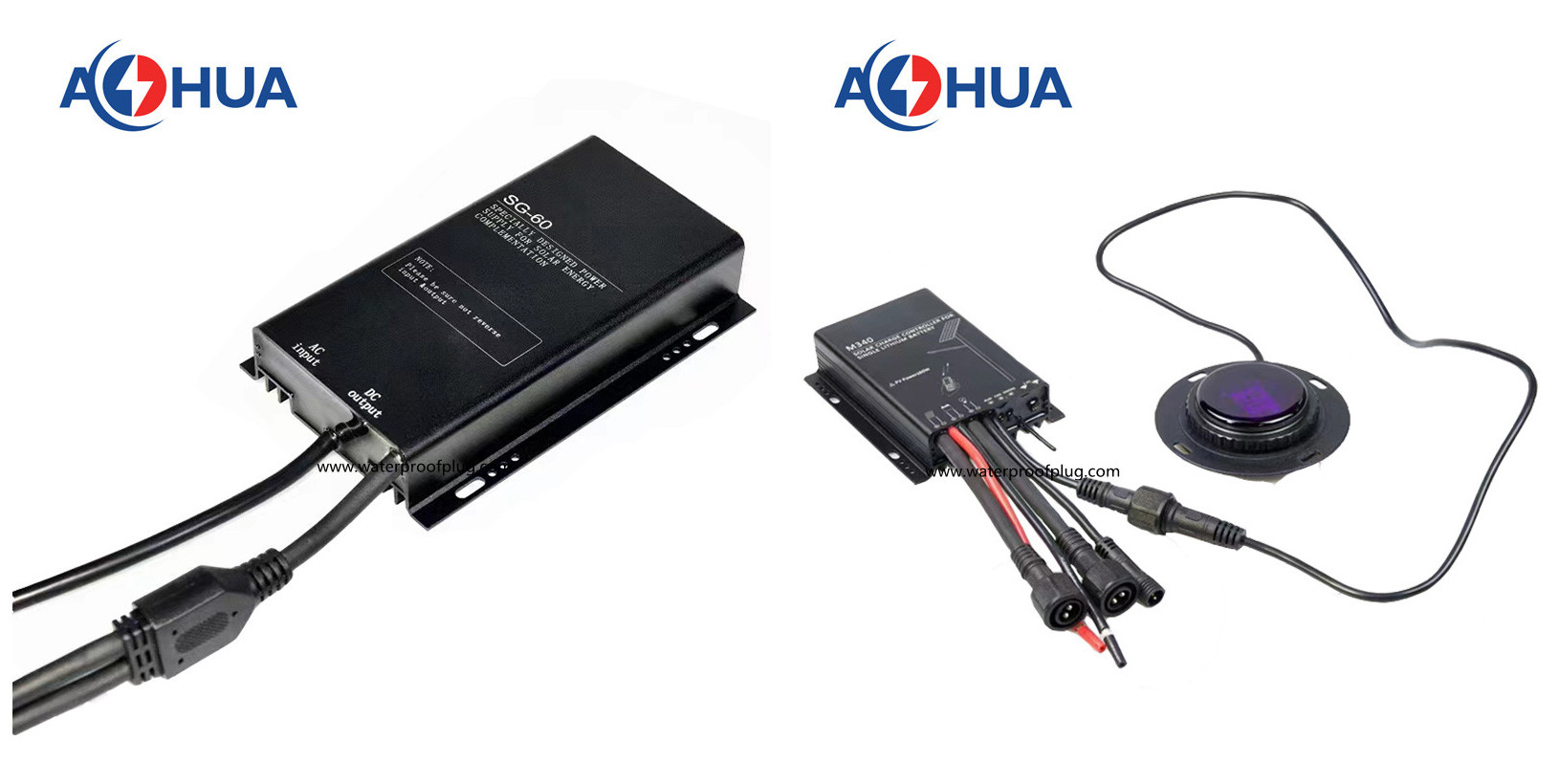

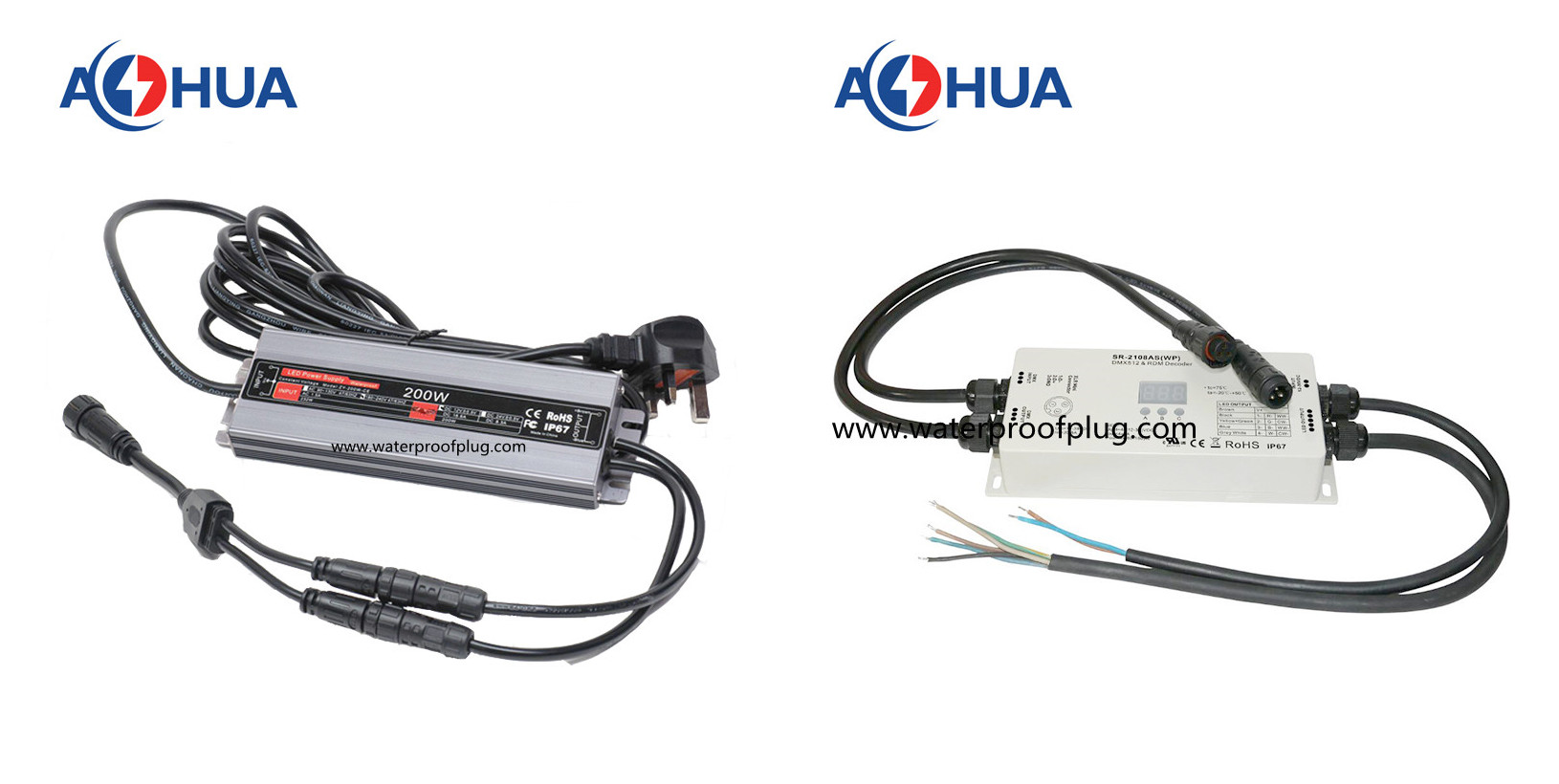

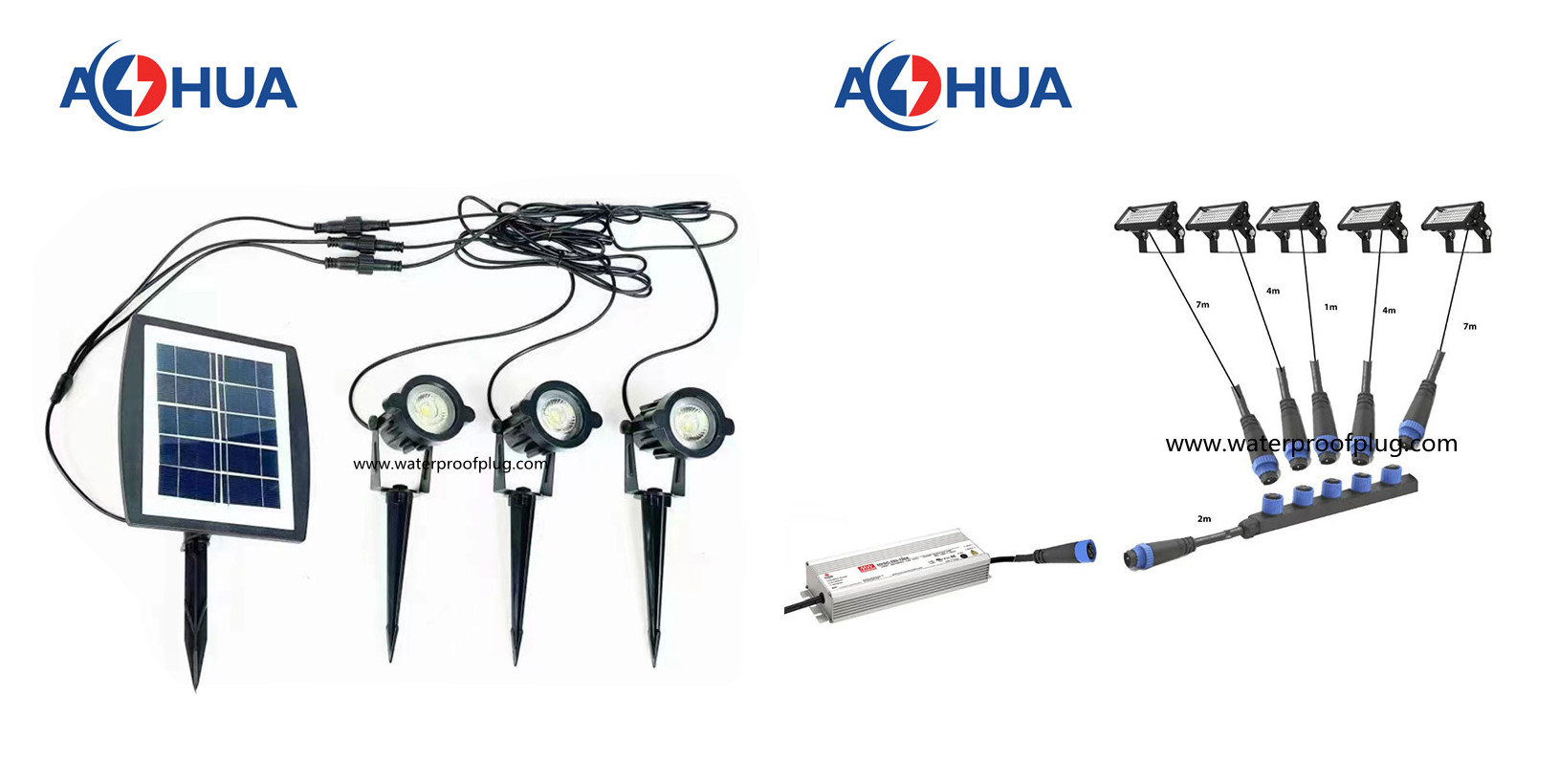

Y type splitter is a kind of multiple cables splitter, which is one cable input and multiple branch cables output. As usual, this splitter will be designed 1 input 2 3 4 5 outputs, the main cable with connectors and branch cable with connectors or the main cable and branch cables are without connectors but with bare cables.
The splitter size is length 58mm*wide 37mm*high 21mm, The main cable wire size is Less than or equal to 2.5mm², branch cable wire size is less than or equal to 1.5mm²; the main cable OD is not exceed 10mm, the branch cable is not exceed 8.3mm. This splitter is suitable for 2pin 3pin and 4pin.

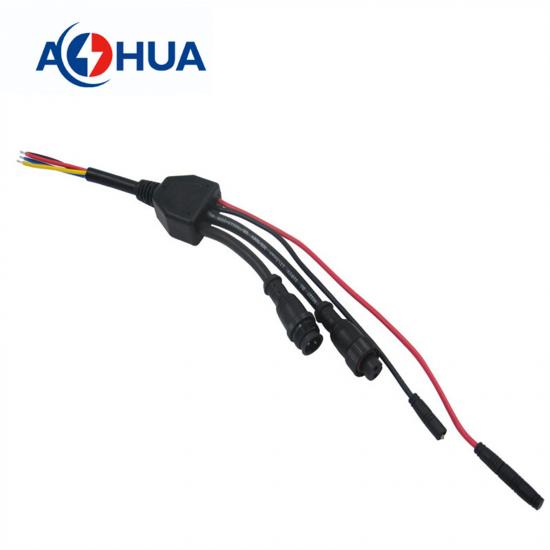

In this example, the main cable designed without connector and branch cable designed with female connectors, the main cable and branch cable wire sizes are 2*0.75mm².
Y06 Specification
2pin |
AH-YP06-020X |
3pin | AH-YP06-030X |
4pin |
AH-YP06-040X |
Main Cable Gauge | ≤2.5mm² |
Branch Cable Gauge |
≤1.5mm² |
Main Cable OD | Max 9.5mm |
Branch Cable OD | Max 8.3mm |
Operating Rating | -20℃~+80℃ |
Waterproof Level | IP65 |
Tips before quotation.
Please tell us the cable details:
1. Current rating, eg: 4A.
2. Pins, eg: 2pin, 3pin.
3. Wire size, eg, main cable 2*20AWG, branch cable 2*22AWG.
4. Cable outer diameter(OD), eg: 6.8mm.
5. Length of each cable, eg: 300mm.
