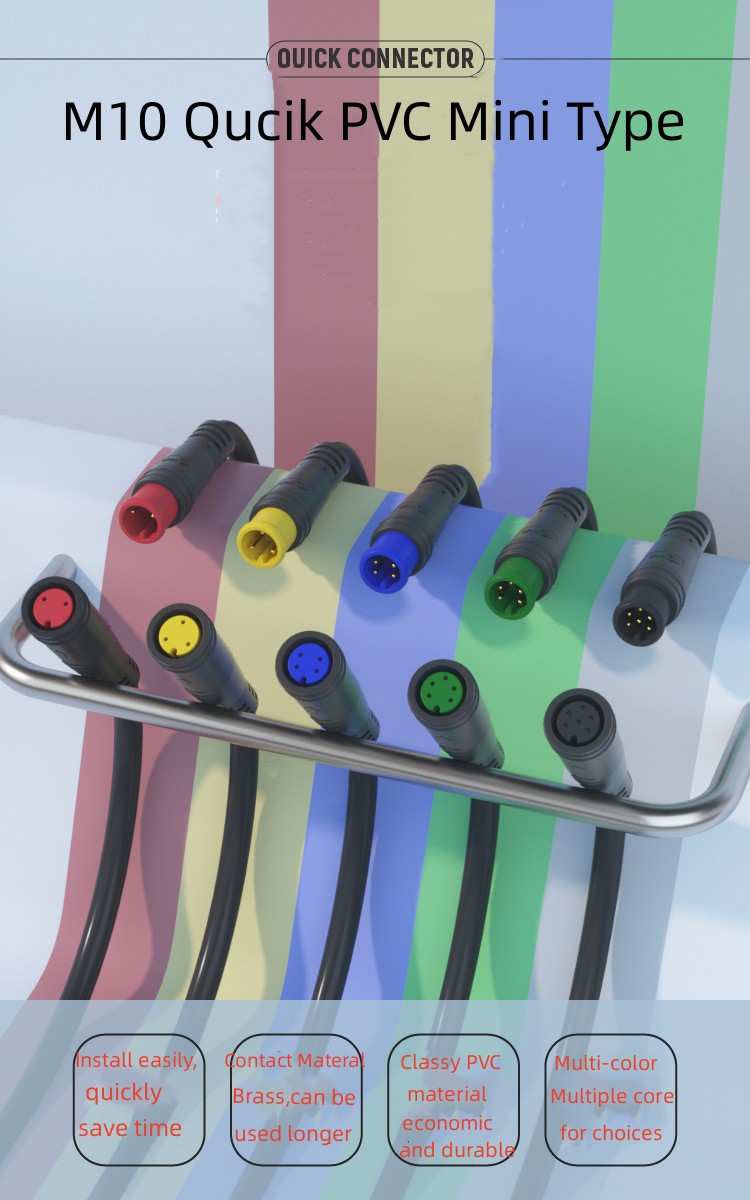

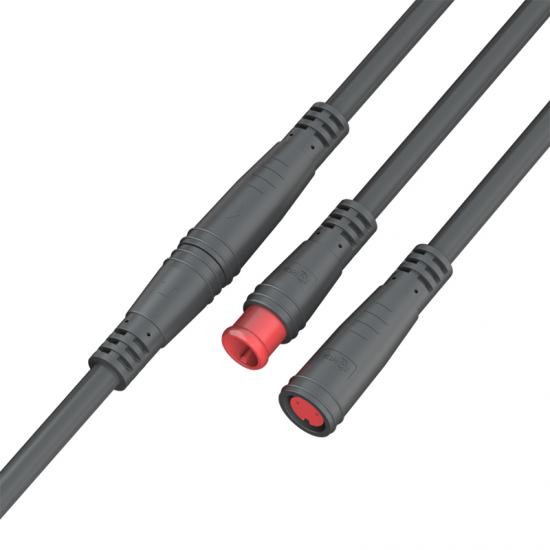

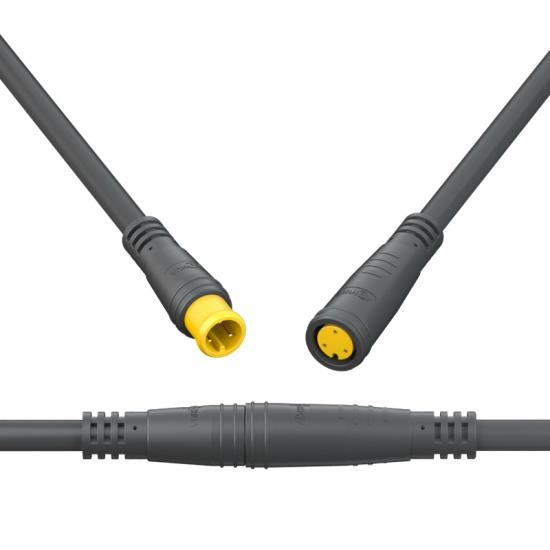

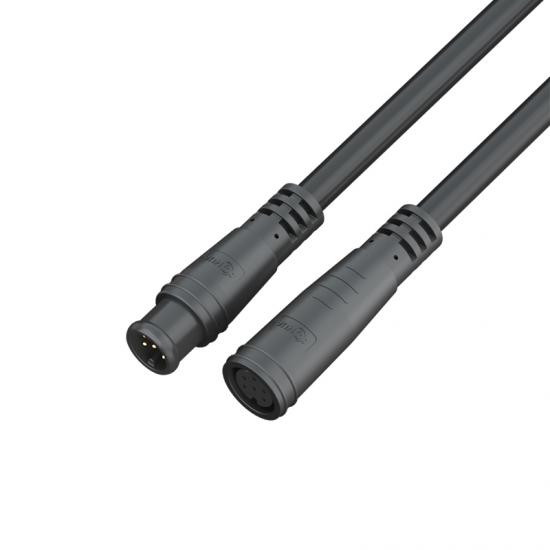

AOHUA M10 E-bike parts accessories led strip light quick male female wire harness 2 3 4 5 6 pin waterproof ip65 mini connector
1. Direct plug-in docking assembly, simple to use and convenient installation.
2. M10 PVC quick waterpoof connector, 2 3 4 5 6 pin for choices.
3. For low voltage, low current of signal products tailored.
4. The plug with compact structure and dainty appearance, is more suitable for the demand.
5. Innovation and development in 2010, the first generation of electric bicycle universal signal lines.

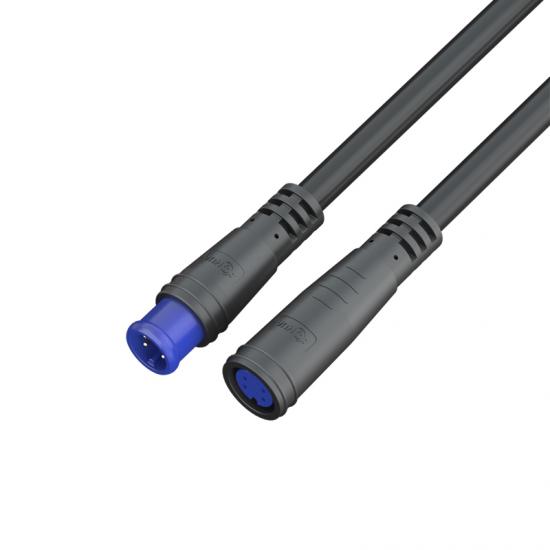

6. Available in a variety of colors, such as yellow, blue, green.

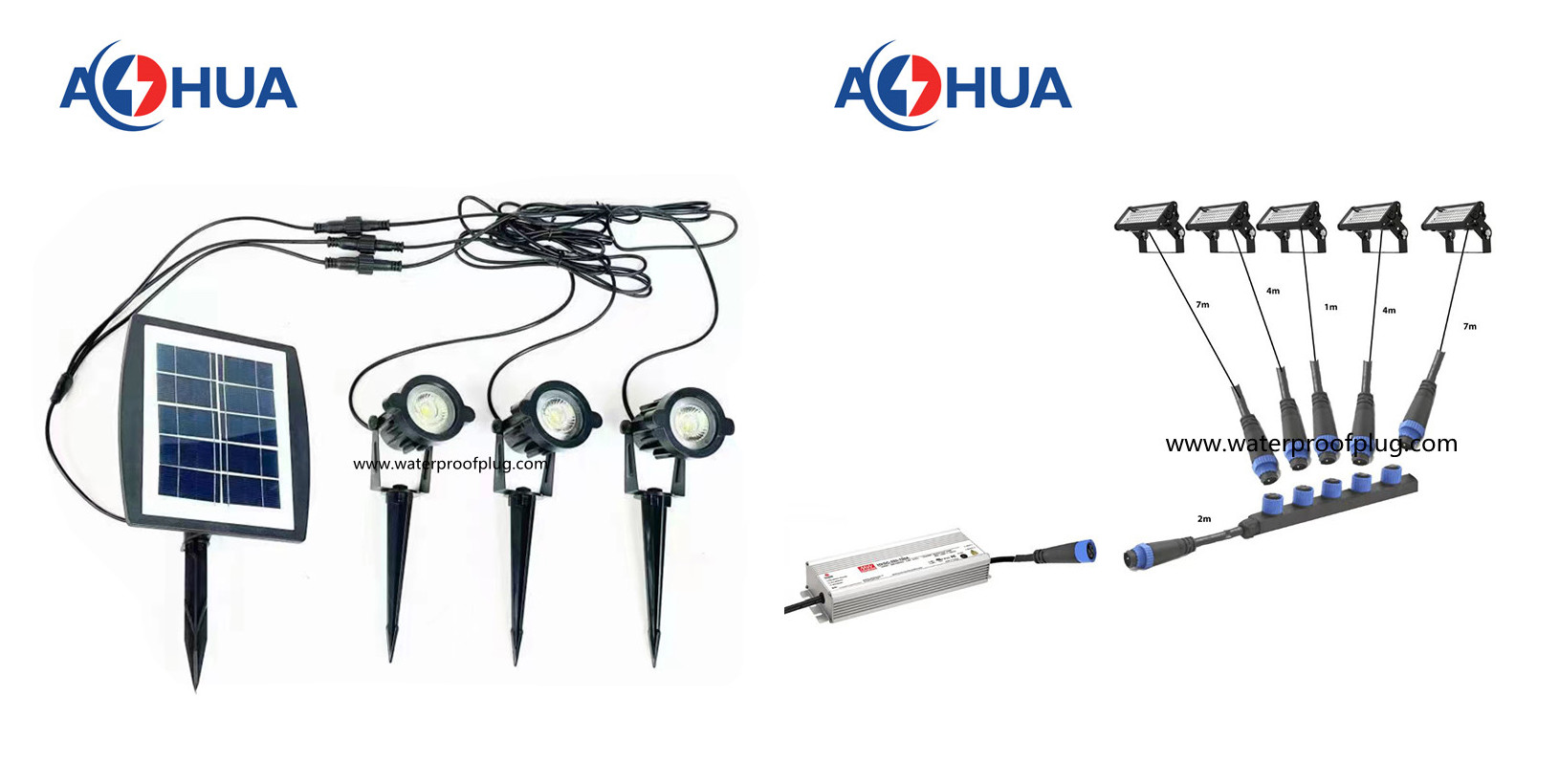

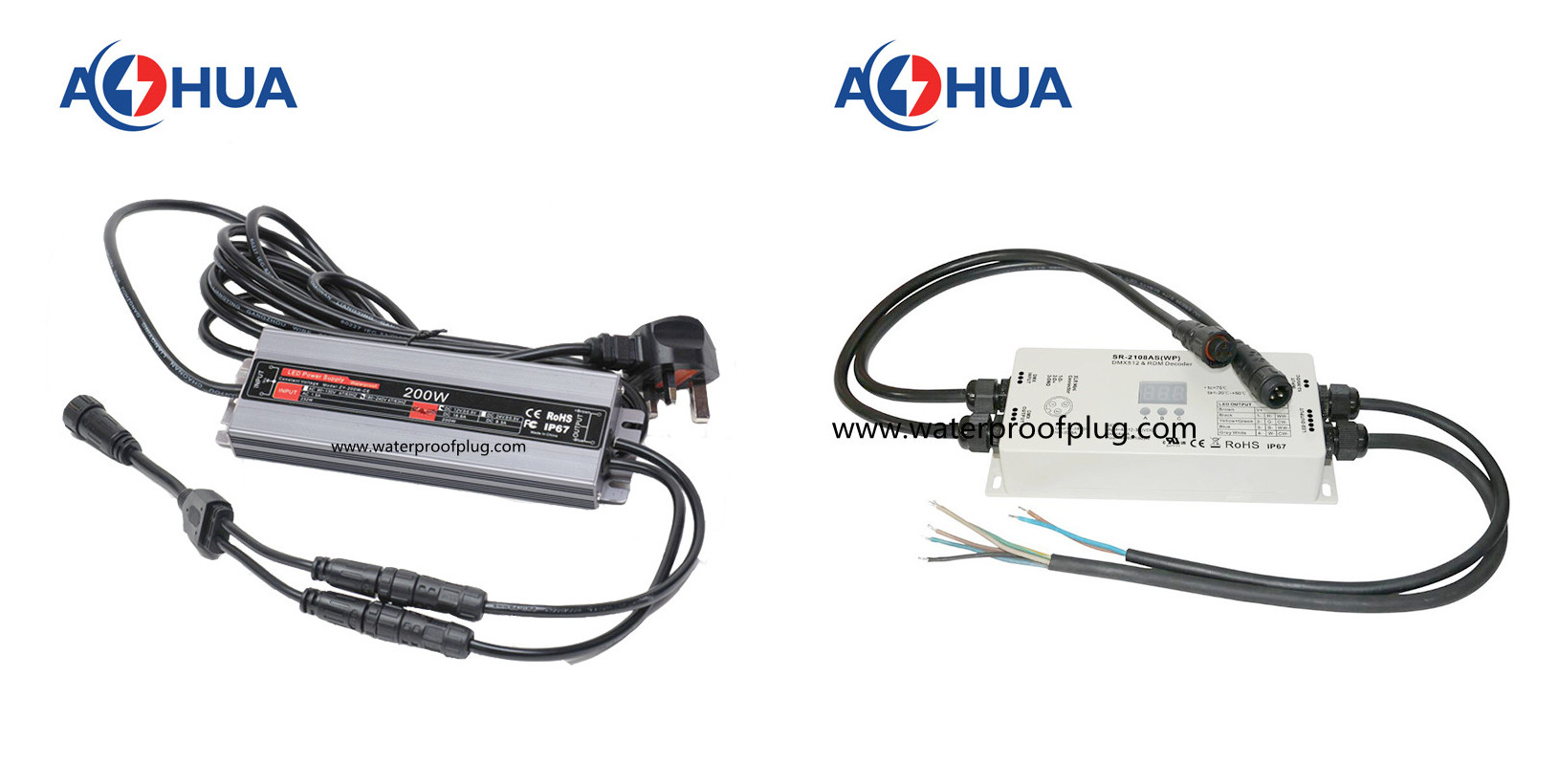

7. Mainly used for led strip, electric bicycle accessories and other signal lines.

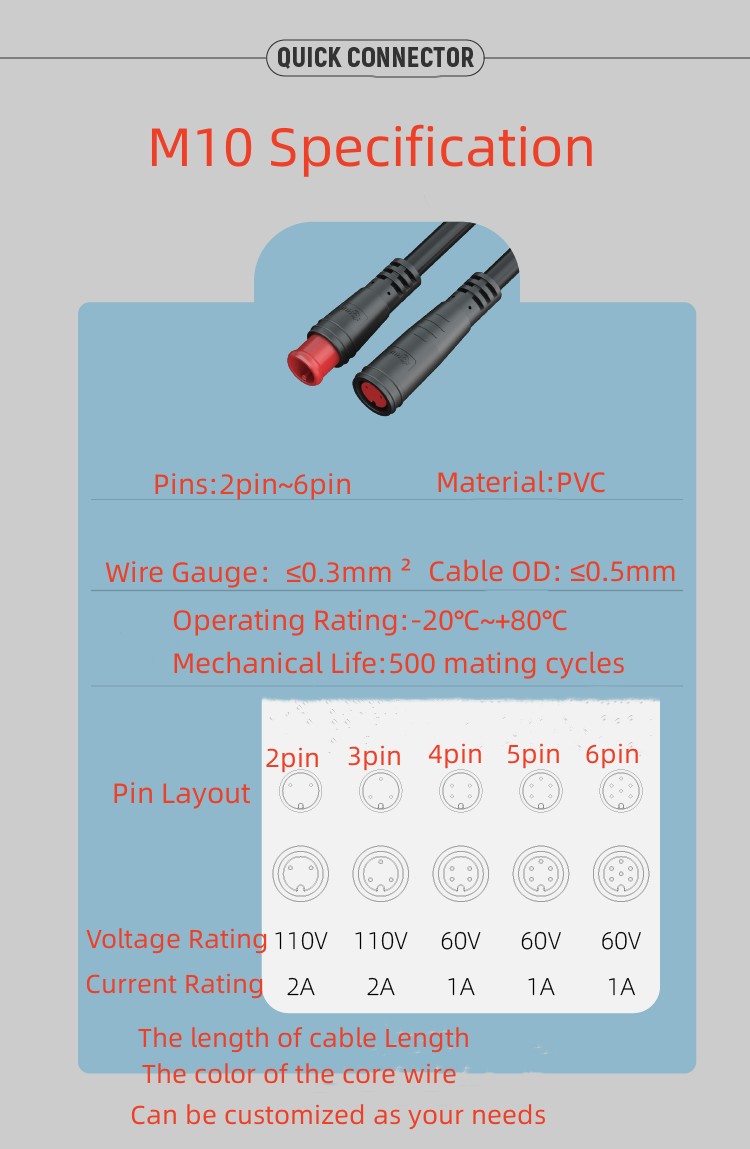

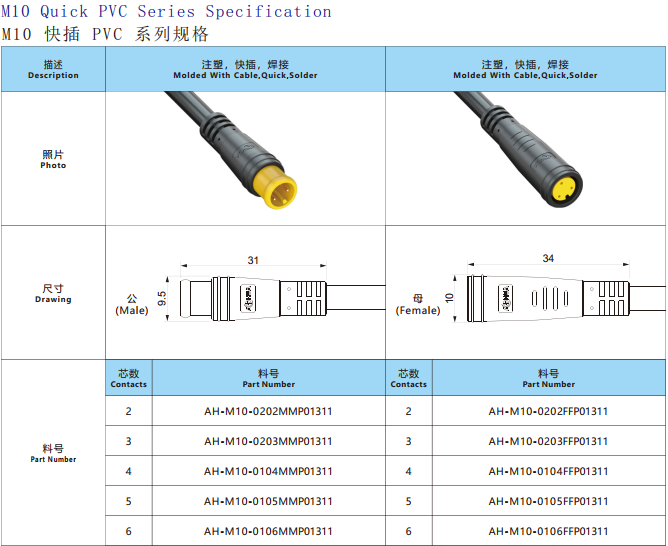

Contacts Number | 2 | 3 | 4 | 5 | 6 |
Voltage Rating | 110V | 110V | 60V | 60V | 60V |
Current Rating | 2A | 2A | 1A | 1A | 1A |
Wire Gauge | ≤0.3mm² |
≤0.3mm² |
≤0.2mm² |
≤0.2mm² |
≤0.2mm² |
Cable OD | 3.0mm~5.0mm |
Mechanicl Life | 500 mating cycles |
Operating Rating | -20℃~+80℃ |
Waterproof Level | IP65 |
Tips before quotation.
Please tell us the cable details:
1. Current rating, eg: 4A…
2. Pins, eg: 2pin, 3pin…
3. Wire size, eg, 2*22AWG…
4. Cable length, eg: 300mm each side…
More details, please send inquiry to us, we will try our best to help you!!!
