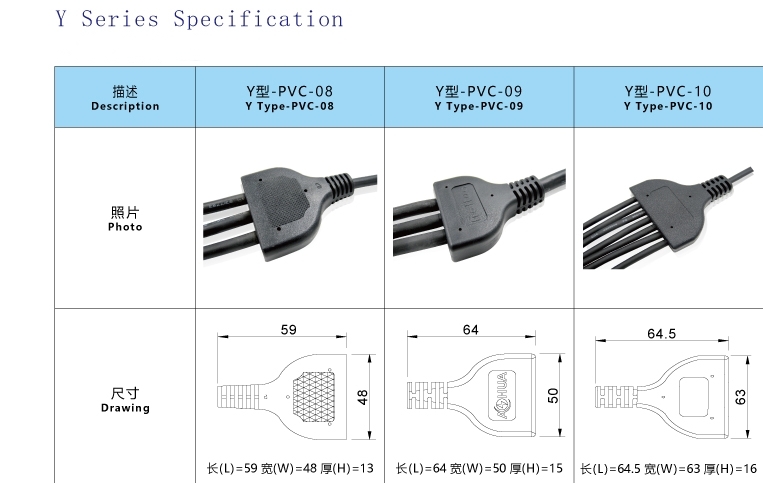

Description & Specs
Items | Pins | Part Number | Wire Gauge | Cable OD |
Y-PVC-08 | 2 | AH-YP08-020X |
Main Cable Gauge:≤1.5mm² Branch Cable Gauge:≤1.0mm² |
Main Cable OD:8.3mm Branch Cable OD:8.0mm |
Y-PVC-08 | 3 | AH-YP08-030X | ||
Y-PVC-08 | 4 | AH-YP08-040X | ||
Y-PVC-09 | 2 | AH-YP09-020X |
Main Cable Gauge:≤2.5mm² Branch Cable Gauge:≤1.5mm² |
Main Cable OD:9.5mm Branch Cable OD:8.3mm |
Y-PVC-09 | 3 | AH-YP09-030X | ||
Y-PVC-09 | 4 | AH-YP09-040X | ||
Y-PVC-10 | 2 | AH-YP10-020X |
Main Cable Gauge:≤2.5mm² Branch Cable Gauge:≤2.5mm² |
Main Cable OD:10.0mm Branch Cable OD:10.0mm |
Y-PVC-10 | 3 | AH-YP10-030X | ||
Y-PVC-10 | 4 | AH-YP10-040X |
Operating Rating | -20ºC-+80ºC |
Waterproof Level | IP65 |
Tips for choices
Before quotation, please tell us the details:
1. Current rating, eg: 4A...

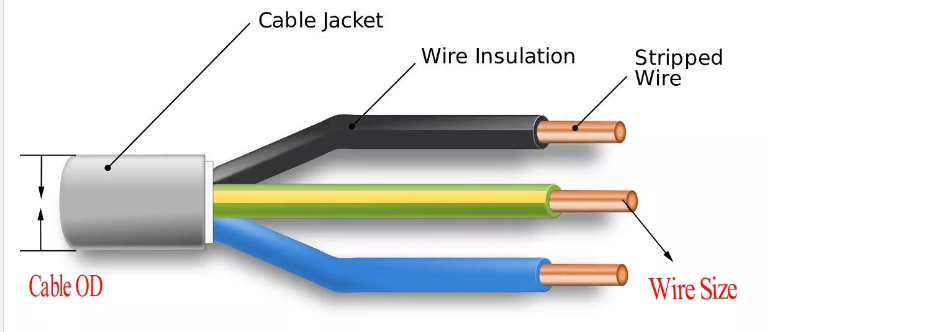

2. Wire size, eg: 4*20AWG...
3. Cable length, eg: 200mm each cable
4. Simple drawing, eg: 1 in , 4 out...
Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.

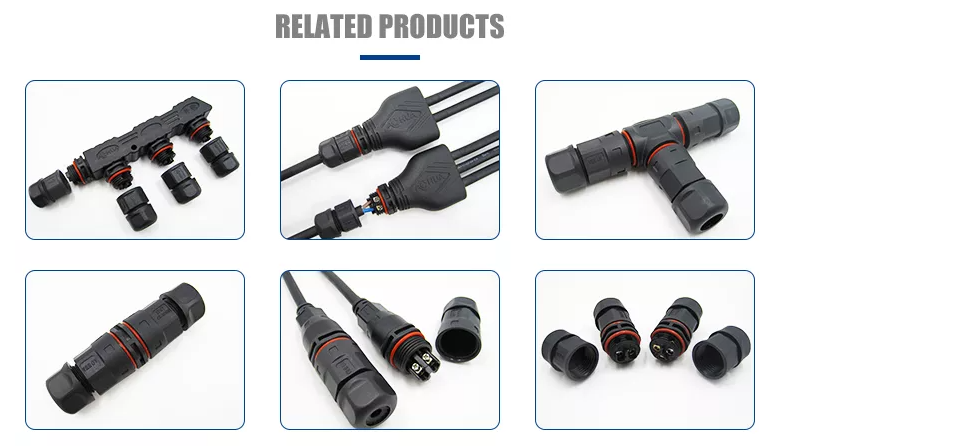

Related Products
Our Advantages
Advantages:

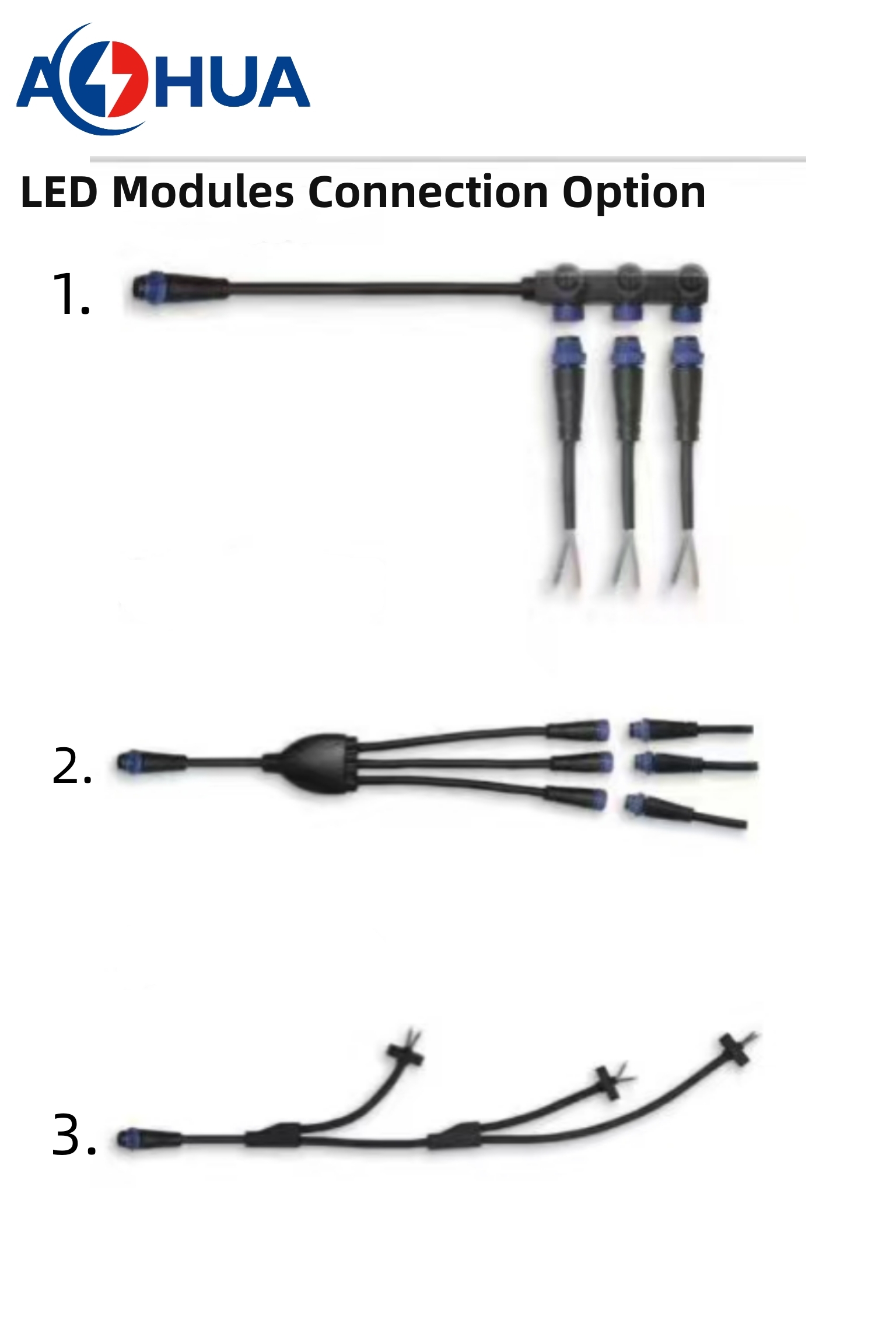

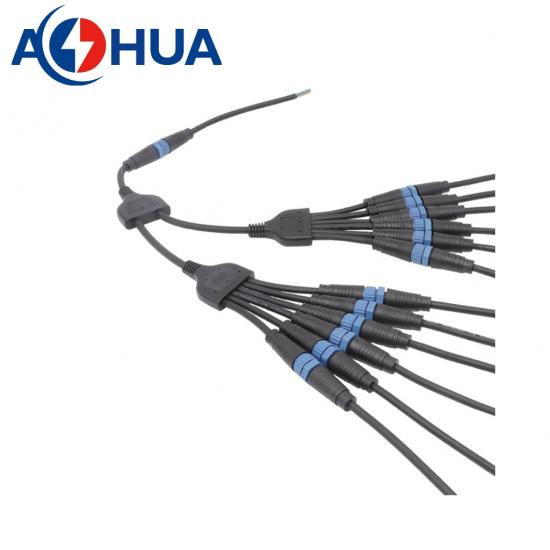

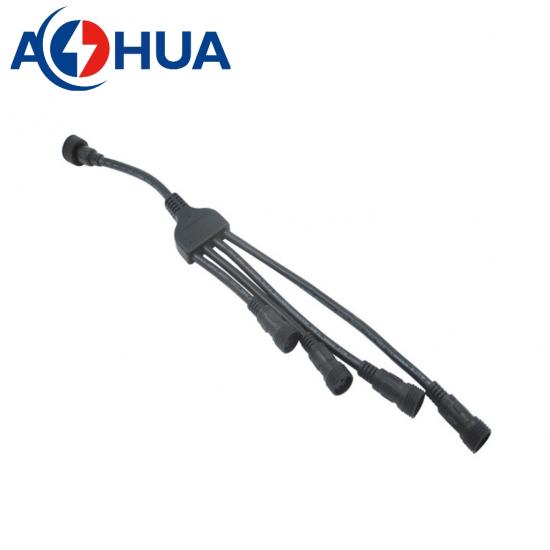

1.Connector:Y Type series waterproof connector,1 to 2, 1 to 3, 1 to 4, 1 to 5,parallel type & series type.
2. Quality Assurance: IP65 advanced protetion,operating temperature:-20°C-+80°C.
3.Easy Install: The installation process is very simple.
4.Cable:PVC or rubber.
5.Color:Black,White.
6.High-Quality Materials: The Outdoor connector all are made high quality Nylon PA66,high temperature resistant,94V-0 flame retardant.

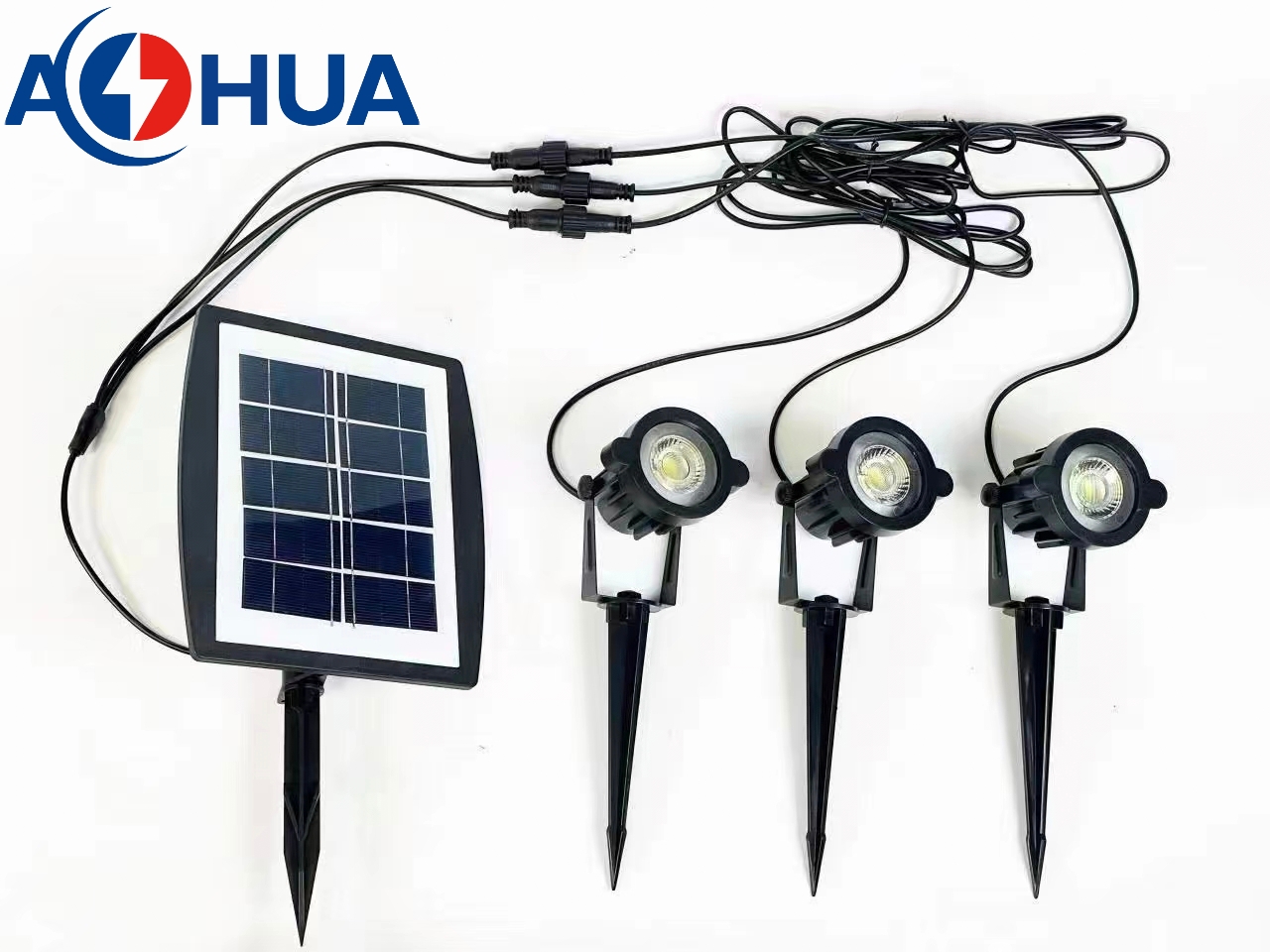

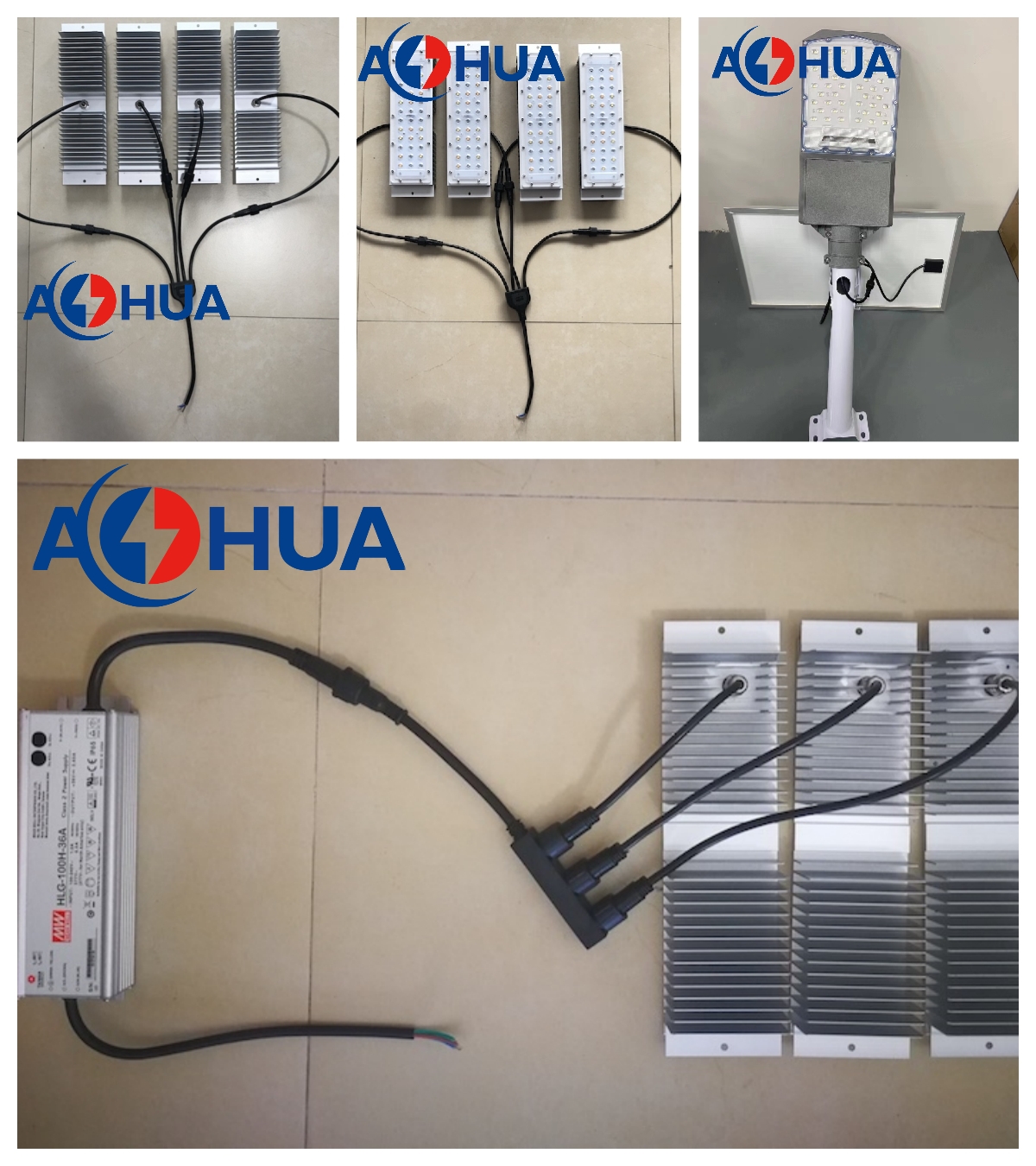

7. Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light ,LED light, power, driver, electrical equipment and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
Assembly Connector
|
Wire to wire /Wire to panel waterproof connector,L/T screw type connector
|
Over-mold Connector
|
Nylon/PVC /Metal /Aviation waterproof connector,DC connector
|
T Connector
|
Over-mold T waterproof connector
|

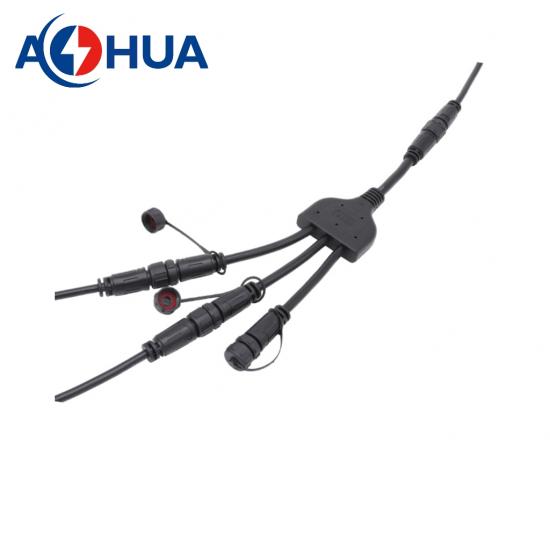

Y Connector
|
Over-mold Y waterproof connector
|
Distributor Connector
|
M15/M18 Series(1to2/3/4/5/6) LED waterproof connector |
Packaging & Shipping
Quantity(sets) | 1 - 1000 | >1000 |
Lead time (days) | 9 | To be negotiated |
Shipment |
Express(DHL,Fedex,TNT,Ups);Ocean freight Land freight;Air freight |
