Assembly Crimp In T Type 2 3 4 PIN 15A 20A Cable Connector

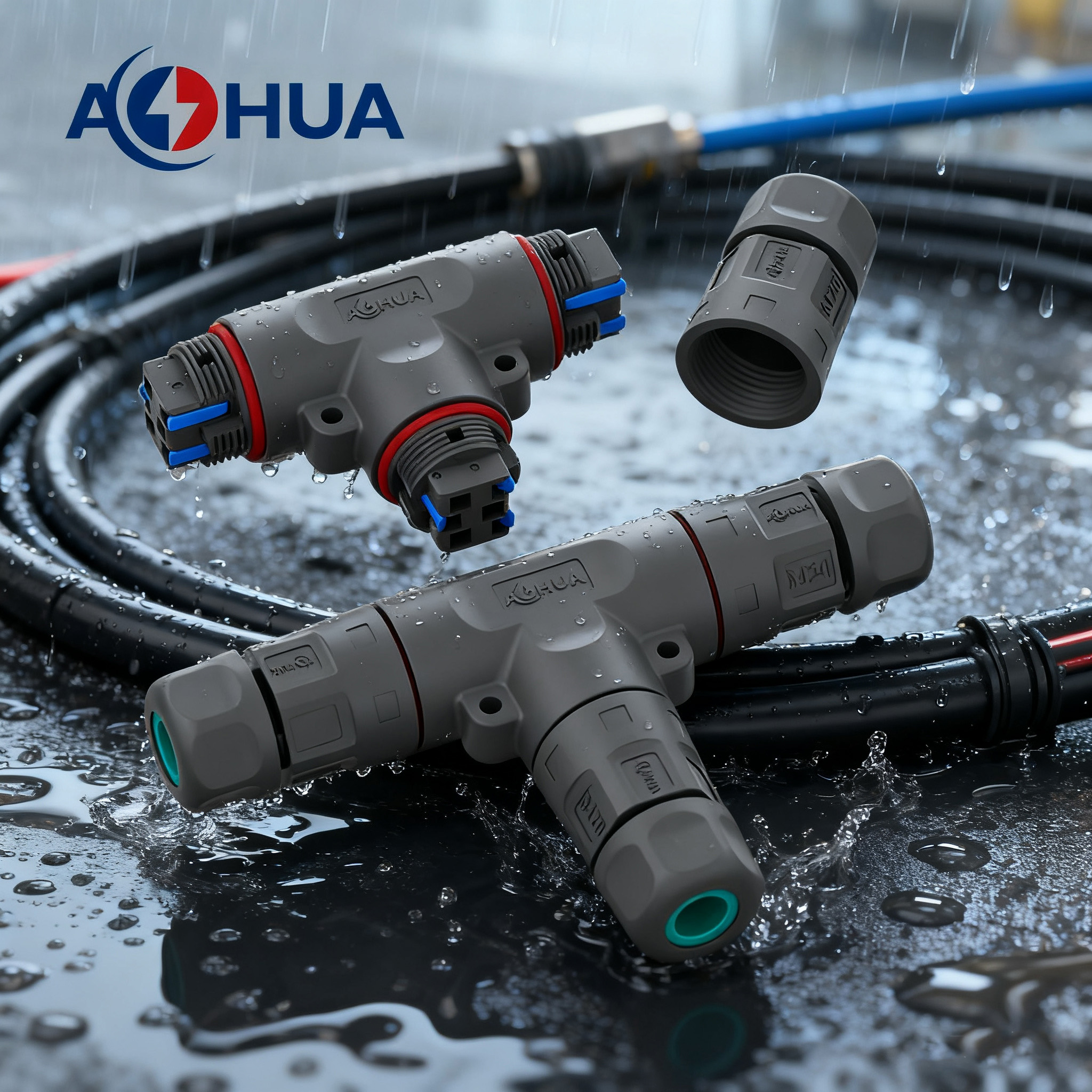

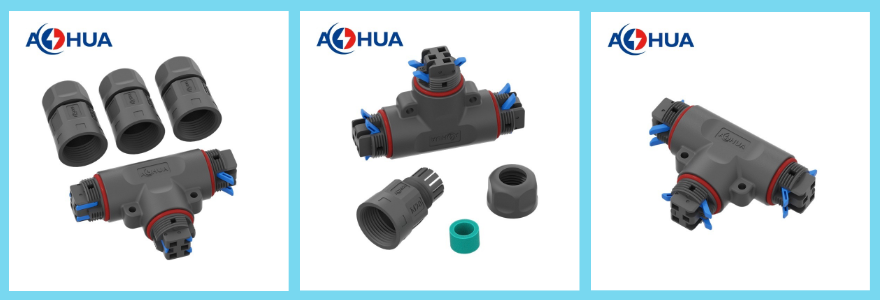

M20 Assembly T Wire Connector IP68 3Way Connector

Product Overview

The M20 3-PIN T-Type Three Way Connector is a waterproof electrical connection solution specifically engineered for in dustrial environments.Featuring a T-shaped structure design, it supports three electrical connections,with an IP68 protection rating ensuring reliable operation inharsh conditions.

Core features

• T-shaped three-way design: Supports three electrical connections, flexibly accommodating complex wiring requirements.
• M20 threaded interface: Standard M20 threaded connection for convenient and reliable installation.
• 3-pin terminal configuration: Three pin terminals suitable for diverse electrical connection scenarios
• IP68 protection rating: Fully dustproof, capable of sustained operation at 1.5 metres submerged
• Premium materials: Engineering plastic housing, brass terminals, temperature range -40°C to +85°C

Technical Specifications

• Interface Type: M20 Threaded Connection
• Number of Terminals: 3-pin
• Protection Rating: IP68
• Rated Current: 10A
• Rated Voltage: AC 250V / DC 300V
• Operating Temperature: -40°C to +85°C
• Material: Housing - Engineering Plastic, Terminals - Brass

Application Scenarios

• Industrial automation equipment
• Outdoor electrical equipment connections
• Marine and offshore engineering
• Building electrical installations
• Automotive and rail transport
• Solar photovoltaic systems

Installation Advantages

• Quick-connect design for effortless installation and maintenance
• Anti-misinsertion structure ensures correct connection
• Superior vibration and shock resistance
• Compatible with multiple cable specifications
• High long-term reliability
