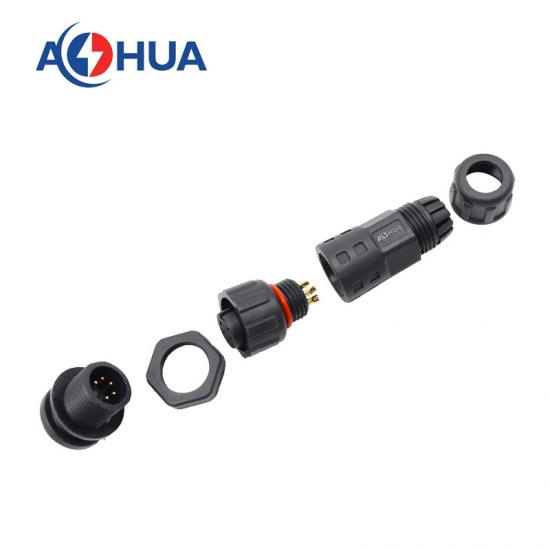

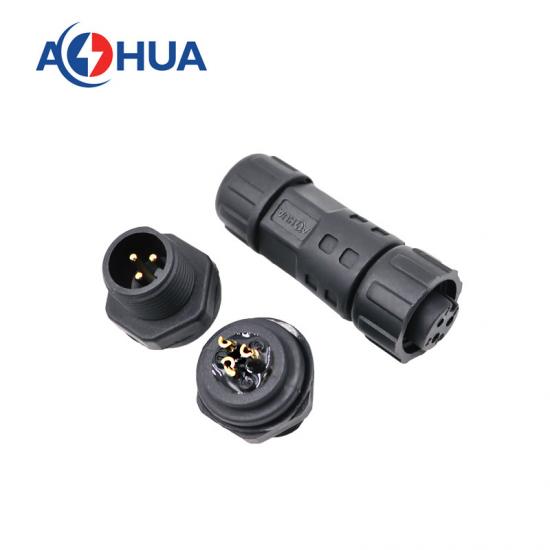

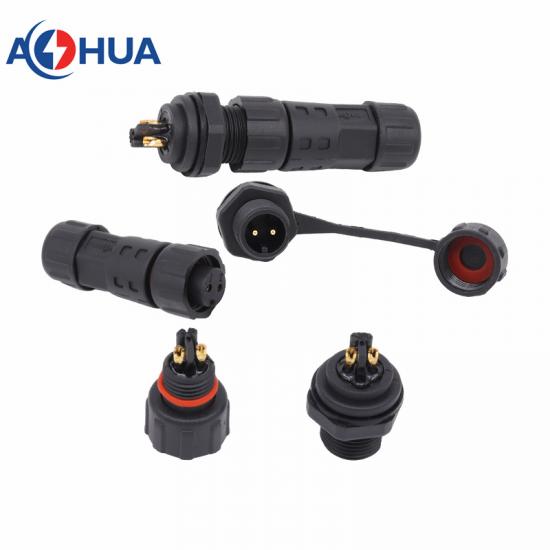

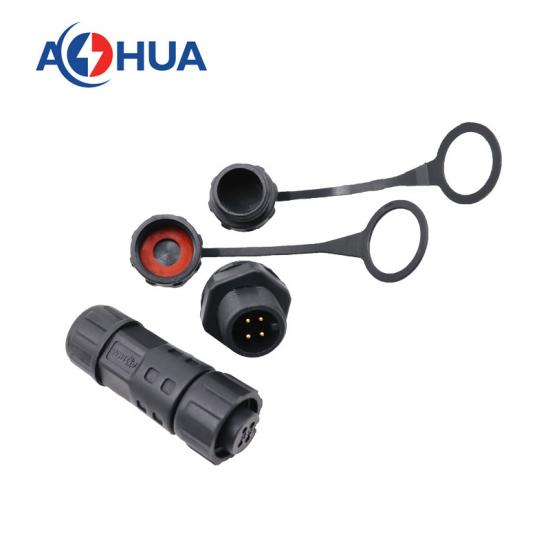

This is customized panel wire connector , it can support for 2 3 4 5 6 7 8 9 10 Pin, the panel connector is male connector, it is divided into front & rear type.
Before give you quotation pls contact us the information below:
1.the wire gauge that you need to connect? like 2* 20AWG 3*18AWG 4*20AWG...
2. the wire outside diameter that you use? like: 6.2mm 7.5mm...
once we receive your inquiry we will help you to select a suitable connect solution.

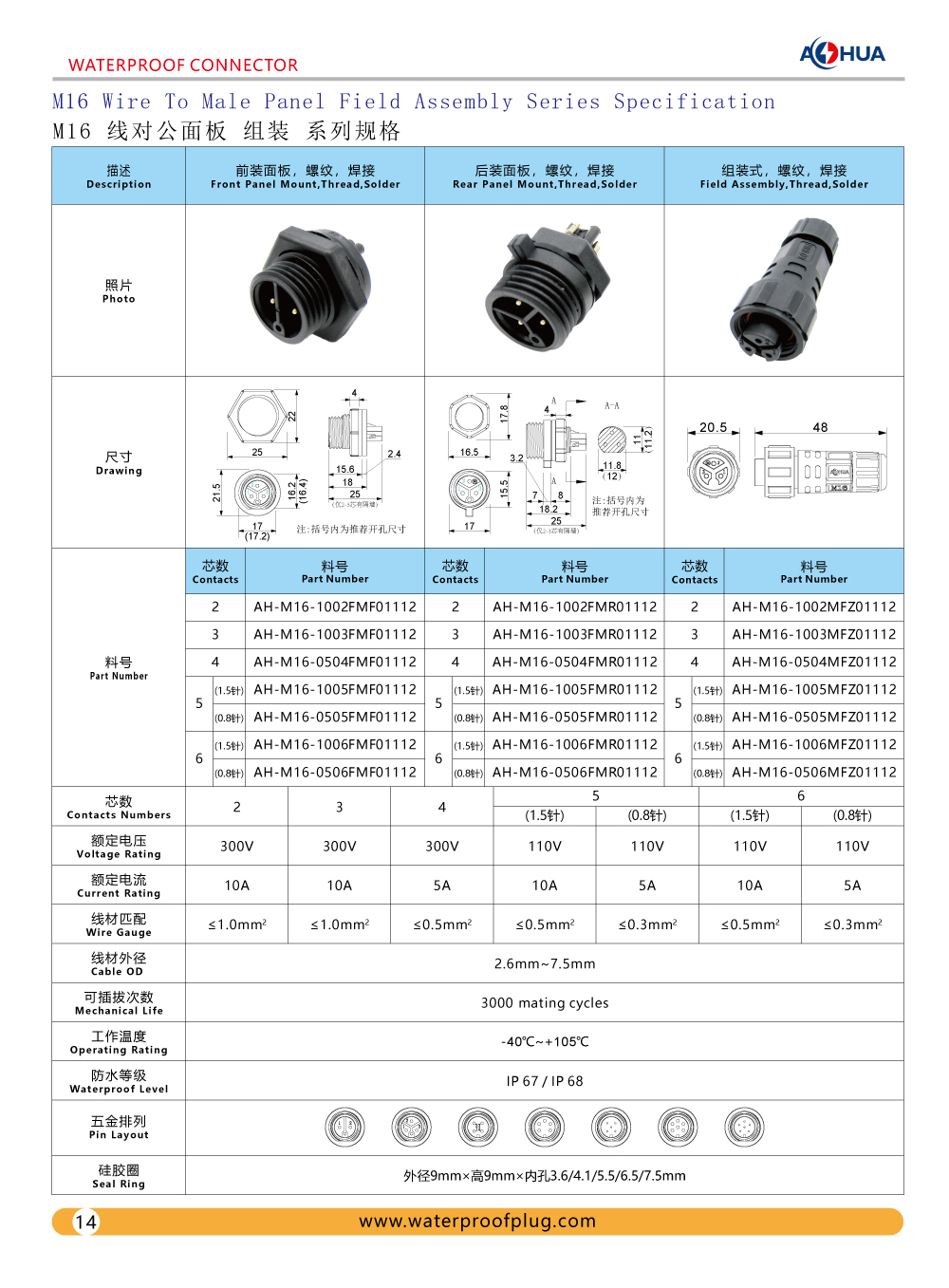

Model No
Current Rating
Suit for the Wire Gauge
Voltage Rating
M16-2Pin
10A
16AWG/18AWG/20AWG/22AWG/24AWG
1.0mm²/0.75mm²/0.5mm²/0.3mm²/0.2mm²
300V
M16-3Pin
10A
16AWG/18AWG/20AWG/22AWG/24AWG
1.0mm²/0.75mm²/0.5mm²/0.3mm²/0.2mm²
300V
M16-4Pin
05A
20AWG/22AWG/24AWG
0.5mm²/0.3mm²/0.2mm²
300V
M16-5Pin
10A
20AWG/22AWG/24AWG
0.5mm²/0.3mm²/0.2mm²
110V
M16-5Pin
05A
22AWG/24AWG
0.3mm²/0.2mm²
110V
M16-6Pin
10A
20AWG/22AWG/24AWG
0.5mm²/0.3mm²/0.2mm²
110V
M16-6Pin
05A
22AWG/24AWG
0.3mm²/0.2mm²
110V
M16-7Pin
05A
24AWG
0.2mm²
60V
M16-8Pin
05A
24AWG
0.2mm²
60V
M16-10Pin
05A
24AWG
0.2mm²
60V
