If you are looking for a Signal or a Low Current Power Waterproof Cable, and you want the screw fixing type terminal there is one type connector might suit for you:

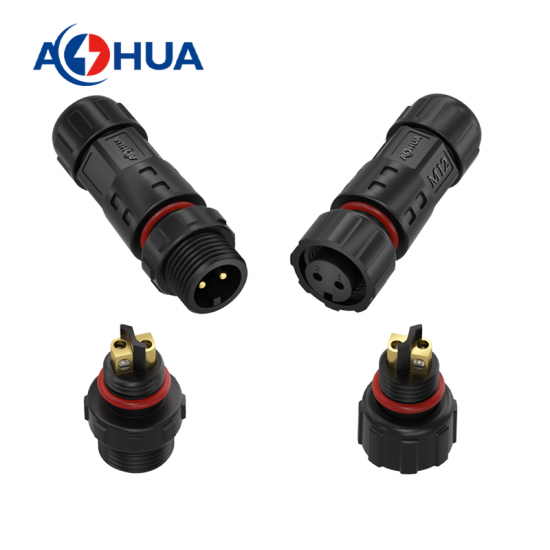

Unlike pre-molded connectors, this M12 series features a screw-type, field-assemblable structure, eliminating the need for specialized crimping tools or injection molding equipment. The connector is split into two core components:
- Male plug assembly: Equipped with gold-plated brass pin contacts, integrated thread locking, and a durable PA66 nylon housing.
-
-
Female socket assembly: Matched precision-machined socket contacts, with clear contact numbering (1/2) for error-free wiring.
AH-M12-0502FMZ/MFZ02122
Current Rating: 05A
Voltage Rating: 300V
Wire Gauge: ≤1.0mm²
| Parameter | Specification |
|---|---|
| Model Series | AOHUA M12 2-Pin Waterproof Connector |
| Rated Voltage | 250V AC/DC |
| Rated Current | 05A (per contact, dependent on wire gauge) |
| Waterproof Rating | IP67 (temporary immersion up to 1m for 30 minutes), IP68 (continuous immersion, optional) |
| Contact Resistance | ≤ 5mΩ |
| Insulation Resistance | ≥ 1000MΩ (500V DC test) |
| Withstand Voltage | 1500V AC/1min (no breakdown) |
| Operating Temperature Range | -40°C ~ +105°C |
| Wire Compatibility | 16AWG ~ 22AWG (1.0mm² ~ 0.34mm²) stranded copper wire |
| Mechanical Durability | ≥ 500 mating cycles |
| Flame Retardancy | UL94 V-0 |
| Ingress Protection | Dust-tight, waterproof, corrosion-resistant |
And there are also other PIN for you choose, like 4PIN/5PIN/6PIN..., check the wire gauge and the current and make a design, then we will help you to choose a solution according to the design.Thanks!
