Industrial-Grade M20 Waterproof T-Connector IP67/IP68 Waterproof Rating 2P/3P Screw Terminal Quick Wiring Suitable for LED Fixtures and Outdoor Cable Splitting

Specification	Details
Product Name	3-Way Waterproof Pluggable Connector (T-Type)
Brand	AOHUA
Model	M20
Contacts (Options)	2 Pin / 3 Pin
Voltage Rating	500V
Current Rating	15A
Compatible Cable OD	5.5mm ~ 10mm
Compatible Wire Gauge	≤ 1.5mm²
Conductor Contact Dia.	φ2.0mm
Wiring Method	Screw Terminal Connection
Mechanical Life	3000 Mating Cycles
Material	UL94V-0 Nylon PA66 Shell
Operating Temperature	-40℃ ~ +105℃
Waterproof Level	IP67 / IP68
Certifications	RoHS
Dimensions	Total Length: ~155mm; Width: ~27.2mm (Please refer to the detailed drawing for precise dimensions)

Part Numbering System(Solder Type/Screw Fixing Type)

• 2-Core Model: AH-M20-1502T01112-P(Solder Type)

• 3-Core Model: AH-M20-1503T01112-P(Solder Type)

• 4-Core Model: AH-M20-1004T01112-P(Solder Type)

• 2-Core Model: AH-M20-1502T01112-P(Screw Fixing Type)

• 3-Core Model: AH-M20-1503T01112-P(Screw Fixing Type)

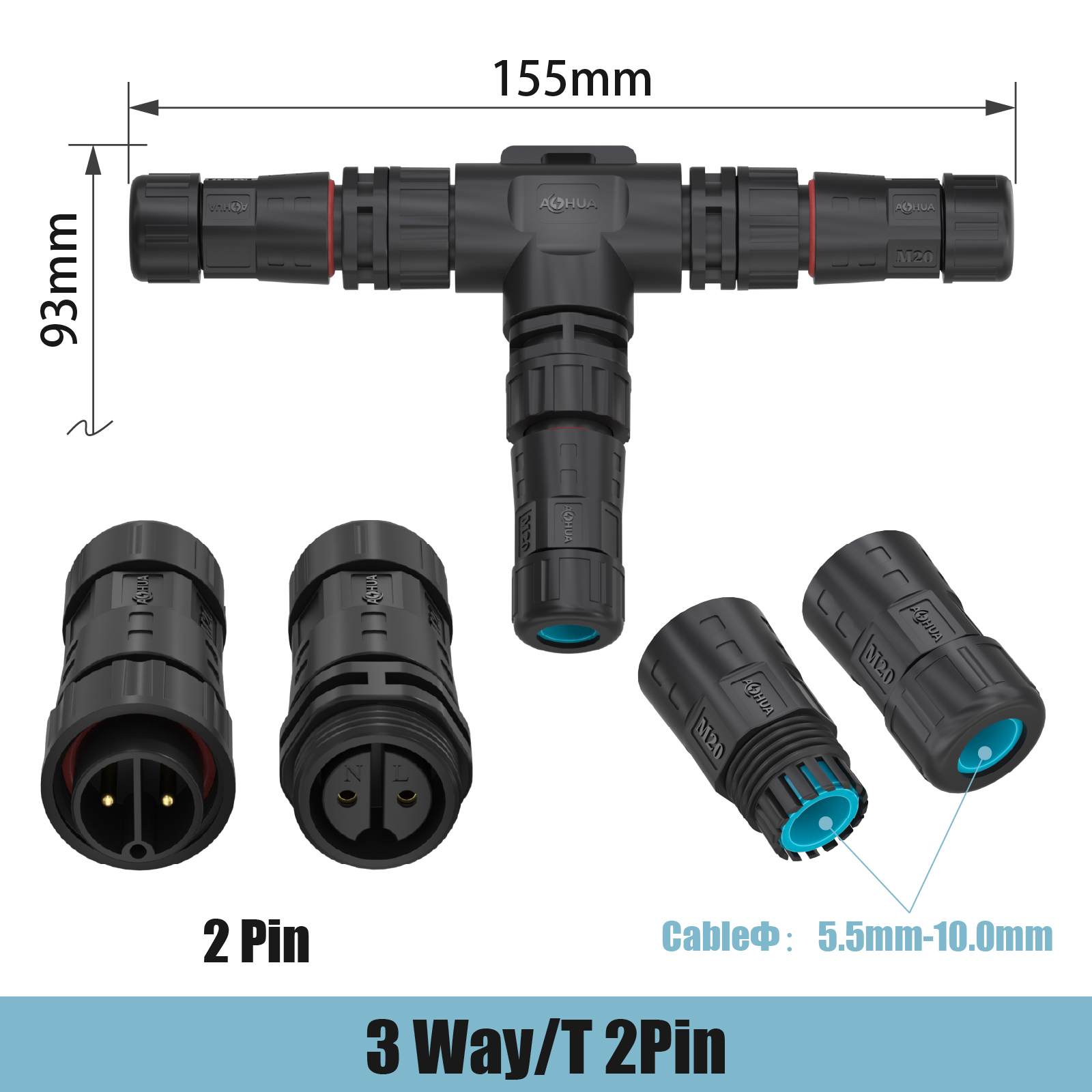

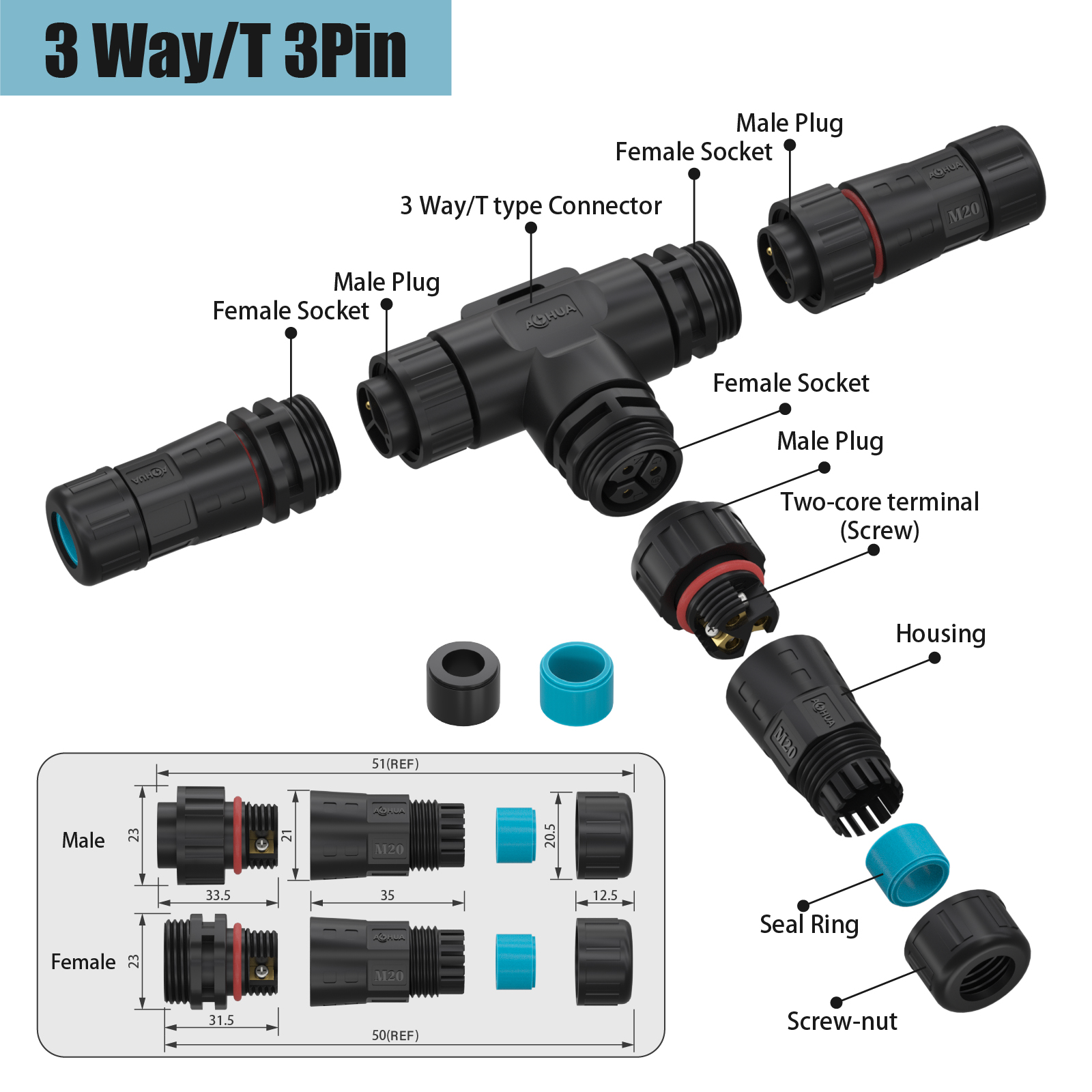

Dimensions & Pin Layout

Overall Dimensions:

• Width: 155.0 ± 3 mm

• Height: 92.5±2.0 mm

Pin Layout:

• 2-Core: 2-pin configuration (see diagram for pin positions).

• 3-Core: 3-pin configuration (see diagram for pin positions).

(Include the line drawing from your last image here)

2-Core Model: AH-M20-1502T02132

 3-Core Model: AH-M20-1503T02132
