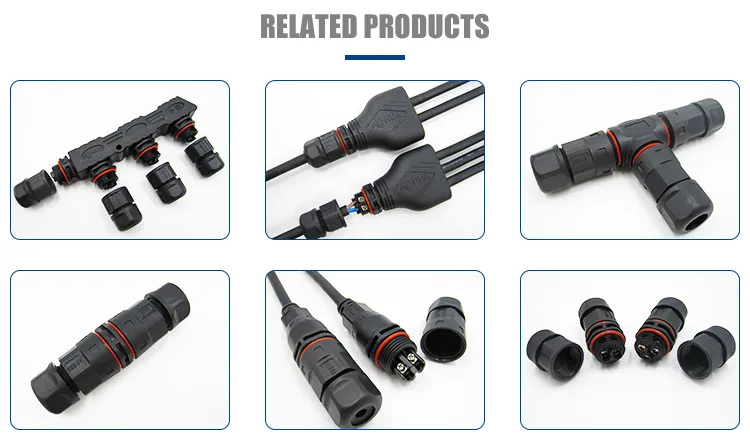

Related Products
Assembly Connector
Wire to wire /Wire to panel waterproof connector,L/T
screw type connector
Over-mold Connector
Nylon/PVC /Metal /Aviation waterproof connector,DC
connector
T Connector
Over-mold T waterproof connector
Y Connector
Over-mold Y waterproof connector
Distributor Connector
M15/M19/M20 Series(1to2/3/4/5/6) LED waterproof
connector

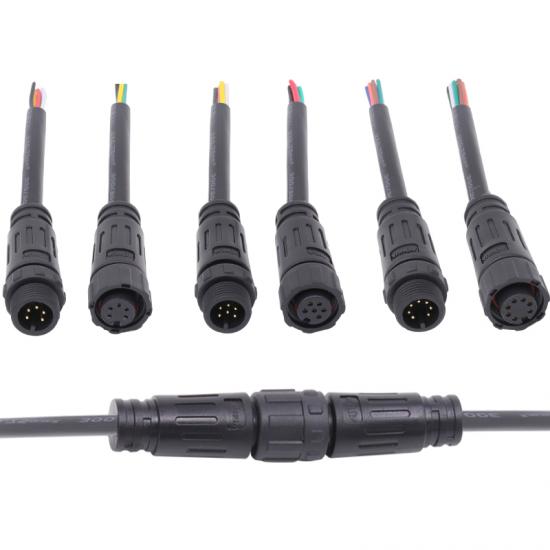

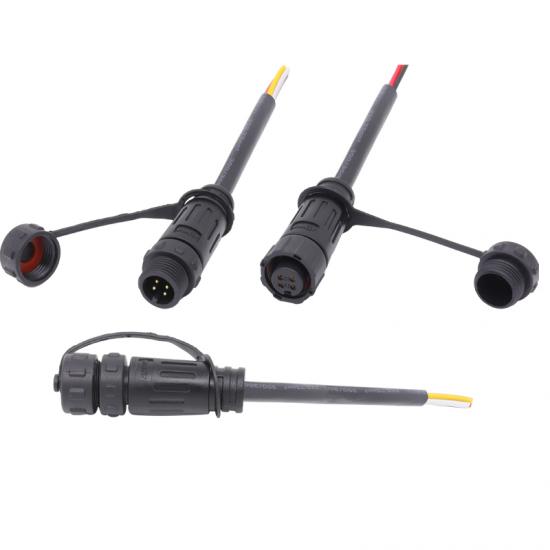

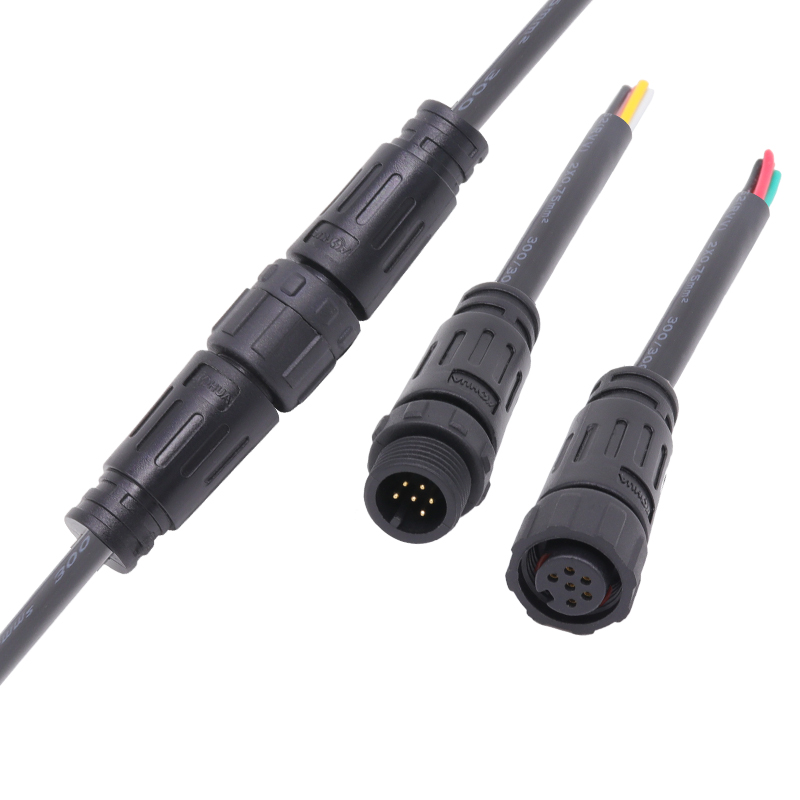

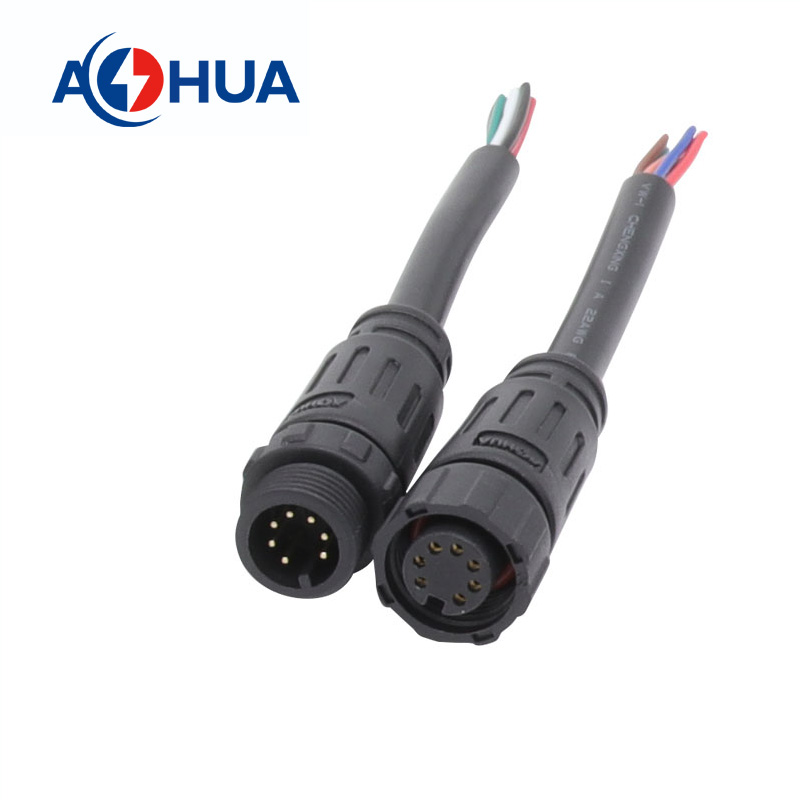

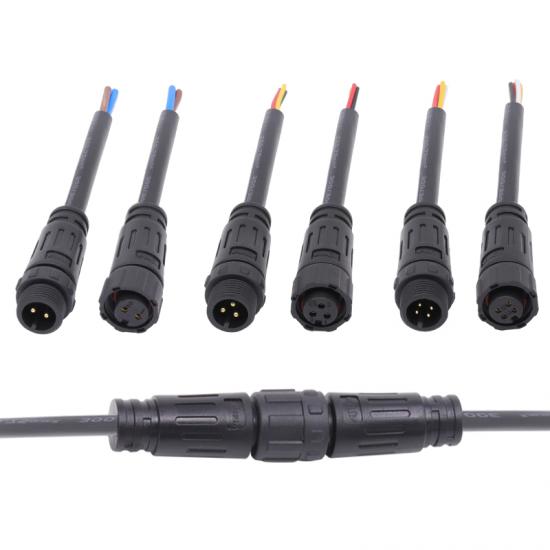

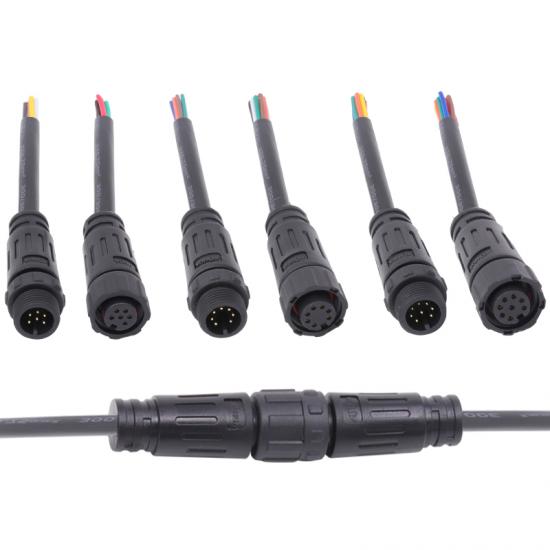

1.M12 waterproof cable connector is pre-wire male and female inline
type connector,
The coupling way is thread locking,wire connection method is
solder type,
there are 2pin,3pin,4pin, 5pin, 6pin, 7pin, 8pin for your

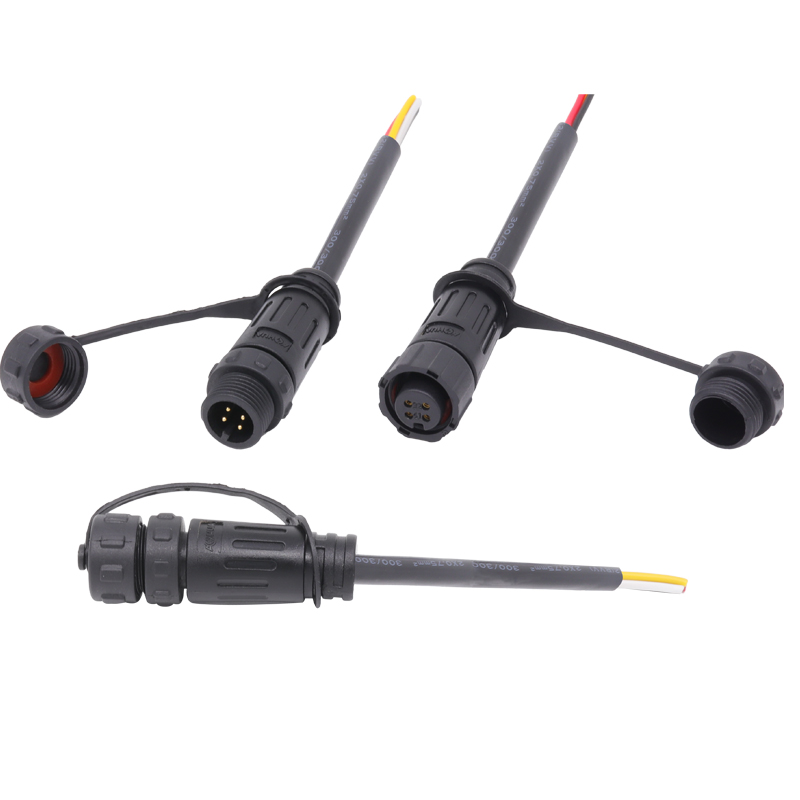

choices,dust cap can be chosen from.
2pin and 3pin approved UL/CQC/RoHS/CE/ISO9001 Certificate.
2.Shell Material:Environment Material nylon PA66,with hight waterproof resistance,corrosion resistance,explosion resistance,and flame retardant UL 94V0.
The pin materials is gold-plated brass,which has high electrical conductivity,stable and durable,safe and reliable,long service life.

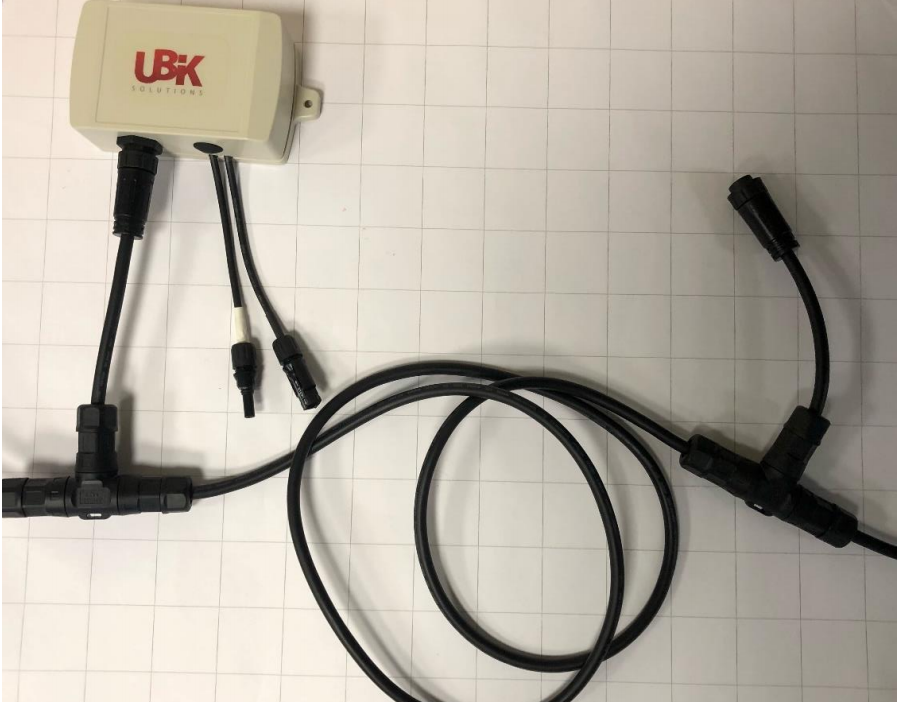

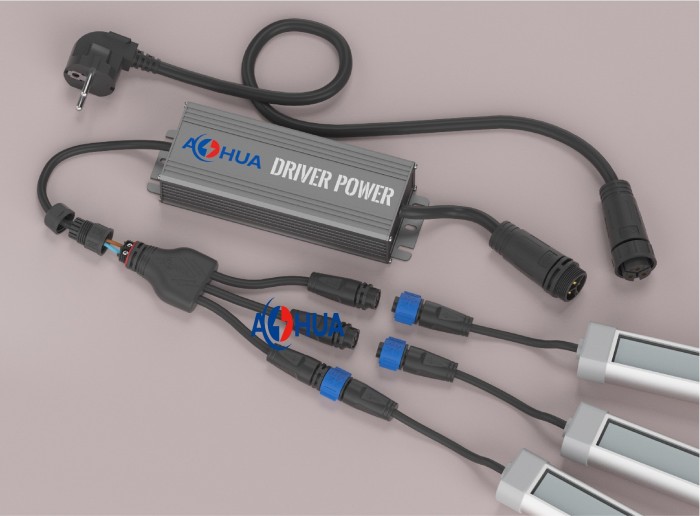

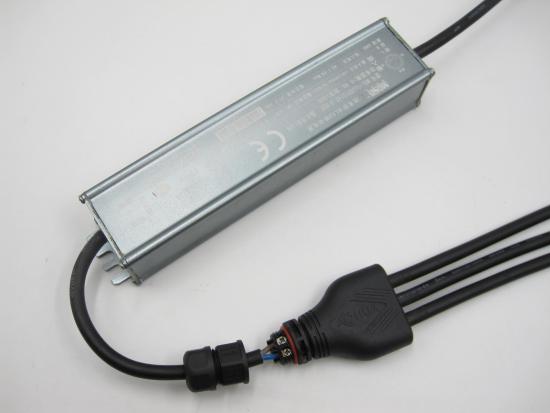

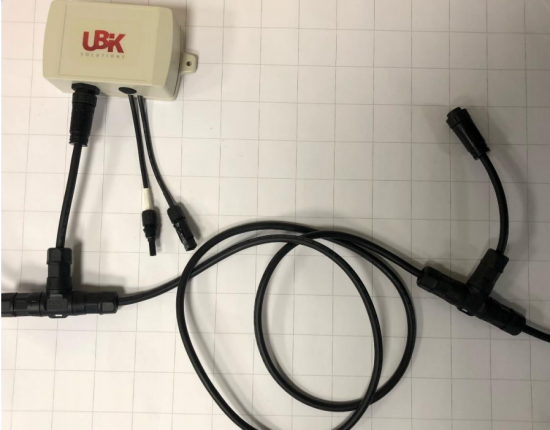

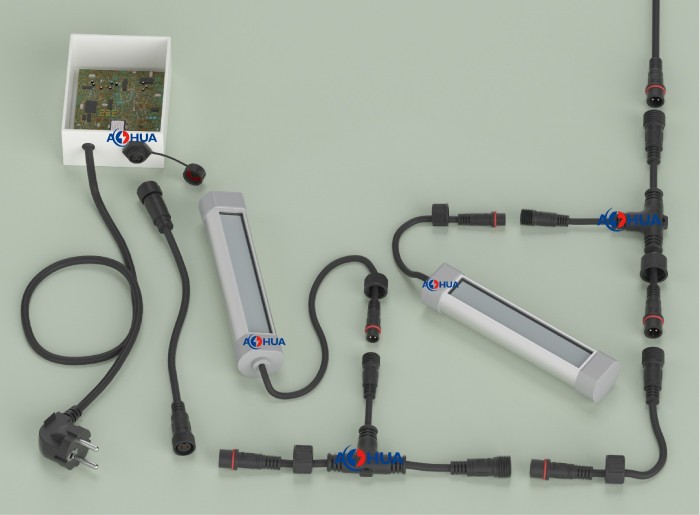

3.Generally,This type of connectors is combined with T/Y/F type
connectors toprovide a solution for led lamp modules.

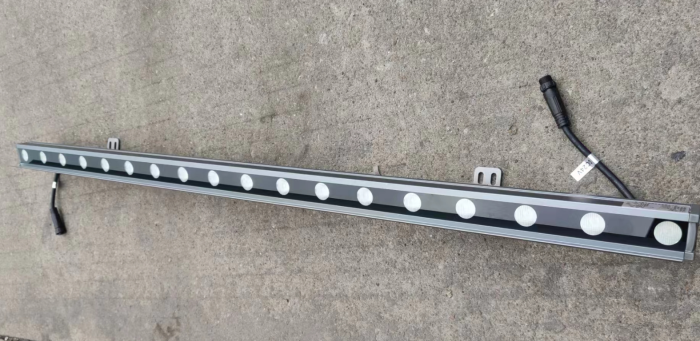

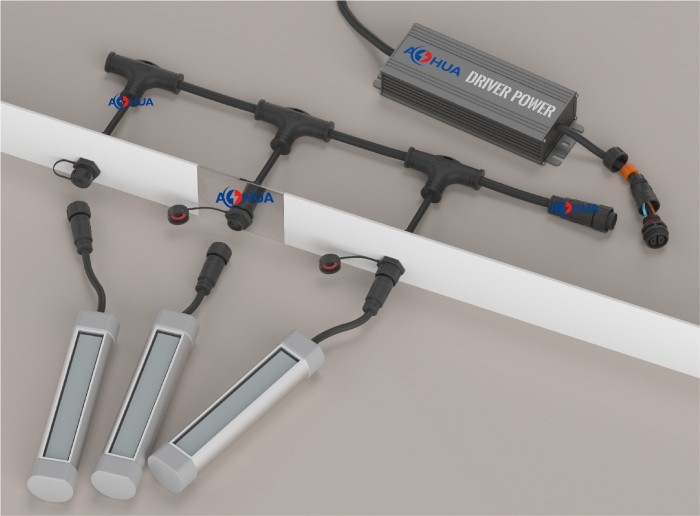

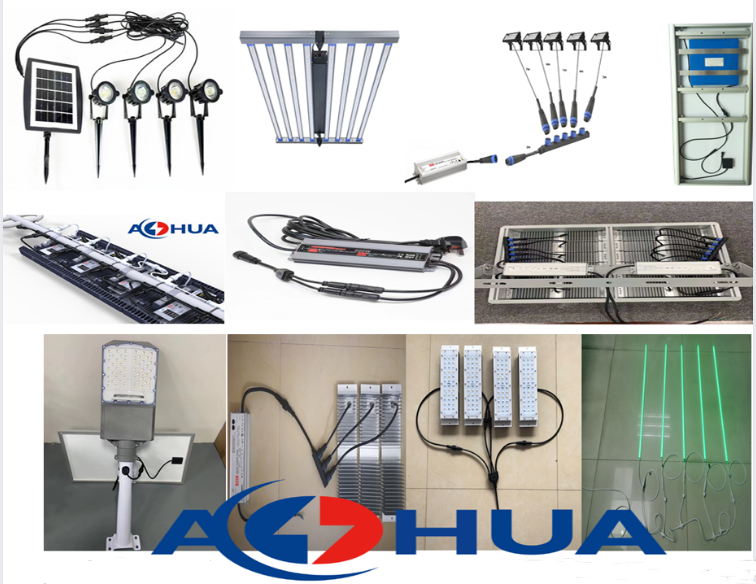

It can be combined with T-type Series and Y-type series connectors to provide a solution for LED lamp modules,Which widely used in LED plant growth lamp, streetlight, garden light, stage light, LED outdoor display, junction box,
outdoor engineering, mining engineering,
solar-wind power, solar water heaters and various machinery and equipment.
There are some normal wire sizes for choosing from:
2*1.0mm² ,2*0.75mm²,2*0.5mm²,2*16AWG, 2*18AWG,2*20AWG.
3*0.75mm², 3*0.5mm², 3*18AWG,3*20AWG.3*22AWG.
4*0.5mm², 4*18AWG,4*20AWG.4*22AWG.
5*20AWG,5*22AWG.6*22AWG, 6*24AWG.
7*22AWG,7*24AWG.8*22AWG 8*24AWG.

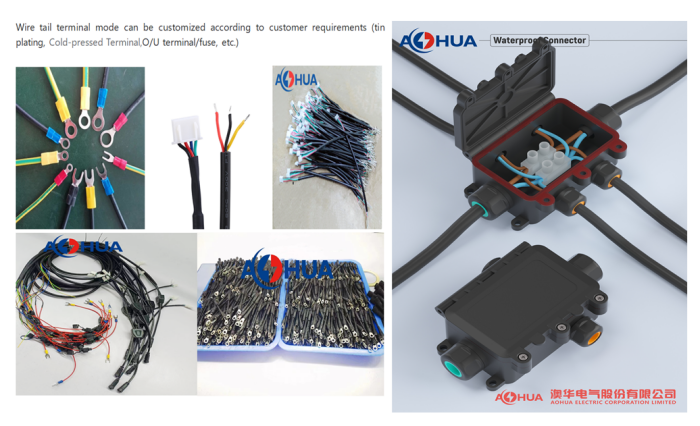

The cable length,cable ternimal processing can be customized as you needs.
Before quotation, please tell us the cable details, thanks.
3.Cable Wire size,such as: 2*0.5mm2...

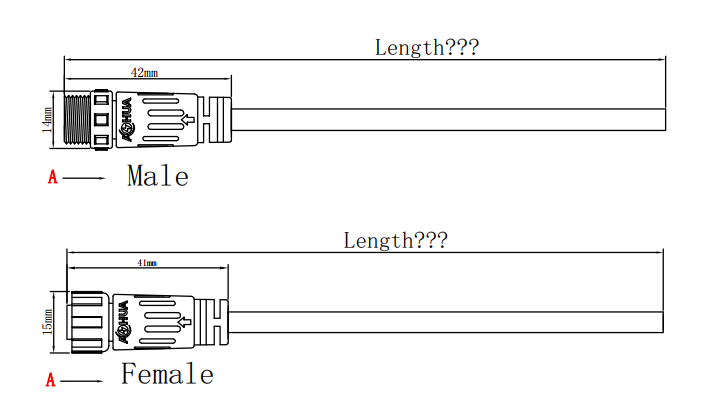

Then we can send you a drawing,after we got your approval,
we will make a quotation prompty.
