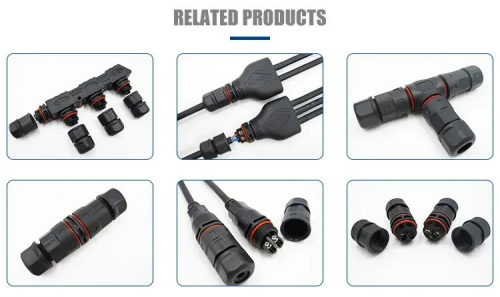

Related Products:
|
Assembly Connector |
Wire to wire /Wire to panel waterproof connector,L/T screw type connector |
|
Over-mold Connector |
Nylon/PVC /Metal /Aviation waterproof connector,DC connector |
|
T Connector |
Over-mold T waterproof connector |
|
Y Connector |
Over-mold Y waterproof connector |
|
Distributor Connector |
M15/M19/M20 Series(1to2/3/4/5/6) LED waterproof connector |
Before quotation, please tell us the cable details, thanks
3.Cable Wire size,such as: 2*0.5mm2...
Lead Time:
Quantity(sets)
1 - 500
501 - 2000
>2000
Lead time (days)
4
9
To be negotiated
|
Shell Material |
Nylon PA66 UL94-V0 |
|
Pins Material |
Gold-plated Brass |
|
Pins number |
2pin,3pin,4pin,5pin,6pin,7pin,8pin |
|
Voltage and Current |
300V 5A for 2pin,3pin;110V 4A for 4pin;60V 2A for 5pin; 60V 1A for 6pin 7pin 8pin |
|
Wire Connection Method |
Solder type |
|
Connector type |

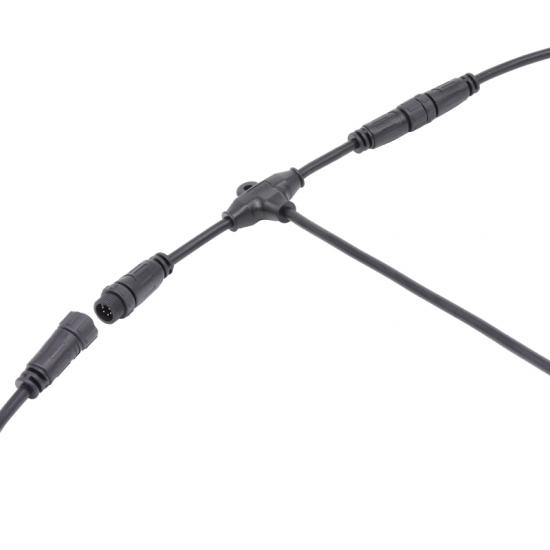

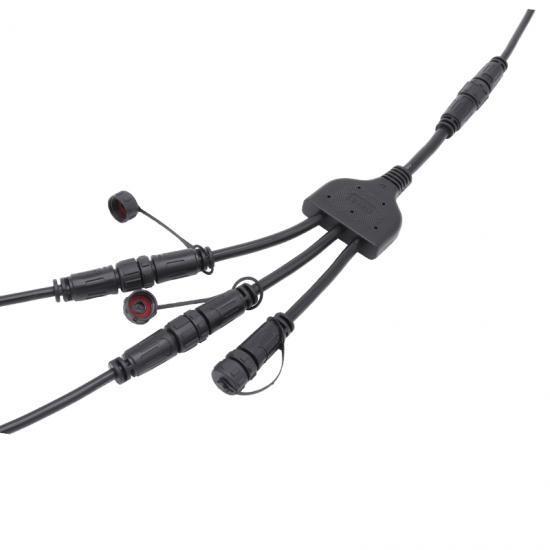

Assembly T type 3 ways splitter threaded lock type connector |
|
Function |
Airtight,connecting cable,protection cable, waterproof,dustproof,dampproof... |
|
Waterproof Rate |
IP67/68 |
|
Cable OD |
2.6mm~7.5mm |
|
Mechanical Life |
3000 Mating Cycles. |
|
Wire Gauge |
1.0/0.75/0.5mm²;18/20/22/24AWG |
|
Be Used For |
Both cable to cable (in-line) or cable to devices |
|
Certificate |
UL/CQC/CE/RoHS/ISO9001... |
|
Operating Rating |
-40ºC~+105ºC |
