IP68 T-Shaped 3 Way Waterproof LED Lighting Push Wire Power Connector 3P Copper Contact Nylon 10A Rated Current M20

Product Overview

• Field Assembly Design: Easy to assemble on-site without specialized tools. Features a thread-and-quick-lock system for secure fitting.

• Superior Waterproof Rating: Achieves IP67 (dust-tight and protected against immersion) and IP68 (protected against continuous submersion) ratings.

• Wide Temperature Range: Operates reliably in extreme conditions from -40°C to +105°C.

• High Current Capacity: Rated for 15A current and 300V voltage, suitable for most industrial power needs.

• Cable Versatility: Accommodates cable outer diameters (OD) from 4.5mm to 10mm.

• Secure Strain Relief: Equipped with a durable cable gland and optional green seal rings for a perfect fit on various cable sizes.

Part Numbering System

• 2-Core Model: AH-M20-1502T02132

• 3-Core Model: AH-M20-1503T02132

Dimensions & Pin Layout

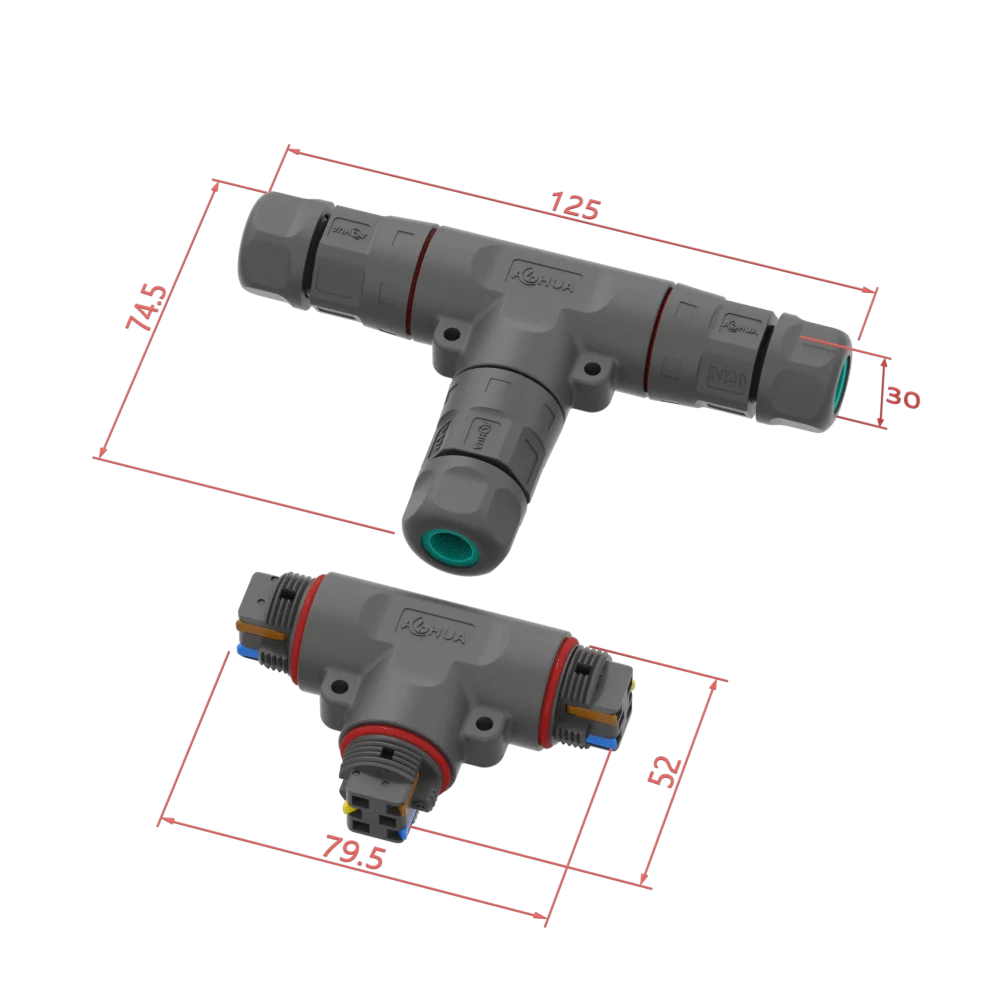

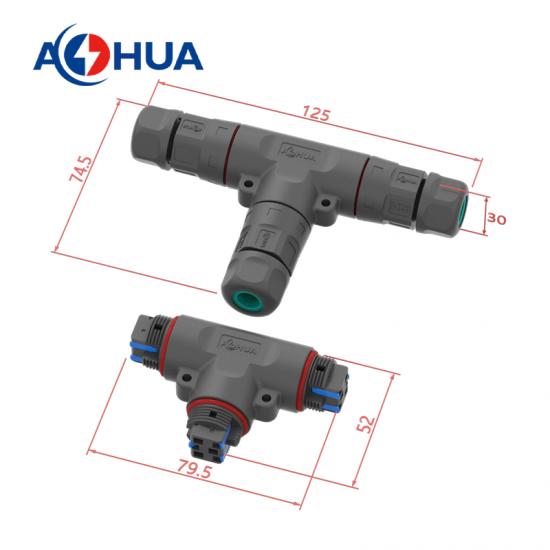

Overall Dimensions:

• Length (Main Axis): 124.0 ± 0.20 mm

• Length (Branch Axis): 79.5 mm

• Height: 74.0 ± 0.15 mm

• Width: 52 mm

Pin Layout:

• 2-Core: 2-pin configuration (see diagram for pin positions).

• 3-Core: 3-pin configuration (see diagram for pin positions).

(Include the line drawing from your last image here)

2-Core Model: AH-M20-1502T02132     3-Core Model: AH-M20-1503T02132

Application Scenarios

This connector is widely used in various industries requiring reliable, waterproof electrical connections:

• Outdoor LED Lighting: Connecting LED strips, floodlights, and signage in rainy or humid environments.

• Solar Photovoltaic (PV) Systems: Distributing power between solar panels and inverters.

• Industrial Automation: Wiring for sensors, solenoids, and control boxes on factory floors.

• Security & Surveillance: Powering CCTV cameras and recording equipment in outdoor locations.

• Agricultural Technology: Connecting irrigation systems and environmental monitoring devices.

Packaging & Ordering

• MOQ: Negotiable

• Packaging: Standard export carton with foam protection.

• Delivery: Typically 7-15 days depending on order quantity.
