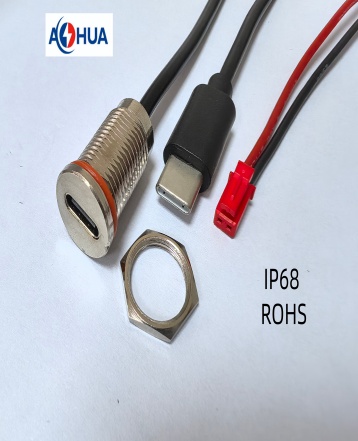

IP68 Type-C Plug M12 12V 0.5A~5A Waterproof Charging Female Socket 2/4/6-Wire PD Fast Charging Port Equipped with 5.1K Resistor

If you need help,pls contact our team:

• 1.Key Selling Points: Waterproof Type-C Fast Charging Connector with 5.1K Resistor.
• 2.The core competitive advantage of this Type-C fast charging connector lies in its IP68 waterproof rating - the highest level of protection in the IP (Ingress Protection) rating system for electronic devices.
  3.Combined with a built-in 5.1K resistor, tin-plated contacts, and a full set of high-performance configurations, it achieves the perfect balance between extreme waterproof protection and stable fast charging, making it the first choice for high-reliability connection scenarios in harsh environments.

•

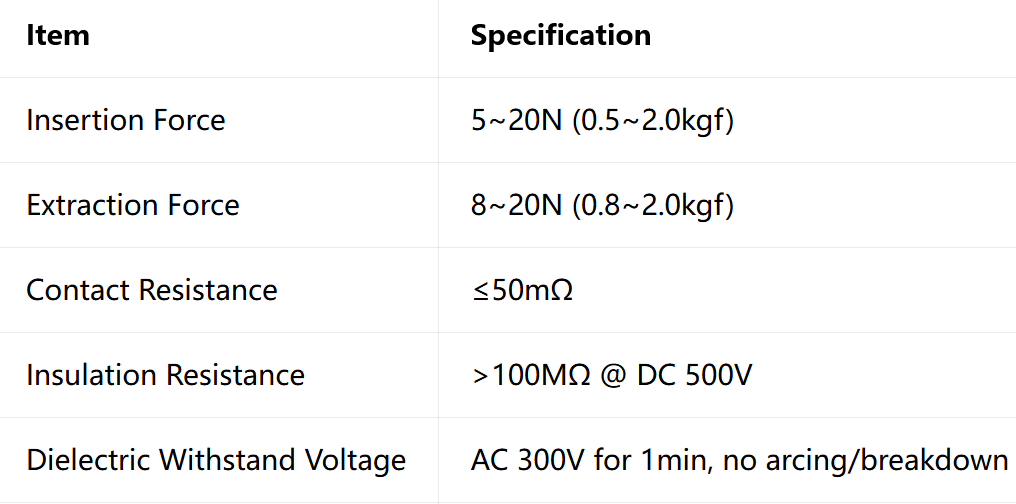

  4.Stable & Safe Electrical Performance ≤50mΩ low contact resistance for minimal power loss & heating; >100MΩ insulation resistance & 500V AC withstand voltage for 1min, eliminating leakage/short-circuit risks. Rated at DC 12V 0.5~5A for reliable power delivery.

• 5.Rugged & Waterproof for Harsh Environments Silicone rubber sealing for excellent water & moisture resistance; -25ºC~85ºC wide operating temperature range, suitable for outdoor, automotive & industrial applications.

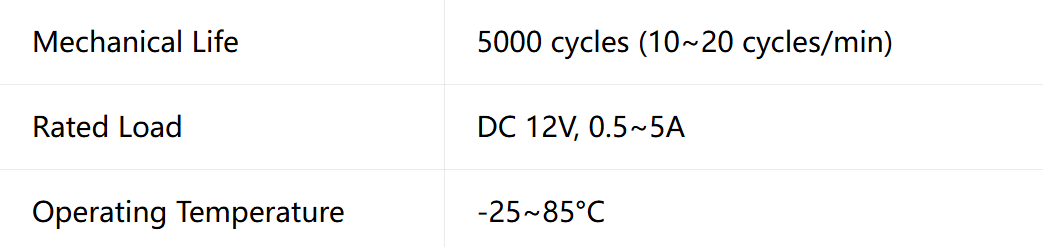

• Durable & Long-Lasting Construction Tin-plated contacts for oxidation & corrosion resistance; 5000+ plug cycles mechanical life, 3~30N smooth insertion/extraction force for secure, long-term use.
•

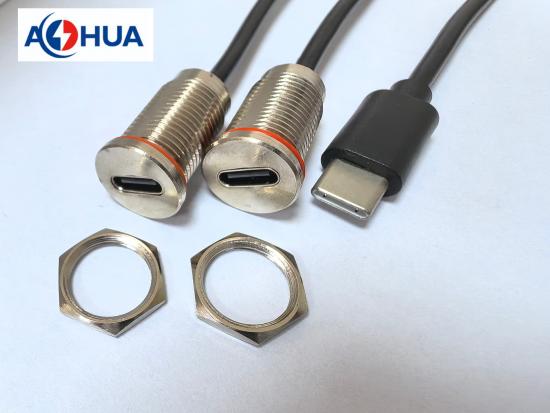

  6.Universal & Convenient Design Standard Type-C interface for wide device compatibility;silvery-white premium finish for seamless integration with smart devices.

• Ideal for outdoor portable devices, automotive smart equipment, industrial control terminals, and waterproof security devices, this connector excels in complex environments with high humidity, extreme temperatures, and frequent operations. It consistently delivers stable fast-charging and connection support, making it the top choice for businesses pursuing equipment reliability and compatibility.

•
  OEM/ODM and Customized Service are available..

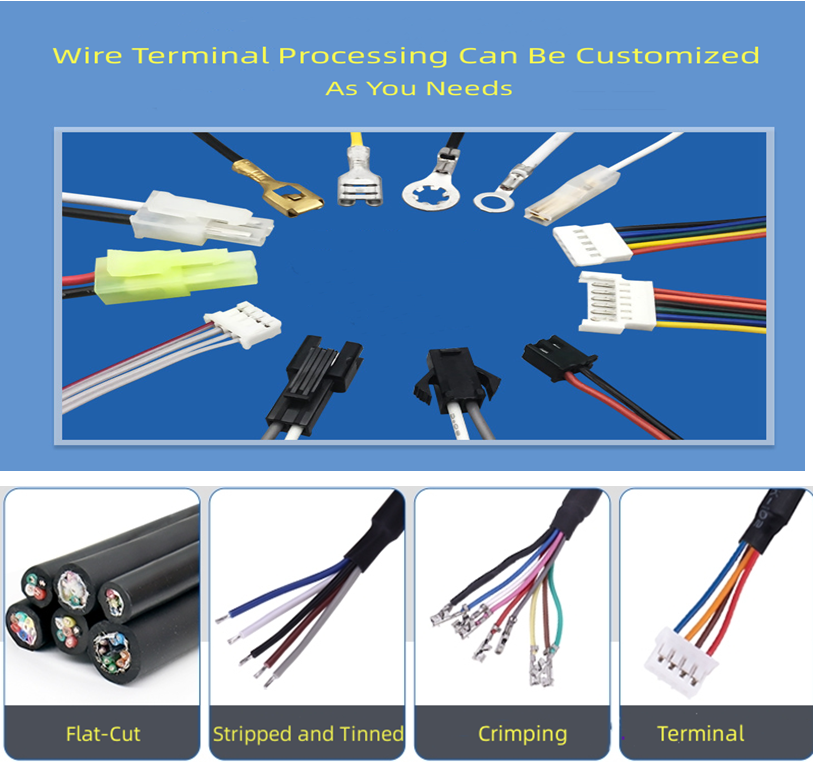

• Cable Type,Cable Length,the processing of the cable end.

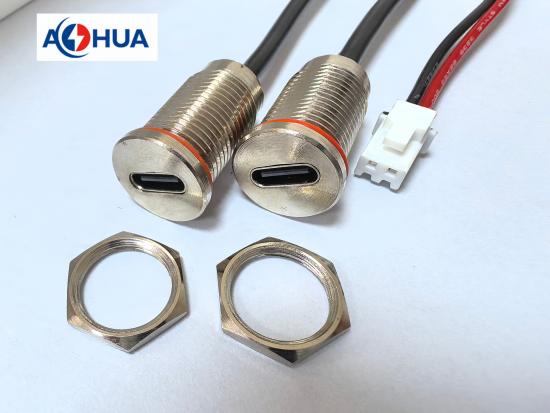

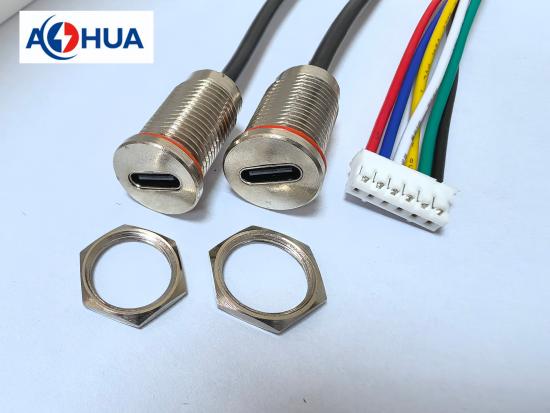

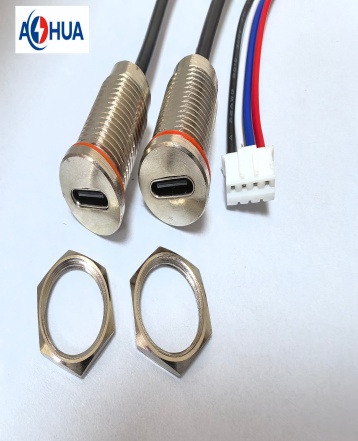

• There are 2P/4P/6P to meet your needs

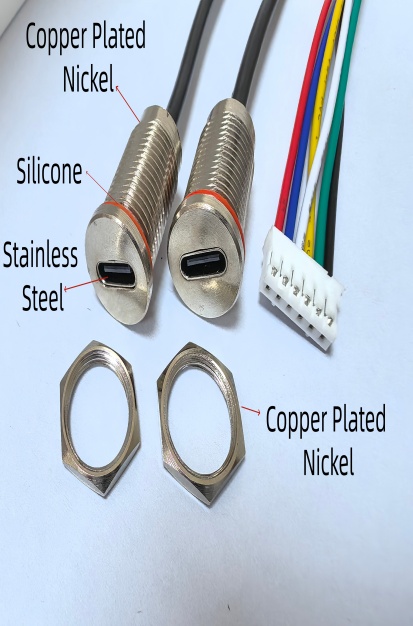

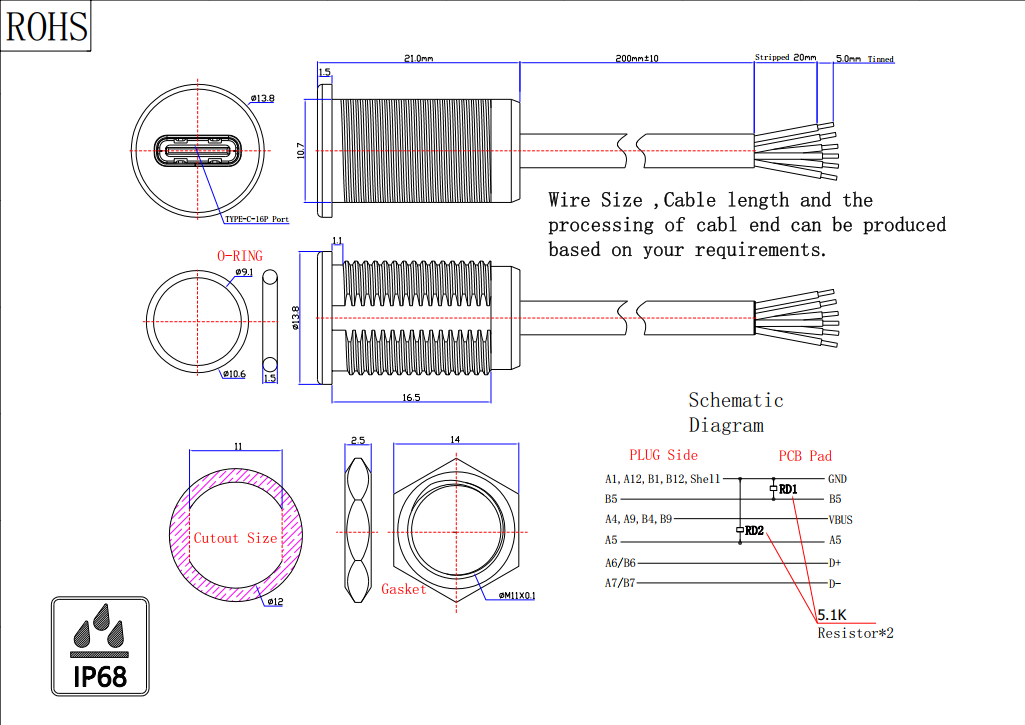

  M12 is composed of Female core,O-ring  and Hex-nut .
  There are 2PIN,4PIN AND 6PIN to meet your needs.
