Waterproof IP68 3Pin Power Socket 5.5x2.1mm / 5.5x2.5mm 8.5A Panel Mounted Female Bulkhead/Plug/Bulkhead for LED Lighting & Industrial Equipment

If you need help,pls contact our team:

Brief Introduction:

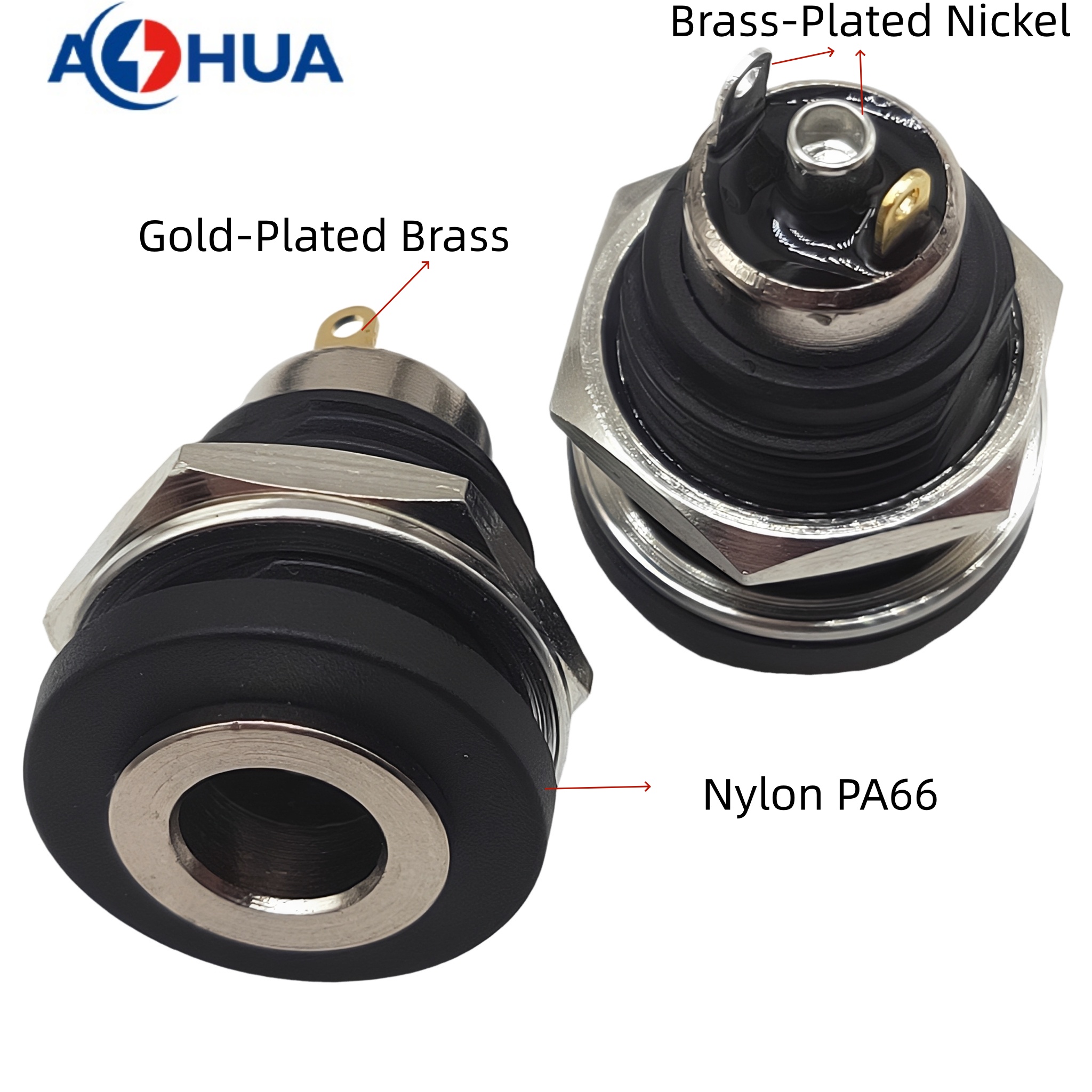

• 1. Premium Waterproof DC Power Socket designed for harsh indoor/outdoor environments, featuring high-performance panel-mount design with rugged construction and stable power transmission. Its premium materials deliver outstanding advantages: gold-plated brass contacts ensure ultra-low contact resistance (<=50mΩ), stable high-current transmission and strong corrosion resistance; brass-plated nickel offers enhanced wear resistance and cost-effective durability; silicone provides IP68 waterproofing, wide temperature adaptability (-25°C to 85°C) and long-term weather resistance; manganese steel ensures high toughness and non-magnetic performance for high-stress components; zinc alloy enables precision casting, dimensional stability and cost-effective strength. This superior material combination guarantees reliable performance, extended service life and cost efficiency, perfect for demanding outdoor and industrial applications.

  2. Typical Applications Outdoor LED Lighting: Street lights, flood lights, landscape lights, solar-powered lights Security & Surveillance: Outdoor CCTV cameras, NVR systems, access control devices Industrial Equipment: Control panels, PLC systems, industrial sensors, power distribution boxes Automotive & Marine: Vehicle electronics, RV power systems, marine equipment, electric scooters Consumer Electronics: Portable power banks, outdoor speakers, DIY electronic projects Renewable Energy: Solar power systems, small wind turbines, battery charging stations.

•


•




•

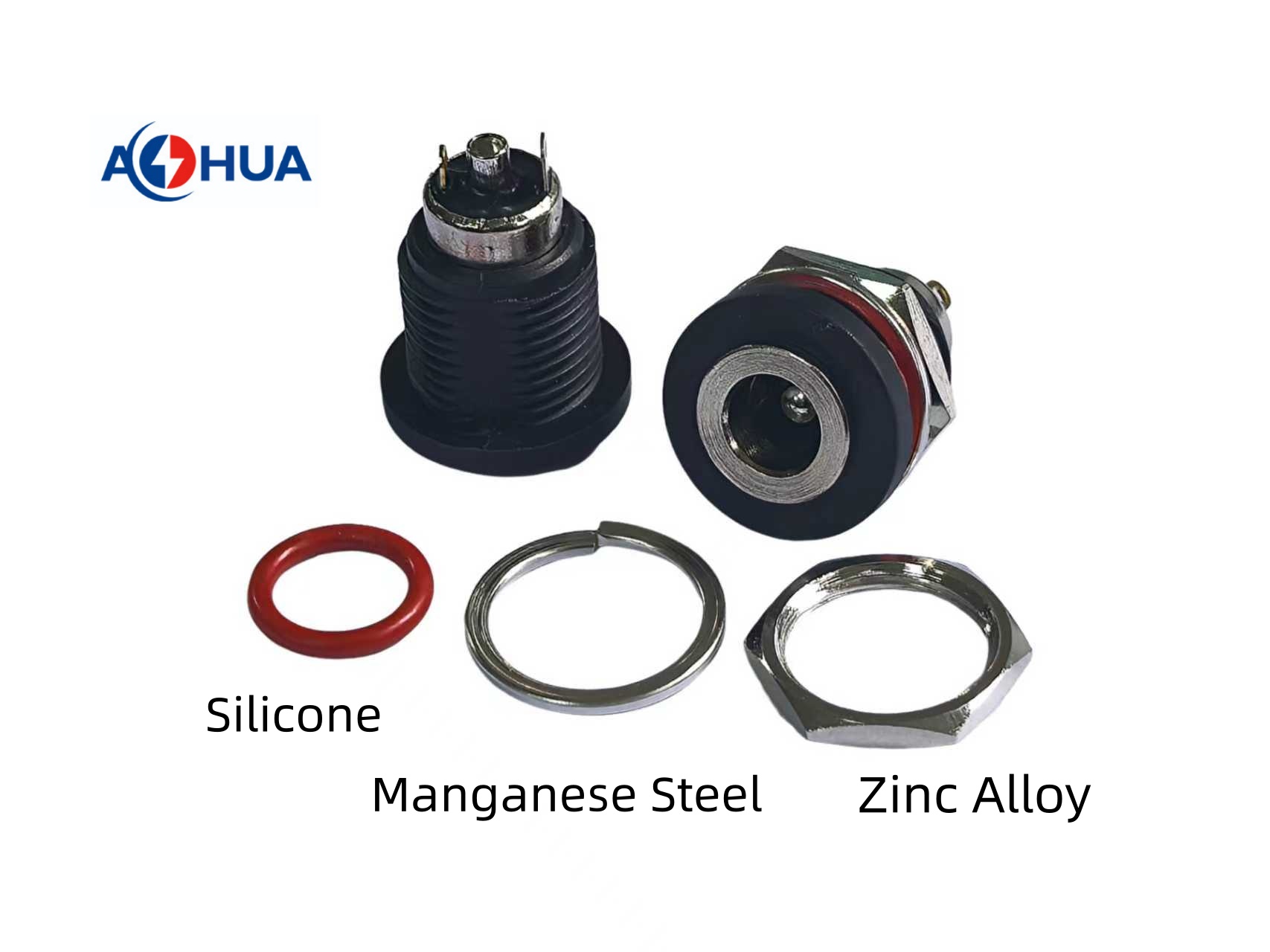

  M12 is composed of Female core,O-ring  and Hex-nut .

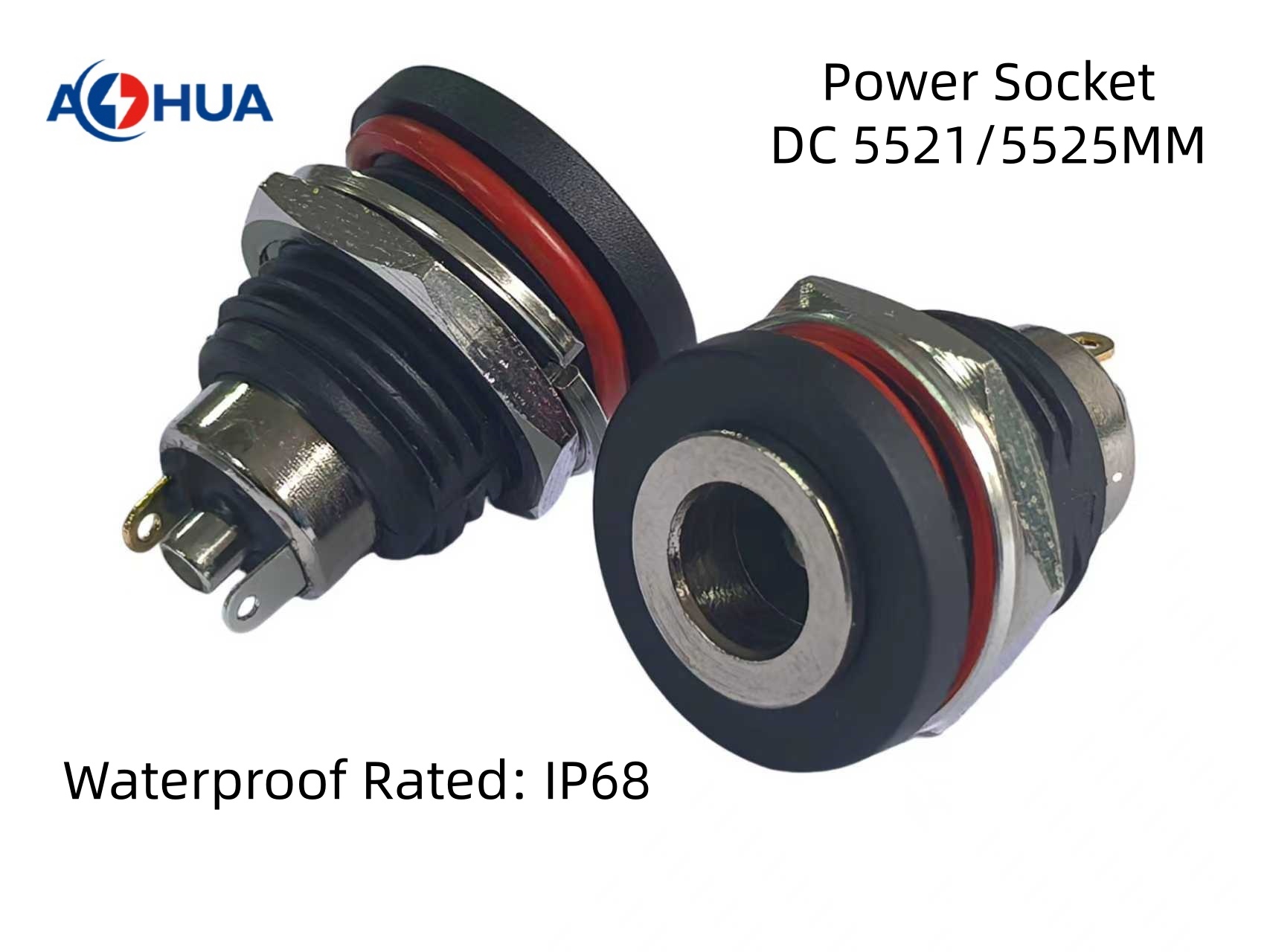

  There are DC5521 And DC 5525mm type DC Conductor can be chosen from.
