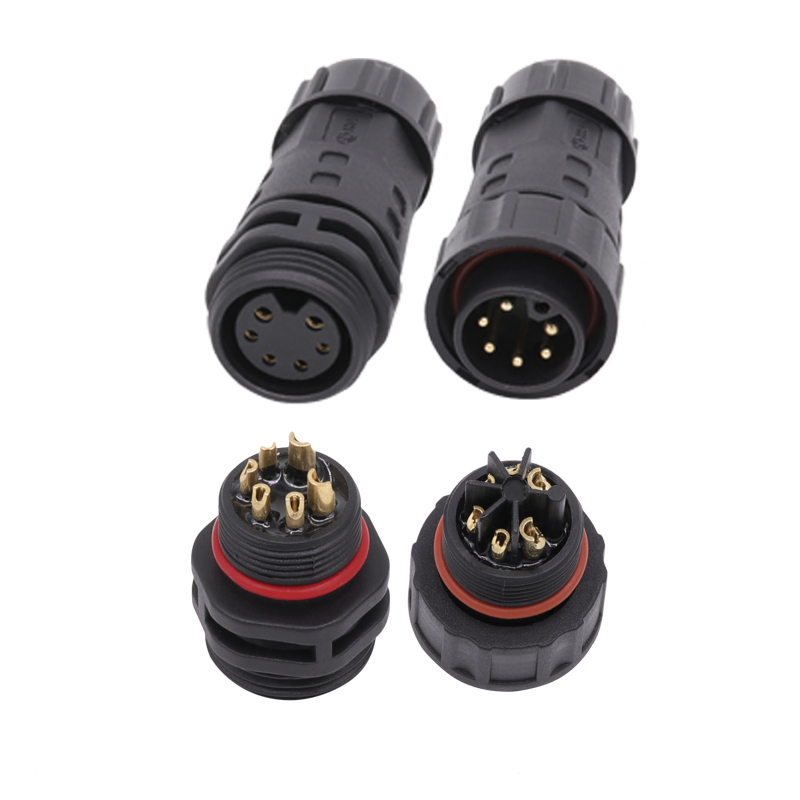

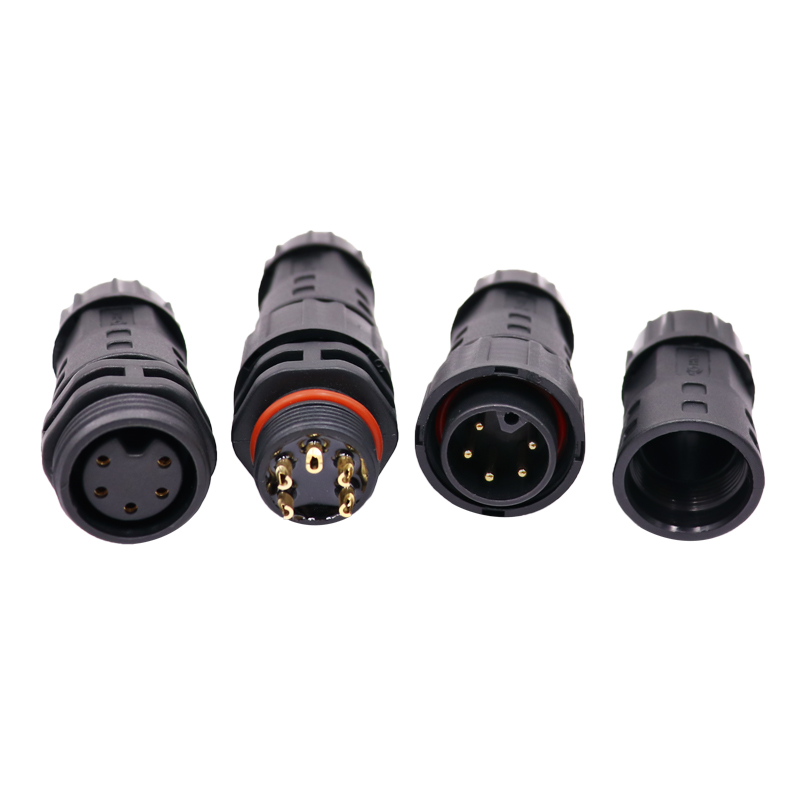

M20 6PIN Line in Solder Type Assembly Male Female 05A 300V Connector



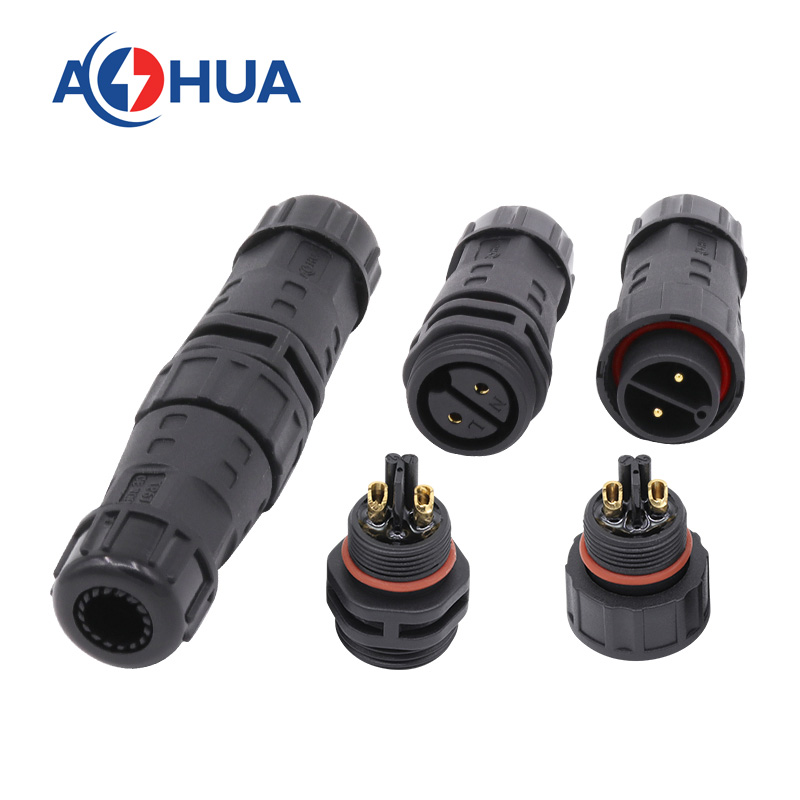

M20 2PIN Assembly Connector              M20 3PIN Assembly Connector

AH-M20-1502MMZ/FFZ01112              AH-M20-1503MMZ/FFZ01112

PIN Number: 2PIN                     PIN Number: 3PIN

Voltage Rated: 300V                   Voltage Rated: 300V

Current Rated:15A                    Current Rated:15A

Support Wire Gauge: 0.2mm²-1.5mm²/24AWG-14AWG  Support Wire Gauge: 0.2mm²-1.5mm²/24AWG-14AWG

Support Cable Outside Diameter: 4.5mm-10mm    Support Cable Outside Diameter: 4.5mm-10mm

Wiring Methods: Solder Type              Wiring Methods: Solder Type

Connection Methods: Tighten The Thread      Connection Methods: Tighten The Thread

Contact Pin Material: Gold-Plated Brass      Contact Pin Material: Gold-Plated Brass

Housing Material: Nylon-PA66             Housing Material: Nylon-PA66

Waterproof Level: IP67/IP68              Waterproof Level: IP67/IP68

Mechanical Life: 3000 Mating Cycles        Mechanical Life: 3000 Mating Cycles

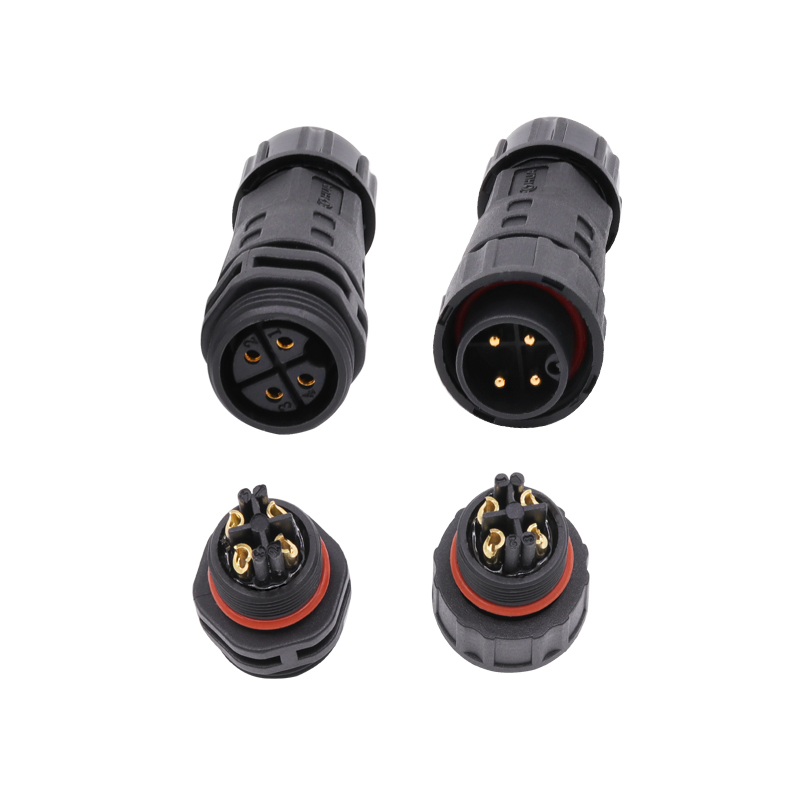

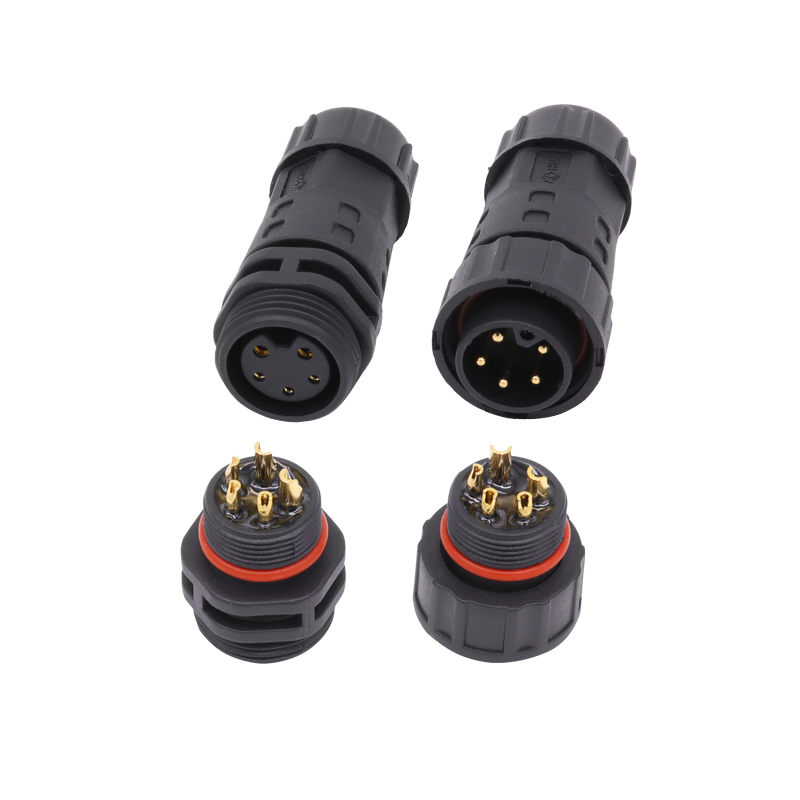

M20 4PIN Assembly Connector              M20 5PIN Assembly Connector

AH-M20-1004MMZ/FFZ01112               AH-M20-0505MMZ/FFZ01112

PIN Number: 2PIN                     PIN Number: 3PIN

Voltage Rated: 300V                   Voltage Rated: 300V

Current Rated:10A                     Current Rated:05A

Support Wire Gauge: 0.2mm²-1.0mm²/24AWG-16AWG  Support Wire Gauge: 0.2mm²-0.5mm²/24AWG-20AWG

Support Cable Outside Diameter: 4.5mm-10mm     Support Cable Outside Diameter: 4.5mm-10mm

Wiring Methods: Solder Type               Wiring Methods: Solder Type

Connection Methods: Tighten The Thread       Connection Methods: Tighten The Thread

Contact Pin Material: Gold-Plated Brass      Contact Pin Material: Gold-Plated Brass

Housing Material: Nylon-PA66             Housing Material: Nylon-PA66

Waterproof Level: IP67/IP68              Waterproof Level: IP67/IP68

Mechanical Life: 3000 Mating Cycles         Mechanical Life: 3000 Mating Cycles



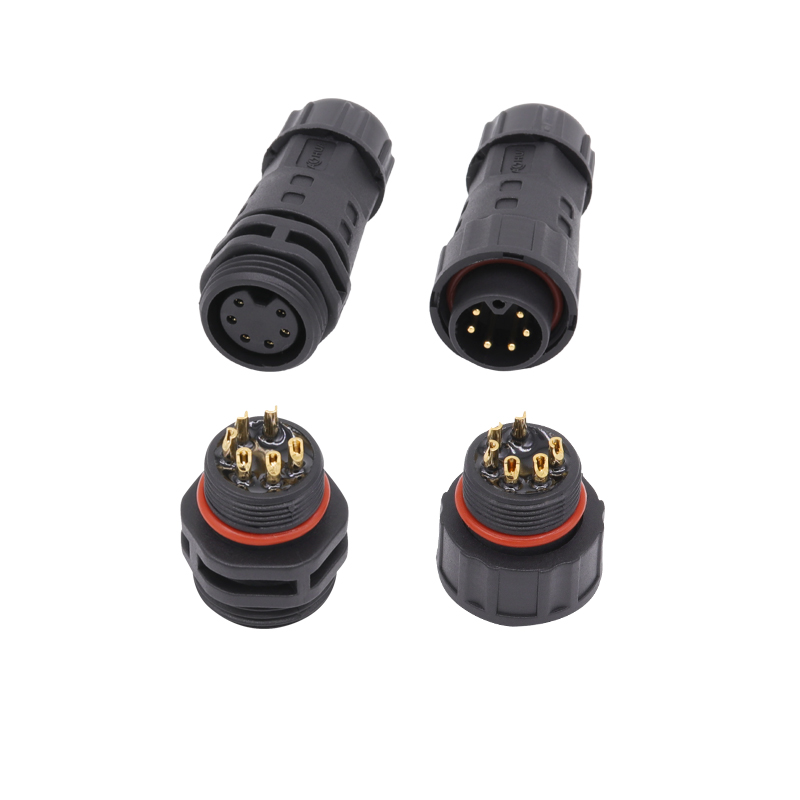

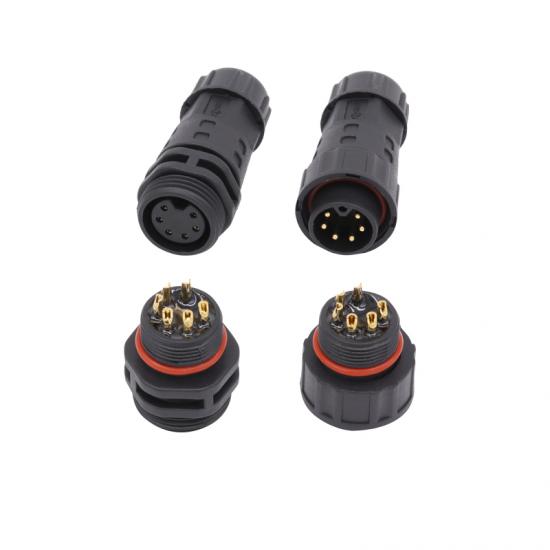

M20 6PIN Assembly Connector              M20 7PIN Assembly Connector

AH-M20-0506MMZ/FFZ01112               AH-M20-0507MMZ/FFZ01112

PIN Number: 6PIN                     PIN Number: 7PIN

Voltage Rated: 300V                   Voltage Rated: 300V

Current Rated:05A                     Current Rated:05A

Support Wire Gauge: 0.2mm²-0.5mm²/24AWG-20AWG  Support Wire Gauge: 0.2mm²-0.3mm²/24AWG-22AWG

Support Cable Outside Diameter: 4.5mm-10mm     Support Cable Outside Diameter: 4.5mm-10mm

Wiring Methods: Solder Type               Wiring Methods: Solder Type

Connection Methods: Tighten The Thread       Connection Methods: Tighten The Thread

Contact Pin Material: Gold-Plated Brass      Contact Pin Material: Gold-Plated Brass

Housing Material: Nylon-PA66             Housing Material: Nylon-PA66

Waterproof Level: IP67/IP68              Waterproof Level: IP67/IP68

Mechanical Life: 3000 Mating Cycles         Mechanical Life: 3000 Mating Cycles



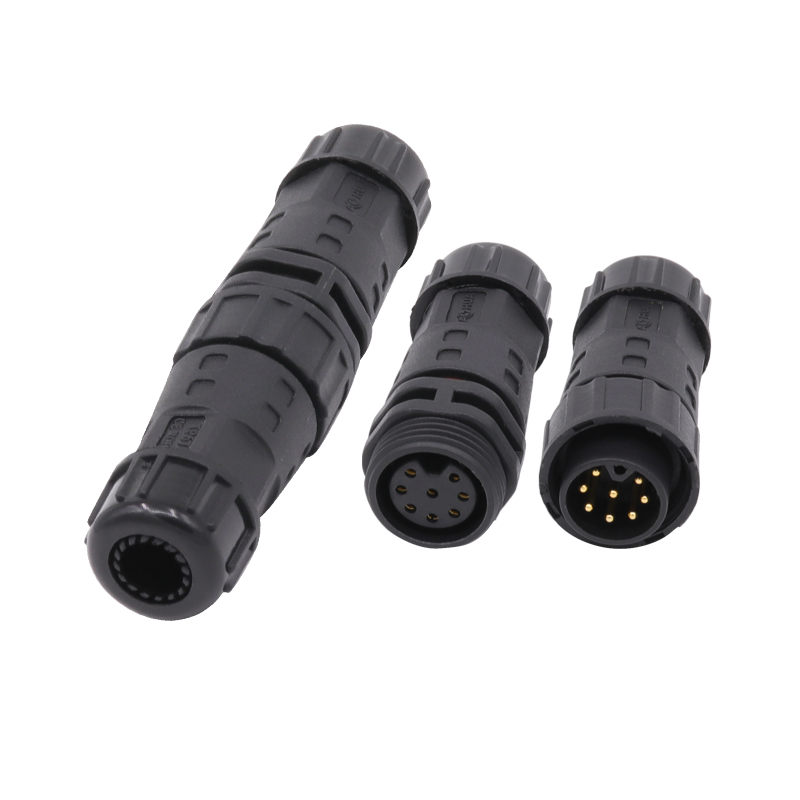

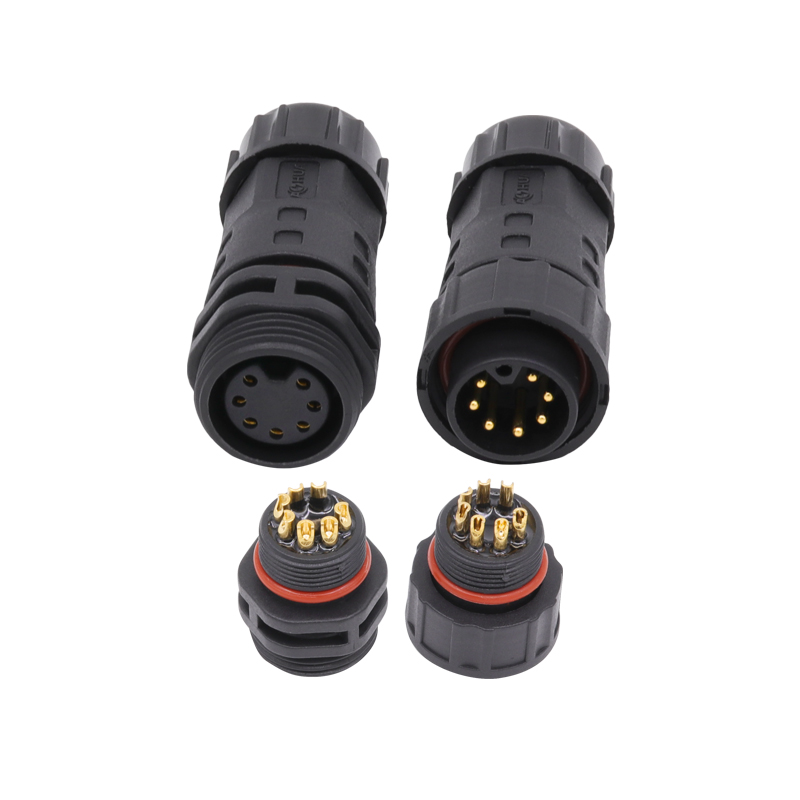

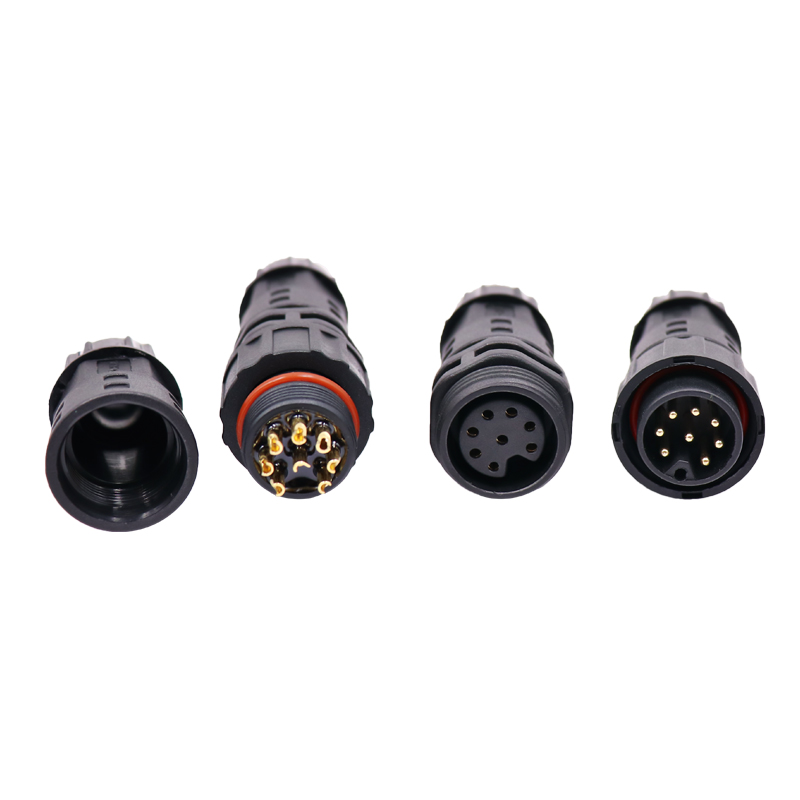

M20 8PIN Assembly Connector              M20 9PIN Assembly Connector

AH-M20-0508MMZ/FFZ01112              AH-M20-0509MMZ/FFZ01112

PIN Number: 8PIN                     PIN Number: 9PIN

Voltage Rated: 300V                   Voltage Rated: 300V

Current Rated:05A                    Current Rated:05A

Support Wire Gauge: 0.2mm²-0.3mm²/24AWG-22AWG  Support Wire Gauge: 0.2mm²-0.3mm²/24AWG-22AWG

Support Cable Outside Diameter: 4.5mm-10mm    Support Cable Outside Diameter: 4.5mm-10mm

Wiring Methods: Solder Type              Wiring Methods: Solder Type

Connection Methods: Tighten The Thread      Connection Methods: Tighten The Thread

Contact Pin Material: Gold-Plated Brass      Contact Pin Material: Gold-Plated Brass

Housing Material: Nylon-PA66             Housing Material: Nylon-PA66

Waterproof Level: IP67/IP68              Waterproof Level: IP67/IP68

Mechanical Life: 3000 Mating Cycles        Mechanical Life: 3000 Mating Cycles



M20 2+3PIN Assembly Connector                                           M20 2+4PIN Assembly Connector

AH-M20-150523MMZ/FFZ01112                                      AH-M20-150524MMZ/FFZ01112

PIN Number: 2+3PIN                                                            PIN Number: 2+4PIN

Voltage Rated: 300V                                                              Voltage Rated: 300V

Current Rated: 15A+5A                                                         Current Rated:15A+5A

Support Wire Gauge: 0.2mm²-1.0mm²/24AWG-16AWG|0.2mm²-1.0mm²/24AWG-16AWG

Support Cable Outside Diameter: 4.5mm-10mm                       Support Cable Outside Diameter: 4.5mm-10mm

Wiring Methods: Solder Type                                                  Wiring Methods: Solder Type

Connection Methods: Tighten The Thread                                Connection Methods: Tighten The Thread

Contact Pin Material: Gold-Plated Brass                                   Contact Pin Material: Gold-Plated Brass

Housing Material: Nylon-PA66                                                Housing Material: Nylon-PA66

Waterproof Level: IP67/IP68                                                  Waterproof Level: IP67/IP68

Mechanical Life: 3000 Mating Cycles                                       Mechanical Life: 3000 Mating Cycles

Note: Models marked with ▲ (e.g., AH-M20-1502MMZ01112) carry full certification. 01112 = Solder type; 01122 = Screw type.

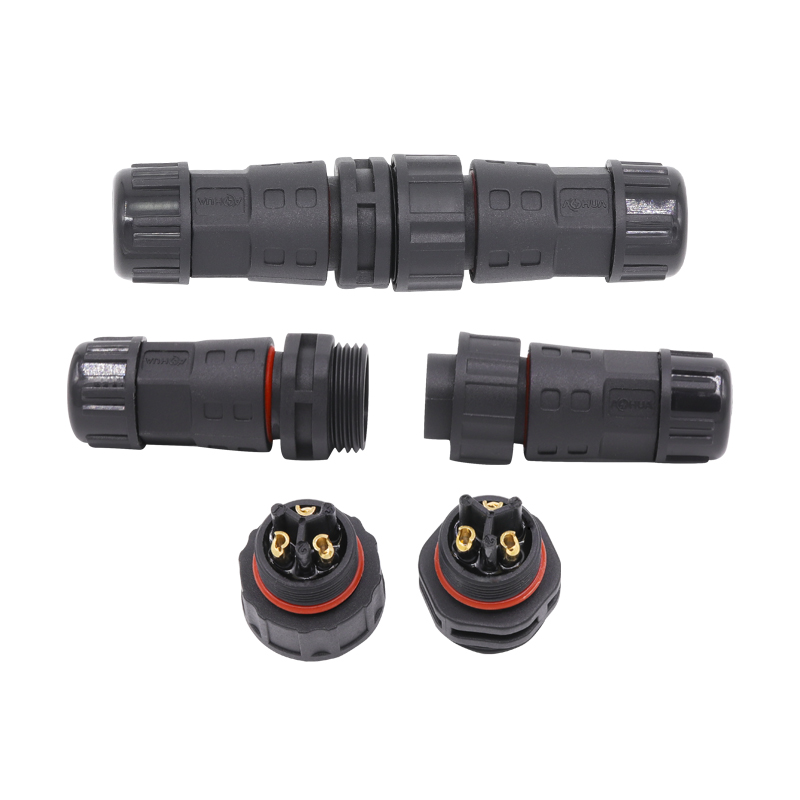

M20 2PIN Connectors and 3PIN connectors model are the same,

the length is about 88.5mm,(This is the length of the male and female connectors when assembled),

the head width is 20.5 mm(Suitable for environments with a width of 20.5 mm or more).

   As you can see, there is a silicone ring fitted at the end of the connector to prevent water from entering,

It is made of silicone, and because silicone grommets are flexible, placing them at the end of the connector provides excellent protection for the cable while also effectively preventing water from flowing in from the outside and entering the connector, thus avoiding a short circuit caused by water contact.

   Since silicone grommets are manufactured according to specific dimensions—that is, they are produced in fixed sizes—if a cable is to pass through the grommet and successfully connect to the connector, it is necessary to select the appropriate grommet model.

   For this connector it can support the cable outside diameter is between 4.5mm-9.5mm, if below 4.5mm the connector doesn't secure the cable properly, water may enter the connector, leading to a short circuit; and if over 7.5mm the cable cannot be inserted into the connector, so the connector cannot be used to connect the cable.



We have seal ring size:  5.5mm 6.5mm 7.5mm 8.5mm 9.5mm 10mm,

If the wire diameter is between 4.5 and 9.5 mm, how should you choose the right silicone ring?

You need to measure the outer diameter of the cable to be used with the connector, and then select the appropriate size of silicone ring based on that measurement.

Dimensions & Design


Precise mechanical drawing showing male (50.0±1.5mm) and female (51.0±1.5mm) lengths, diameter 22.8±0.3mm, cable entry compatibility.

Core Options


Choose between Solder Type Core for permanent installations or Screw Fixing Type Core for field-rewireable flexibility — both feature gold-plated brass pins.

Material & Performance


Flame-retardant Nylon-PA66 housing, gold-plated brass conductors for low resistance, and tightening threads ensure secure, leak-proof connections.

Cable Compatibility


Fits standard industrial cables — ideal for LED strips, sensor leads, motor cables, and control panels.

Global Certifications


Trusted by global markets — compliant with North American, Australian, and European safety standards.



Here is a concise breakdown of the image:

This is a Size Chart for M20 Waterproof Connector Seal Rings. It helps users select the correct rubber gasket based on their cable thickness to ensure a watertight seal.

If you are not sure what the cable's OD, here are some cable gauge for your reference, (this is some common cable gauge it is just for your reference, Pls refer to the specifications of your own cable).

And there are also other PIN for you choose, like 4PIN/5PIN/6PIN..., check the wire gauge and the current and make a design, then we will help you to choose a solution according to the design.Thanks!
