M20 Screw Fixing Type Line in Male Female Assembly 15A 300V Waterproof Connector

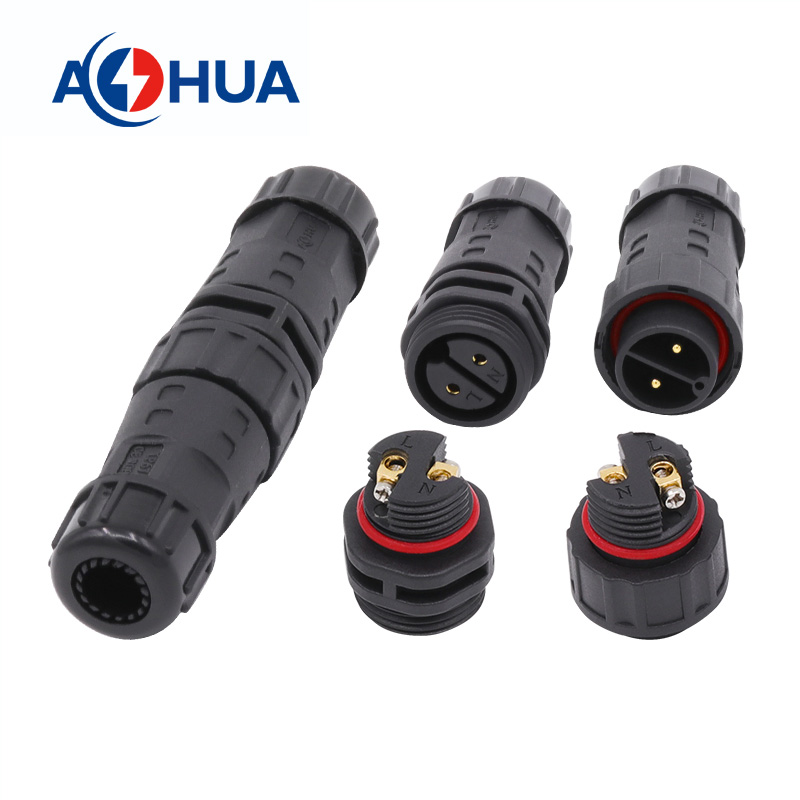

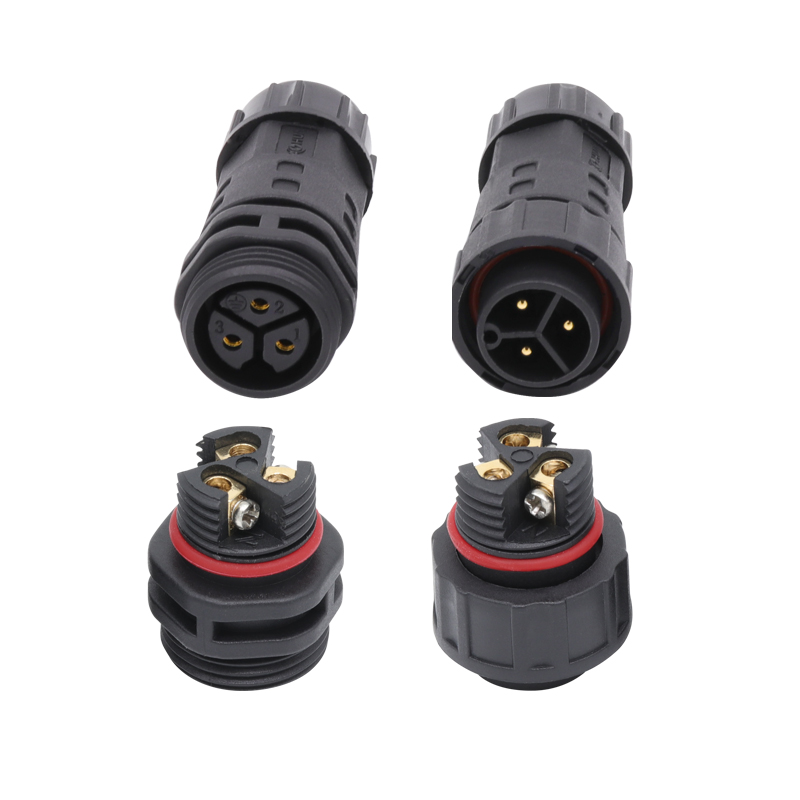

M20 2PIN Assembly Connector                                                                       M20 3PIN Assembly Connector

AH-M20-1502MMZ/FFZ02122                                                                  AH-M20-1503MMZ/FFZ02122

PIN Number: 2PIN                                                                                        PIN Number: 3PIN

Voltage Rated: 300V                                                                                     Voltage Rated: 300V

Current Rated:15A                                                                                        Current Rated:15A

Support Wire Gauge: 0.2mm²-1.5mm²/24AWG-14AWG                                    Support Wire Gauge: 0.2mm²-1.5mm²/24AWG-14AWG

Support Cable Outside Diameter: 4.5mm-10mm                                               Support Cable Outside Diameter: 4.5mm-10mm

Wiring Methods: Screw Fixing Type                                                                 Wiring Methods: Screw Fixing Type

Connection Methods: Tighten The Thread                                                        Connection Methods: Tighten The Thread

Contact Pin Material: Gold-Plated Brass                                                            Contact Pin Material: Gold-Plated Brass

Housing Material: Nylon-PA66                                                                         Housing Material: Nylon-PA66

Waterproof Level: IP67/IP68                                                                           Waterproof Level: IP67/IP68

Mechanical Life: 3000 Mating Cycles                                                                Mechanical Life: 3000 Mating Cycles

Note: Models marked with ▲ (e.g., AH-M20-1502MMZ01112) carry full certification. 01112 = Solder type; 01122 = Screw type.

M20 2PIN Connectors and 3PIN connectors model are the same,

the length is about 88.5mm,(This is the length of the male and female connectors when assembled),

the head width is 20.5 mm(Suitable for environments with a width of 20.5 mm or more).

   As you can see, there is a silicone ring fitted at the end of the connector to prevent water from entering,

It is made of silicone, and because silicone grommets are flexible, placing them at the end of the connector provides excellent protection for the cable while also effectively preventing water from flowing in from the outside and entering the connector, thus avoiding a short circuit caused by water contact.

   Since silicone grommets are manufactured according to specific dimensions—that is, they are produced in fixed sizes—if a cable is to pass through the grommet and successfully connect to the connector, it is necessary to select the appropriate grommet model.

   For this connector it can support the cable outside diameter is between 4.5mm-9.5mm, if below 4.5mm the connector doesn't secure the cable properly, water may enter the connector, leading to a short circuit; and if over 7.5mm the cable cannot be inserted into the connector, so the connector cannot be used to connect the cable.



We have seal ring size:  5.5mm 6.5mm 7.5mm 8.5mm 9.5mm 10mm,

If the wire diameter is between 4.5 and 9.5 mm, how should you choose the right silicone ring?

You need to measure the outer diameter of the cable to be used with the connector, and then select the appropriate size of silicone ring based on that measurement.

Dimensions & Design


Precise mechanical drawing showing male (50.0±1.5mm) and female (51.0±1.5mm) lengths, diameter 22.8±0.3mm, cable entry compatibility.

Core Options


Choose between Solder Type Core for permanent installations or Screw Fixing Type Core for field-rewireable flexibility — both feature gold-plated brass pins.

Material & Performance


Flame-retardant Nylon-PA66 housing, gold-plated brass conductors for low resistance, and tightening threads ensure secure, leak-proof connections.

Cable Compatibility


Fits standard industrial cables — ideal for LED strips, sensor leads, motor cables, and control panels.

Global Certifications


Trusted by global markets — compliant with North American, Australian, and European safety standards.



Here is a concise breakdown of the image:

This is a Size Chart for M20 Waterproof Connector Seal Rings. It helps users select the correct rubber gasket based on their cable thickness to ensure a watertight seal.

If you are not sure what the cable's OD, here are some cable gauge for your reference, (this is some common cable gauge it is just for your reference, Pls refer to the specifications of your own cable).

And there are also other PIN for you choose, like 4PIN/5PIN/6PIN..., check the wire gauge and the current and make a design, then we will help you to choose a solution according to the design.Thanks!
