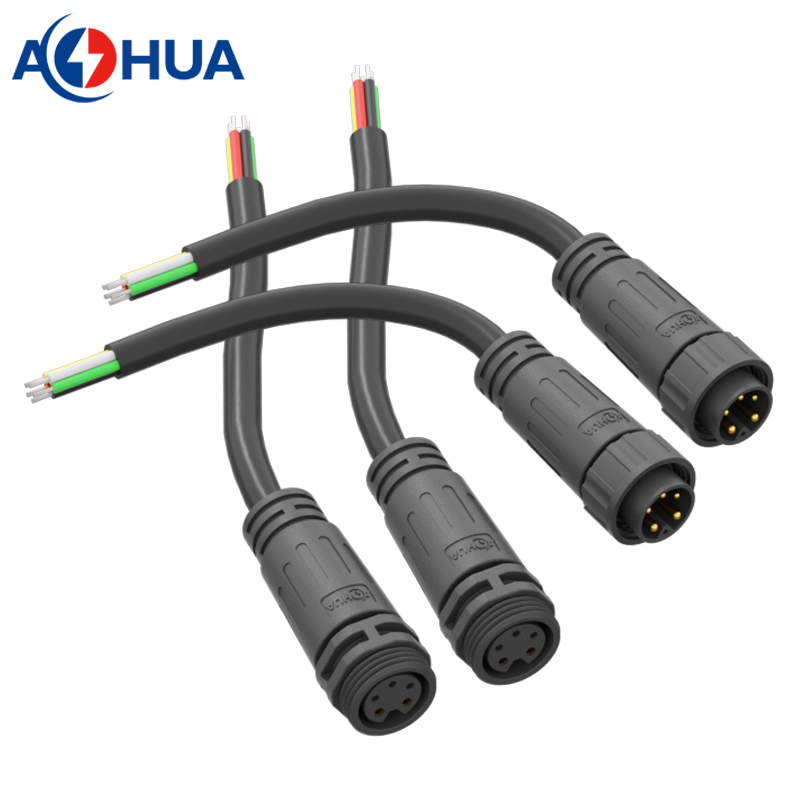

Power Signal Integrated Control System 2+3pin Multiple Wires Male Female Extension 15A Waterproof Connector M20

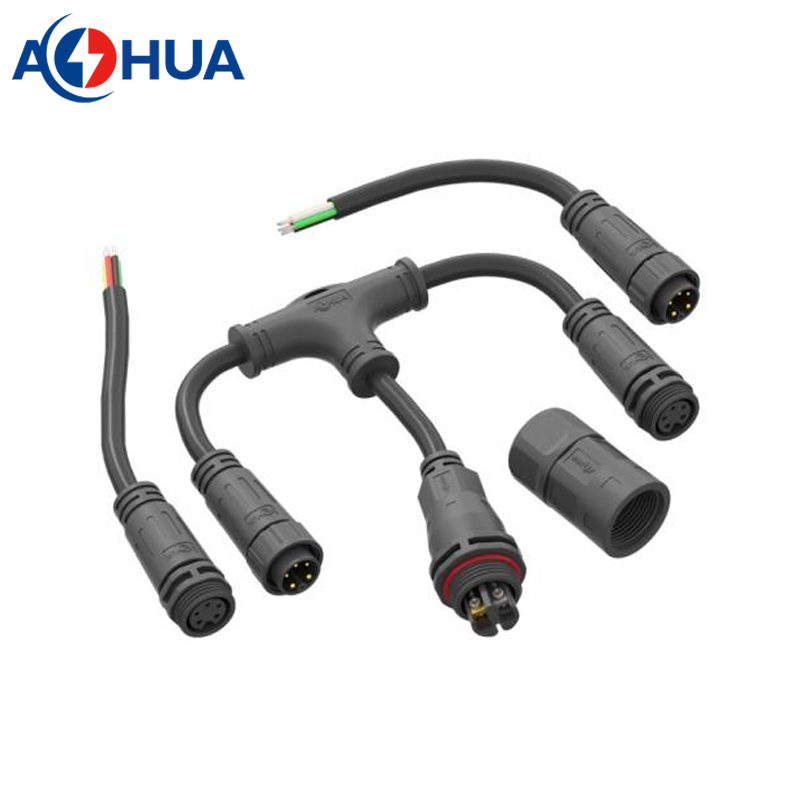

Welcome to the AOHUA channel, here we will talk about the multiple pins waterproof connector cable solution, which is 2+3pin connector molded with cable.

1. There are 2pin for power and 3pin for signals.
2. The power current rating is 15A and signal current rating is 5A.
3. This connector can be molded with the cable: 2*1.5mm²+3*0.75mm², 2*1.5mm²+3*0.5mm², 2*1.0mm²+3*0.75mm², 2*1.0mm²+3*0.5mm², 2*1.5mm²+3*0.3mm², 2*1.0mm²+3*0.3mm², or your specified cable.

Specification

• Contacts: 2+3pin
• Voltage Rating: 250V+110V
• Current Rating: 15A+5A
• Wire Size: ≤1.5mm²
• Cable OD: 5-12mm
• Operating Temperating: -40℃ ~+105℃
• Mechanical Life: 3000 mating cycles
• Waterproof Grade: IP67

1. Plastic of connector: PA66
2. Conductor: gold plated copper
3. Cable: PVC, rubber, TPU, PUR or specified
4. Cable Length: customized as required.

How to customize this waterproof connector cable solution?

As the leading manufacturer of producing waterproof connectors with more than 18 years, our business connectors' design and production have expanded to include cable manufacturing, hardware development and processing, mold development and production, as well as wire harness design and processing.

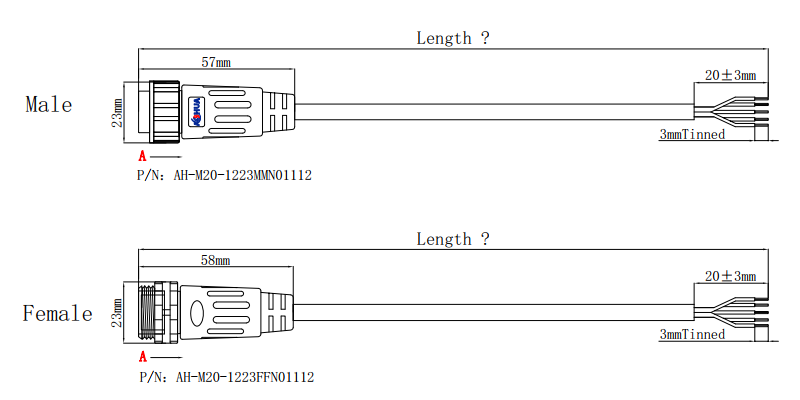

1. Great thanks for you if you can provide a simple drawing with annotations about what you need.
2. What we want to know: working ampere, wire size, cable length, cable wire end processing.
3. If require special customization for new connector, or LOGO, please provide 3D files or LOGO characters.

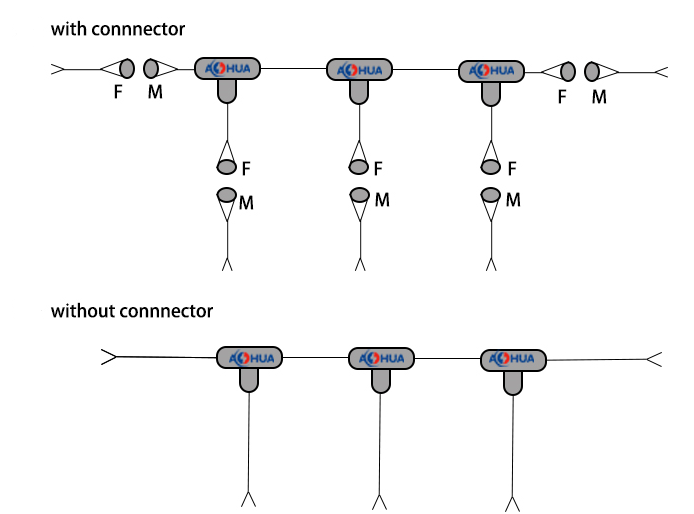

2+3pin waterproof connectors cable solution customization

Let us make your ideas coming true, please contact us start here and now.
