LED outdoor lighting waterproof connector
Nylon Series IP67
Home /

Male / Female Waterproof Plug

/

Nylon Series IP67

/Aohua M12 M16 M20 Nylon over-molded type Electric Male Female Waterproof Connector IP67 for breeding light

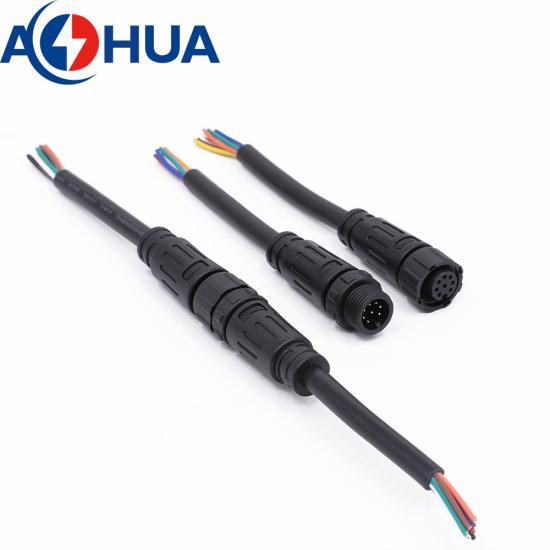

Aohua M12 M16 M20 Nylon over-molded type Electric Male Female Waterproof Connector IP67 for breeding light

IP67 Waterproof cable connector,cable to cable joint
  • Item NO.:

    Nylon molded with ca
  • Lead Time:

    5000 pcs a week ;≤ 5000 pcs to be Negot
  • Product Orgin:

    Shenzhen,China
  • Shipping Port:

    Shenzhen port
  • Payment:

    TT,PAYPAL
  • Color:

    Black
  • Product Material:

    PA66
Inquiry now
products Details


Application

Assembly waterproof plug is suitable for indoor /outdoor, such as outdoor led lighting, LED panel screens, outdoor security cameras,solar energy inverter, medical device, communications,marine equipmentect,control systems, measuring equipments and testing equipment, for data and power and so on.

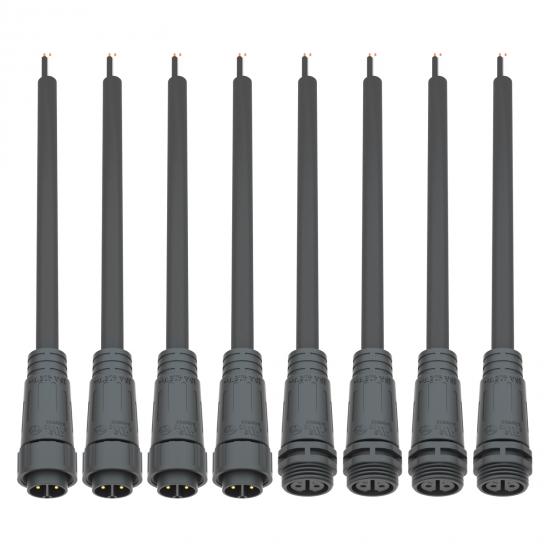

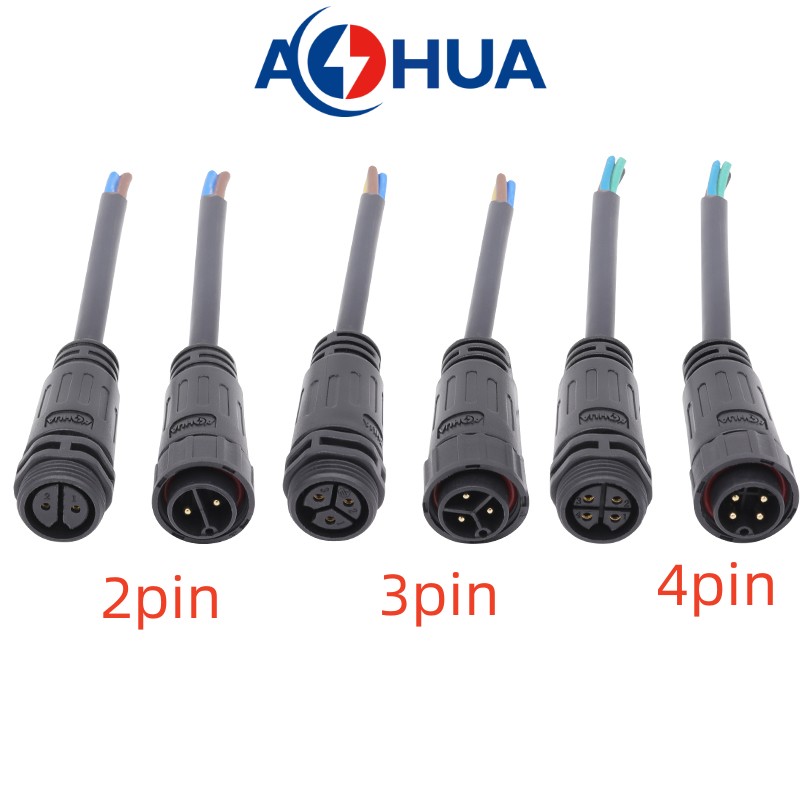

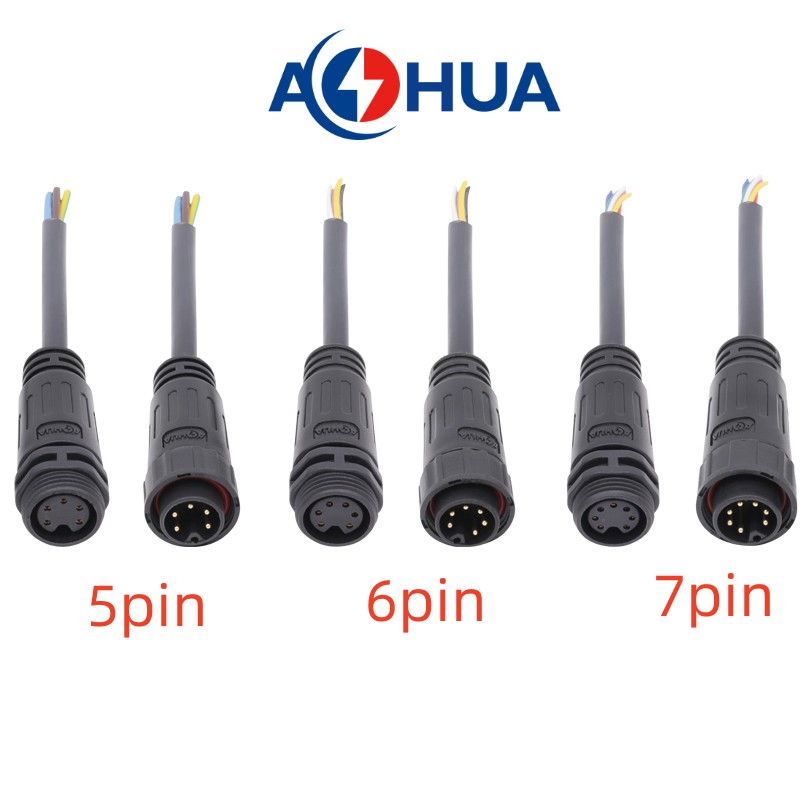

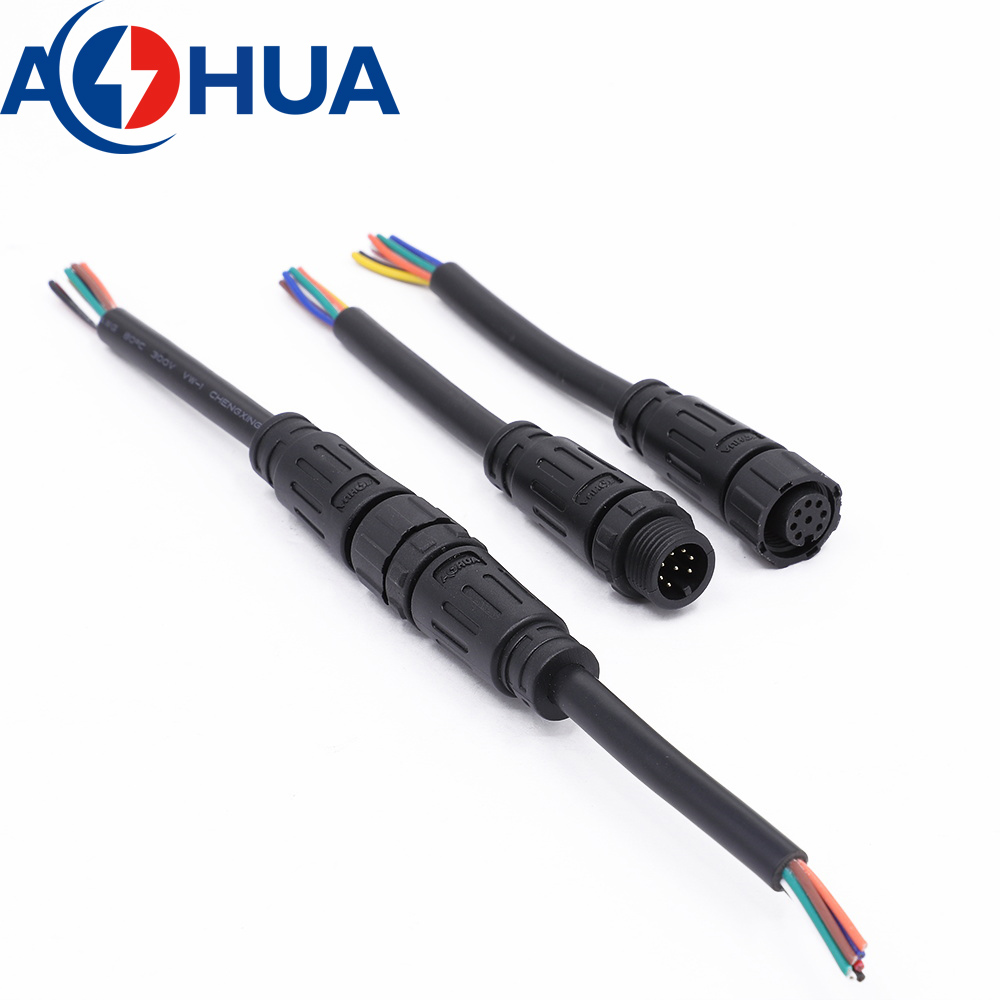

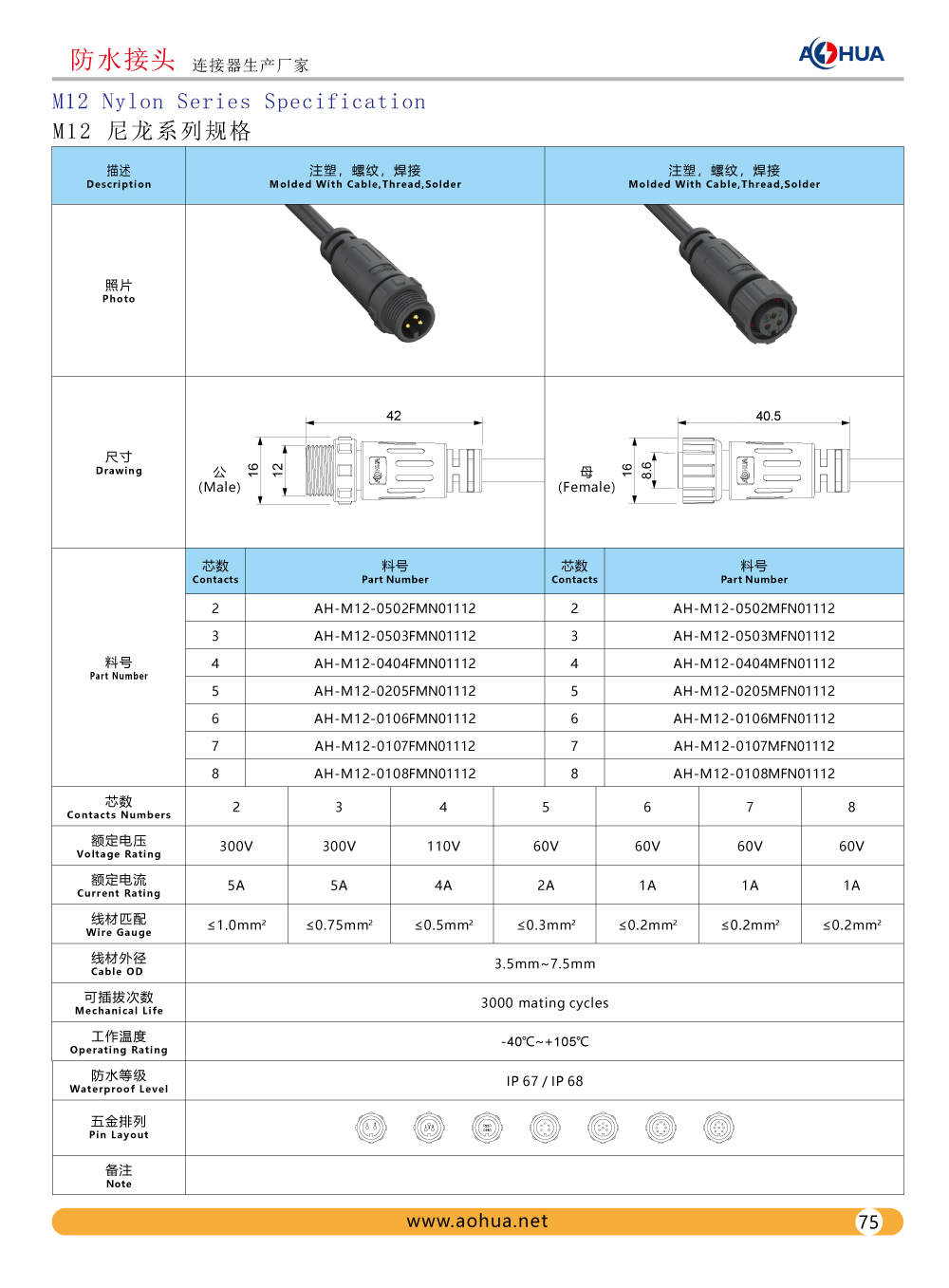

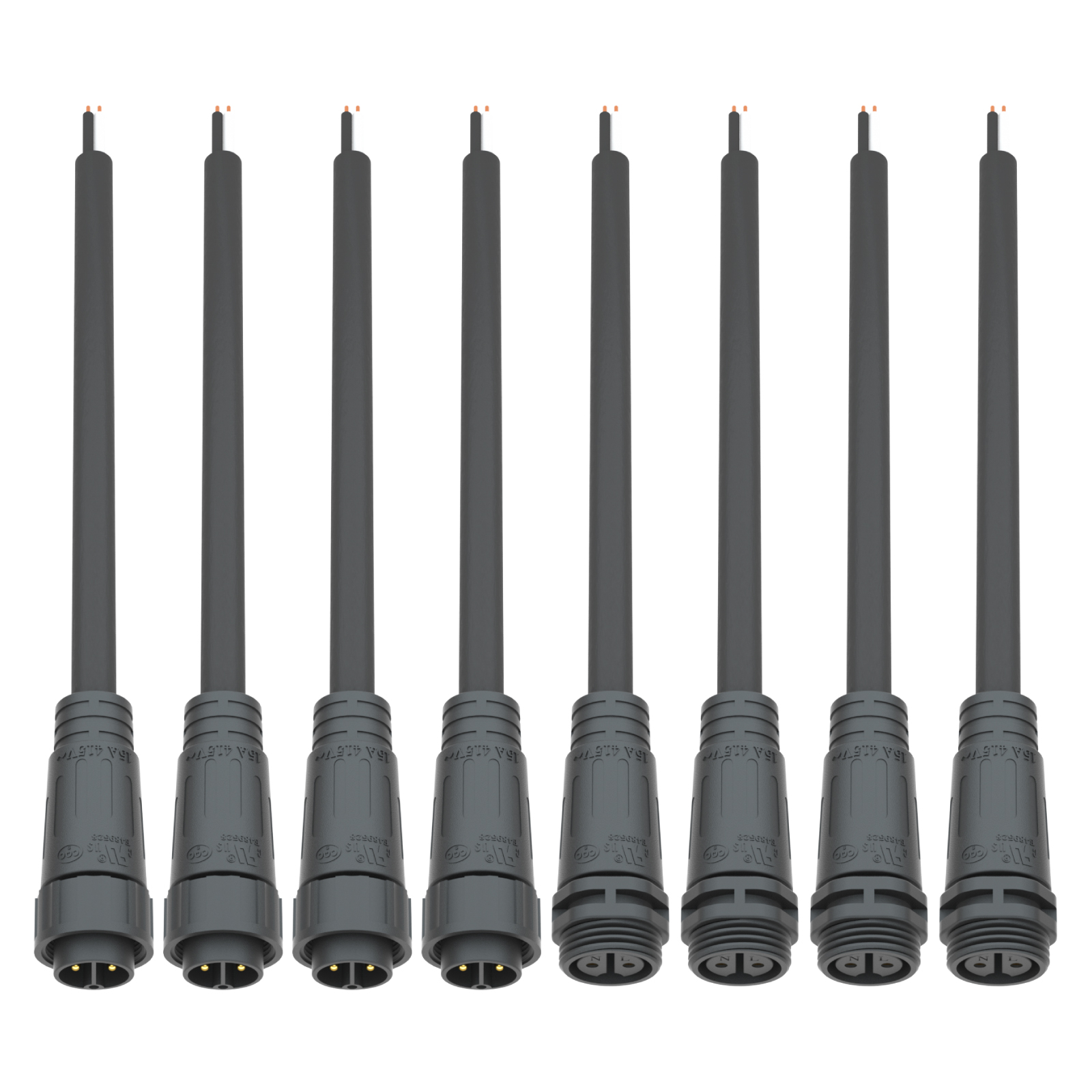

1.Nylon over-mold series waterproof plug socket M12 M16 M20.

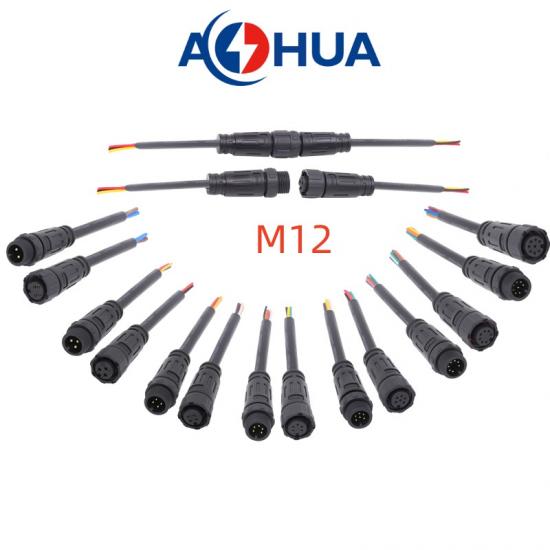

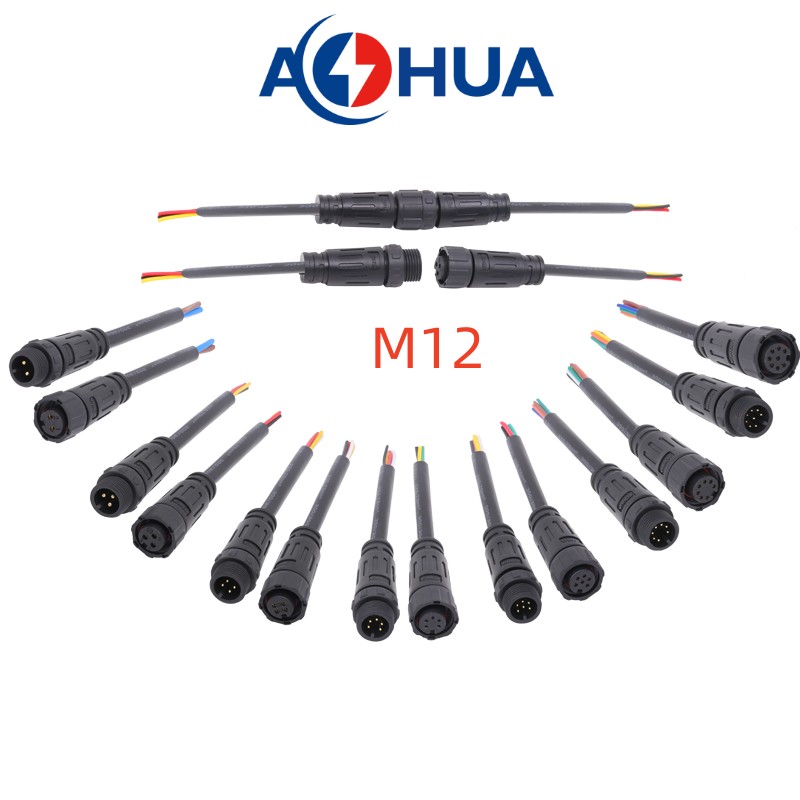

M12 2,3,4,5,6,7,8pin for choices.

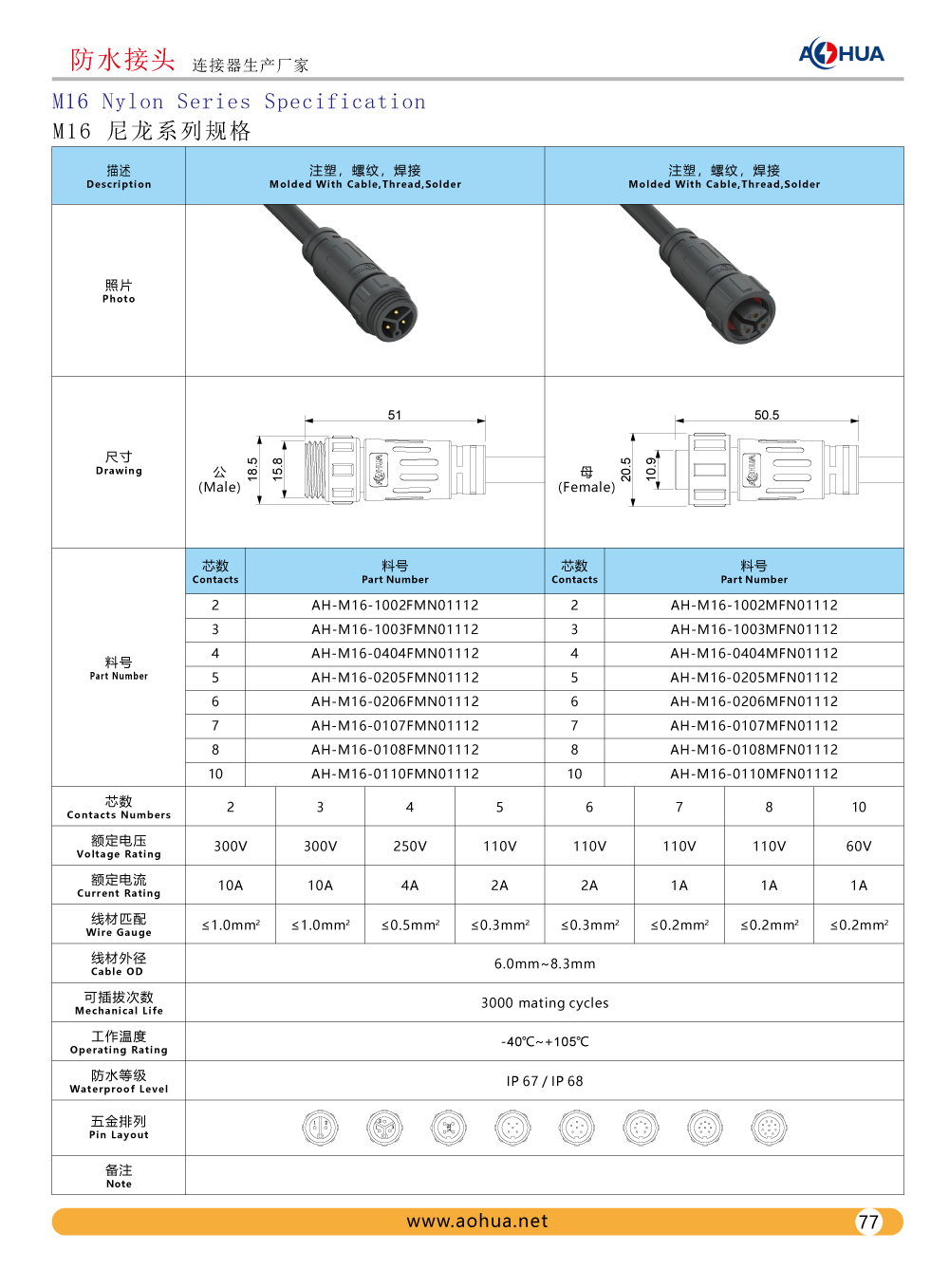

M16 2,3,4,5,6,7,8,10pin you can choose from.

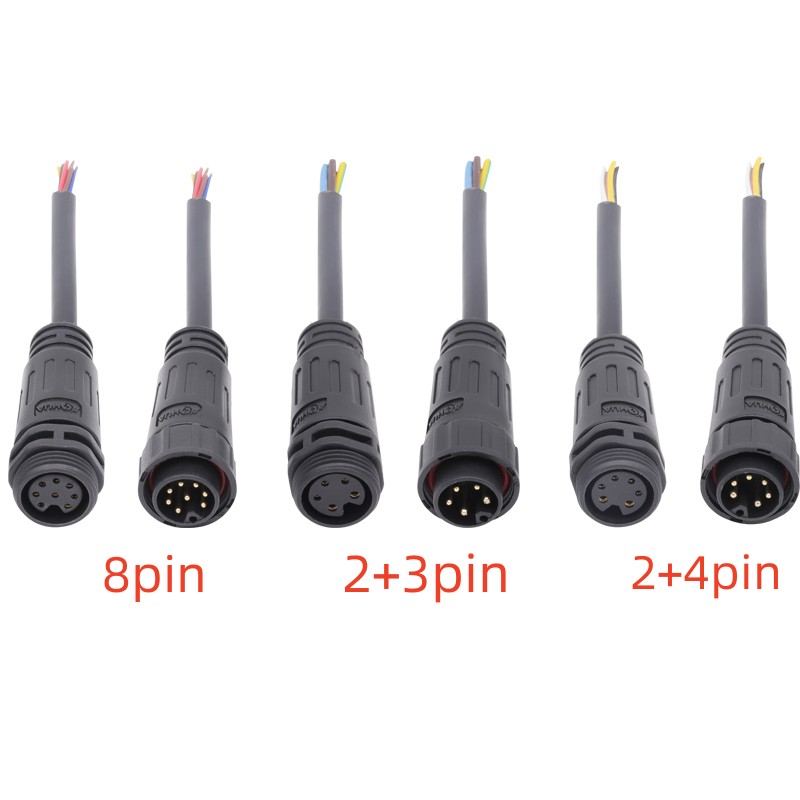

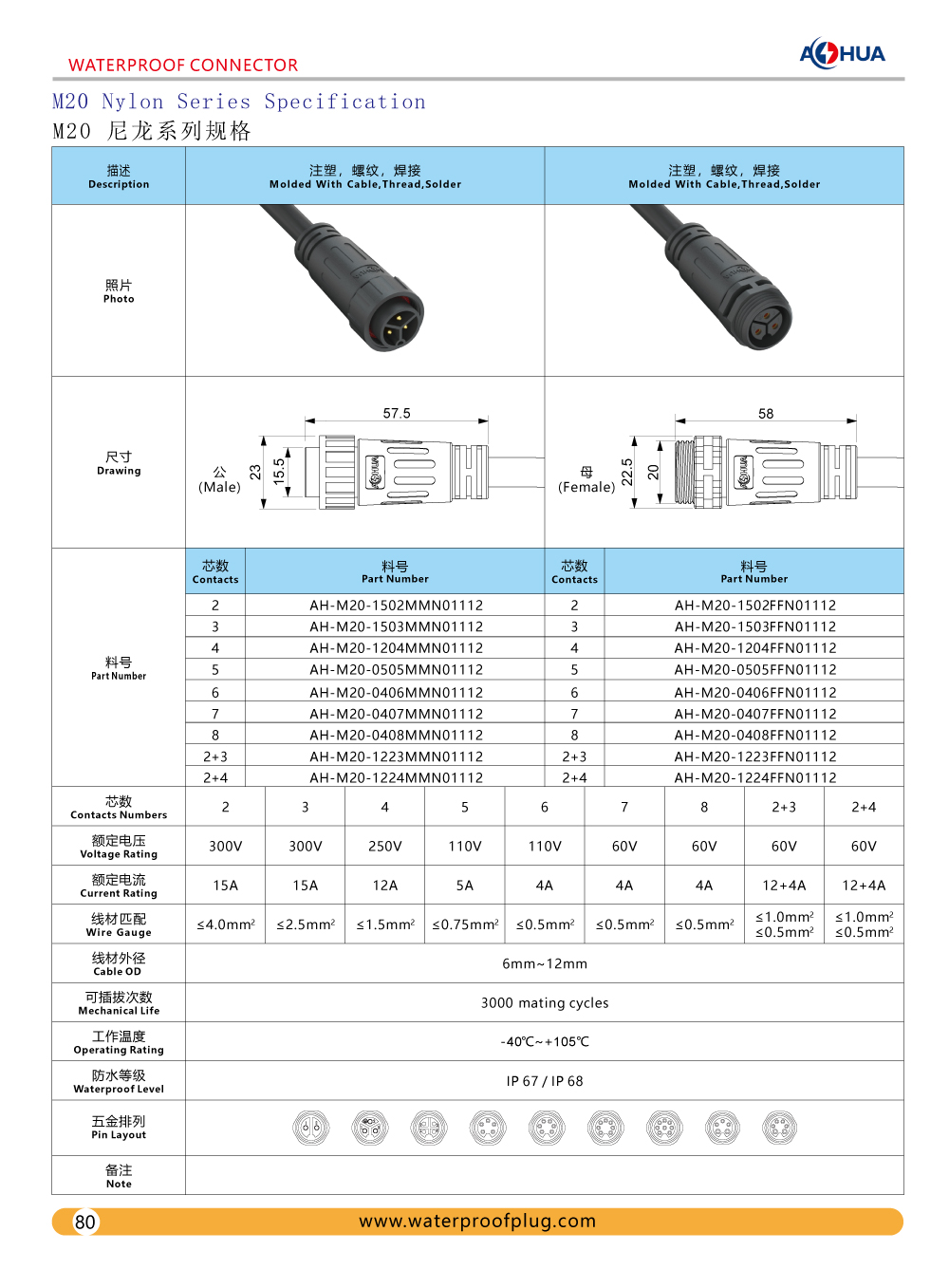

M20 2,3,4,5,6,7,8,(2+3)and (2+4)pin for choices.

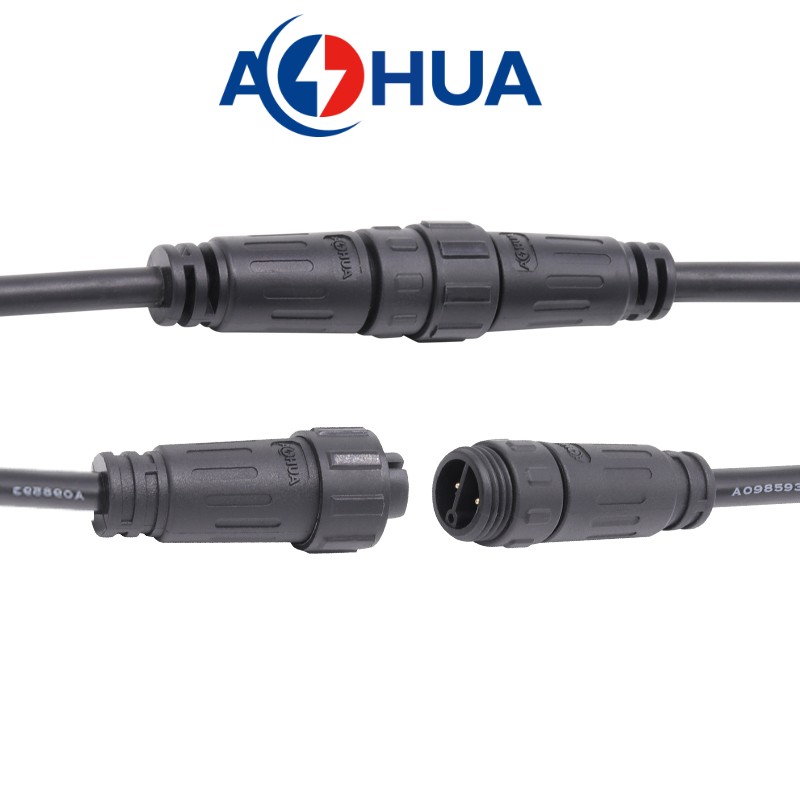

2.Install easily and faster, and save time,male female inline connecting type.

3.Contact material is made of gold-plated brass, with high conductivity, corrosion resistance, long service life.

4.Cable: Rubber/PVC
5.O- Ring is made of rubber. Excellent waterproof and dustproof effect, oxidation resistance, corrosion resistance.

6.Shell Material:Classy Nylon PA66, with strong temperature resistance, corrosion resistance, pressure resistance,

94V0 flame retardant, Non-toxic, environmental protection,etc. The mechanical life is 3000 mating cycles,

the operating rating is -40ºC +105ºC.Waterproof Rate is IP67/68.

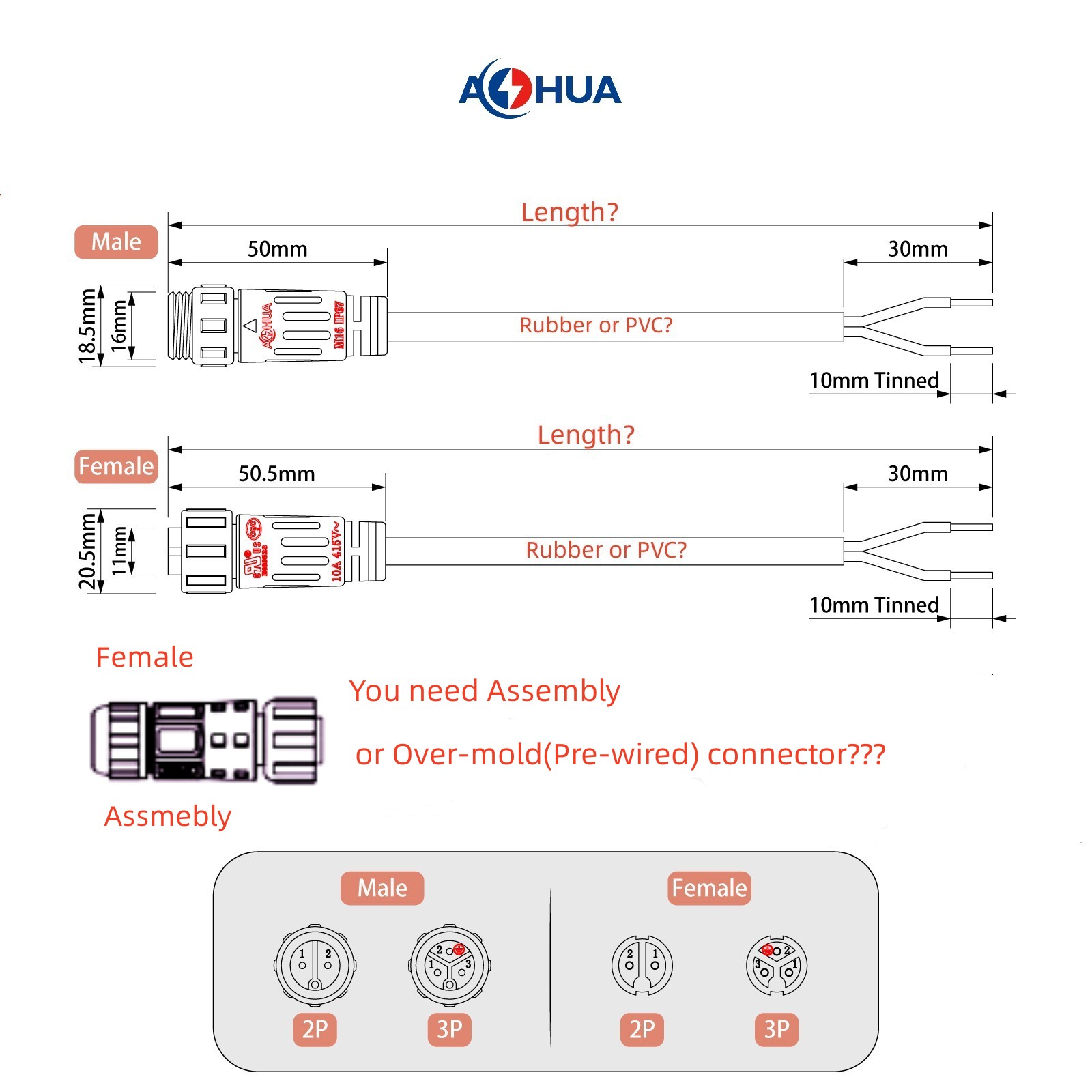

Before quotation, please tell us the cable details,thanks

*Confirm Current Rating and Number of Contacts(such as:8A...and such us:3pin...)

*Confirm you need assembly connector or over-mold type connector.

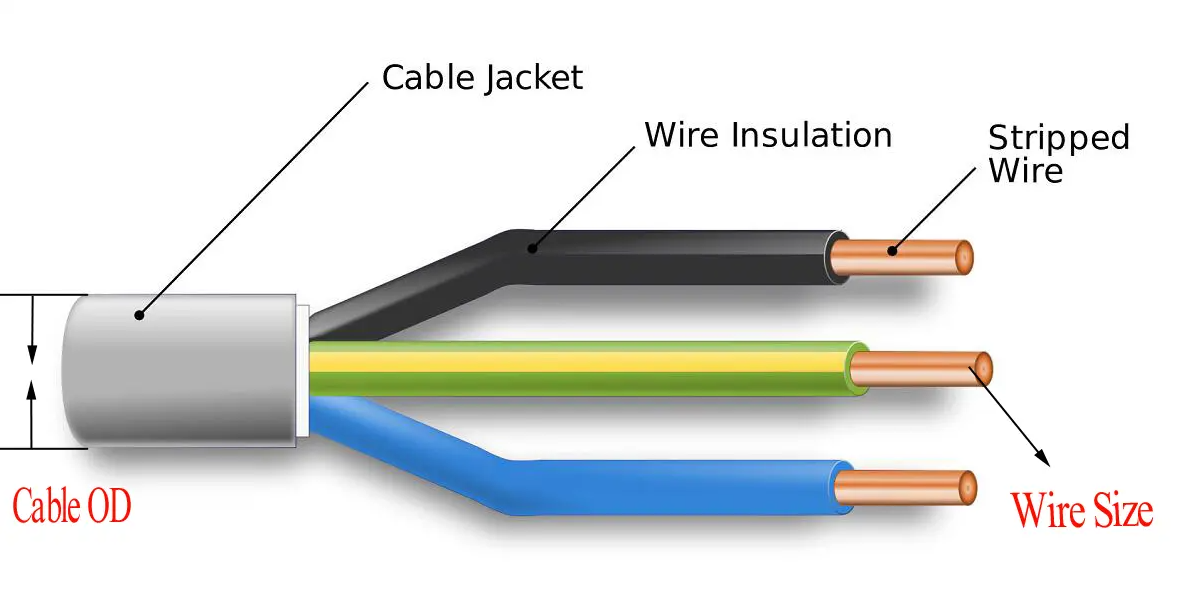

*Confirm Cable Wire size and Cable OD(Cable outer diameter) (such as: 2*1.5mm2...and such as 8mm...)
*Confirm Cable Length and Material.(such as:1000mm...and such as Nylon or PVC).

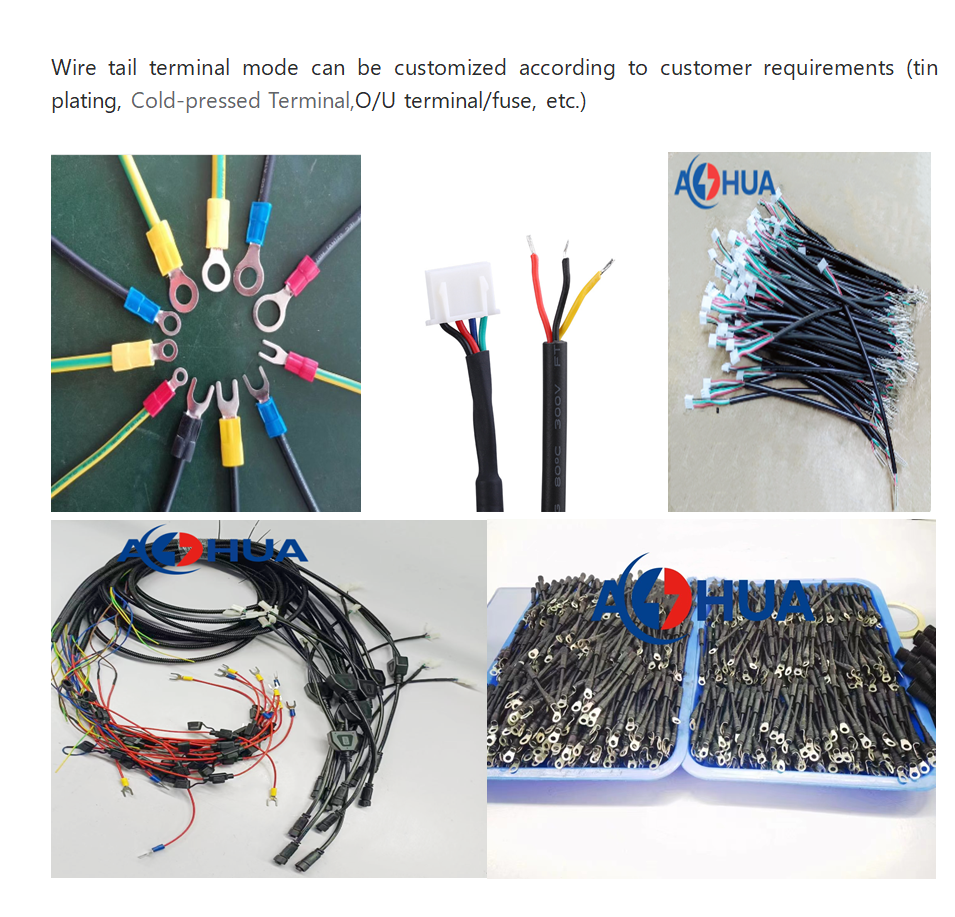

*Confirm tail processing (such as tin plating, Cold-pressed Terminal,O/U terminal/fuse)







AOHUA Waterproof Connector Factorypicture of waterproof connector work shopwaterproof connector produce stepwelcome to AOHUA waterproof connector factory

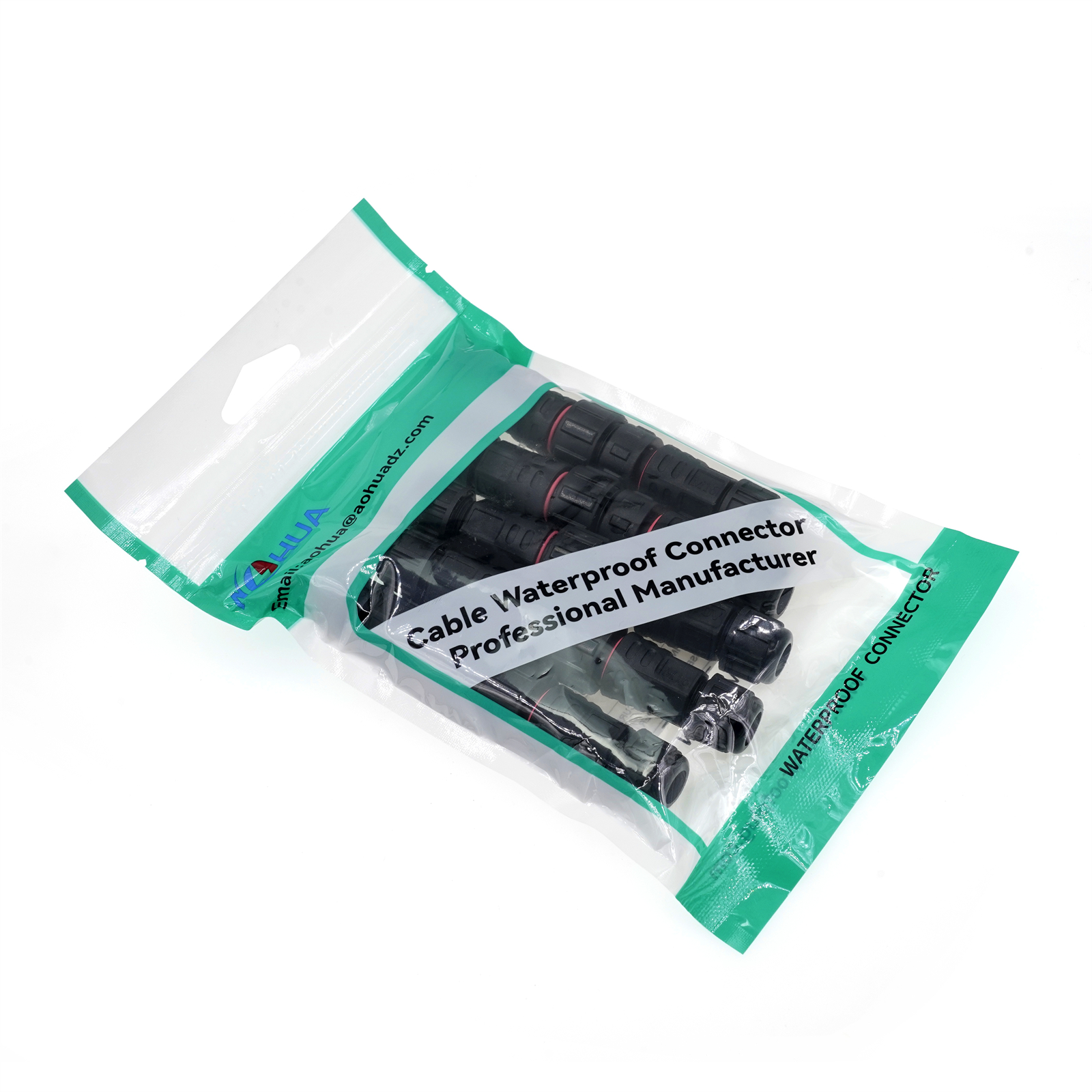

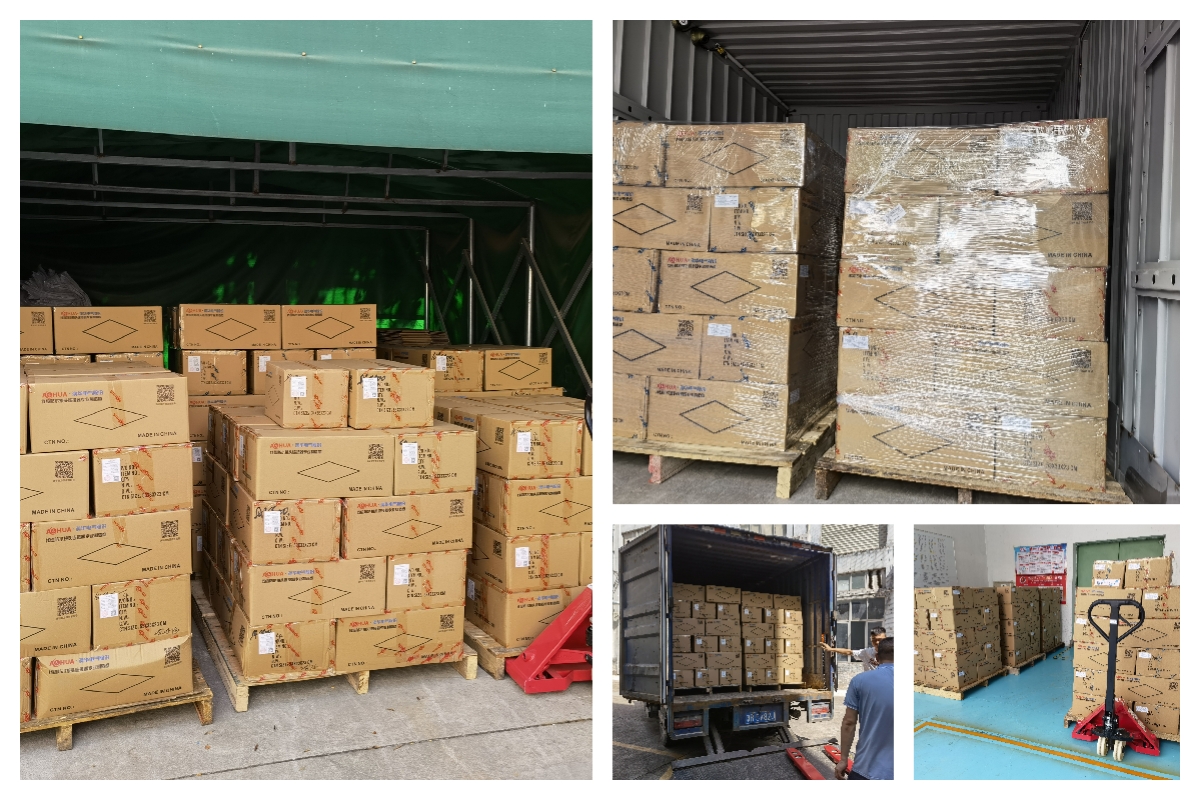

Packaging&shipping
FAQ

1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,and we pay great attention to the quality of products, from material purchase to product delivery, in this whole process, we have several product testing,therefore,we are selected by many domestic and foreign engineering and enterprises.
5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want,if you are not sure.We can give you a solution promptly.
6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.
7.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
8.Q:How to contact with you?
A:Please give me your email,it is the best and the most effective method to keep in touch with each other,and i can provide you with professional solutions in the shortest time.
9.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.
