LED outdoor lighting waterproof connector
Assembly Waterproof Plug
Home /

Assembly Waterproof Plug

/Aohua Factory ODM Customized Circular Male panel with Cable Waterproof Plug Male Female Socket Connector M12 M16 M20 for Outdoor Plant Growth Lighting

Aohua Factory ODM Customized Circular Male panel with Cable Waterproof Plug Male Female Socket Connector M12 M16 M20 for Outdoor Plant Growth Lighting

Waterproof IP65 waterproof cable connector
  • Item NO.:

    M12 M16 M20
  • Lead Time:

    7-9days ;≤ 5000 pcs to be Negotiated
  • Product Orgin:

    Shenzhen,China
  • Shipping Port:

    Shenzhen port
  • Payment:

    TT,PAYPAL
  • Color:

    Black
Inquiry now
products Details

Application

Male panel with cable series waterproof plugs are widely used in city lighting,plant lighting,high speed rail cars, livestock breeding,

electric heating, ships, environmental protection recovery equipment,medical devices, aotumobiles, driving contral,power batteries,5G station equipment and so on.



Aohua Factory ODM Customized Circular Male panel with Cable Waterproof Plug Male Female Socket Connector M12 M16 M20 for Outdoor Plant Growth Lighting

TIPS:

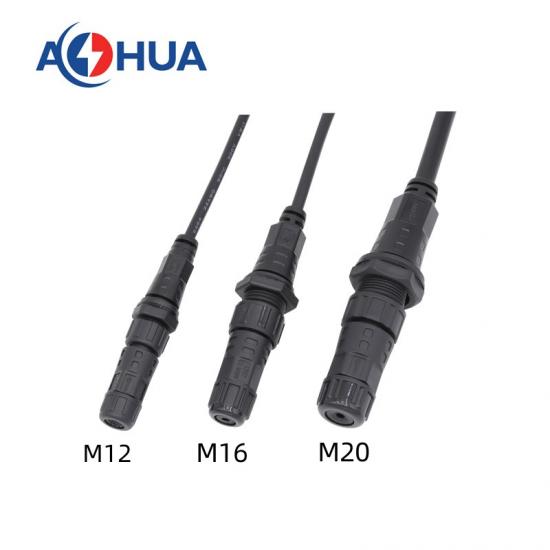

1. Male panel with cable series waterproof plugs include M12 M16 M20.

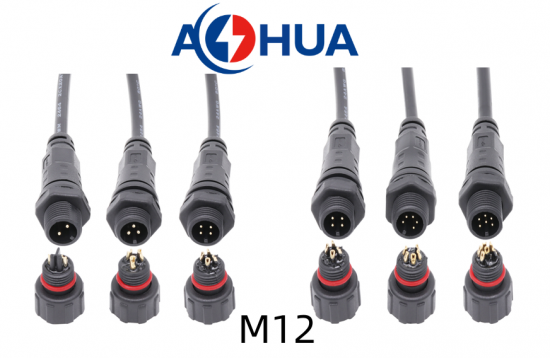

M12 2,3,4,5,6pin for choices.

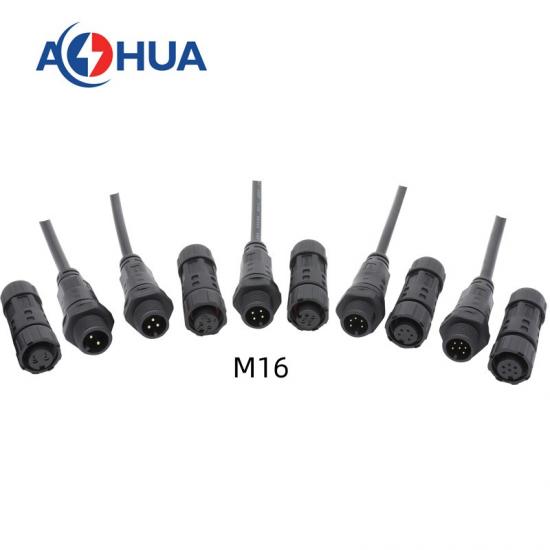

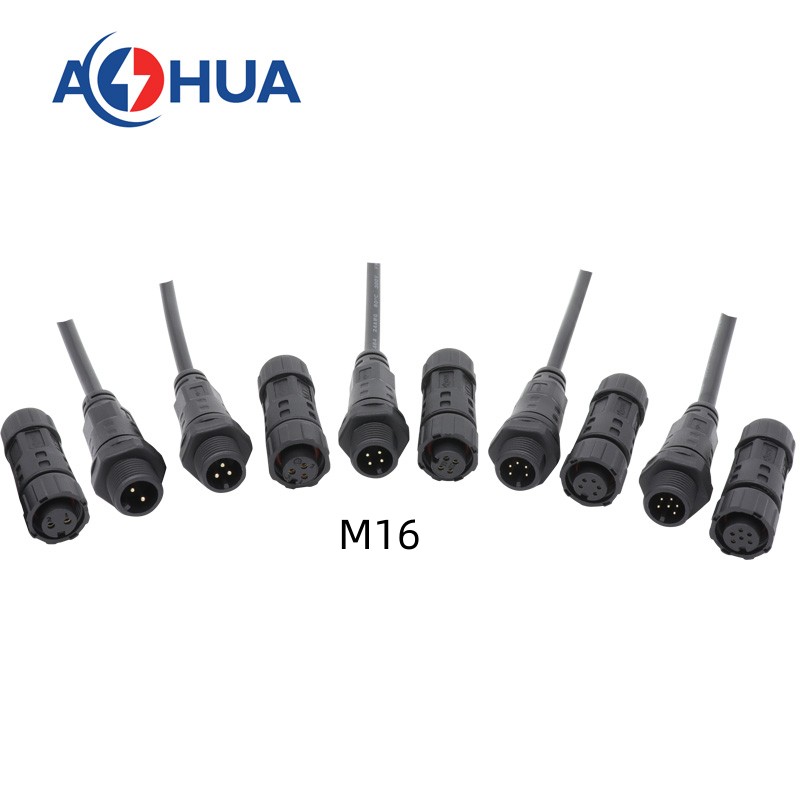

M16 2,3,4,5pin you can choose from.
M20  2,3,4pin for choices.

2.The panel waterproof plug concists of the components : male plug,gasket ,hex nut,rubber core,o-ring,middle nut,shell,seal ring and tail nut (as below picture)

3.Male plug is nylon plug with PVC cable, the assembly female plug is nylon PA66 or the molded female is nylon connector with PVC cable.


4.Wire Connecting Way: Solder type. Required tool for installation: Tin bar and electric soldering iron. Install easily, use easily, and save time.

5.Contacts are made of nickel-plated Brass, with high conductivity, corrosion resistance, long service life.
Shell Material:Classy Nylon PA66, with strong temperature resistance, corrosion resistance, pressure resistance, 94V0 flame retardant, Non-toxic, environmental protection.
Seal Ring and O-ring are made of rubber. Excellent waterproof effect, oxidation resistance, corrosion resistance.

6.The operating rating is -20ºC - +80ºC.Waterproof Level is IP 65 67/68.





Aohua Factory ODM Customized Circular Male panel with Cable Waterproof Plug Male Female Socket Connector M12 M16 M20 for Outdoor Plant Growth Lighting

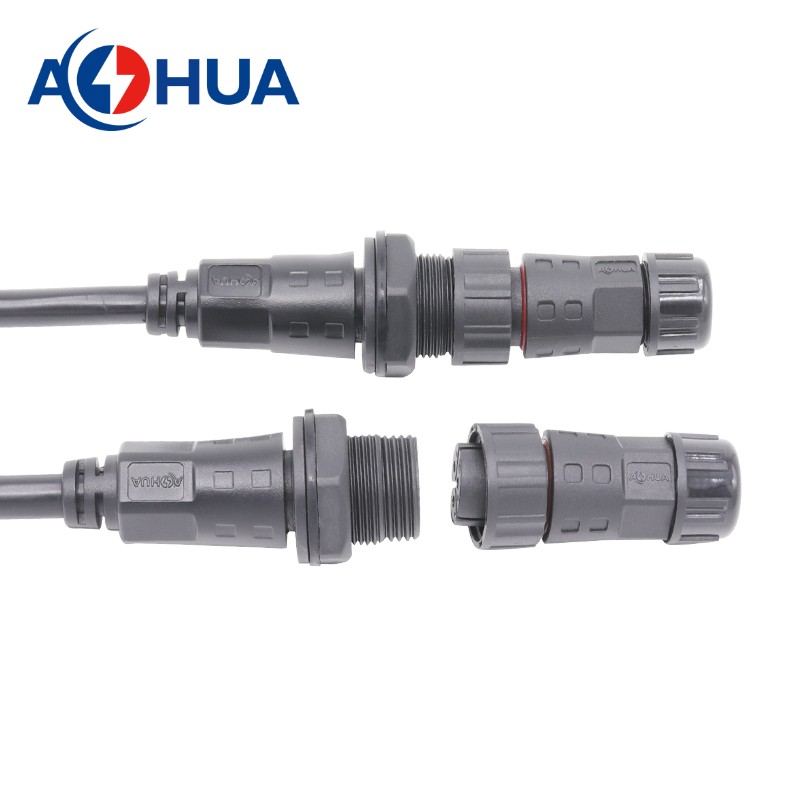

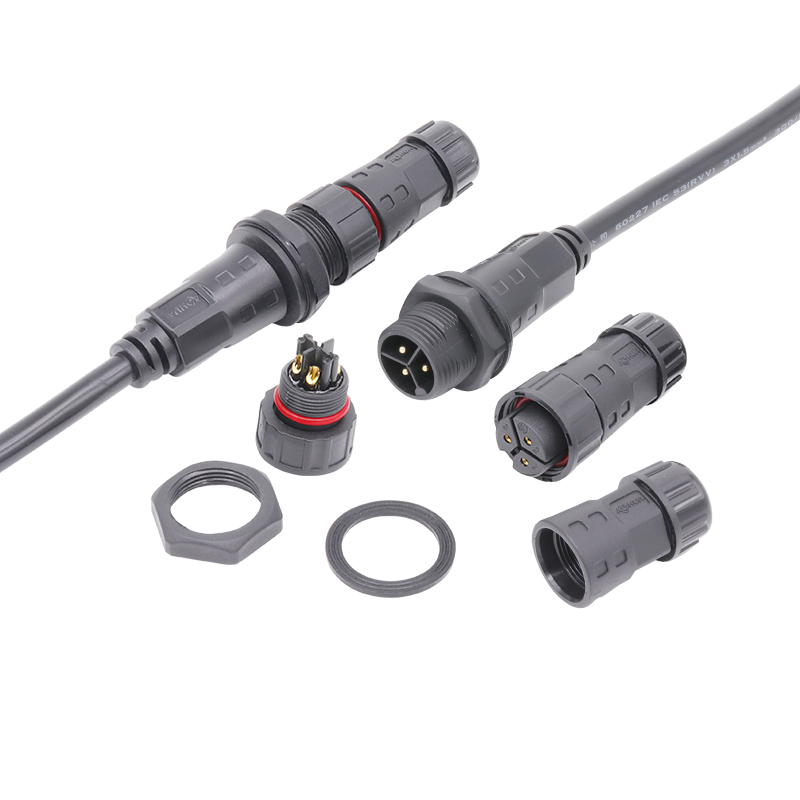

Male panel mount Plug consists of the following a few parts:
Aohua Factory ODM Customized Circular Male panel with Cable Waterproof Plug Male Female Socket Connector M12 M16 M20 for Outdoor Plant Growth Lighting

Aohua Factory ODM Customized Circular Male panel with Cable Waterproof Plug Male Female Socket Connector M12 M16 M20 for Outdoor Plant Growth Lighting





Aohua Factory ODM Customized Circular Male panel with Cable Waterproof Plug Male Female Socket Connector M12 M16 M20 for Outdoor Plant Growth Lighting
Aohua Factory ODM Customized Circular Male panel with Cable Waterproof Plug Male Female Socket Connector M12 M16 M20 for Outdoor Plant Growth Lighting

Our Advantages



AOHUA Waterproof Connector Factorypicture of waterproof connector work shopwaterproof connector produce stepwelcome to AOHUA waterproof connector factory

Packaging&shipping


FAQ


1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.


2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.


3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.


4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,and we pay great attention to the quality of products, from material purchase to product delivery, in this whole process, we have several product testing,therefore,we are selected by many domestic and foreign engineering and enterprises.


5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want,if you are not sure.We can give you a solution promptly.


6.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.


7.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.
