Application

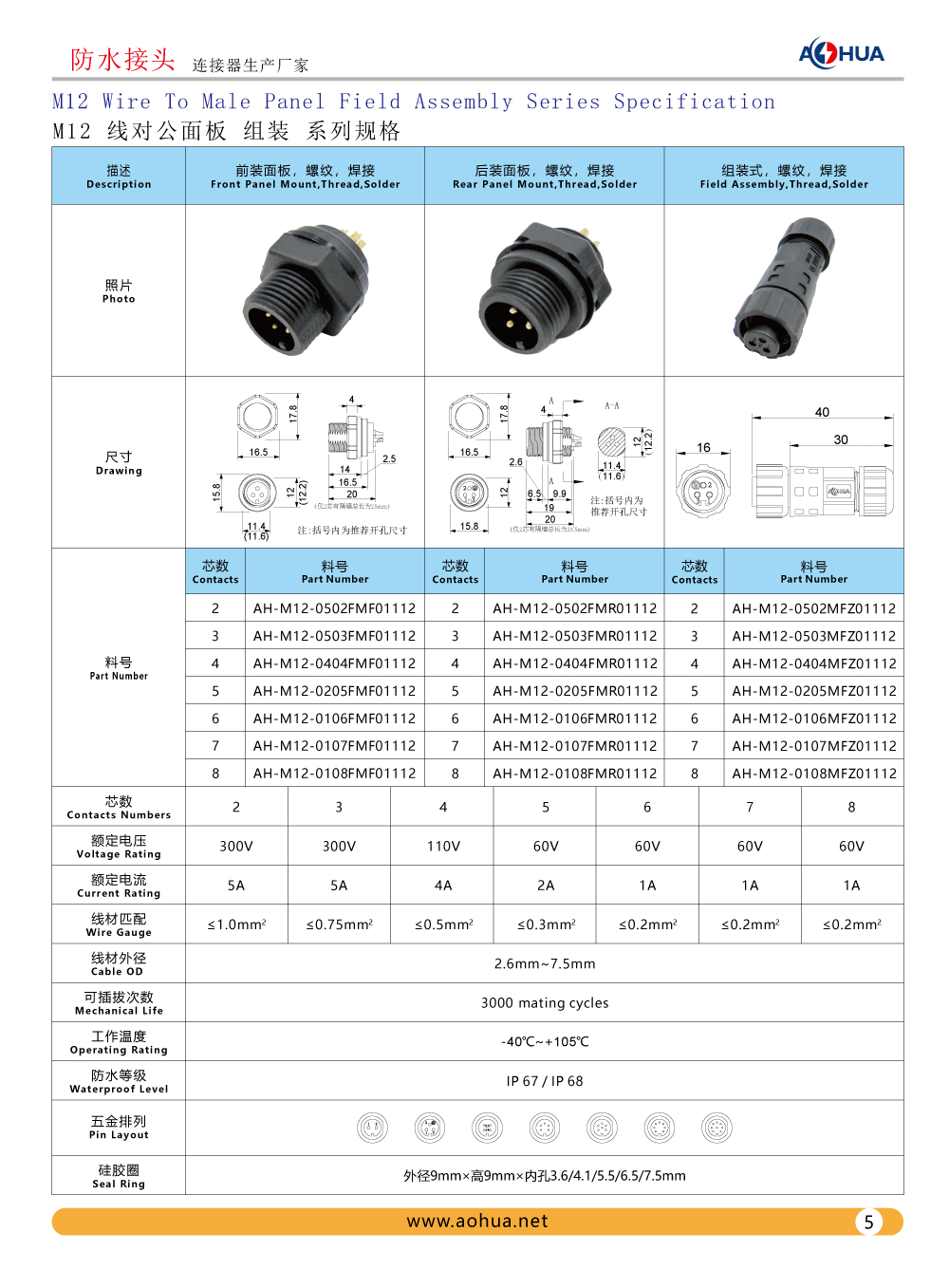

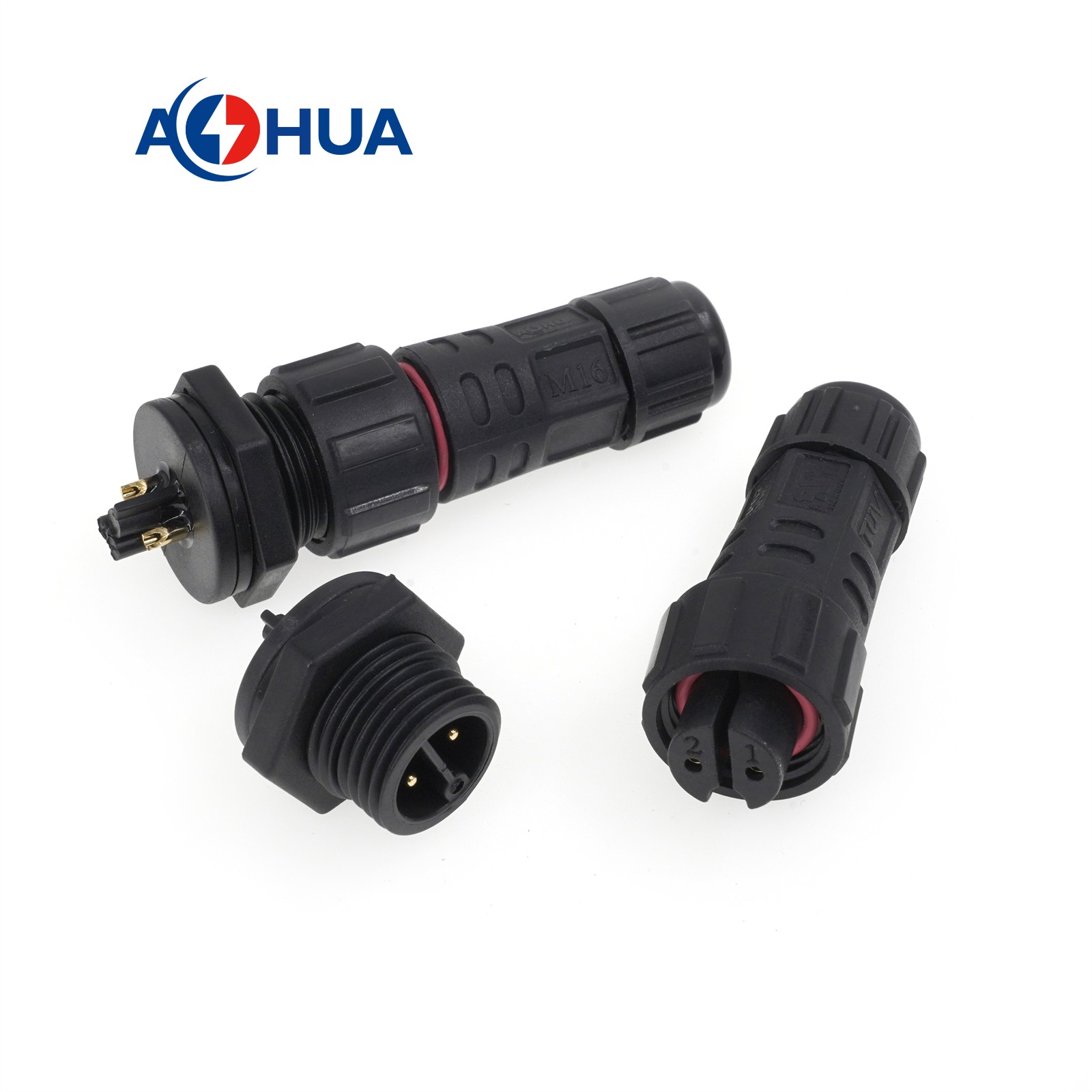

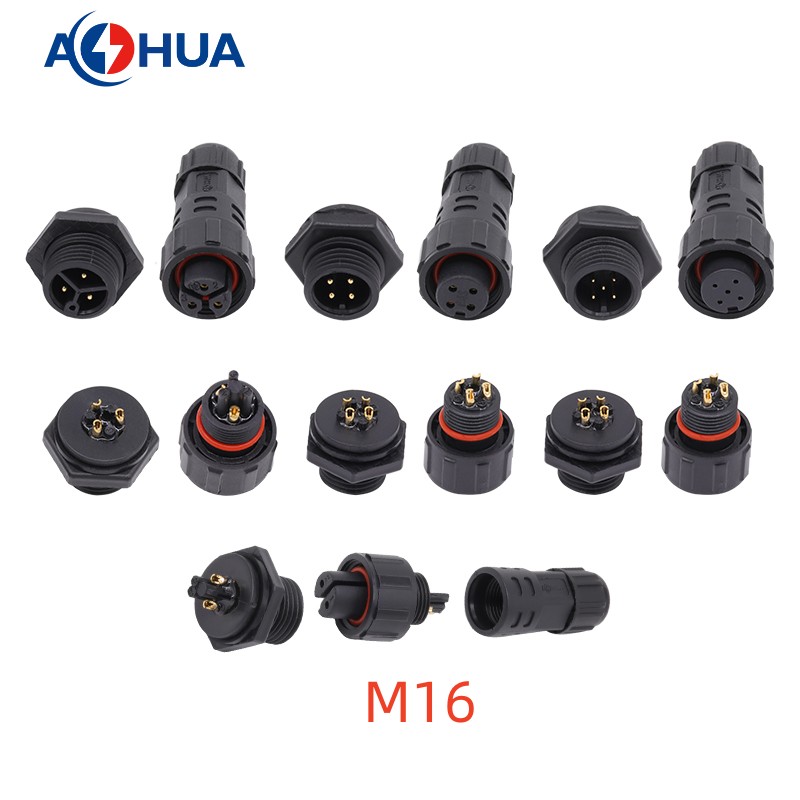

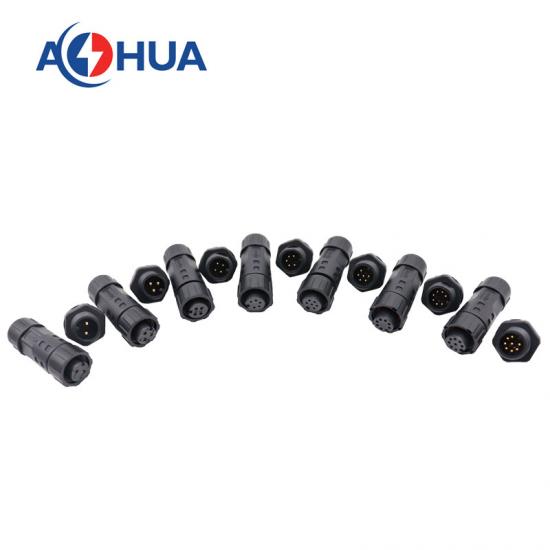

UL Wire to Male Front panel Mount Assembly Circular Plastic Plug M12 M16 M20 Waterproof Connector IP67

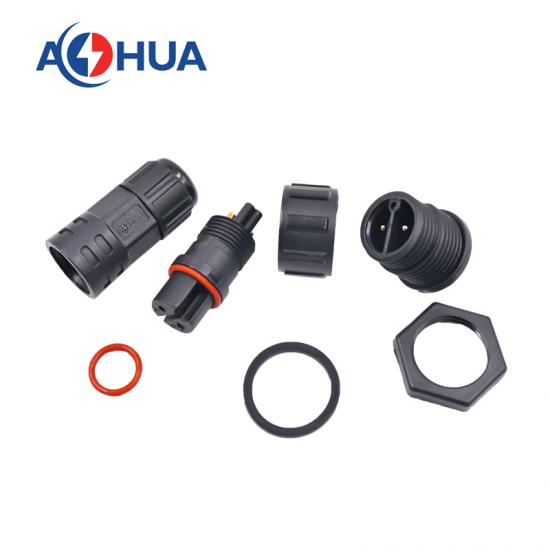

Wire to panel plugs are divided into front male/female panel plug and rear male/female panel plug.The plug can be used for both cable to cable (in-line) or cable to panel-mount connections.
Each side can be male or female contact. (Plug or socket versions), are available on both cable connector and panel connector.

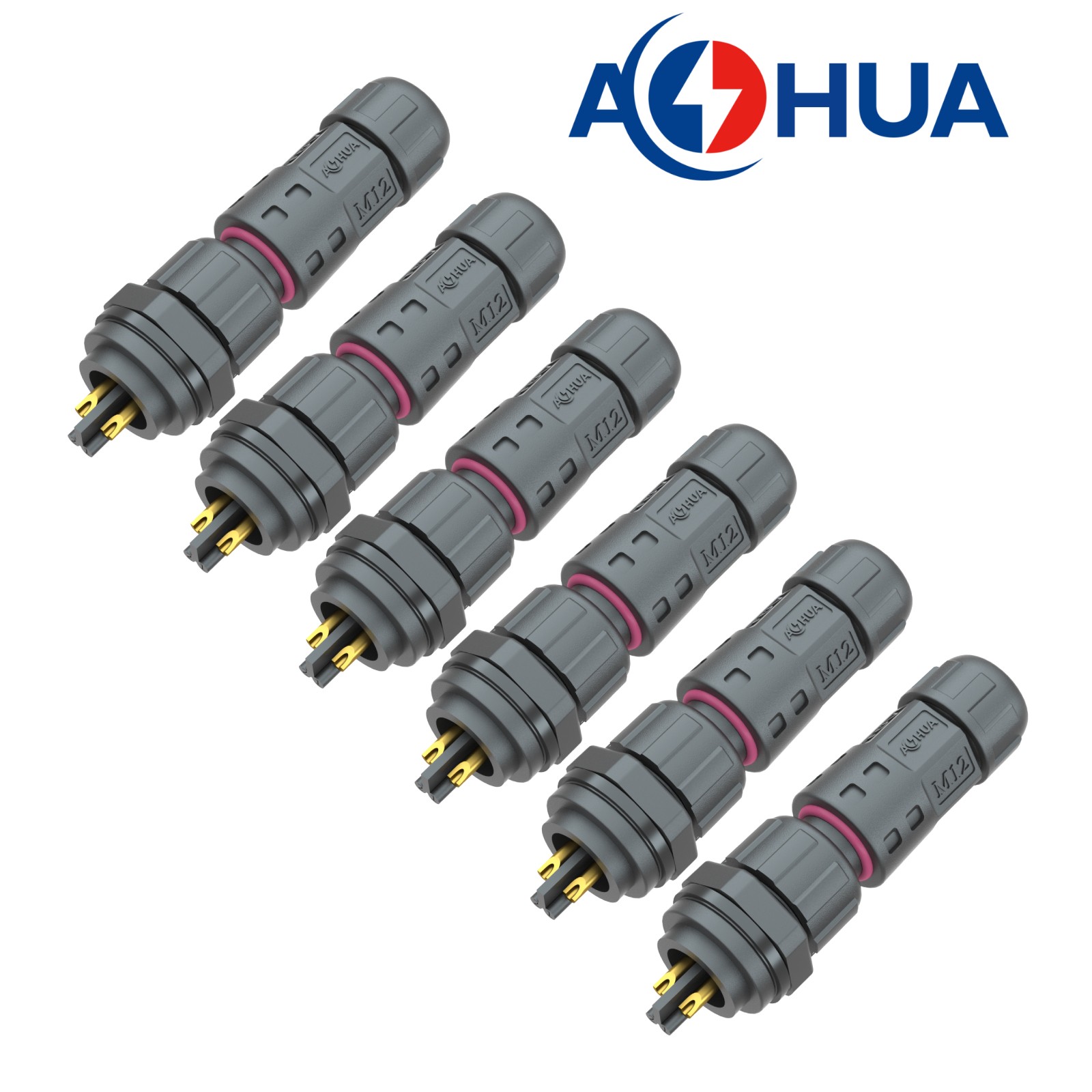

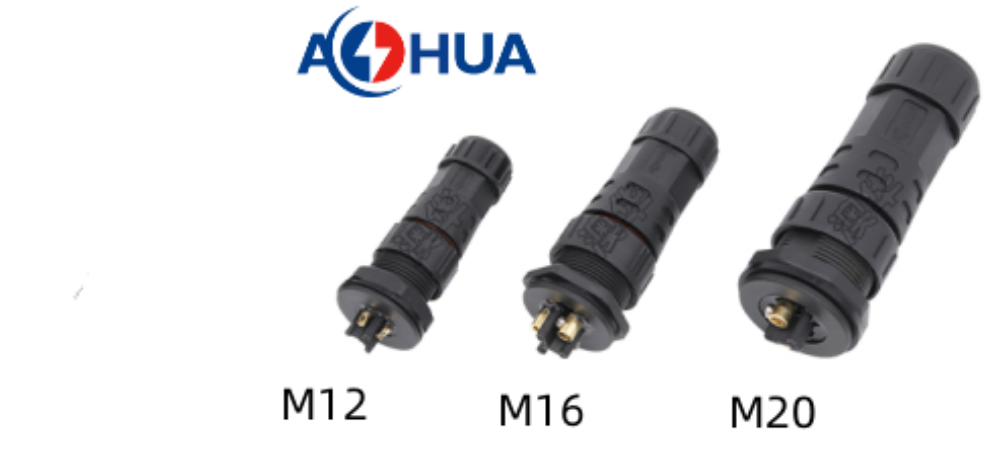

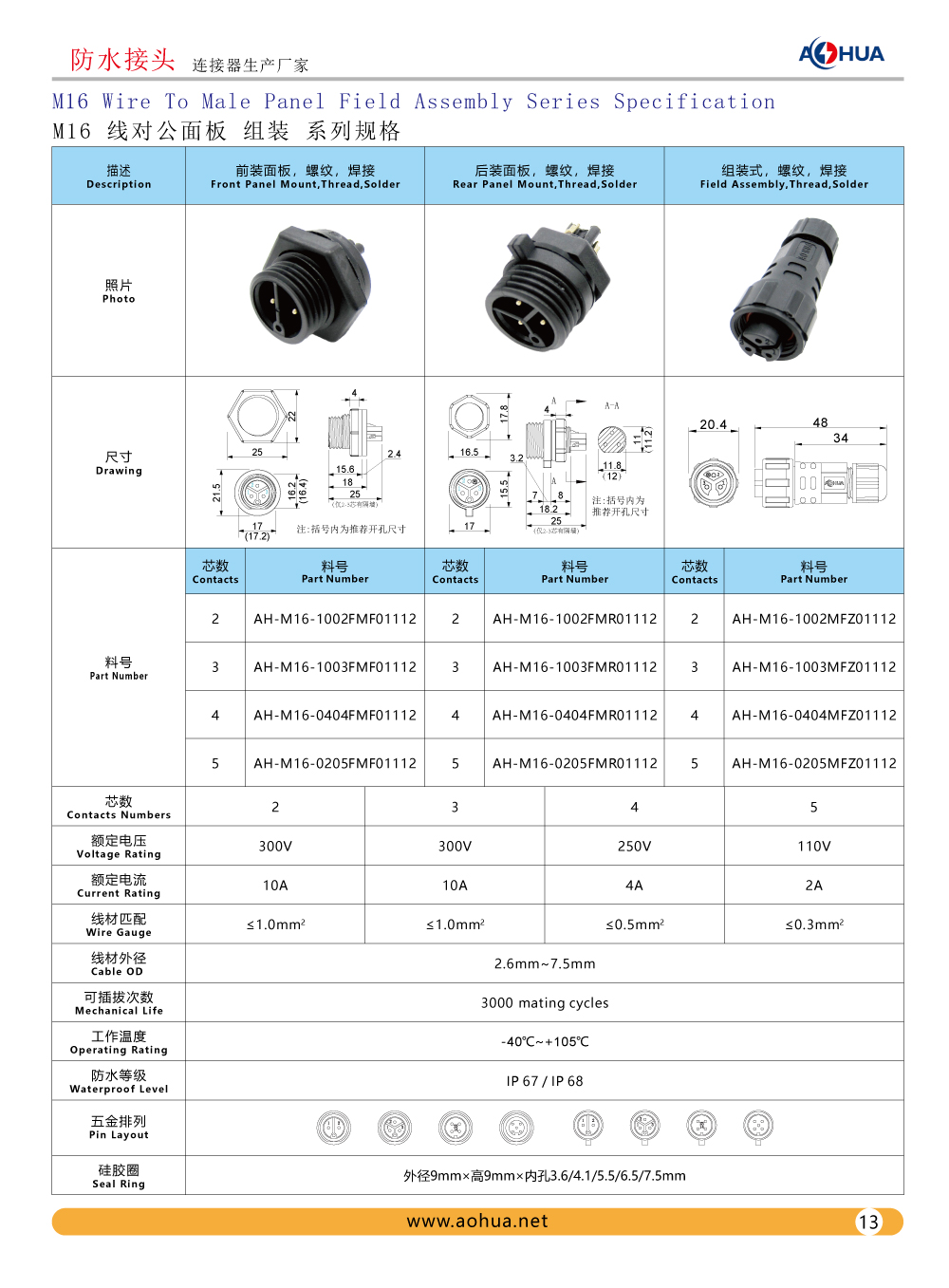

1.M12 and M16 plugs are suitable for cable outer diamter(OD) range from 2.6mm-7.5mm;

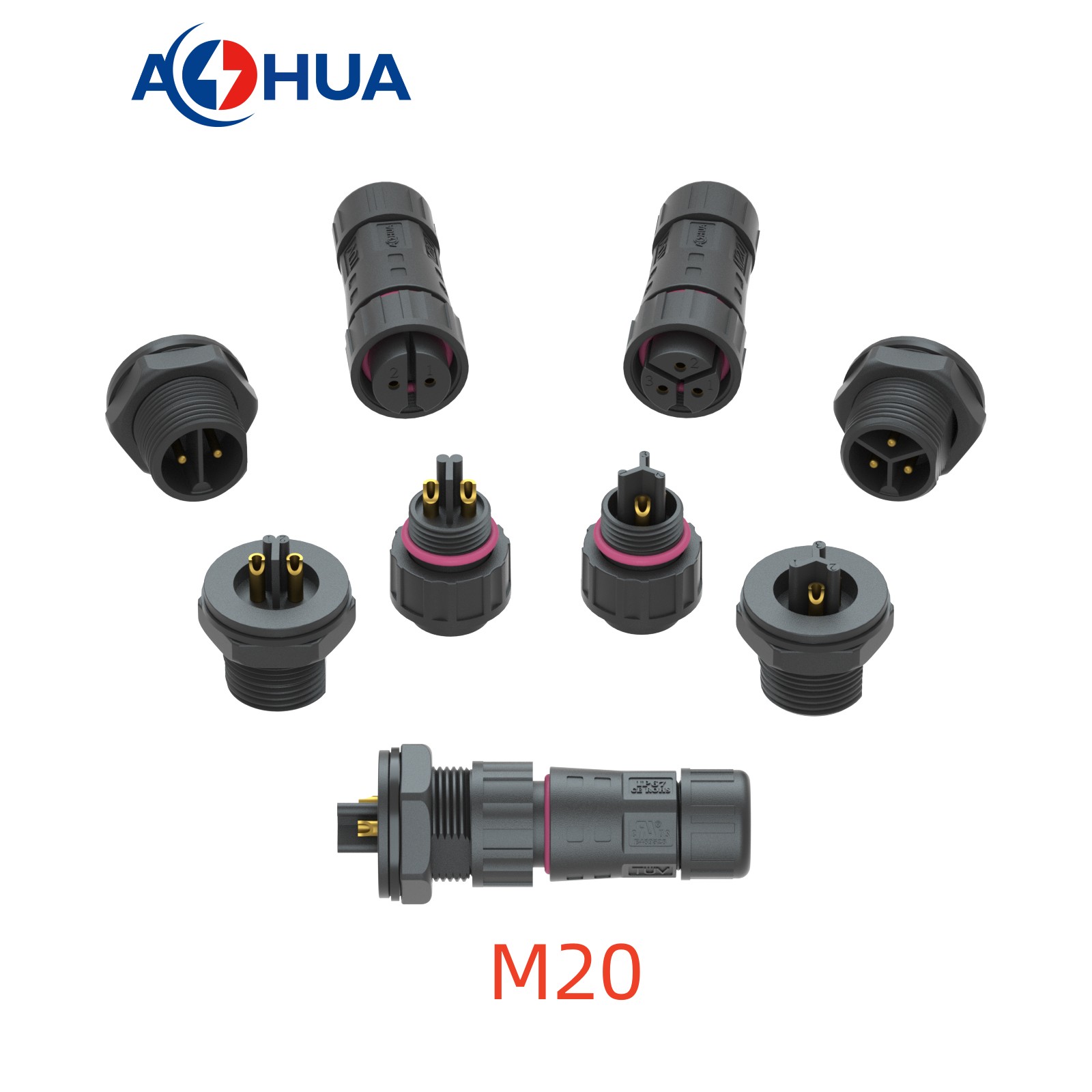

M20 plug is useful for cable OD range from 5.5mm-10mm.
Install easily, use easily, and save time.
Required tool for installation: Tin bar and electric soldering iron.
3.Contact material is made of gold-plated brass, with high conductivity, corrosion resistance, long service life.
Shell Material:Classy Nylon PA66, with strong temperature resistance, corrosion resistance, pressure resistance,
94V0 flame retardant, Non-toxic, environmental protection,etc. the mechanical life is 3000 mating cycles,
the operating rating is -40ºC +105ºC.Waterproof Level is IP67/68.
*Confirm Current Rating and Number of Contacts(such as:8A...and such us:3pin...)
*Confirm Cable Wire size and Cable OD(Cable outer diameter) (such as: 2*1.5mm2...and such as 8mm...)
*Confirm Cable Length and Material.(such as:1000mm...and such as Nylon or PVC).
*Confirm tail processing (such as tin plating, Cold-pressed Terminal,O/U terminal/fuse)
1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,and we pay great attention to the quality of products, from material purchase to product delivery, in this whole process, we have several product testing,therefore,we are selected by many domestic and foreign engineering and enterprises.
5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want,if you are not sure.We can give you a solution promptly.
6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.
7.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
8.Q:How to contact with you?
A:Please give me your email,it is the best and the most effective method to keep in touch with each other,and i can provide you with professional solutions in the shortest time.
9.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.
