LED outdoor lighting waterproof connector
Assembly Waterproof Plug
Home /

Assembly Waterproof Plug

/AOHUA M16 M20 Black Female Rear Panel Type Plug Socket Low Current OD 2.6mm-10mm PVC/Rubber cable connector for outdoor LED

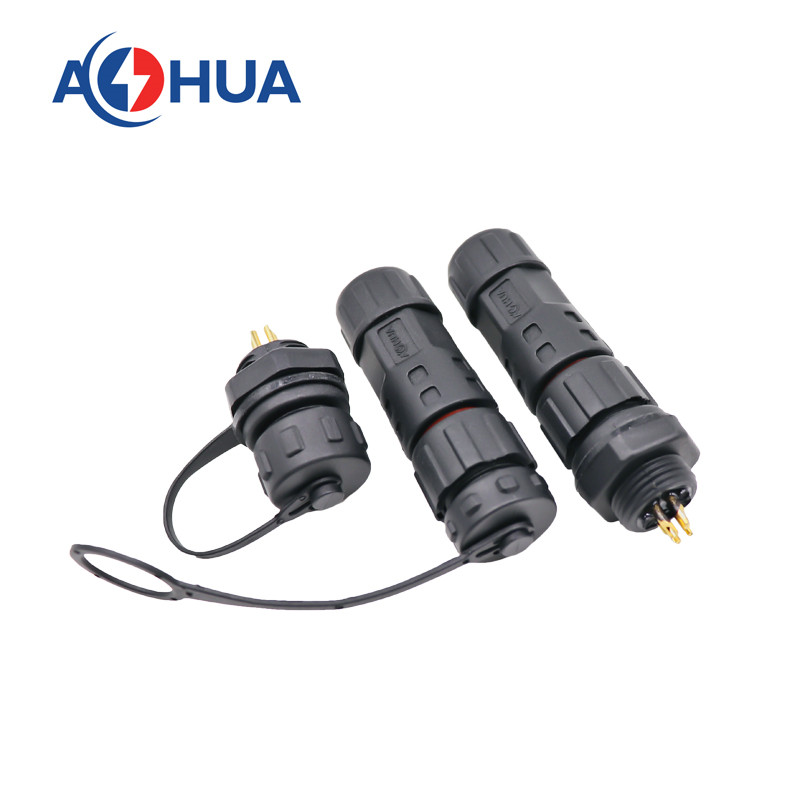

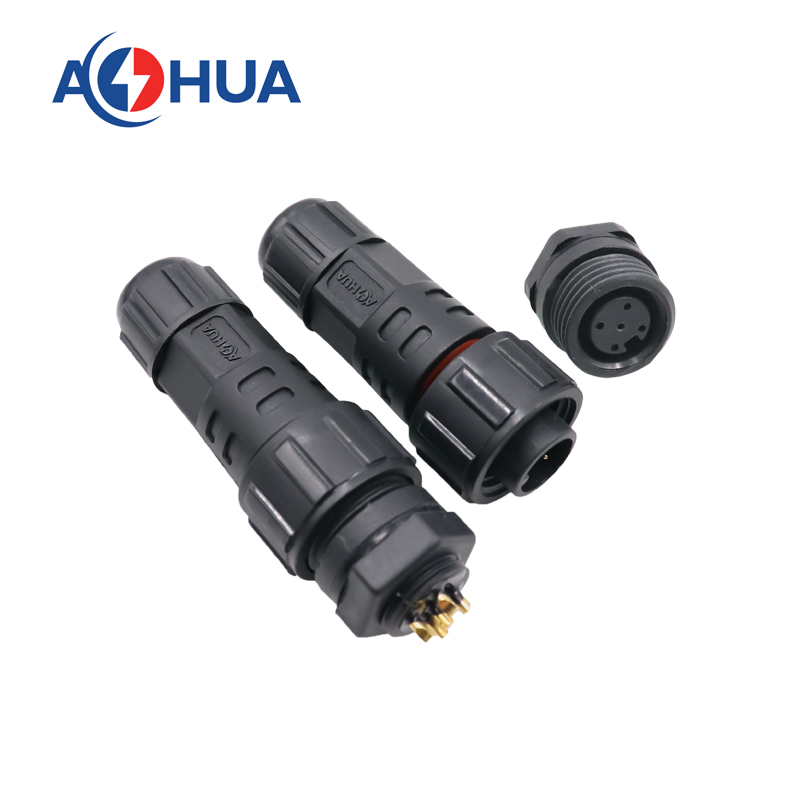

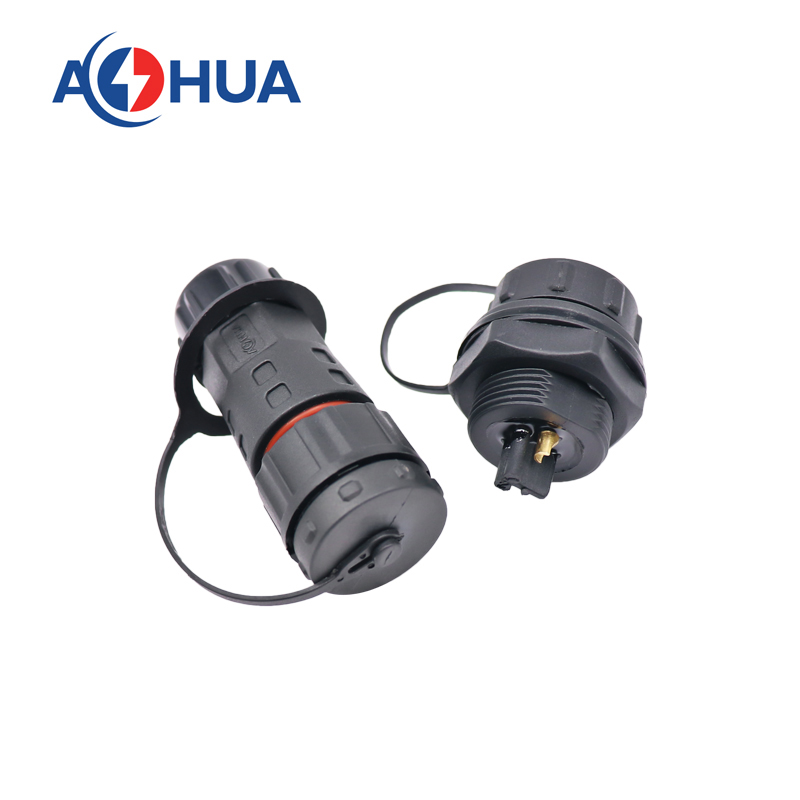

AOHUA M16 M20 Black Female Rear Panel Type Plug Socket Low Current OD 2.6mm-10mm PVC/Rubber cable connector for outdoor LED

led lighting waterproof cable connector
  • Item NO.:

    Wire to Female rear
  • Lead Time:

    5000 pcs a week ;≤ 5000 pcs to be Negot
  • Product Orgin:

    Shenzhen,China
  • Shipping Port:

    Shenzhen port
  • Payment:

    TT,PAYPAL
  • Color:

    Black
Inquiry now
products Details


Related Products

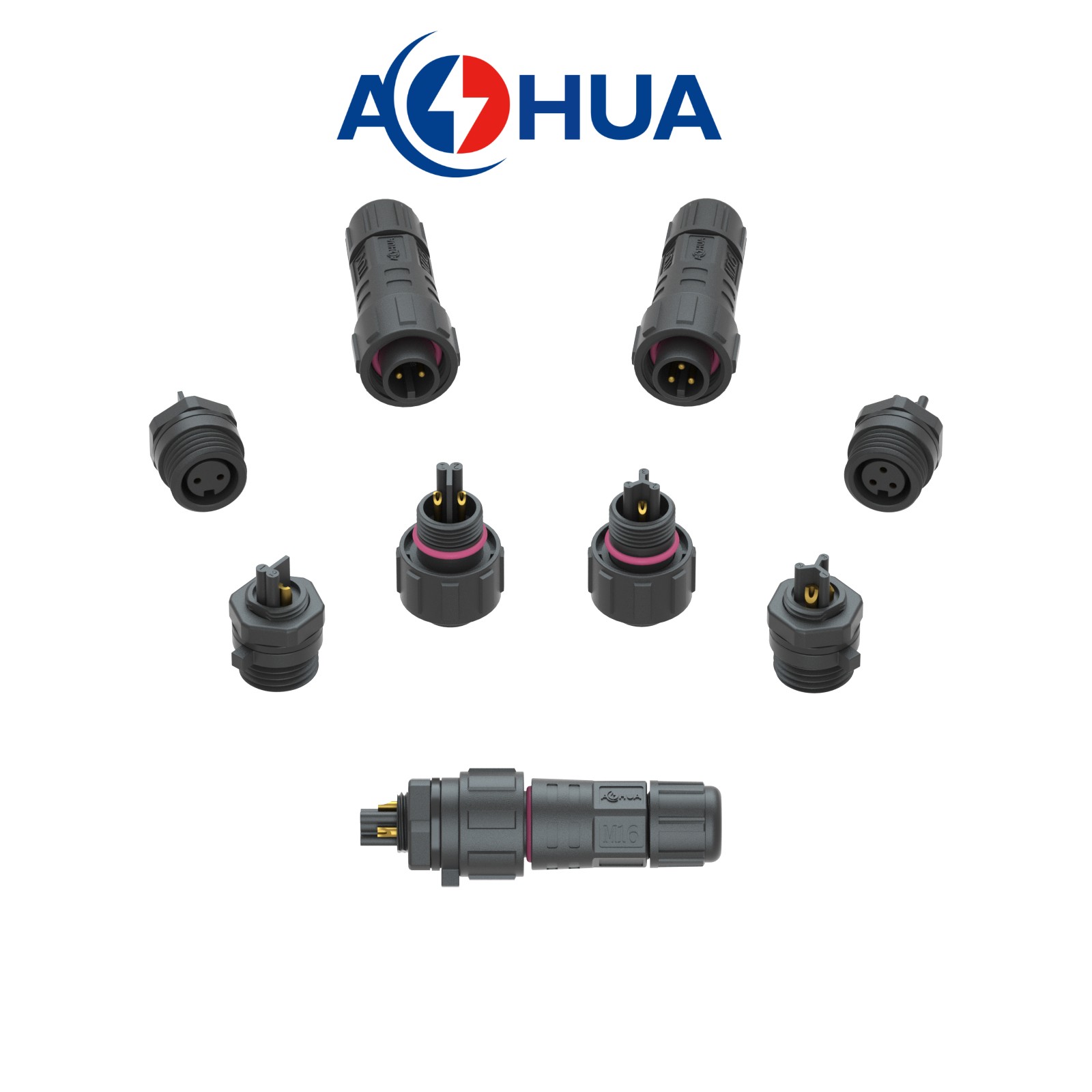

Wire to panel plugs are divided into front male/female panel plug and rear male/female panel plug.


The plug can be used for both cable to cable (in-line) or cable to panel-mount connections.

Each side can be male or female contact. (Plug or socket versions), are available on both cable connector and panel connector.

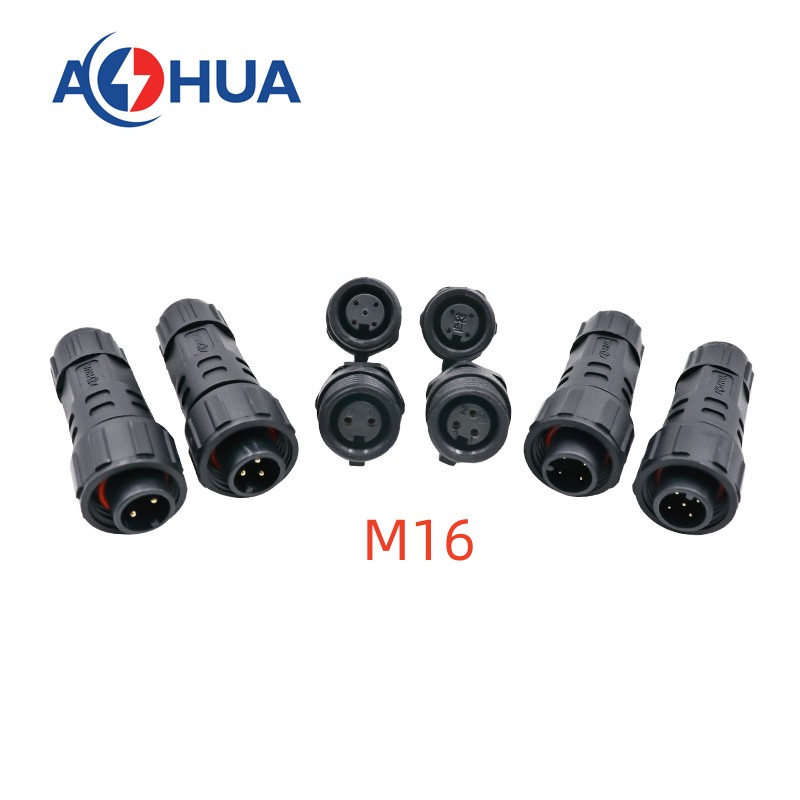

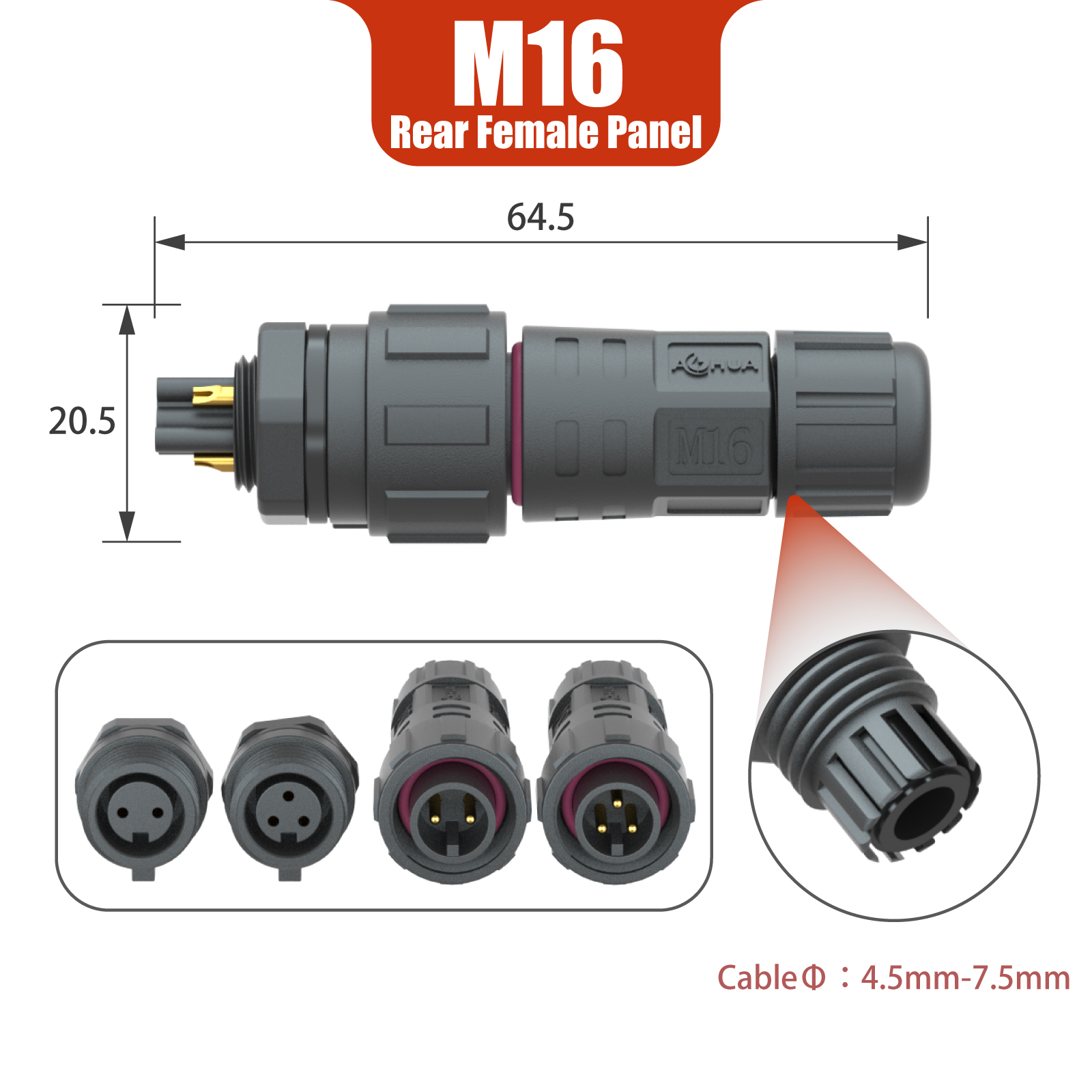

1.M16 plugs is suitable for cable outer diamter(OD) range from 2.6mm-7.5mm;

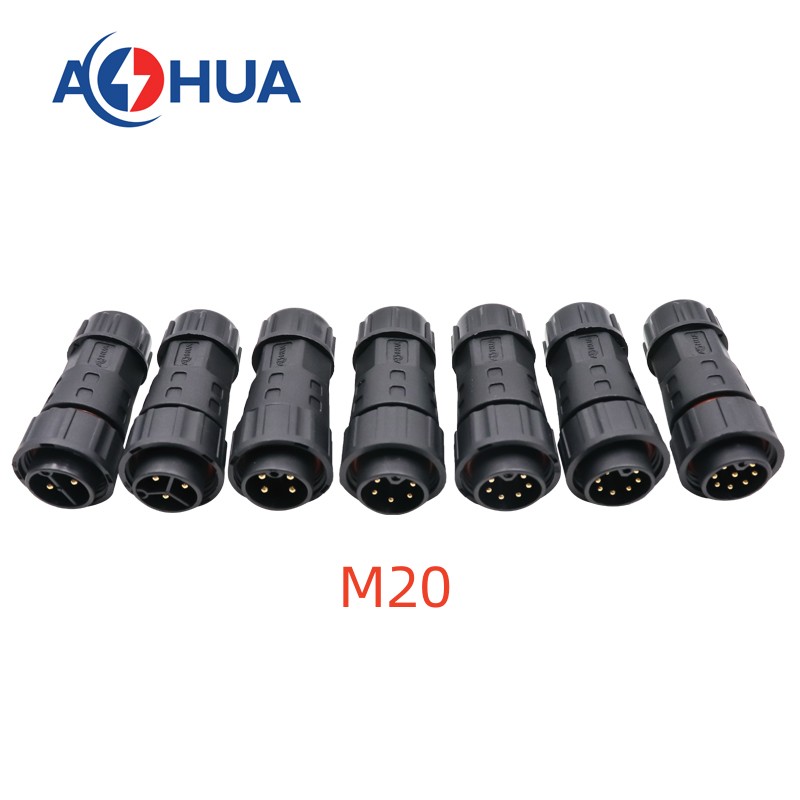

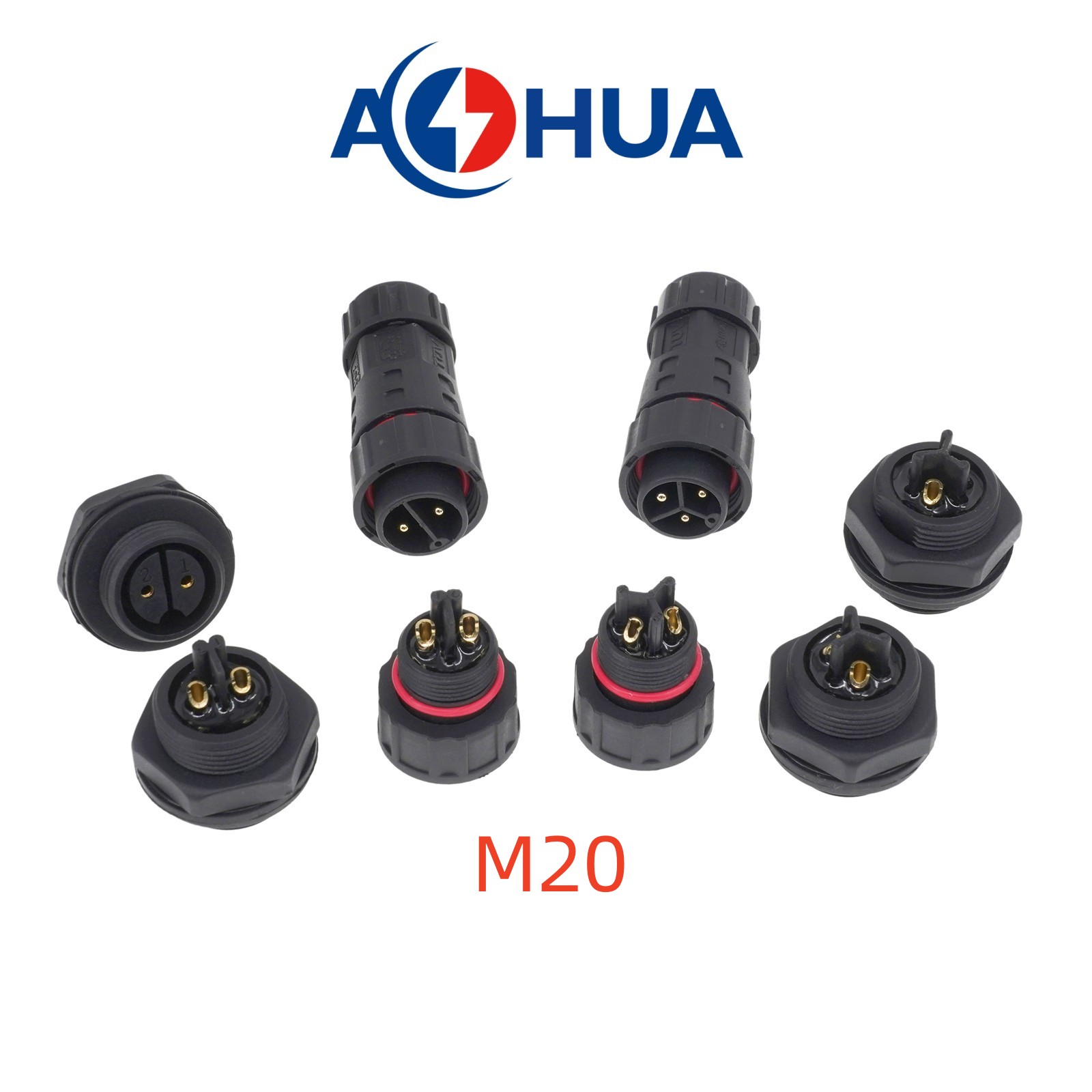

 M20 plug is useful for cable OD range from 5.5mm-10mm.


2.Wire Connecting Way: Solder type.Install easily, use easily, and save time.

Required tool for installation: Tin bar and electric soldering iron.


3.Contact material is made of gold-plated brass, with high conductivity, corrosion resistance, long service life.

Shell Material:Classy Nylon PA66, with strong temperature resistance, corrosion resistance, pressure resistance,

94V0 flame retardant, Non-toxic, environmental protection,etc.the mechanical life is 3000 mating cycles,

The operating rating is -40ºC +105ºC. Waterproof Level is IP67/68.

Seal Ring and O-ring are made of rubber. Excellent waterproof effect, oxidation resistance, corrosion resistance.

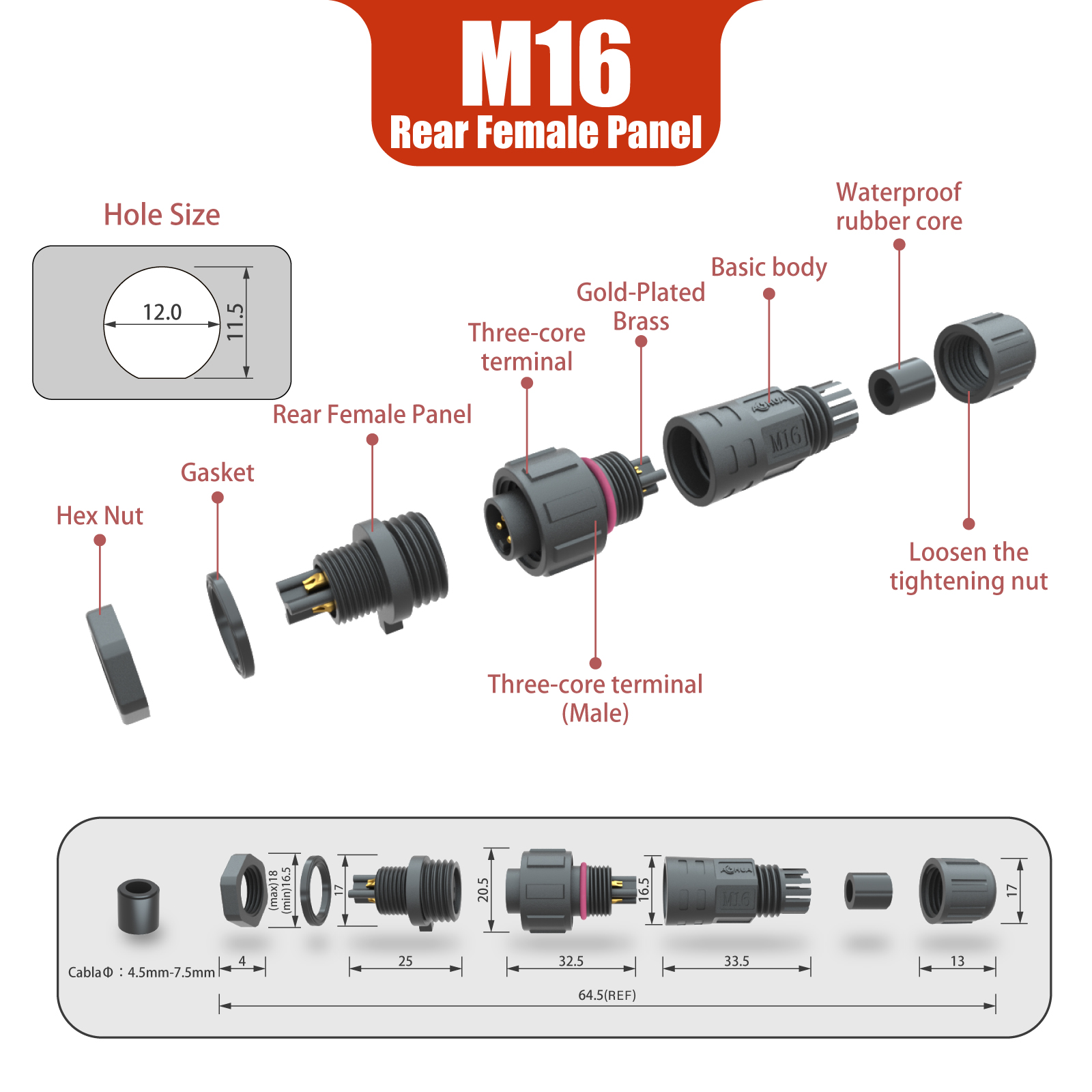

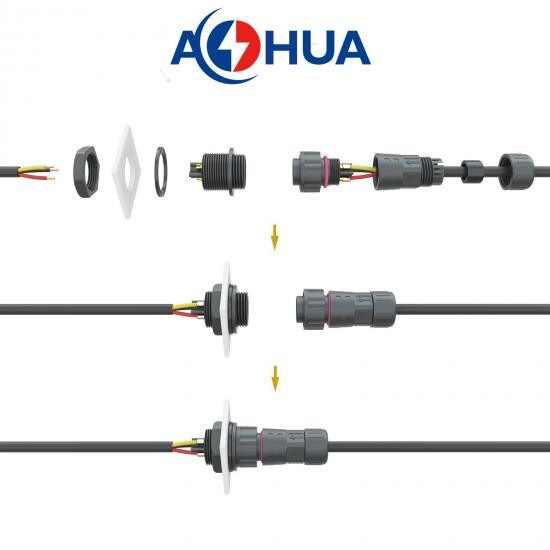

Installation instructions:

Required tool for installation: Tin bar and electric soldering iron.

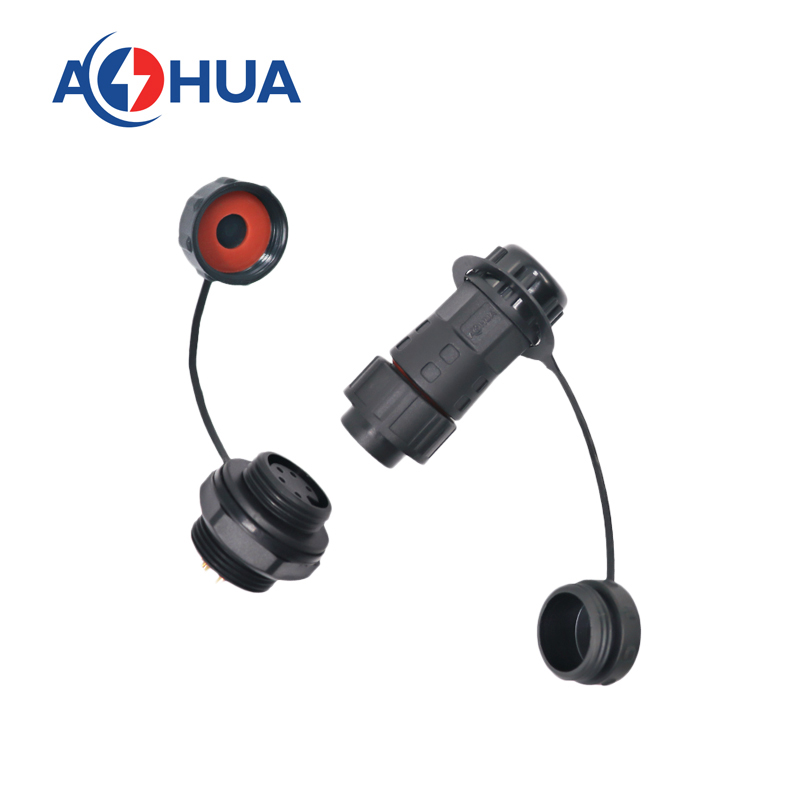

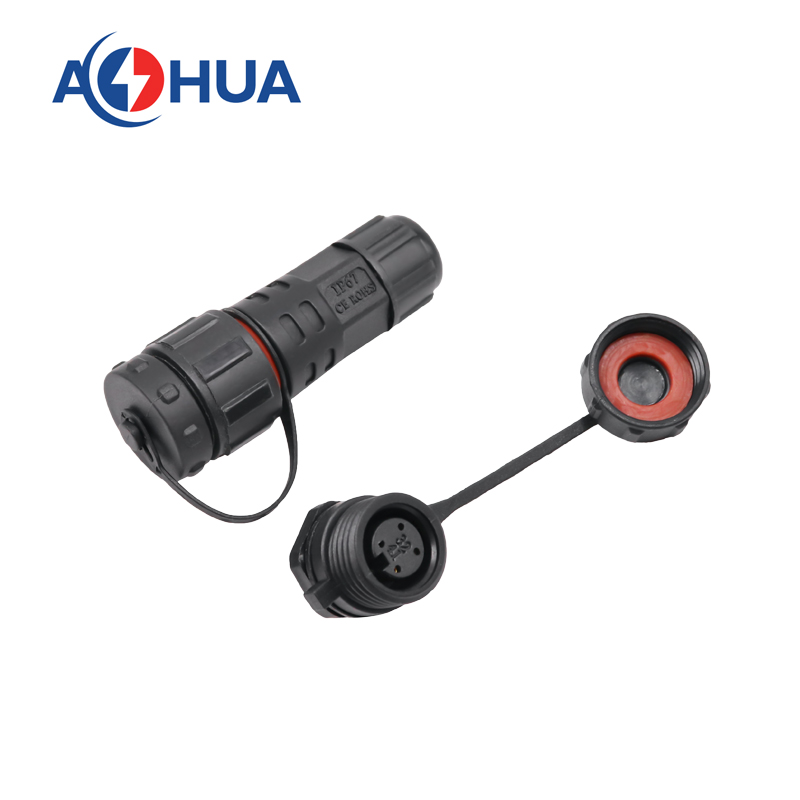

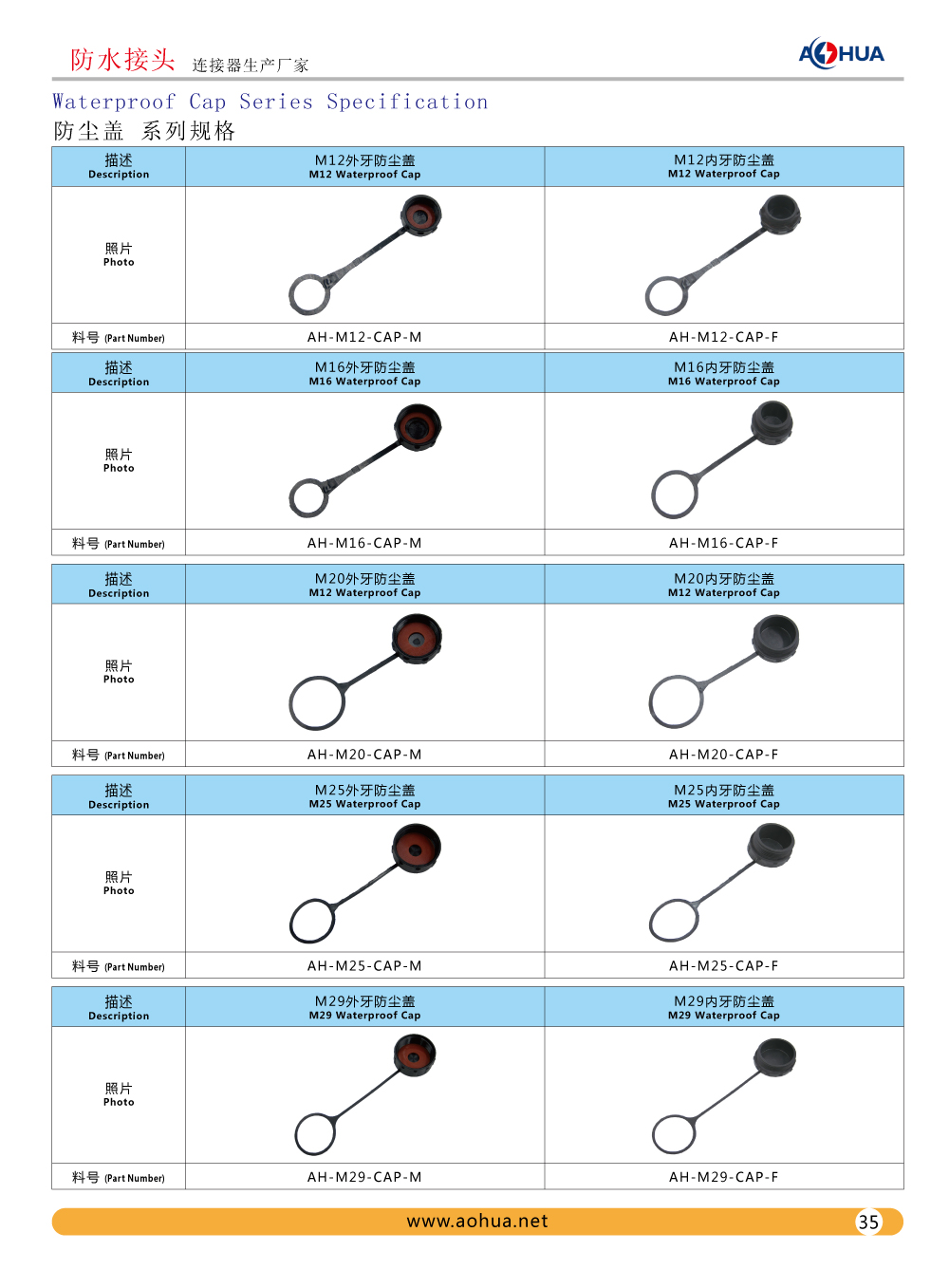

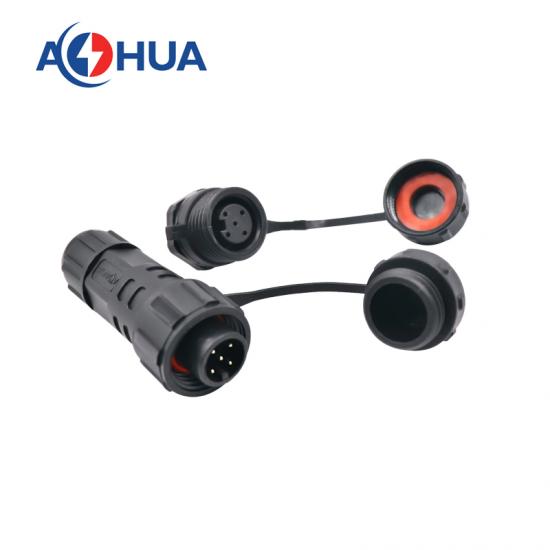

2 styles waterproof cap for your choices.


AOHUA Waterproof Connector Factorypicture of waterproof connector work shopwaterproof connector produce stepwelcome to AOHUA waterproof connector factory






FAQ

1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,and we pay great attention to the quality of products, from material purchase to product delivery, in this whole process, we have several product testing,therefore,we are selected by many domestic and foreign engineering and enterprises.
5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want,if you are not sure.We can give you a solution promptly.
6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.
7.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
8.Q:How to contact with you?
A:Please give me your email,it is the best and the most effective method to keep in touch with each other,and i can provide you with professional solutions in the shortest time.
9.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.
