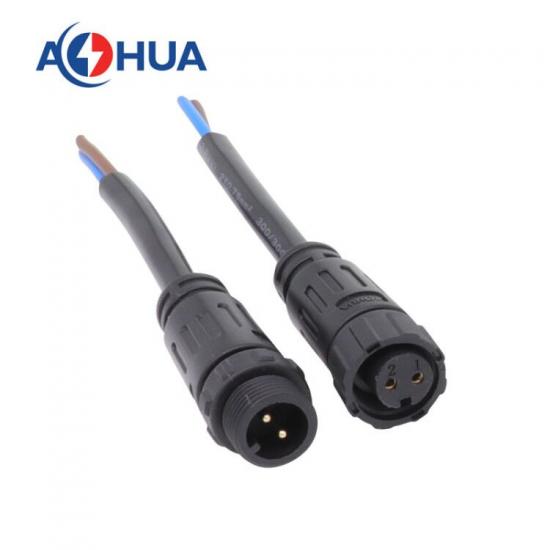

M12/M15/M16/M20 PA66 Wire Waterproof Cable Over Mold Connector for Lighting

m12 ip67 waterproof connector

Item NO.:
M12(Solder Type)
Lead Time:
a week
Product Orgin:
China
Shipping Port:
shenzhen,china
Payment:
TT,PAYPAL
Color:
black
Product Material:
PA66

Inquiry now

products Details

Description & Specs

Items	Pins	Part Number	Voltage Rating	Current Rating	Wire Gauge	Cable OD
M12	2	AH-M12-0502FMN/MFN01112	300V	5A	≤1.0mm²	3.5mm-7.5mm
M12	3	AH-M12-0503FMN/MFN01112	300V	5A	≤0.75mm²	3.5mm-7.5mm
M15	2	AH-M15-0802FMN/MFN01112	300V	8A	≤1.5mm²	3.5mm-8.9mm
M15	3	AH-M15-0803FMN/MFN01112	300V	8A	≤1.5mm²	3.5mm-8.9mm
M16	2	AH-M16-1002FMN/MFN01112	300V	10A	≤1.0mm²	6.0mm-8.3mm
M16	3	AH-M16-1003FMN/MFN01112	300V	10A	≤1.0mm²	6.0mm-8.3mm
M20	2	AH-M20-1502MMN/FFN01112	300V	15A	≤4.0mm²	6mm-12mm
M20	3	AH-M20-1503MMN/FFN01112	300V	15A	≤2.5mm²	6mm-12mm

Mechanical Life	3000 mating cycles
Operating Rating	-40ºC-+105ºC
Waterproof Level	IP67/IP68

Before get the quotation, please tell us the connection of waterproof connector.

(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...

Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.

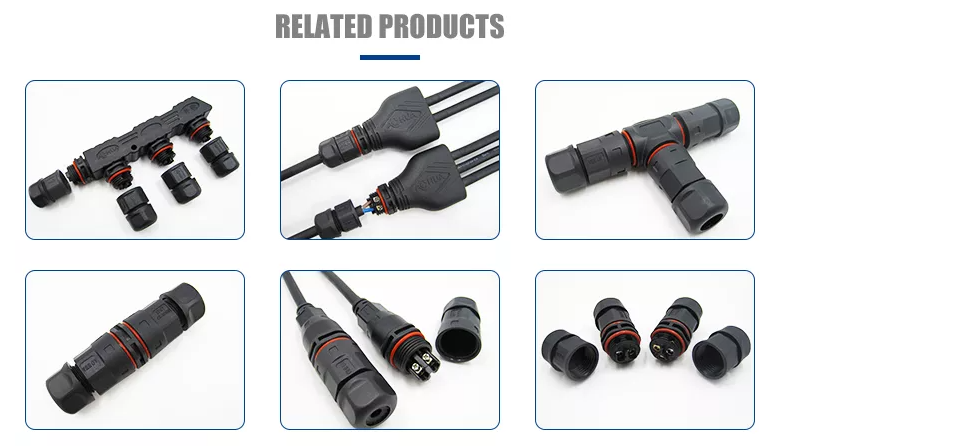

Related Products

Our Advantages

Application

Advantages:

1. Over mold connector M12: male panel connector to female inline connector

2.Quality Assurance:IP67 advanced protetion,operating temperature:-40°C-+105°C.

3.Easy Install: The installation process is very simple.

4.Material: nylon connector with PVC or rubber cable; Gold plated brass

5.High-Quality Materials: The Outdoor connector all are made high quality Nylon PA66,high temperature resistant,94V-0 flame retardant.

6.2, 3, 4, 5, 6, 7, 8 pin for choices.
2,3 pin passed UL,CE,RoHS certificate.

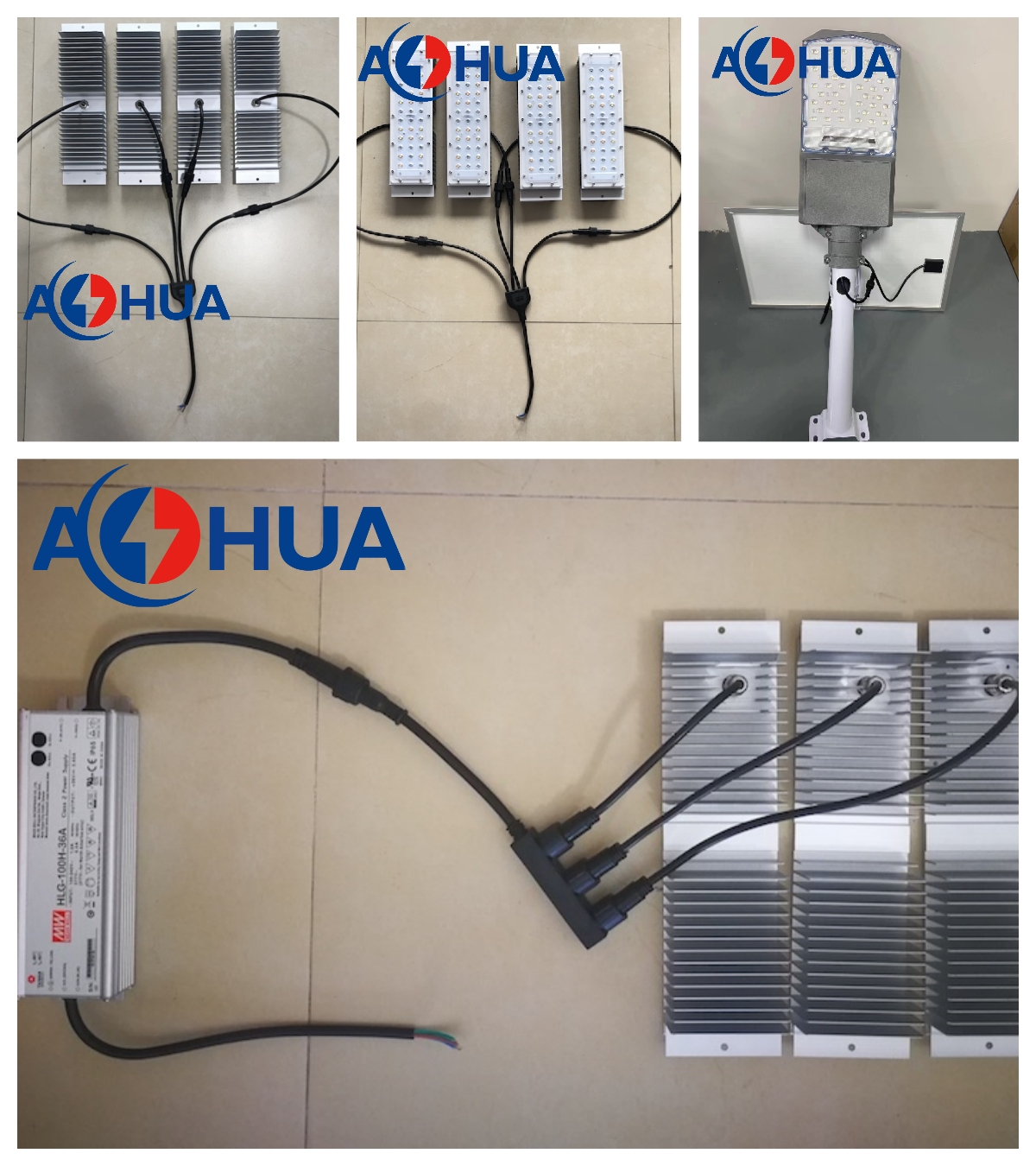

7.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Futher application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.

Certification:	CE IP67 ROHS certification
Packing:	4 per pack(Comes with 2 sets of different sized grommets to accommodate different size wires.)
Cable Range:	5.5-7.5mm/7.5-9.5mm(If you use a cable which is too thin,then the seal won't even cover IP67!!)
Waterproof rating:	IP67/IP68 adcanced waterproof connector
Rated voltage:	≤300V
Rated current:	≤5A
Working Temperature:	-40°C~+150°C
Materal:	palstic(nylon),seal ring(silicon)
Color:	Black
Connection method:	The screw plug is easy to install,male and female can be separated and easy to install.
Scope of application:	connectors are suitable for quick connection of garden and outdoor dispalys,floof heating,beacons,cruise ships,LED billboards,LED tunnel lights,LED street lights,external wiring,ect.
Useage:	Twist the port of the waterproof connector,insert the wire directly,tighten the screw with a screwdriver to secure the wire,and the close the cap, Please make sure connect the wire corrent.
Note :	when finished,check that all nuts are tight.
