Application
L Assembly waterproof connector is suitable for indoor/outdoor,such as outdoor led lighting, LED panel screens, outdoor security cameras,solar energy inverter, medical device, communications, marine equipment ,control systems, measuring equipment and testing equipment, for data and power and so on.
Related Products

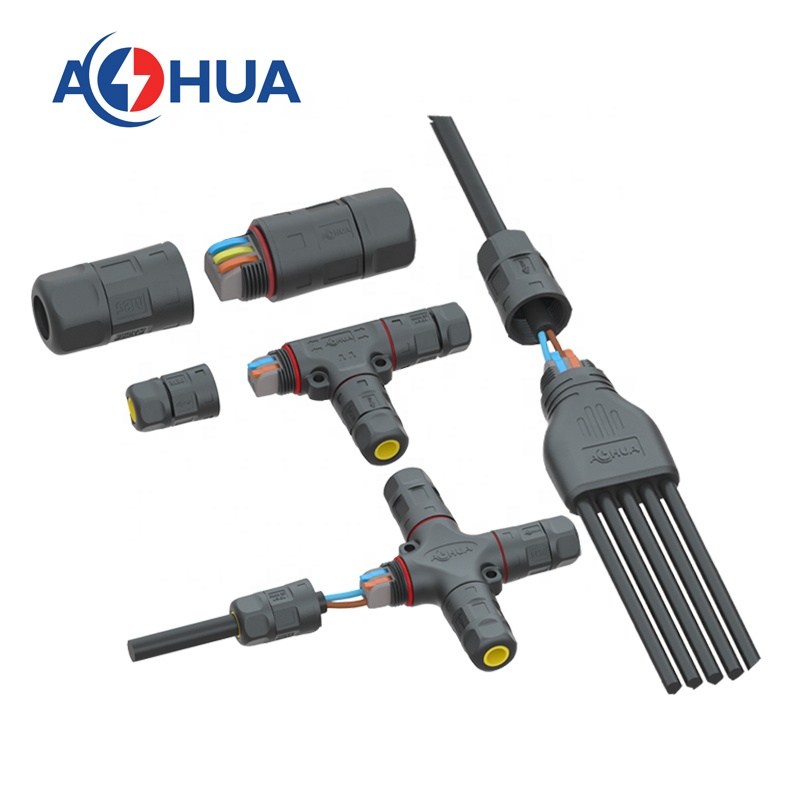

L Assembly Screw Fixing type M15 M16 M20 M23 Quick Lock Series M21M25 No gender waterproof connector
Tips:

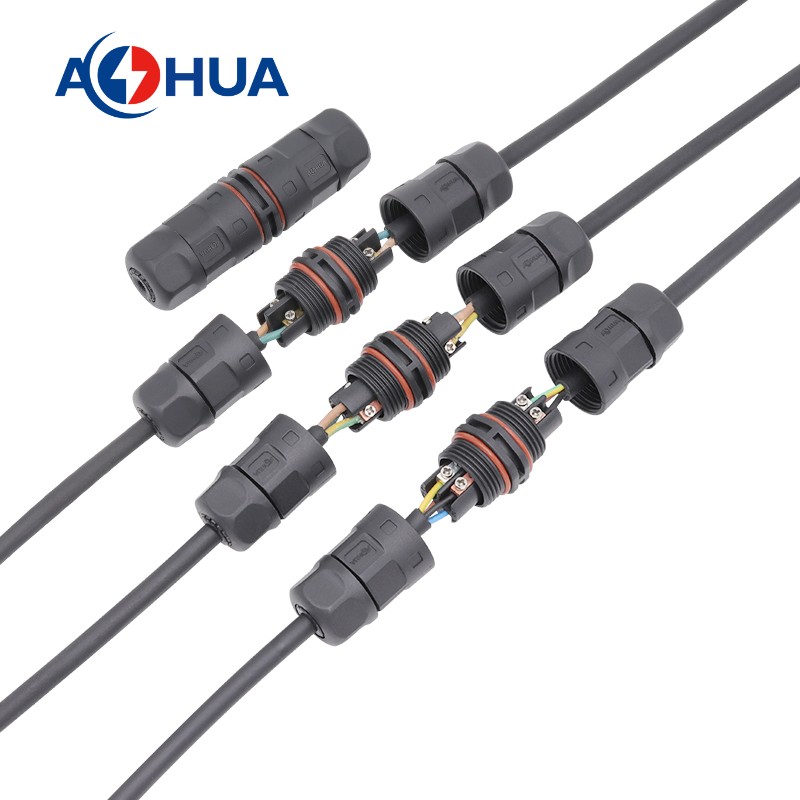

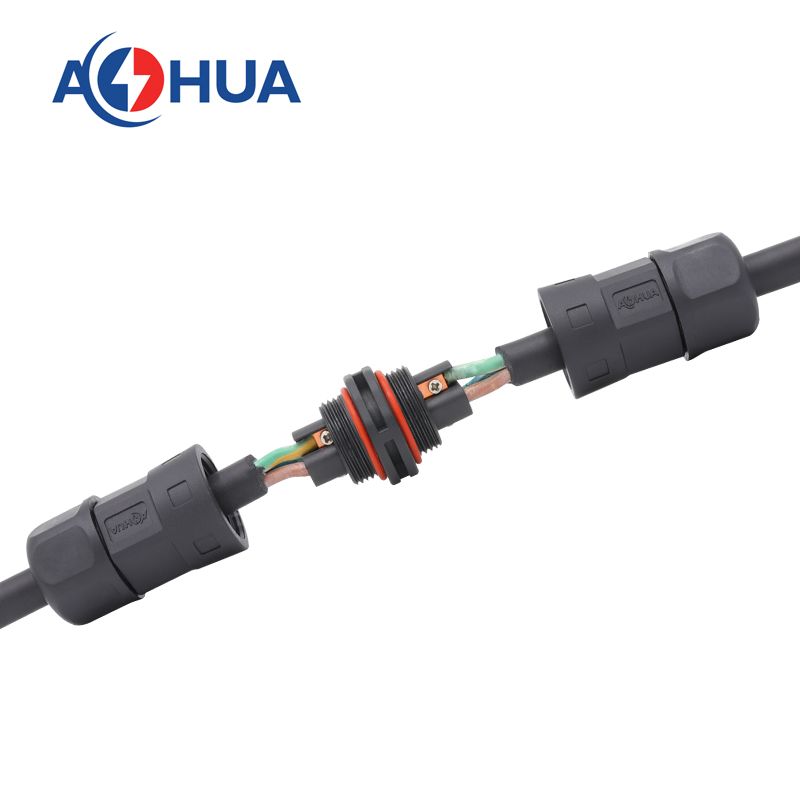

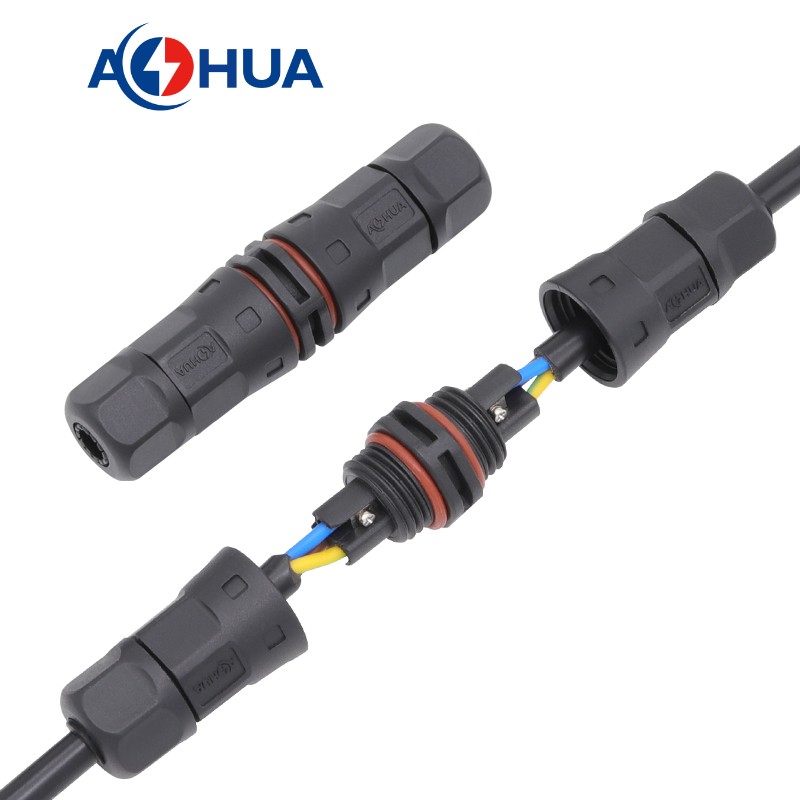

The connectors can be used for both cable to cable (in-line) or cable to devices connections.

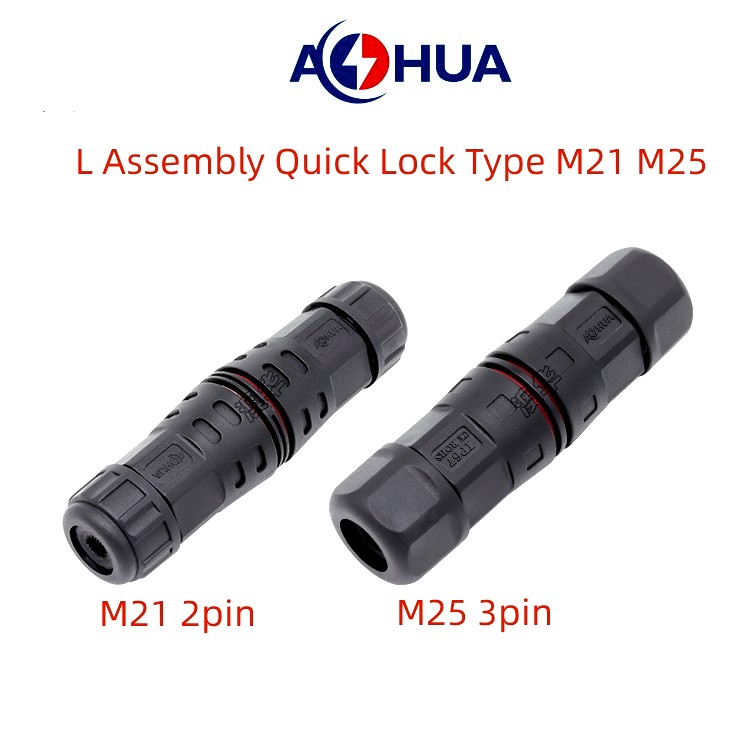

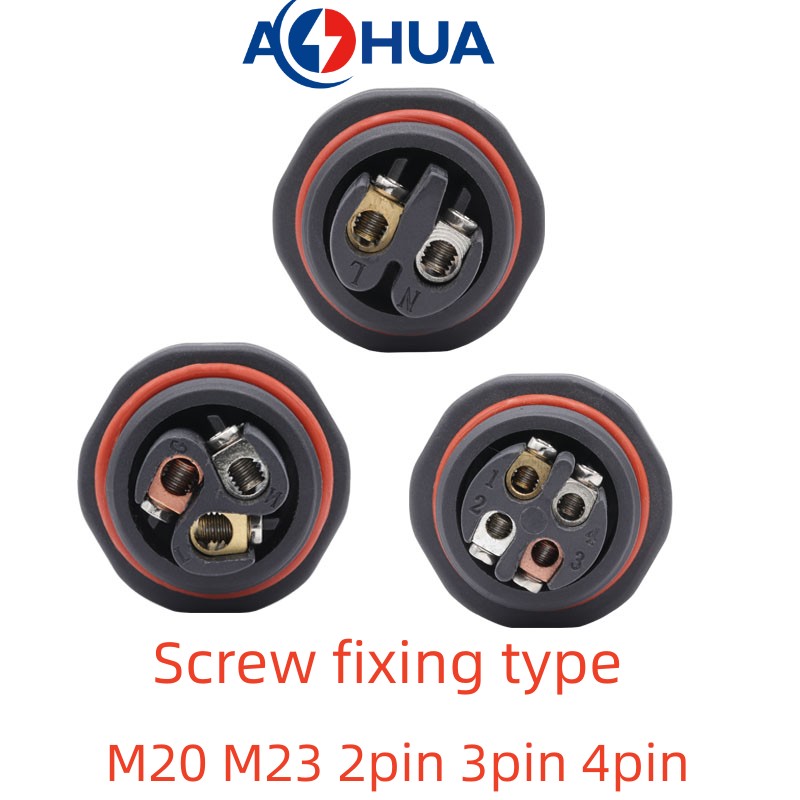

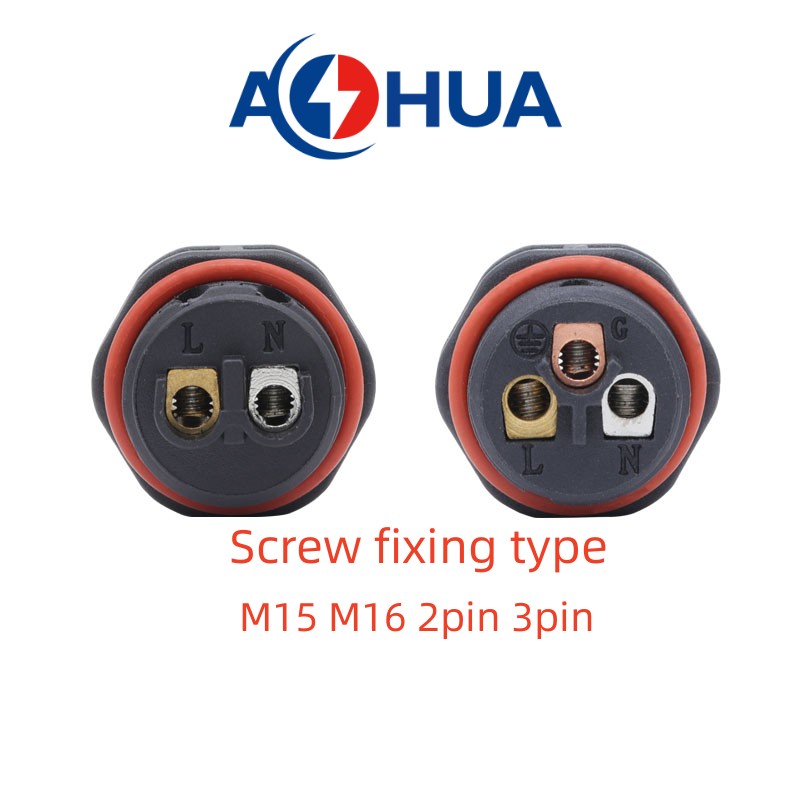

1.L Type Series waterproof connectors including M15 M16 2pin 3pin for choices.M20 and M23 2pin 3 pin 4pin you can choose from.Quick Lock Series M21 and M25 are olny 2 pin.

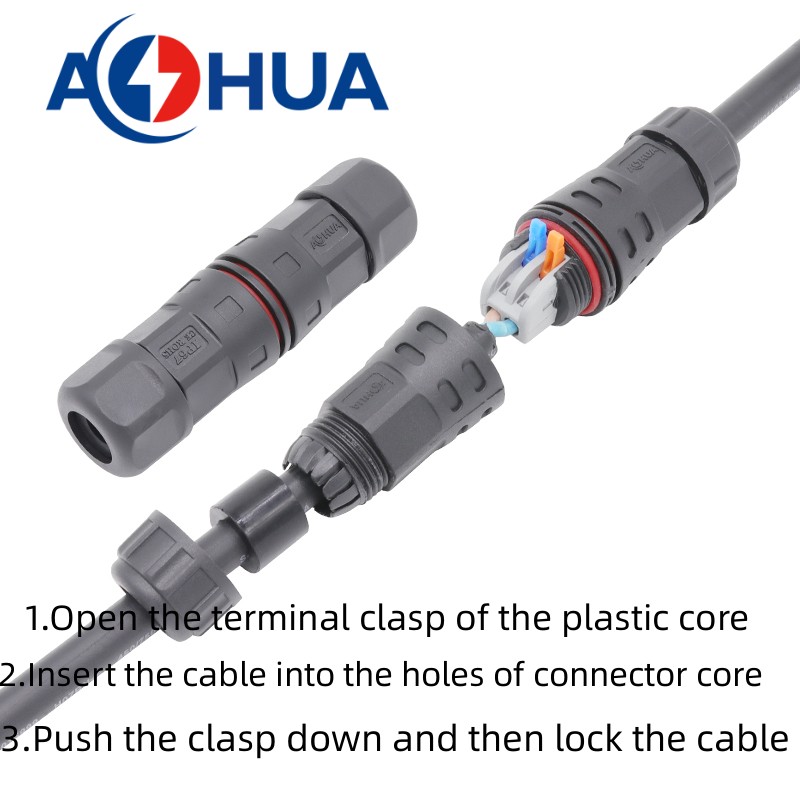

2.Connection methods:Screw fixing type and Quick lock type. Install easily, use easily, and save time.Screw fixing type installation :Only need a screwdriver.Quick lock type:no need any tools,can install by hand.

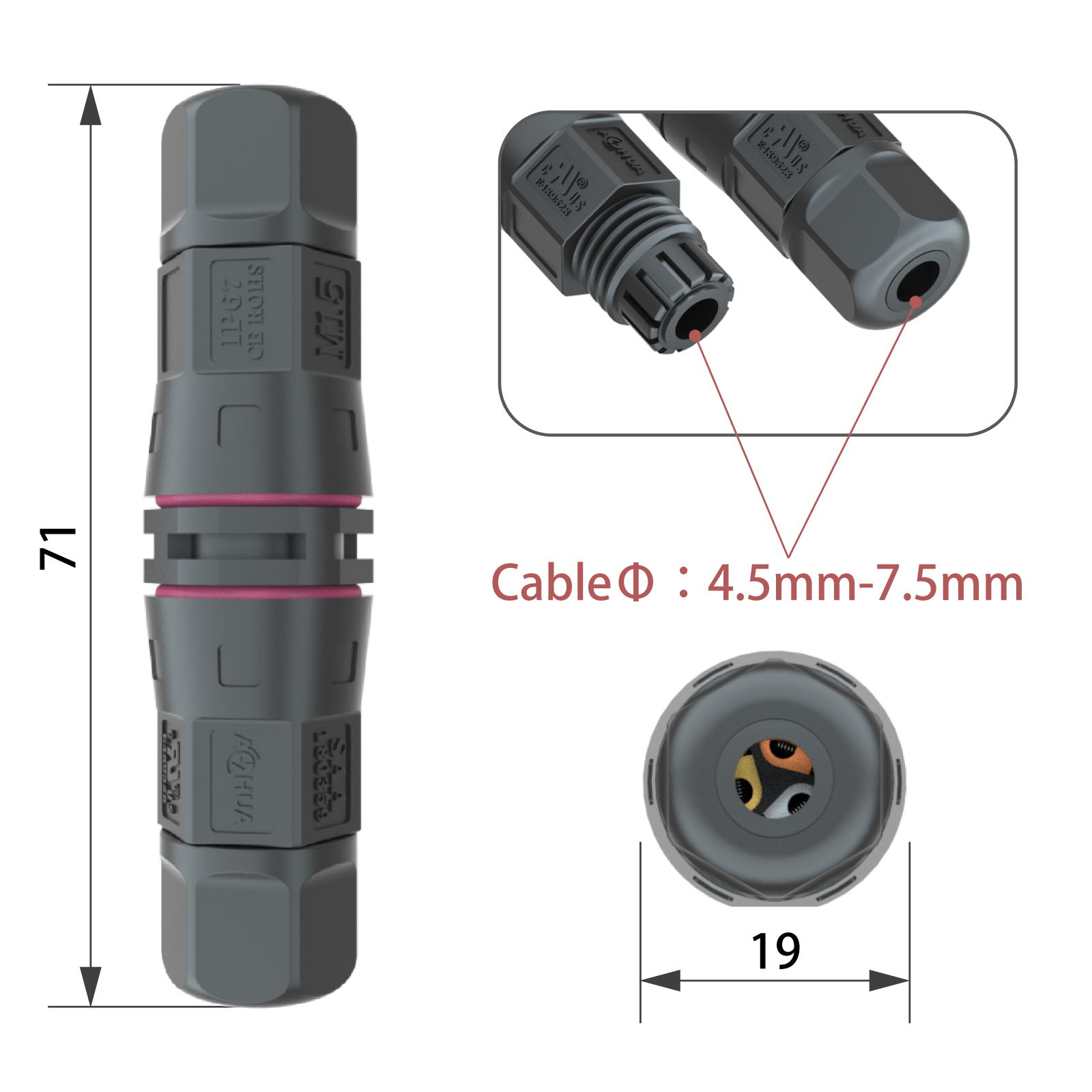

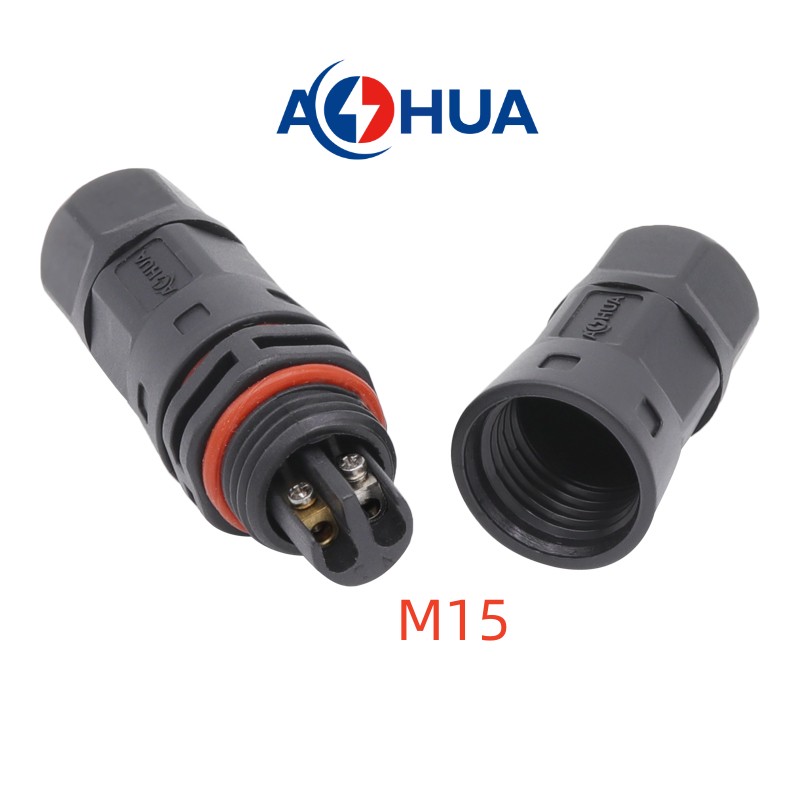

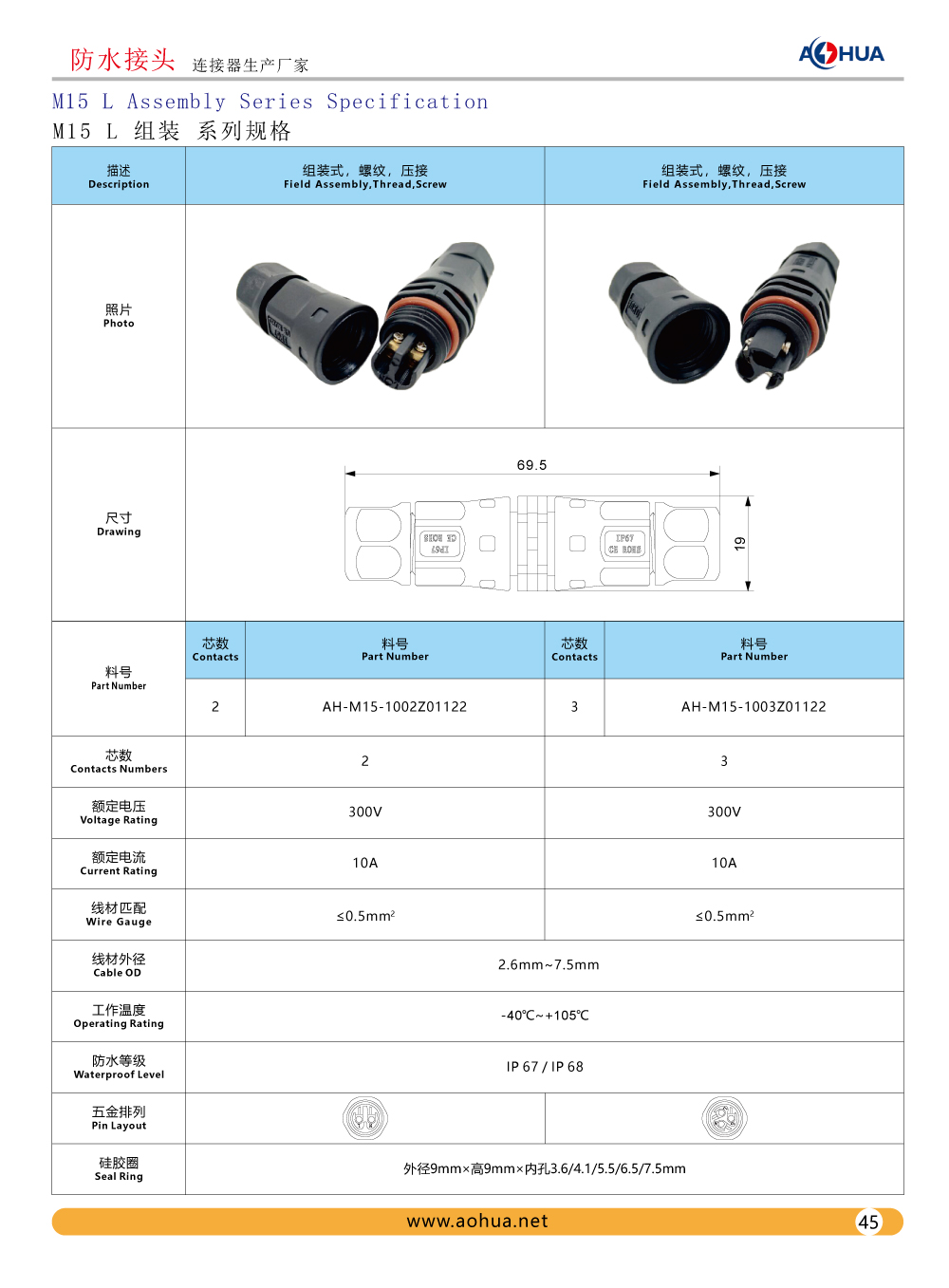

3.M15 cable outer diameter range is from 2.6mm to 7.5mm.
The Wire gauge range is ≤0.5mm².

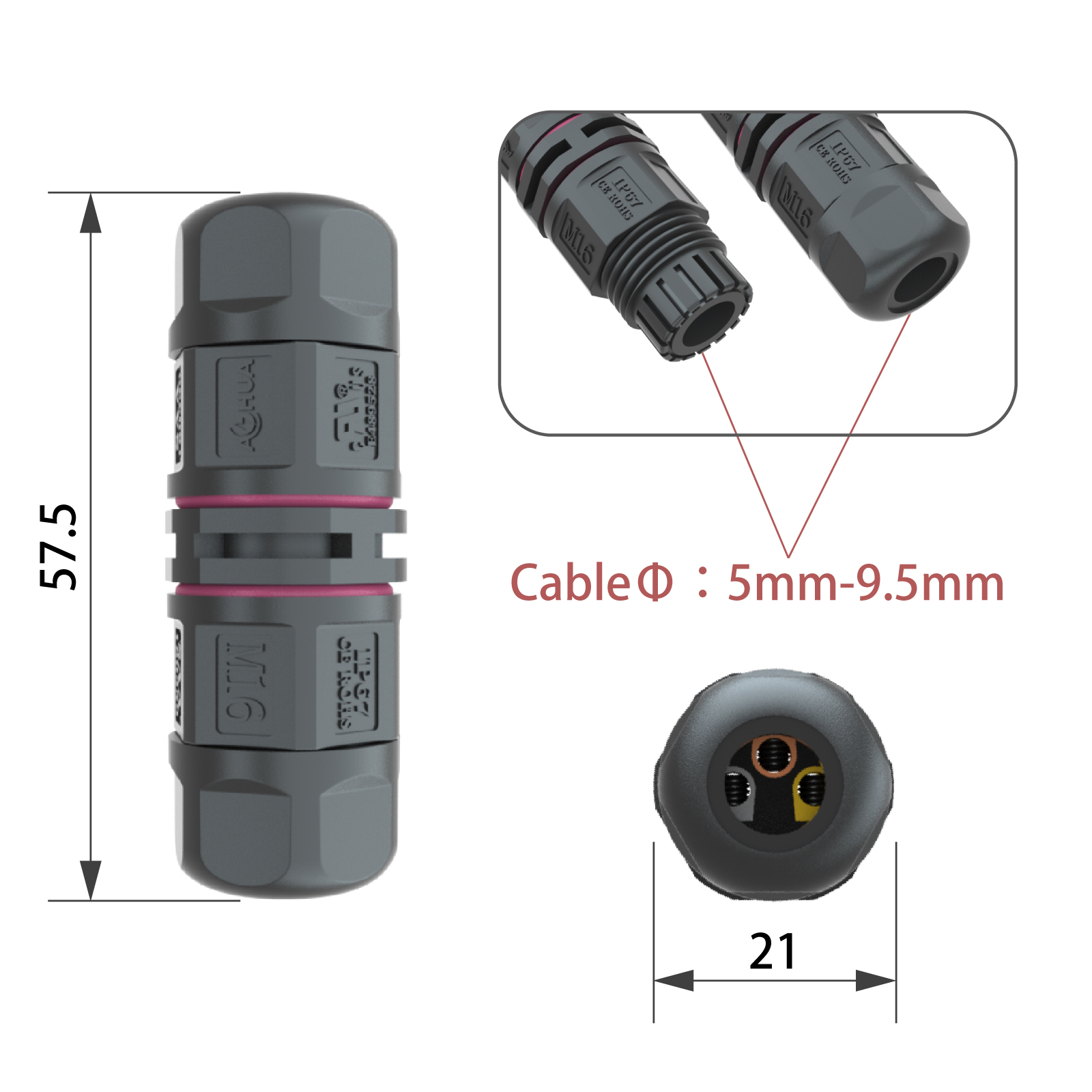

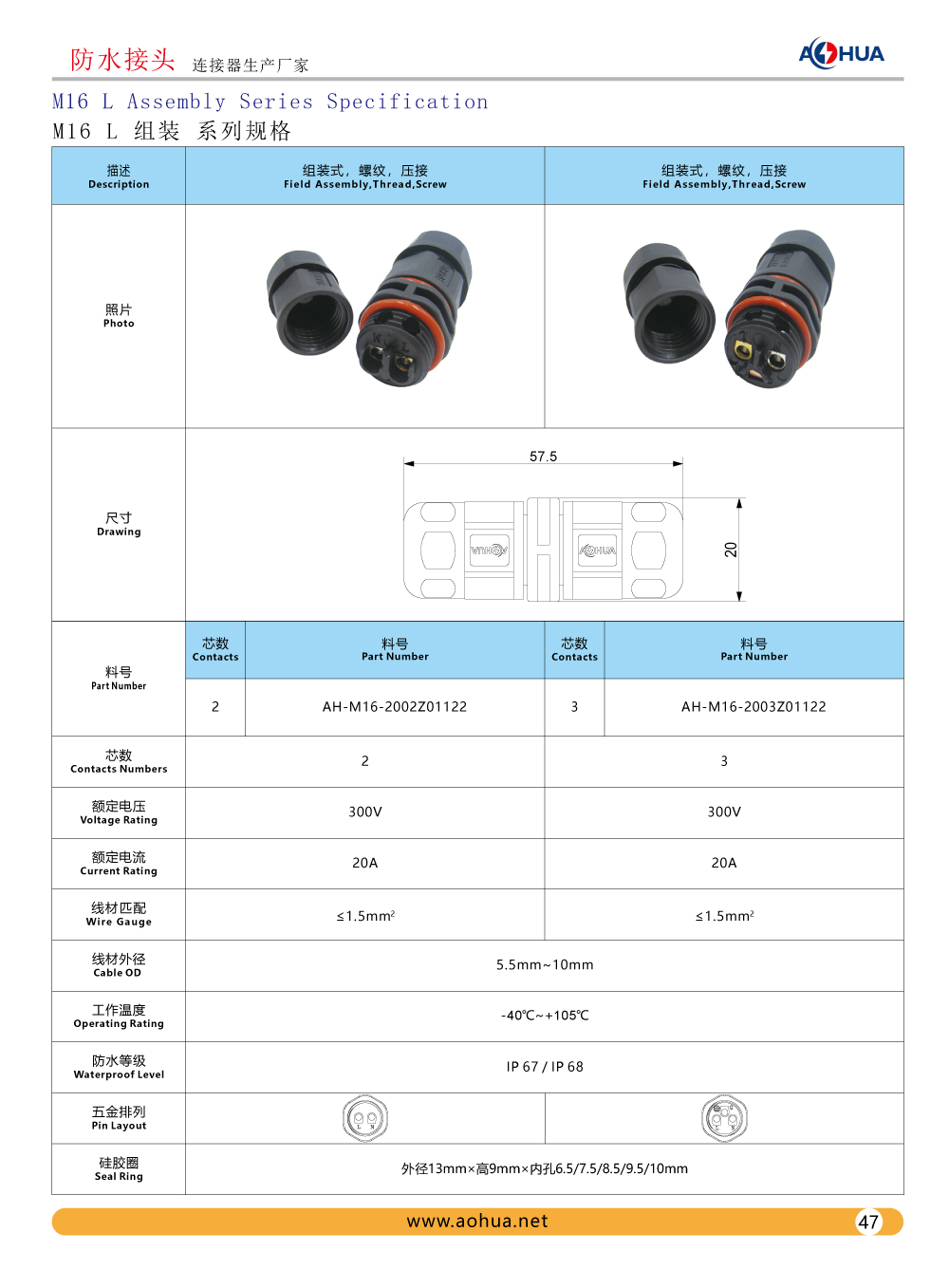

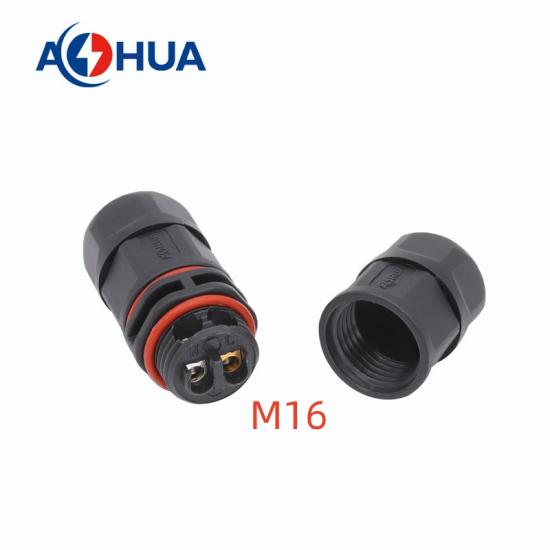

M16 cable outer diameter range are from 5.5mm to 10mm.
The Wire gauge range is ≤1.5mm².

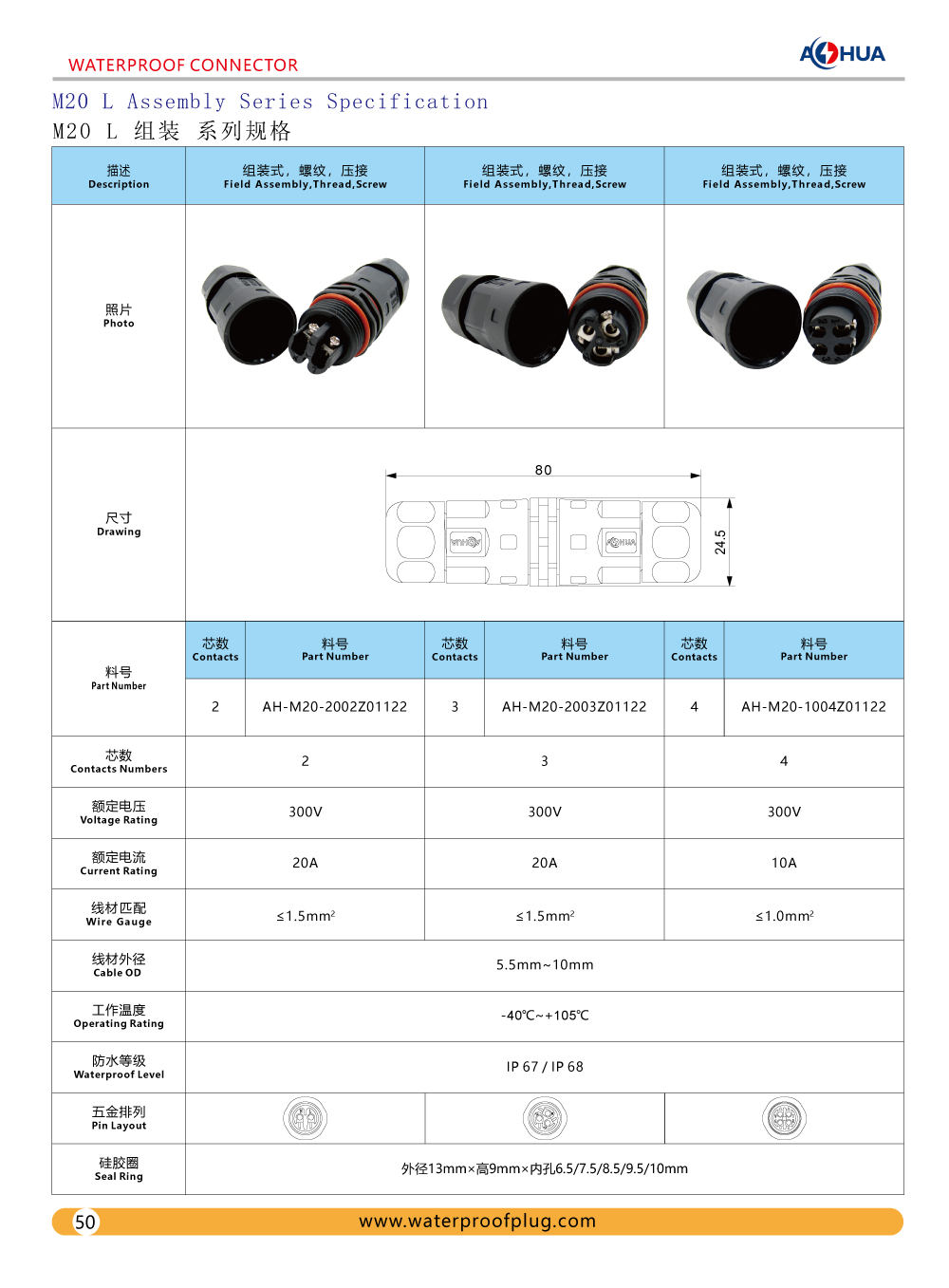

M20 cable outer diameter range are from 5.5mm to 10mm.
The Wire gauge range is ≤1.5mm²,

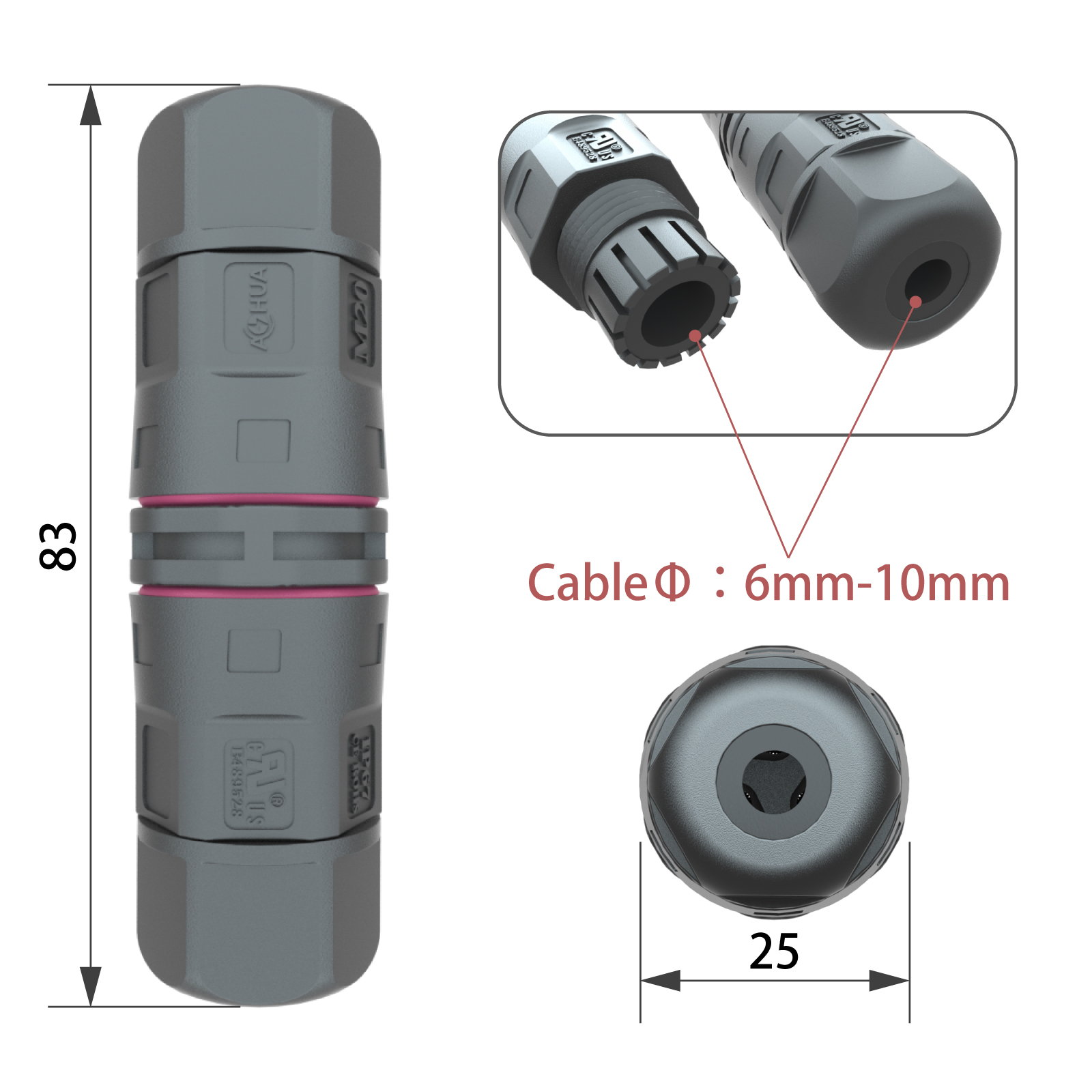

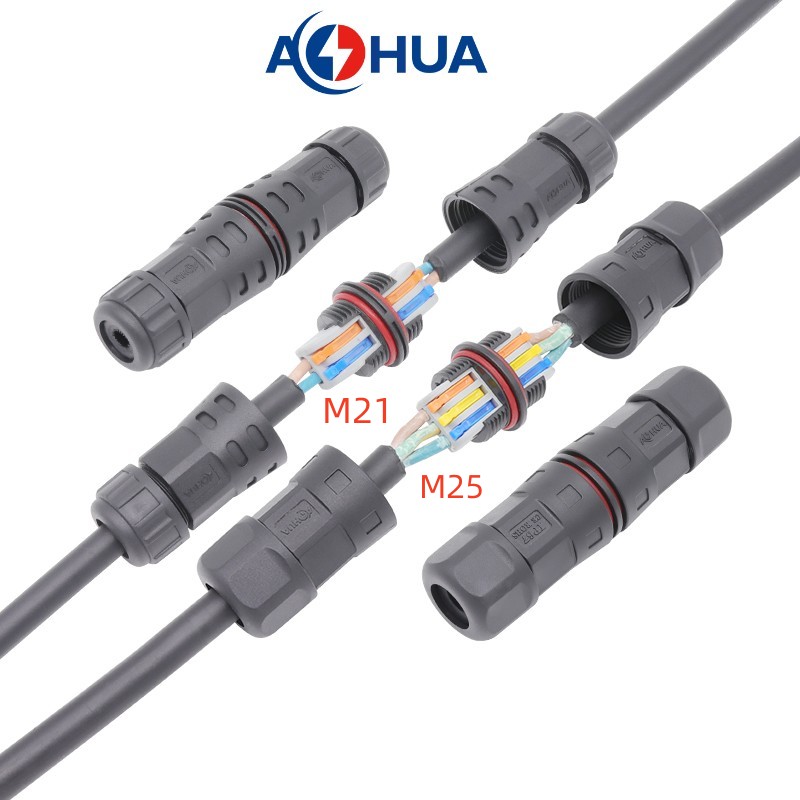

M21 cable OD range is from 6mm~13mm.
The wire gauge is ≤2.5mm².

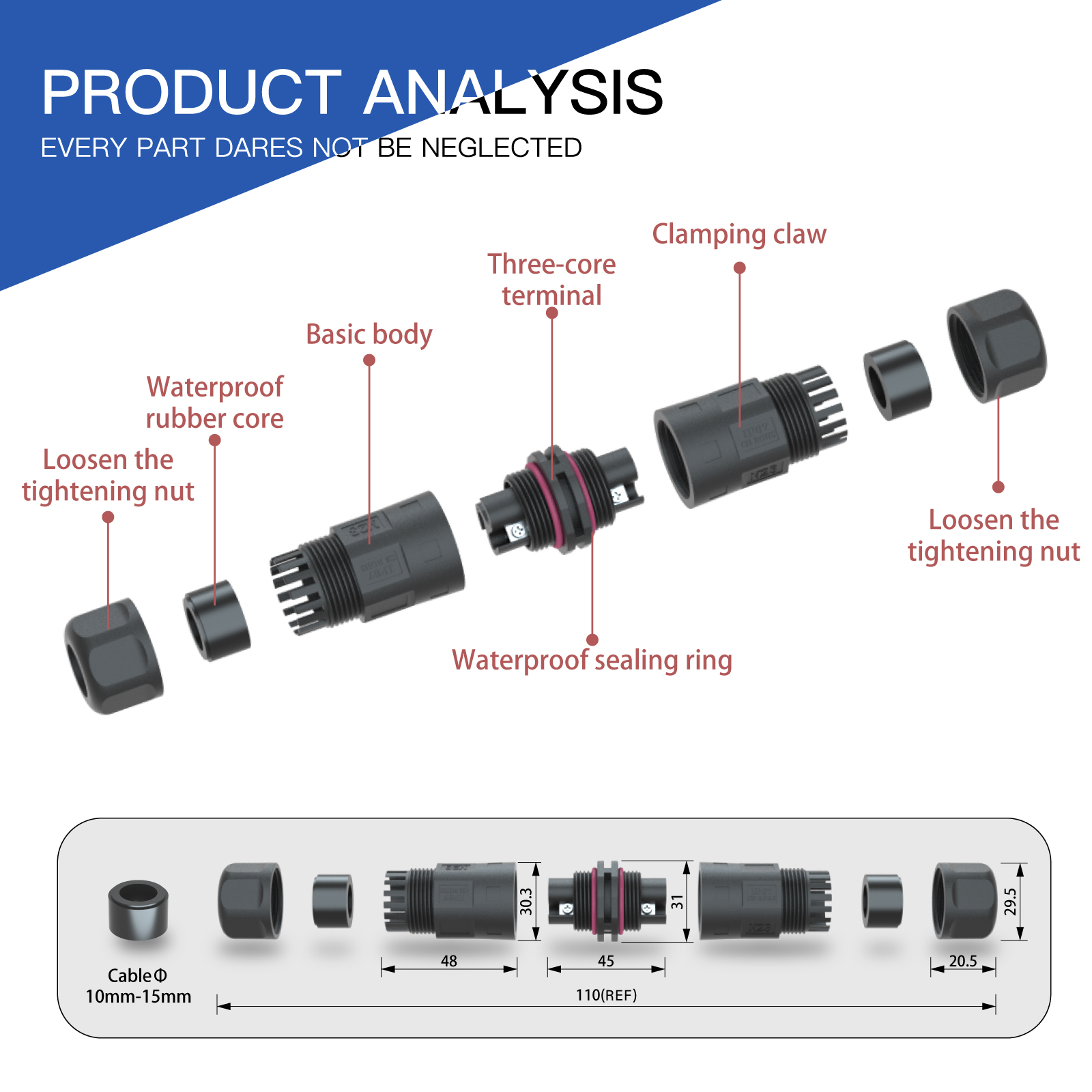

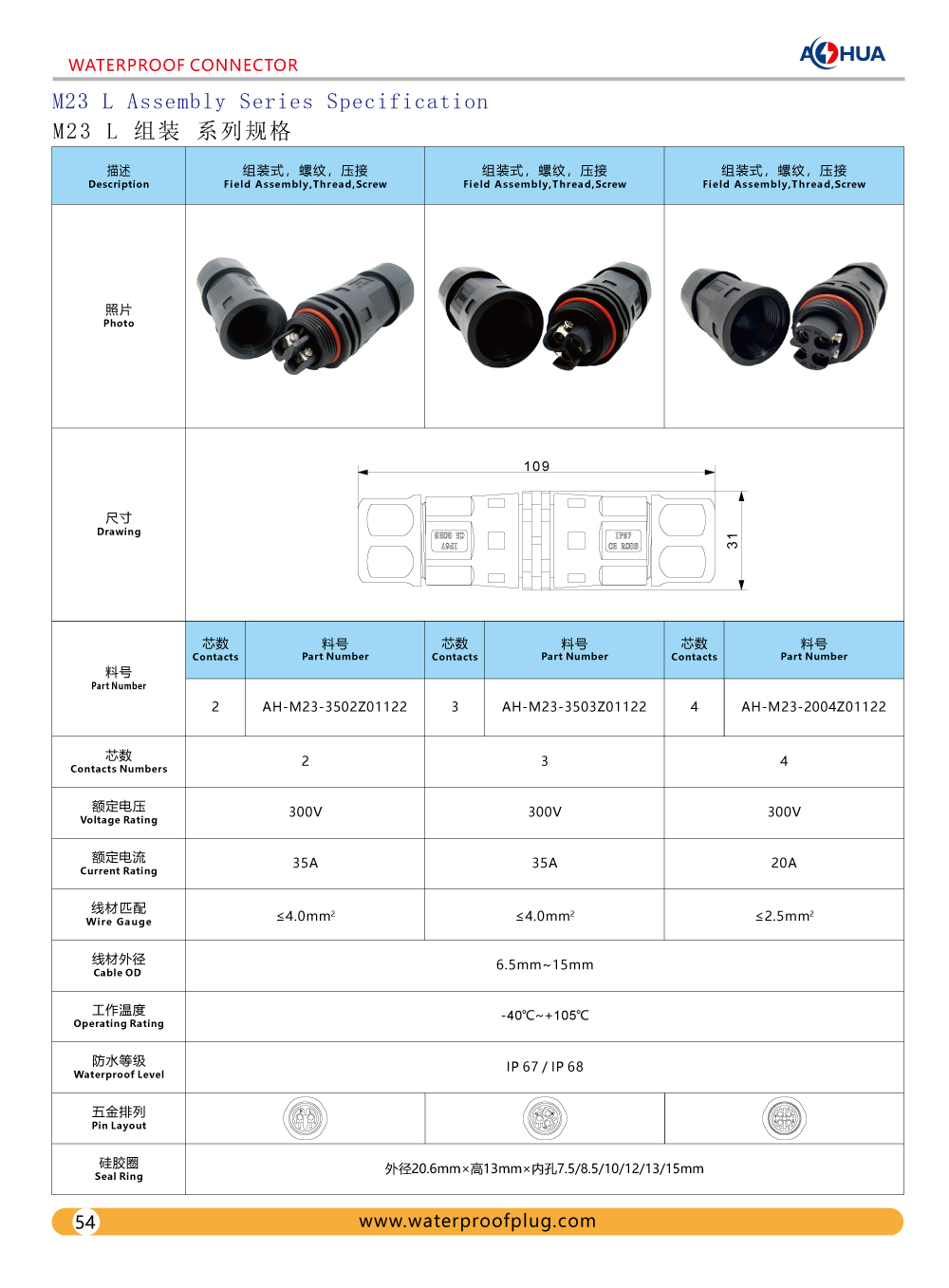

M23 cable outer diameter range is 6.5mm-15mm.
The Wire gauge range is ≤4.0mm².

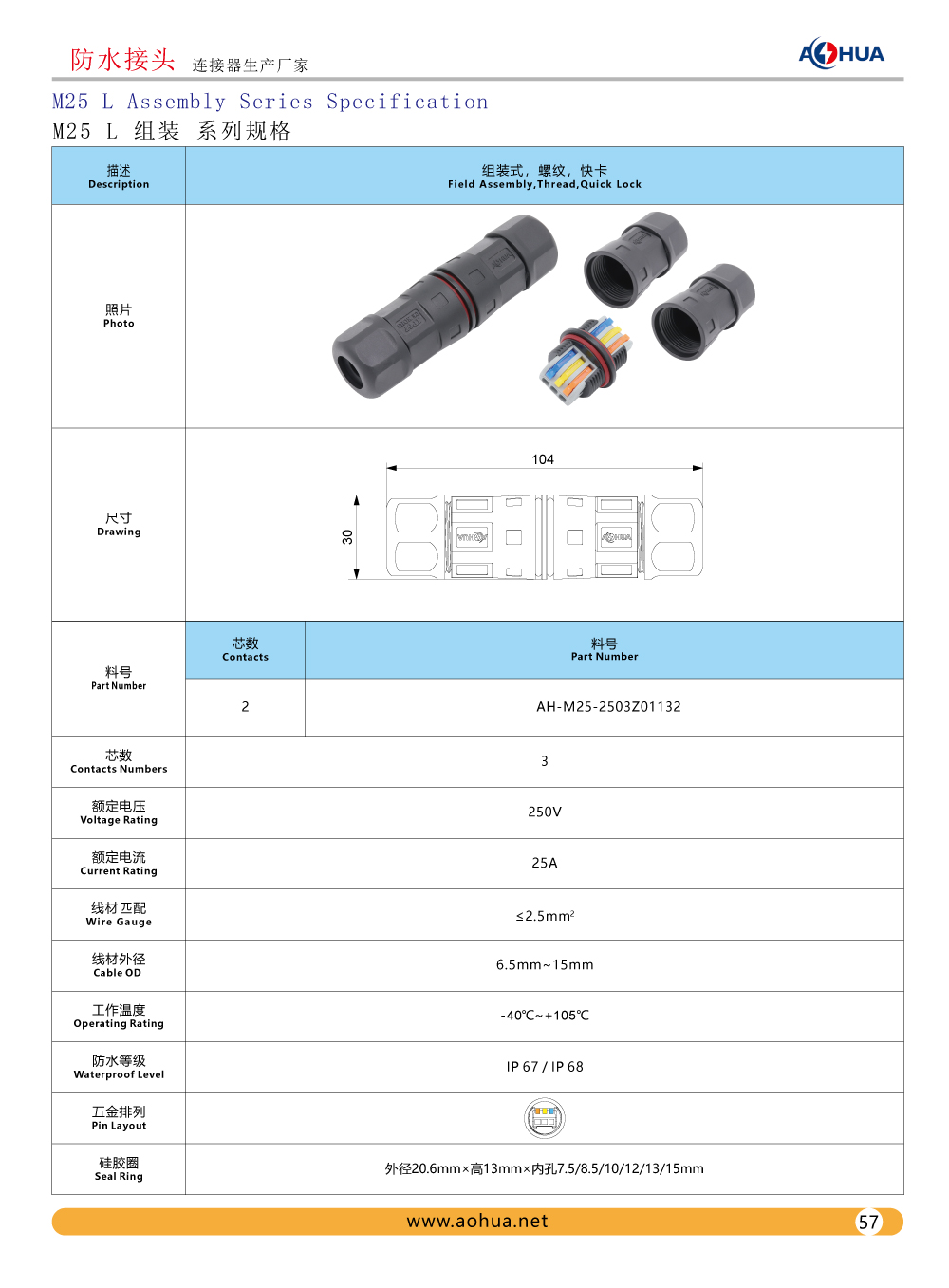

M25 cable OD range is from 6.5mm~15mm.
The Wire gauge range is ≤2.5mm².
4.Shell Material:Classy Nylon PA66, with strong temperature resistance,corrosion resistance, pressure resistance,94V0 flame retardant, Non-toxic, environmental protection.
Contact material is made with nickle plated brass,beatiful and durable,with high conductivity,corrosion resistance, long service life.
Seal Ring and O-ring are made of rubber. Excellent waterproof effect, oxidation resist.
5. The operating rating is -40ºC ~ +105ºC,Waterproof rate is IP67/68.

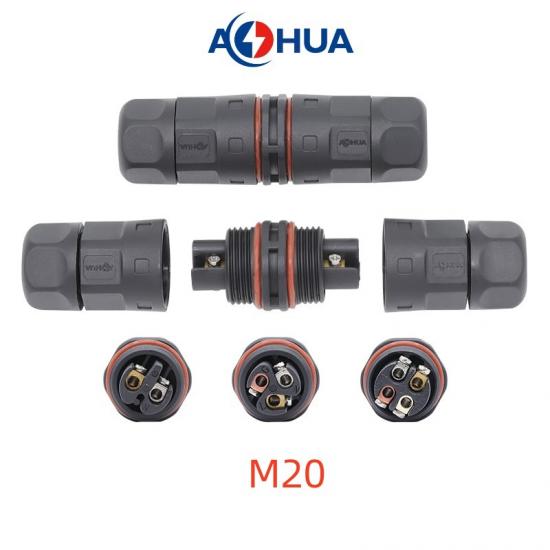

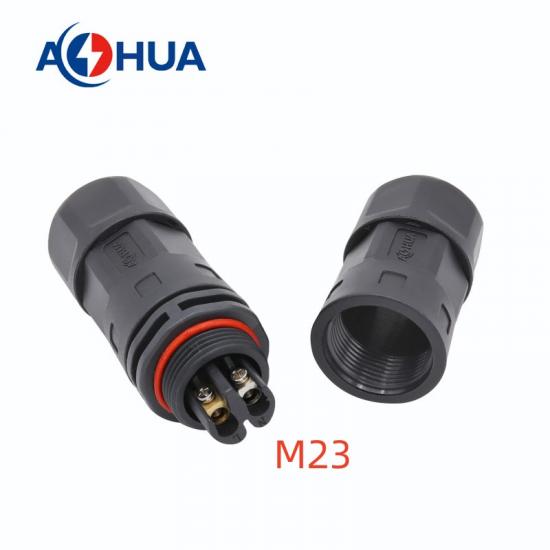

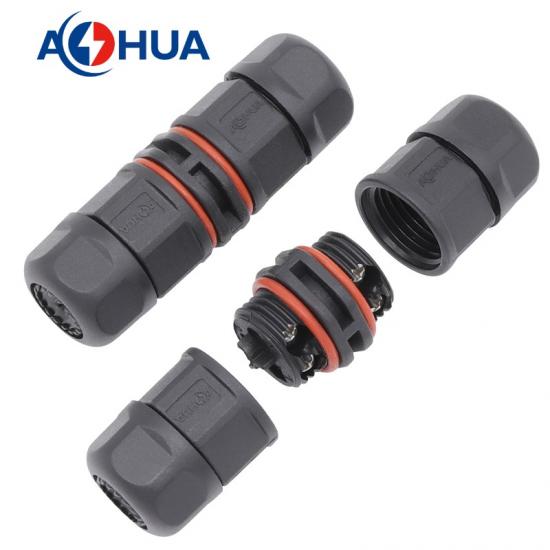

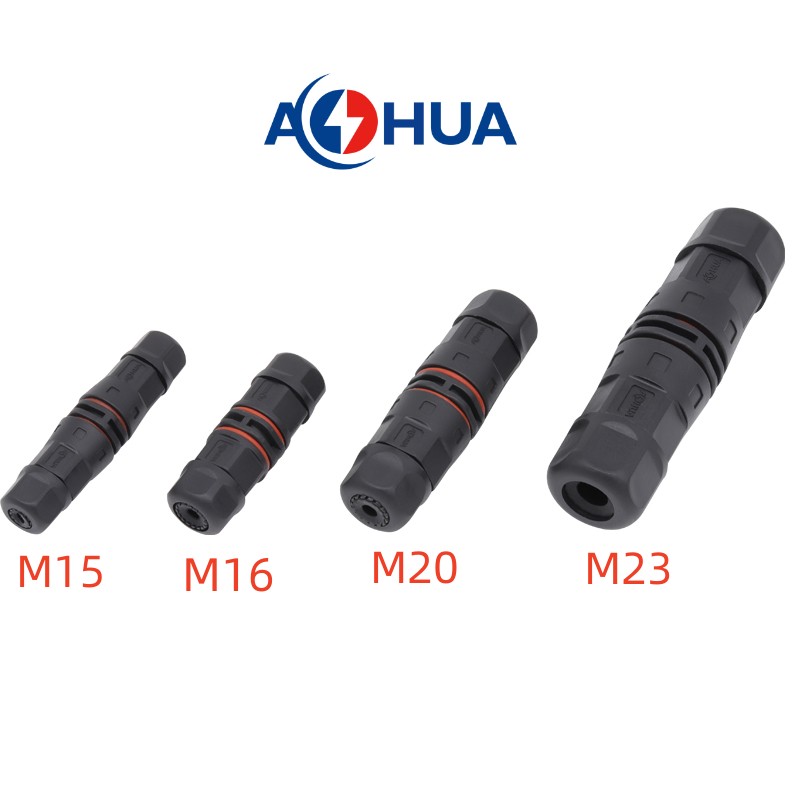

Let us show you L assembly series M15 M16 M20 M23 first.

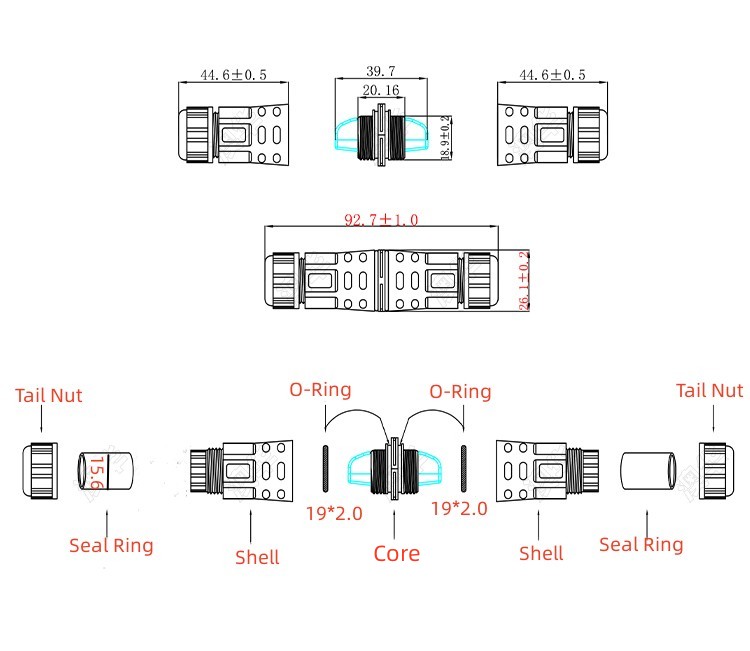

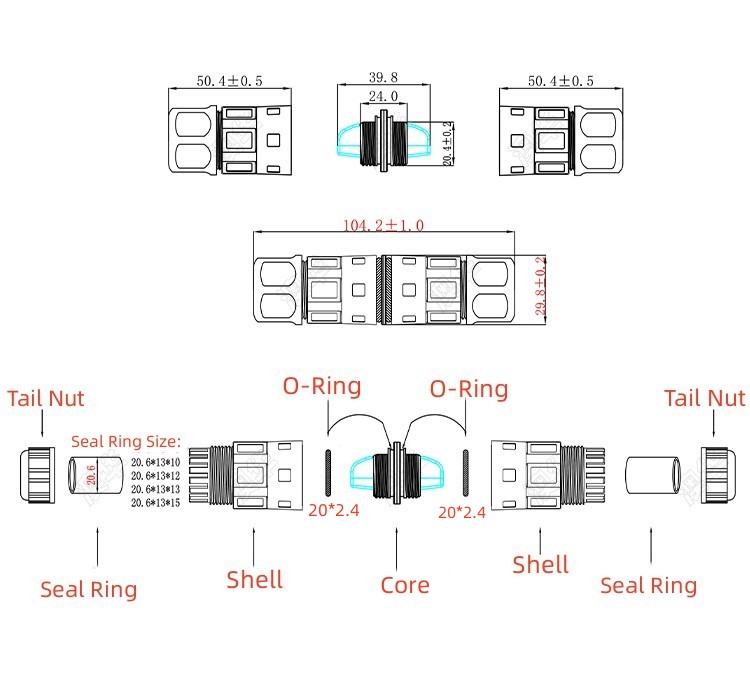

Installation instructions.
