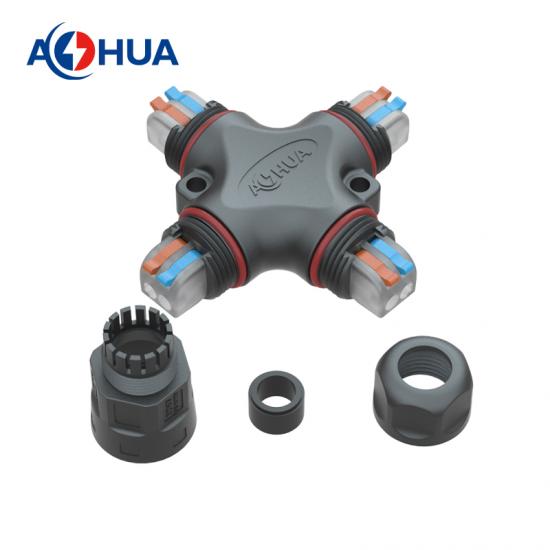

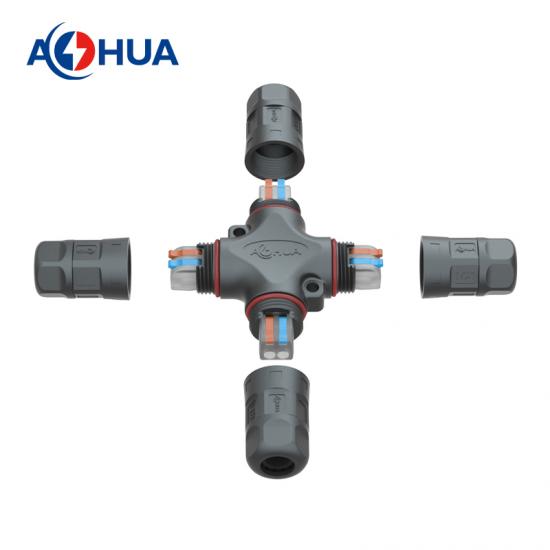

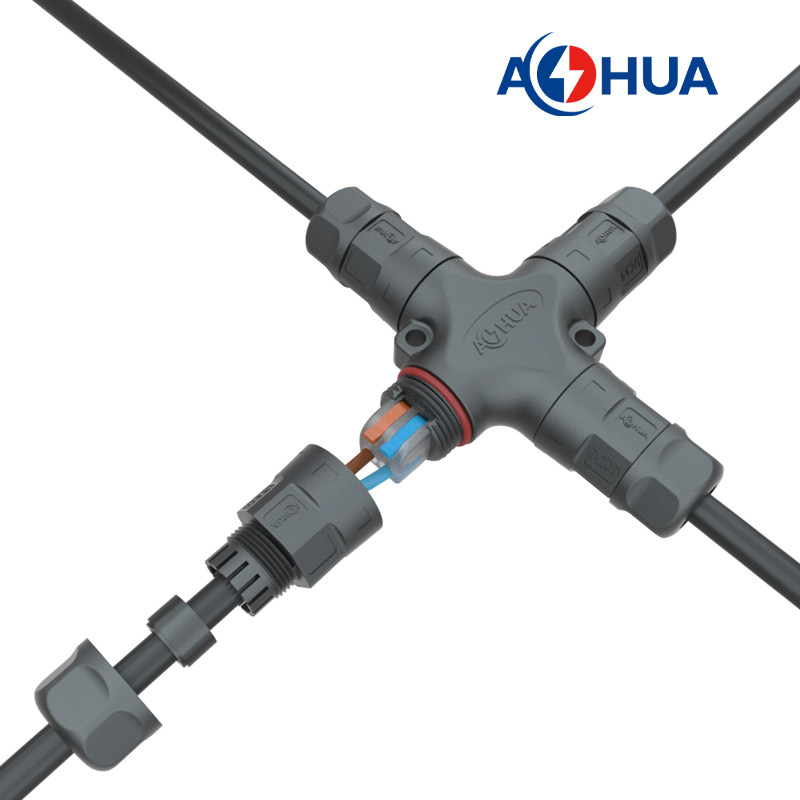

L/T/X Type Push Lock Wire Power Connector For Strip Light

X Splitter Waterproof connector

Item NO.:
M20X
Lead Time:
a week
Product Orgin:
China
Shipping Port:
shenzhen,china
Payment:
TT,PAYPAL
Color:
black
Product Material:
PA66

Inquiry now

products Details

L/T/X Type Push Lock Wire Power Connector For Strip Light

Items	Pins	Part Number	Voltage Rating	Current Rating	Wire Gauge	Cable OD
M20	2	AH-M20-2502T01132	250V	25A	≤2.5mm²	5.5mm-10mm
M20	2	AH-M20-2502X01132	250V	25A	≤2.5mm²	5.5mm-10mm
M21	2	AH-M21-2502Z01132	250V	25A	≤2.5mm²	6mm-13mm
M25	3	AH-M25-2503Z01132	250V	25A	≤2.5mm²	6.5mm-15mm
M25	3	AH-M25-2503T01132	250V	25A	≤2.5mm²	6.5mm-15mm
M25	3	AH-M25-2503X01132	250V	25A	≤2.5mm²	6.5mm-15mm

Operating Rating -40ºC-+105ºC

Waterproof Level IP67/IP68

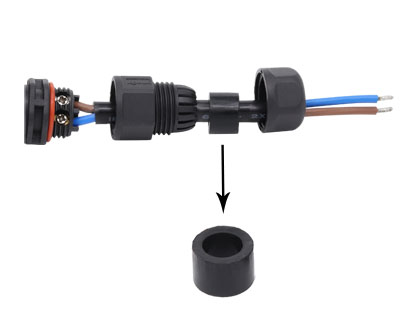

Cable OD Seal Ring

5.5mm-10mm 13*9*6.5/7.5/8.5/9.5/10mm

6mm-13mm 15.6*13*7/9/10/11/12/13mm

6.5mm-15mm 20.6*13*7.5/8.5/10/12/13/15mm

Before get the quotation, please tell us the connection of waterproof connector.

(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...

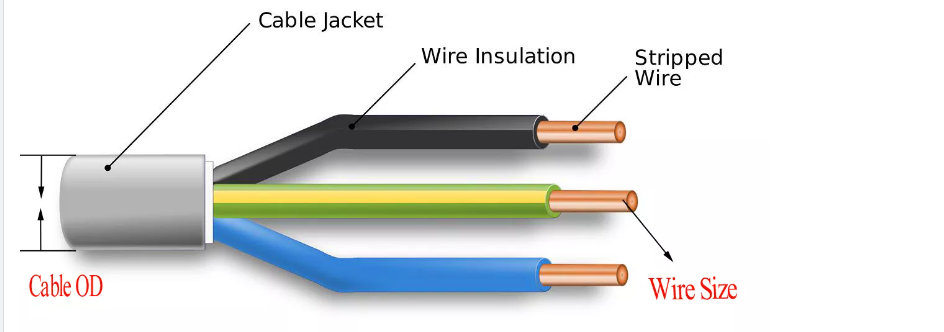

(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...

Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.

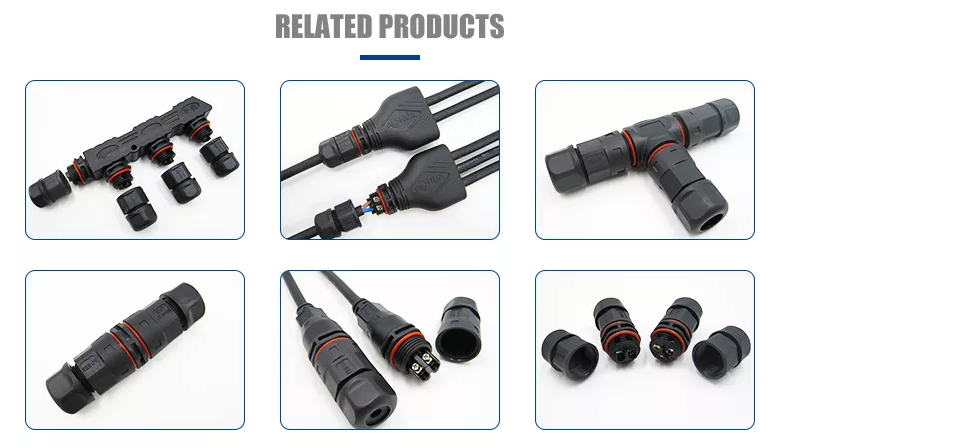

Related Products

Our Advantages

Advantages:

1.Nylon PA66,assembly waterproof connector ,screw fixing type,parallel connection.

2.20A power connector: high quality, waterproof level IP67. Quick connect type

3.UL,SAA,CE,RoHS,ISO 9001 certification;M20 2,3 pin passed UL,CE,RoHS,SAA certificate.

4.The installation process is very simple.

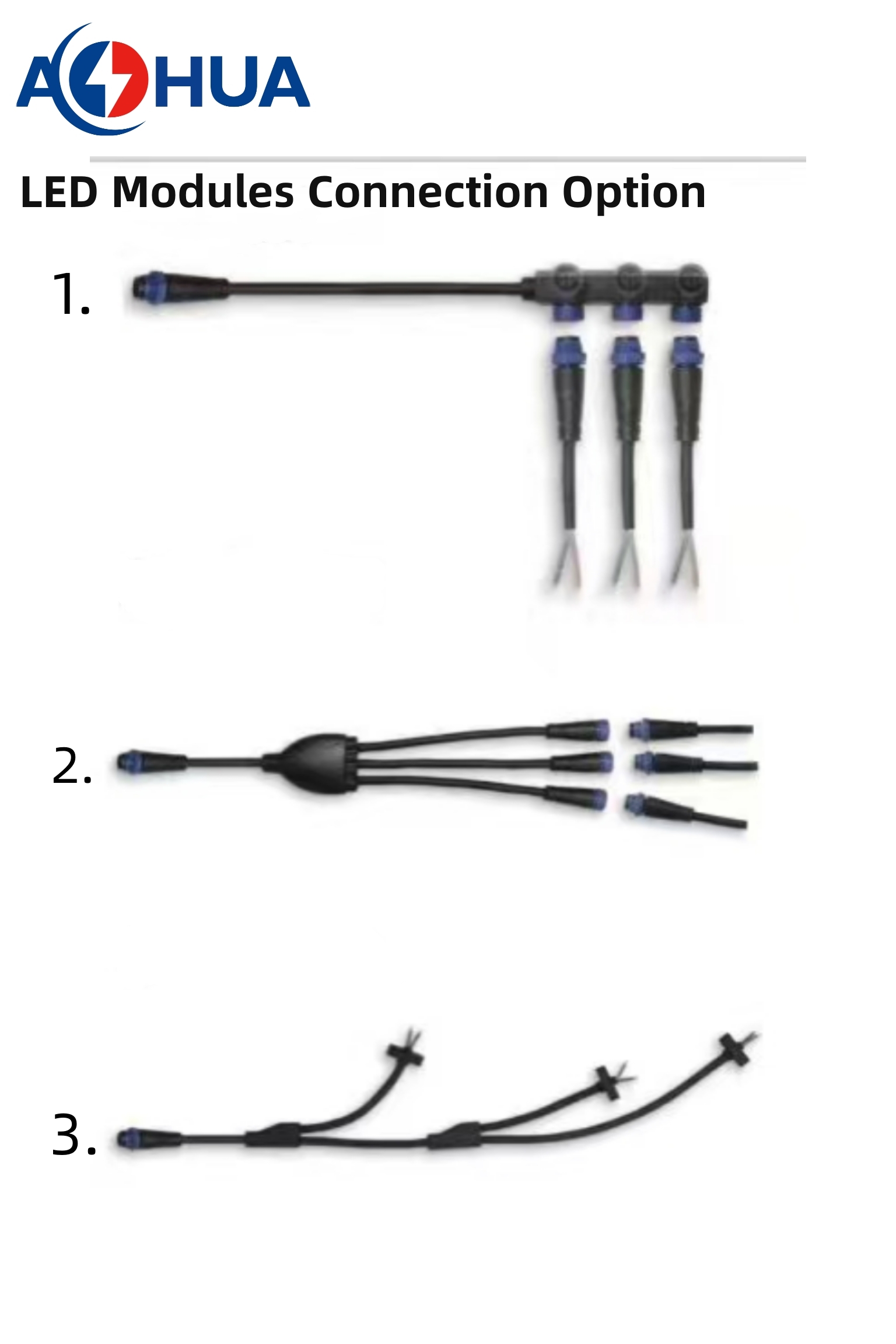

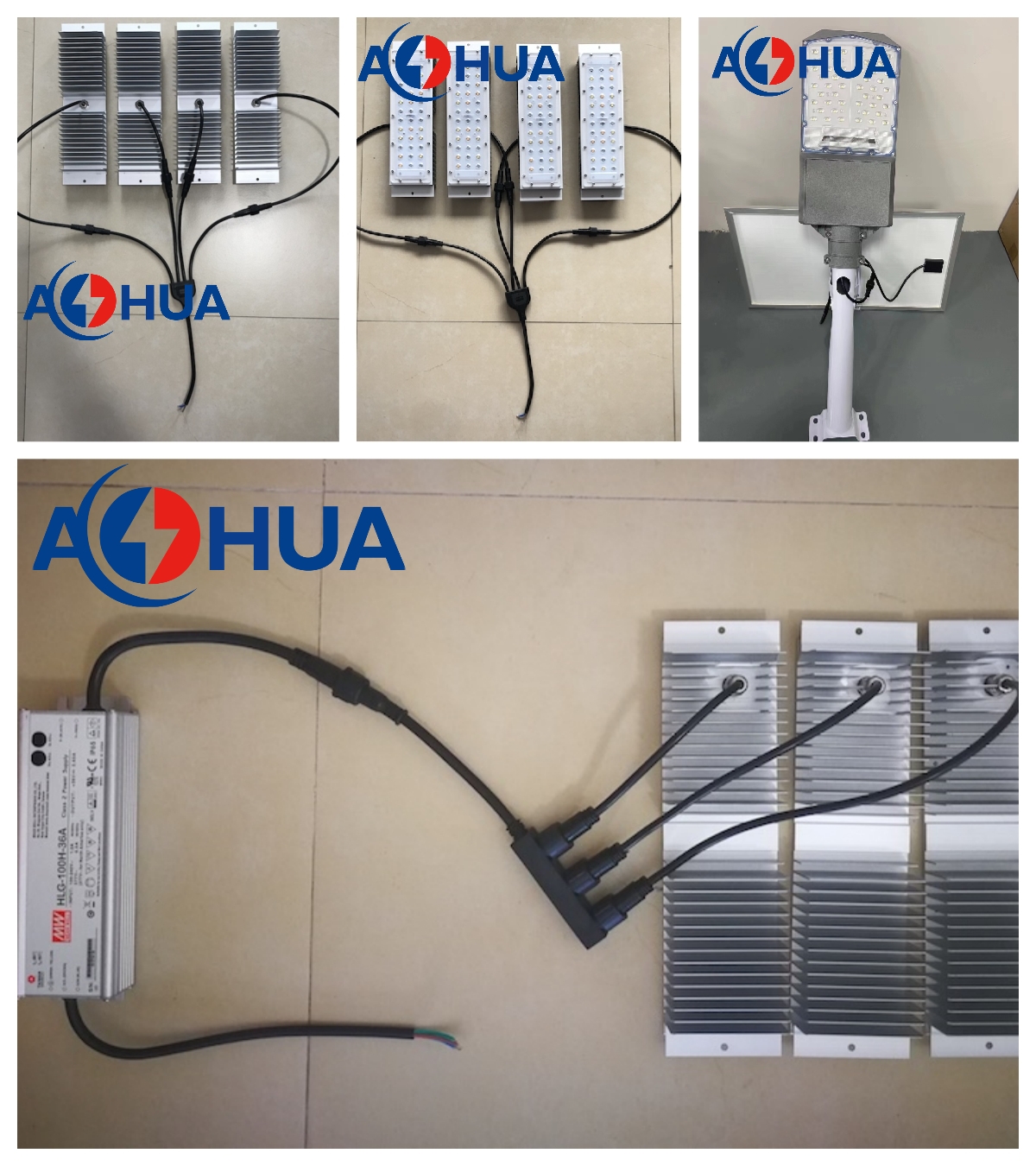

5.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
