M20/M23 Screw X Type Waterproof Connector
Items
Pins
Part Number
Voltage Rating
Current Rating
Wire Gauge
Cable OD
M20
2
AH-M20-2002X01122
300V
20A
≤1.5mm²
5.5mm-10mm
M20
3
AH-M20-2003X01122
300V
20A
≤1.5mm²
5.5mm-10mm
M23
2
AH-M23-3502X01122
300V
35A
≤4.0mm²
6.5mm-15mm
M23
3
AH-M23-3503X01122
300V
35A
≤4.0mm²
6.5mm-15mm
Operating
Rating
-40ºC-+105ºC
Waterproof
Level
IP67/IP68
Cable OD
Seal Ring
5.5mm-10mm
13*9*6.5/7.5/8.5/9.5/10mm
6.5mm-15mm
20.6*13*7.5/8.5/10/12/13/15mm
RELATED PRODUCTS
Our Advantages
Application
Advantages:

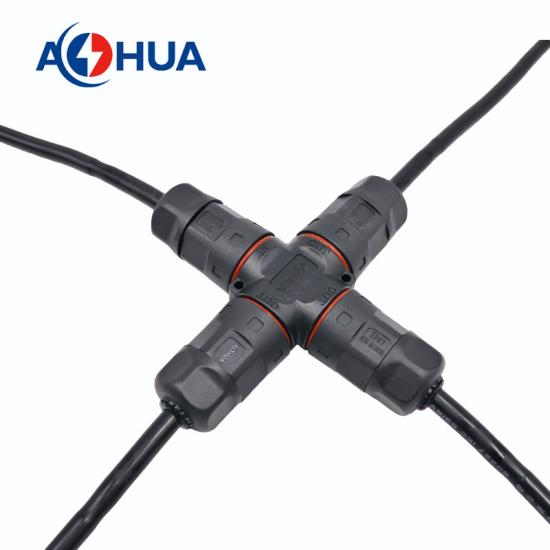

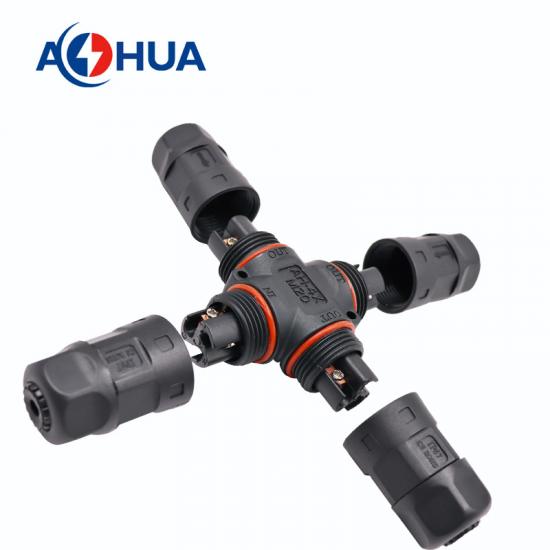

1.Nylon PA66,assembly waterproof connector,screw fixing type.L/Straight 2 pin,3 pin,4 pin waterproof connector.
2.UL,SAA,CE,RoHS,ISO 9001 certification;2,3 pin passed UL,CE,RoHS,SAA certificate.
3.The Installation process is very simple.
4.Asemmbly Type,2pin suitable 2*1.5mm² Cable/2*1.0mm² Cable/2*0.75mm²Cable.
5.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Futher application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
| Assembly Connector | Wire to wire /Wire to panel waterproof connector,L/T screw type connector |
| Over-mold Connector | Nylon/PVC /Metal /Aviation waterproof connector,DC connector |
| T Connector | Over-mold T waterproof connector |
| Y Connector | Over-mold Y waterproof connector |
| Distributor Connector | M15/M18 Series(1to2/3/4/5/6) LED waterproof connector |
Packaging & Shipping
| Quantity (sets) | 1 - 500 | > 500 |
| Lead time (days) | 6 | To be negotiated |
| Shipment |
Express(DHL,Fedex,TNT,Ups);Ocean freight Land freight;Air freight |
|
