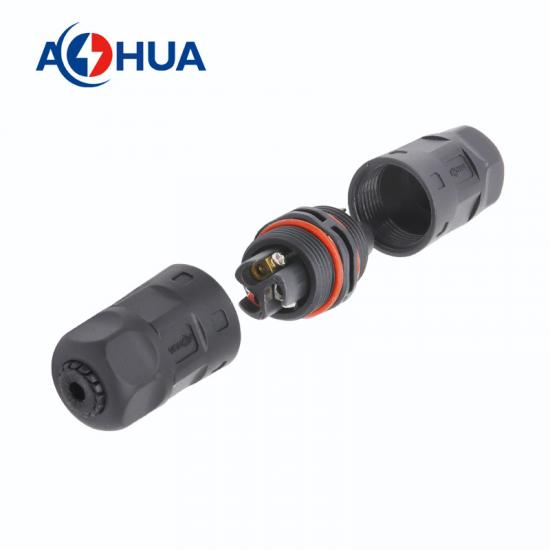

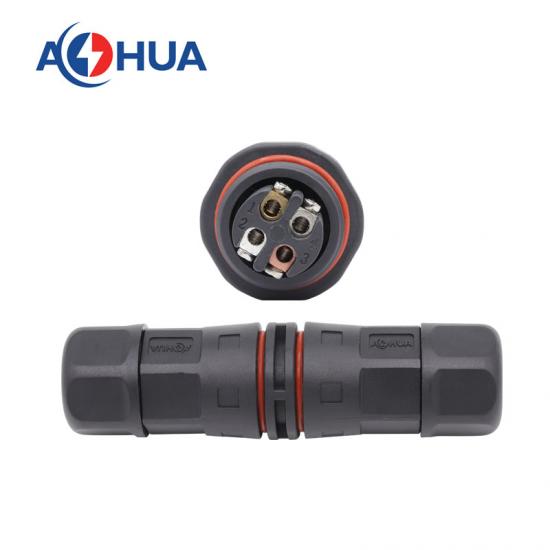

M15/M16/M20/M23 Filed Assembly Screw Fixing Type Waterproof Connector
Items
Pins
Part Number
Voltage Rating
Current Rating
Wire Gauge
Cable OD
M15
2
AH-M15-1002Z01122
300V
10A
≤0.5mm²
2.6mm-7.5mm
M15
3
AH-M15-1003Z01122
300V
10A
≤0.5mm²
2.6mm-7.5mm
M16
2
AH-M16-2002Z01122
300V
10A
≤0.5mm²
5.5mm-10mm
M16
3
AH-M16-2003Z01122
300v
20A
≤0.5mm²
5.5mm-10mm
M20
2
AH-M20-2002Z01122
300V
20A
≤1.5mm²
5.5mm-10mm
M20
3
AH-M20-2003Z01122
300V
20A
≤1.5mm²
5.5mm-10mm
M23
2
AH-M23-3502Z01122
300V
35A
≤4.0mm²
6.5mm-15mm
M23
3
AH-M23-3503Z01122
300V
35A
≤4.0mm²
6.5mm-15mm
Mechanical Life
3000 mating cycles
Operating Rating
-40ºC-+105ºC
Waterproof Level
IP67/IP68

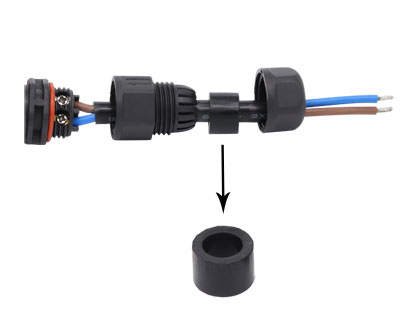

Cable OD
Seal Ring
2.6mm-7.5mm
9*9*3.6/4.1/5.5/6.5/7.5mm
5.5mm-10mm
13*9*6.5/7.5/8.5/9.5/10mm
6.5mm-15mm
20.6*13*7.5/8.5/10/12/13/15mm
Such as
1.Voltage Rating:250V,300V...
2. Current Rating: 8A,15A...

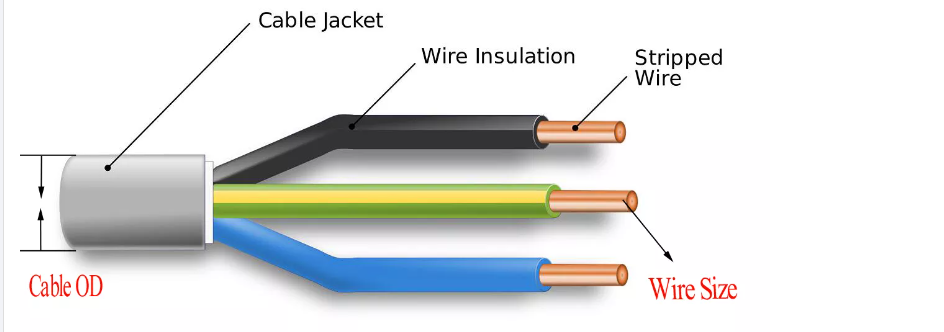

3. Wire size: 2*0.75mm²,3*1.5mm²...
4. Cable OD(over diameter), such as 8mm...
5.Type:Solder type or screw fixing type.
Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.

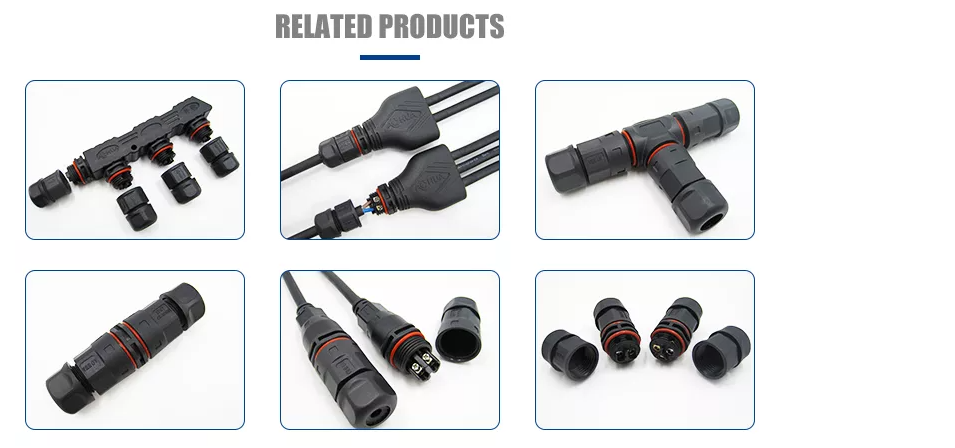

RELATED PRODUCTS
CERTIFICATIONS
OUR ADVANTAGESApplication
Advantages:
1.Nylon PA66,assembly waterproof connector,screw fixing type.L/Straight 2 pin,3 pin,4 pin waterproof connector.
2.UL,SAA,CE,RoHS,ISO 9001 certification;2,3 pin passed UL,CE,RoHS,SAA certificate.
3.The Installation process is very simple.
4.Asemmbly Type,2pin suitable 2*1.5mm² Cable/2*1.0mm² Cable/2*0.75mm²Cable.

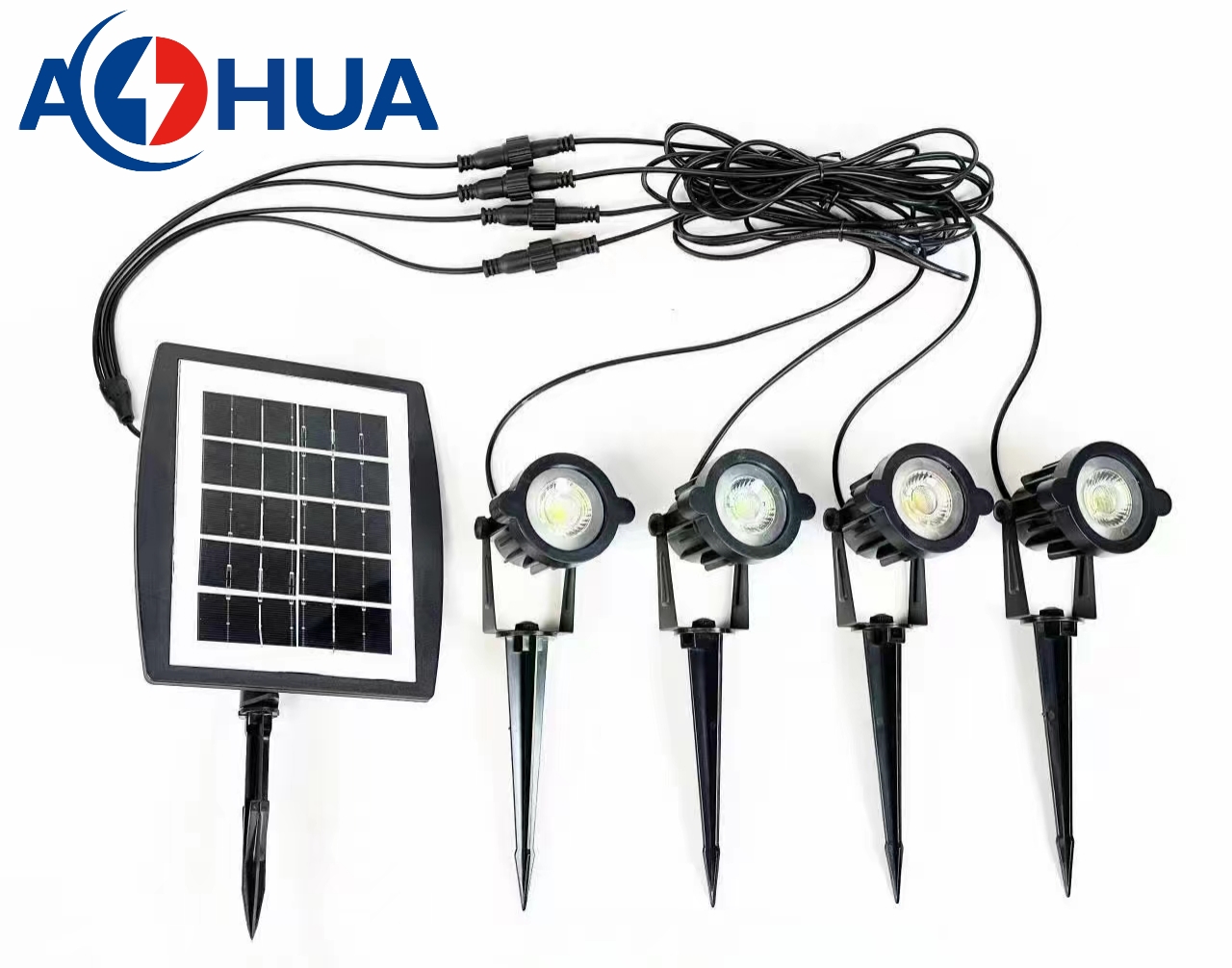

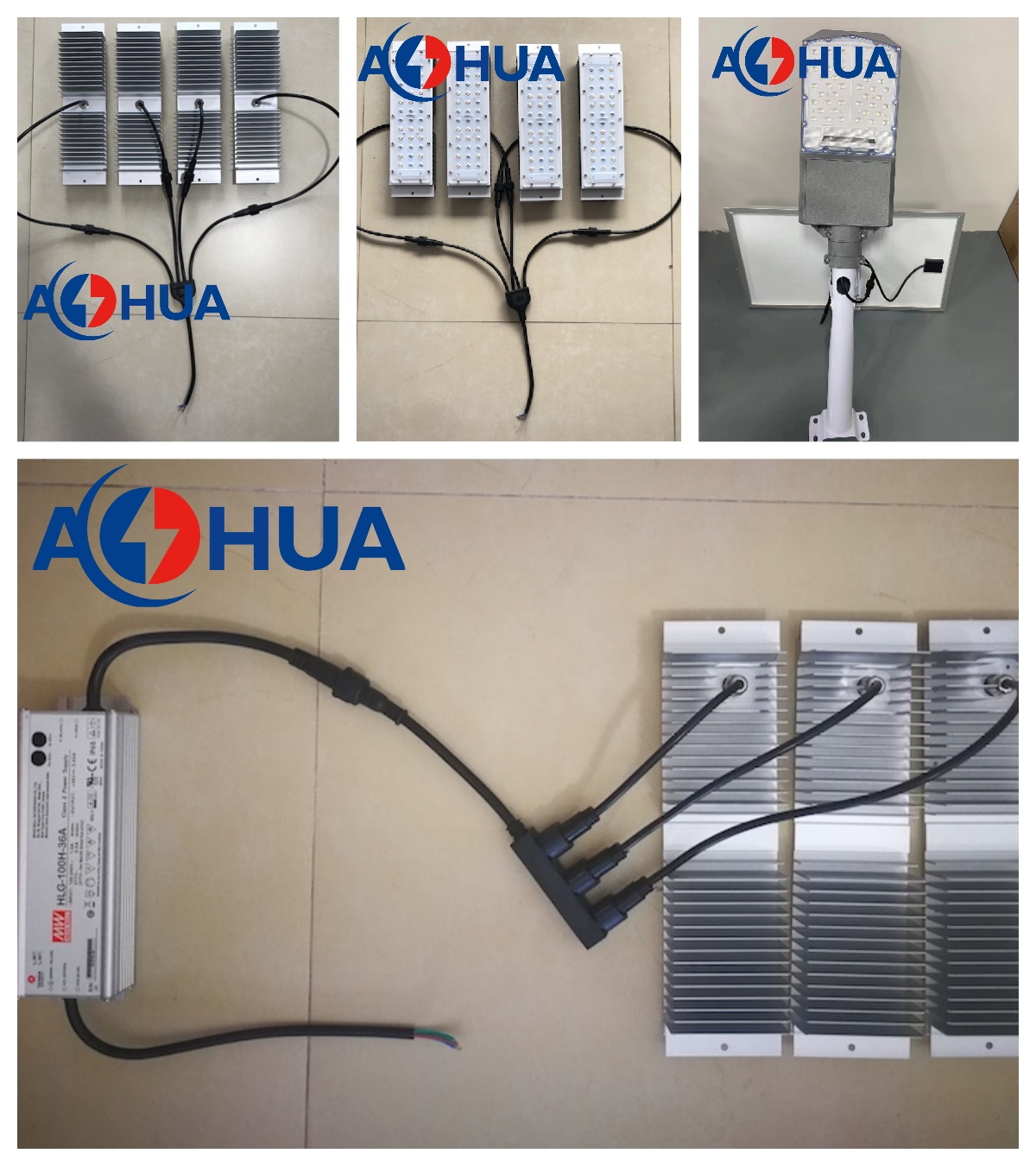

5.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Futher application in coastal,outdoor engineering,mining
engineering,solar wind power,solar water heaters,various machinery and
equipment.
Assembly Connector
Wire to wire /Wire to panel waterproof connector,L/T screw type connector
Over-mold Connector
Nylon/PVC /Metal /Aviation waterproof connector,DC connector
T Connector
Over-mold T waterproof connector
Y Connector
Over-mold Y waterproof connector

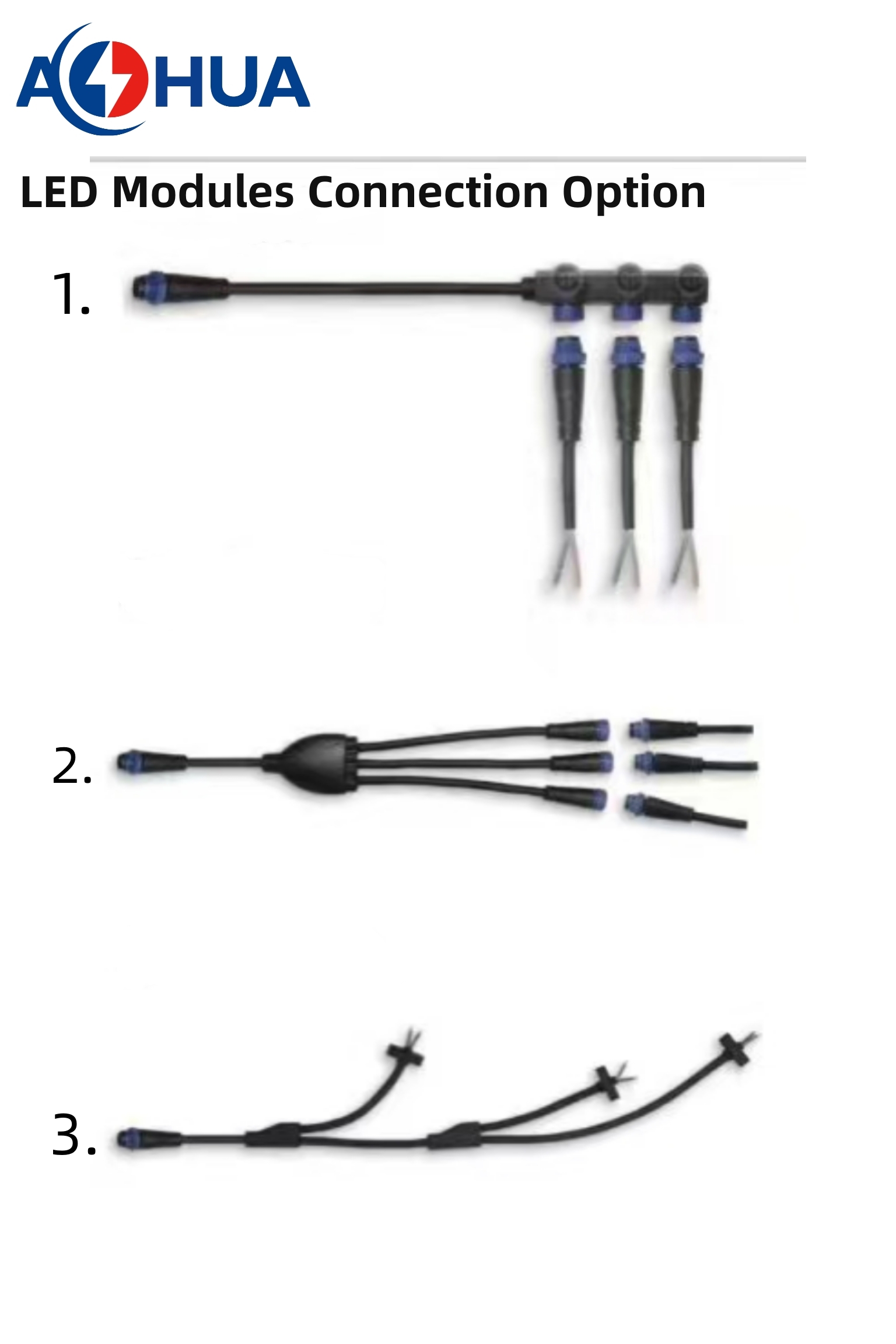

Distributor Connector
M15/M18 Series(1to2/3/4/5/6) LED waterproof connector
PACKAGING & SHIPPING
Quantity (sets)
1 - 500
501 - 1500
>1500
Lead time (days)
5
9
To be negotiated
Shipment
Express(DHL,Fedex,TNT,Ups);Ocean freight
Land freight;Air freight
