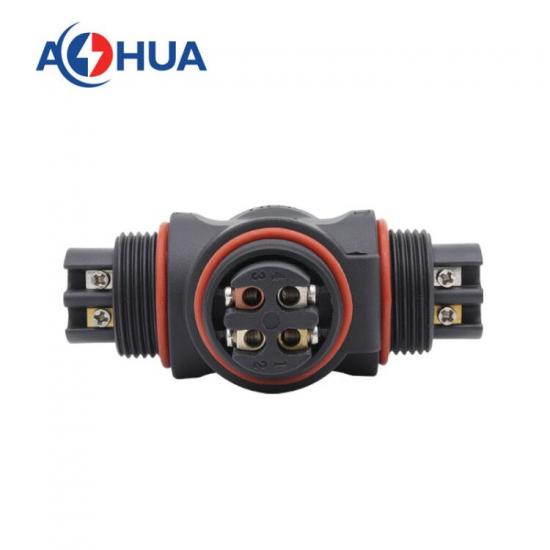

M20/M23 Screw Fixing T Type Waterproof Connector
Items
Pins
Part Number
Voltage Rating
Current Rating
Wire Gauge
Cable OD
M15
2
AH-M15-1002T01122
300V
10A
≤0.5mm²
2.6mm-7.5mm
M20
2
AH-M20-2002T01122
300V
20A
≤1.5mm²
5.5mm-10mm
M20
3
AH-M20-2003T01122
300V
20A
≤1.5mm²
5.5mm-10mm
M20
4
AH-M20-1004T01122
300V
10A
≤1.0mm²
5.5mm-10mm
M23
2
AH-M23-3502T01122
300V
35A
≤4.0mm²
6.5mm-15mm
M23
3
AH-M23-3503T01122
300V
35A
≤4.0mm²
6.5mm-15mm
M23
4
AH-M23-2004T01122
300V
20A
≤2.5mm²
6.5mm-15mm
Operating Rating
-40ºC-+105ºC
Waterproof Level
IP67/IP68
Cable OD

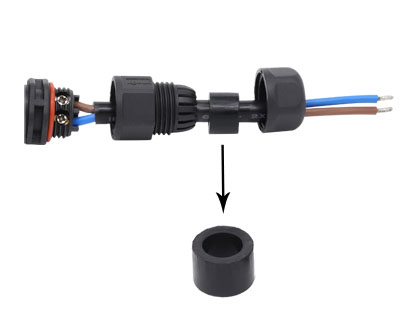

Seal Ring
2.6mm-7.5mm
9*9*3.6/4.1/5.5/6.5/7.5mm
5.5mm-10mm
13*9*6.5/7.5/8.5/9.5/10mm
6.5mm-15mm
20.6*13*7.5/8.5/10/12/13/15mm
Before get the quotation, please tell us the connection of waterproof connector.
(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...
Then AHUA team will answer you and choose the correct waterproof connector for you with 24h.
RELATED PRODUCTS
Our Advantages
Advantages:

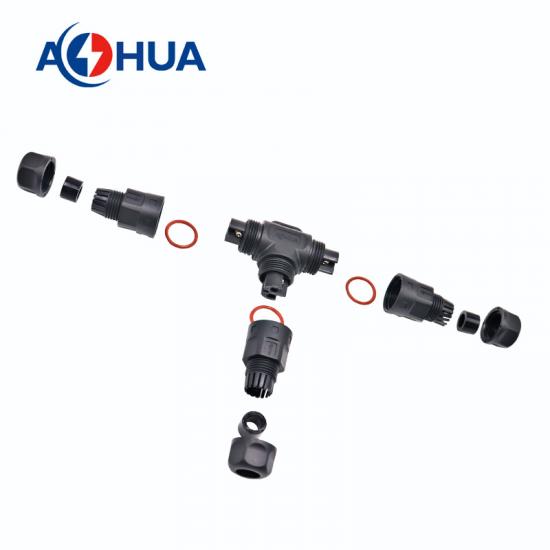

1.Nylon PA66,assembly waterproof connector ,screw fixing type,parallel connection.
2.UL,SAA,CE,RoHS,ISO 9001 certification;
M20/M23 2,3 pin passed UL,CE,RoHS,SAA certificate.
3.The installation process is very simple.

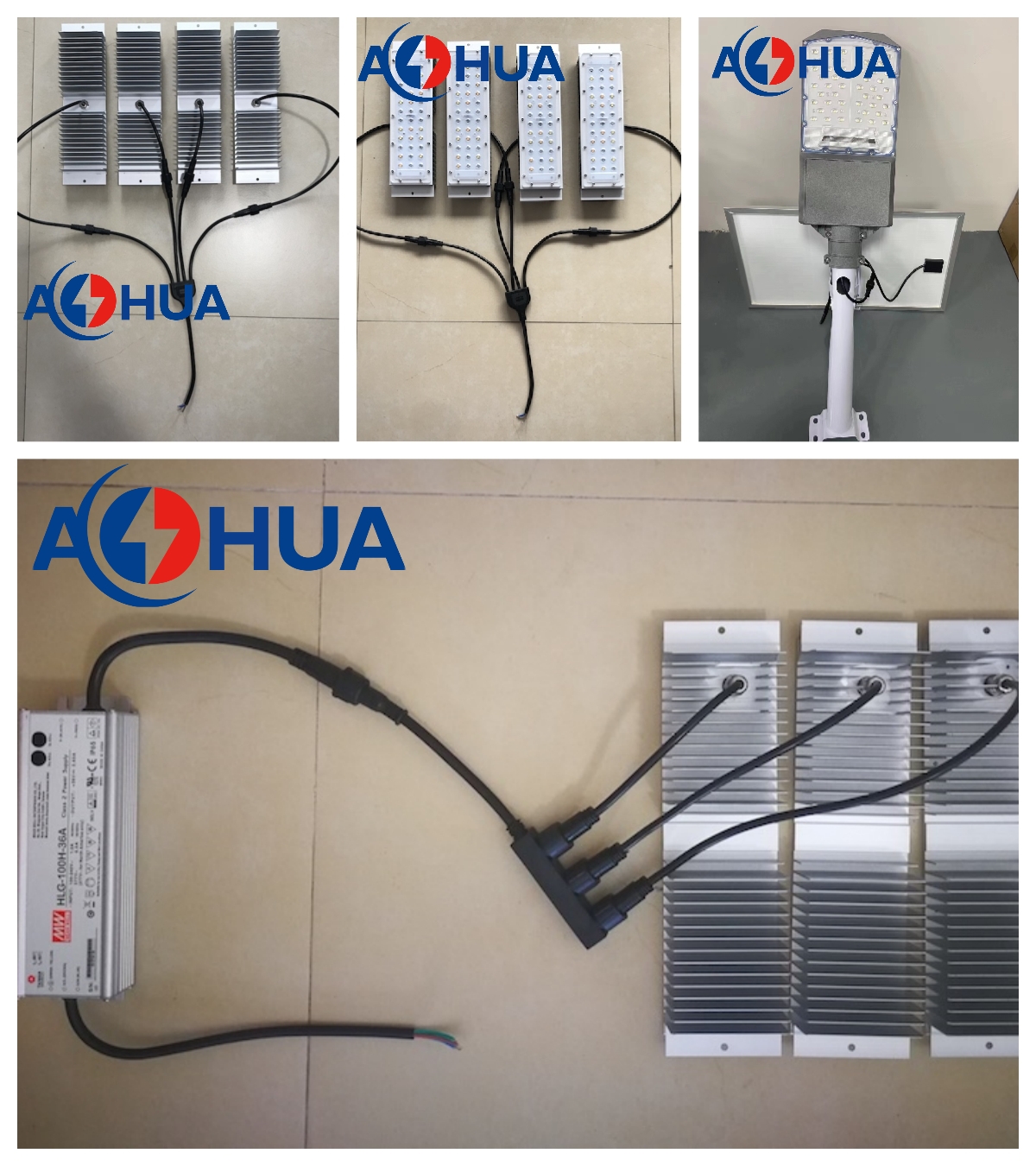

4.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
